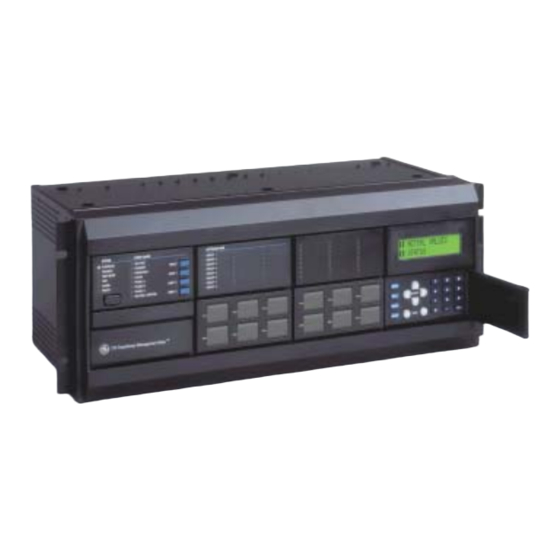

Page 1 Title Page GE Industrial Systems T35 Transformer Management Relay UR Series Instruction Manual T35 Revision: 4.0x Manual P/N: 1601-0114-G1 (GEK-106489) Copyright © 2004 GE Multilin 828742A1.CDR GE Multilin 215 Anderson Avenue, Markham, Ontario Canada L6E 1B3 Tel: (905) 294-6222 Fax: (905) 201-2098 Internet: http://www.GEindustrial.com/multilin...
Page 3 GE Industrial Systems ADDENDUM This Addendum contains information that relates to the T35 Transformer Management Relay relay, version 4.0x. This addendum lists a number of information items that appear in the instruction manual GEK-106489 (revision G1) but are not included in the current T35 operations.
Page 5: Table Of Contents
IMPORTANT CONCEPTS ................. 1-4 1.3 ENERVISTA URPC SETUP SOFTWARE 1.3.1 PC REQUIREMENTS ..................1-5 1.3.2 INSTALLATION....................1-5 1.3.3 CONNECTING ENERVISTA URPC SETUP WITH THE T35 ......1-8 1.4 UR HARDWARE 1.4.1 MOUNTING AND WIRING................1-11 1.4.2 COMMUNICATIONS..................1-11 1.4.3 FACEPLATE DISPLAY ..................1-11 1.5 USING THE RELAY...
Page 6 FLEXCURVES™ ....................5-53 5.4 FLEXLOGIC™ 5.4.1 INTRODUCTION TO FLEXLOGIC™..............5-60 5.4.2 FLEXLOGIC™ RULES ..................5-65 5.4.3 FLEXLOGIC™ EVALUATION ................5-65 5.4.4 FLEXLOGIC™ EXAMPLE ................5-66 5.4.5 FLEXLOGIC™ EQUATION EDITOR..............5-70 5.4.6 FLEXLOGIC™ TIMERS ...................5-70 5.4.7 FLEXELEMENTS™ ..................5-71 5.4.8 NON-VOLATILE LATCHES ................5-75 T35 Transformer Management Relay GE Multilin...
Page 7 6.4 RECORDS 6.4.1 USER-PROGRAMMABLE FAULT REPORTS ..........6-16 6.4.2 EVENT RECORDS ..................6-16 6.4.3 OSCILLOGRAPHY ..................6-16 6.4.4 DATA LOGGER ....................6-17 6.5 PRODUCT INFORMATION 6.5.1 MODEL INFORMATION .................. 6-18 6.5.2 FIRMWARE REVISIONS ................. 6-18 GE Multilin T35 Transformer Management Relay...
Page 8 EXCEPTION RESPONSES................B-5 B.3 FILE TRANSFERS B.3.1 OBTAINING UR FILES VIA MODBUS .............. B-6 B.3.2 MODBUS PASSWORD OPERATION ............... B-7 B.4 MEMORY MAPPING B.4.1 MODBUS MEMORY MAP ................. B-8 B.4.2 DATA FORMATS..................... B-36 viii T35 Transformer Management Relay GE Multilin...
Page 9 COUNTERS .....................E-14 E.2.4 ANALOG INPUTS ....................E-15 F. MISCELLANEOUS F.1 CHANGE NOTES F.1.1 REVISION HISTORY ..................F-1 F.1.2 CHANGES TO THE T35 MANUAL ..............F-1 F.2 ABBREVIATIONS F.2.1 STANDARD ABBREVIATIONS ................. F-4 F.3 WARRANTY F.3.1 GE MULTILIN WARRANTY ................F-6 GE Multilin...
Page 10 TABLE OF CONTENTS T35 Transformer Management Relay GE Multilin...
Page 11: Getting Started
• registration card (attached as the last page of the manual) • Fill out the registration form and return to GE Multilin (include the serial number located on the rear nameplate). • For product information, instruction manual updates, and the latest software updates, please visit the GE Multilin web- site at http://www.GEindustrial.com/multilin.
Page 12: Ur Overview
This new generation of equipment must also be easily incorporated into automation systems, at both the station and enterprise levels. The GE Multilin Universal Relay (UR) has been developed to meet these goals. T35 Transformer Management Relay...
Page 13: Hardware Architecture
(dual) ring configuration. This feature is optimized for speed and intended for pilot- aided schemes, distributed logic applications, or the extension of the input/output capabilities of a single relay chassis. GE Multilin T35 Transformer Management Relay...
Page 14: Software Architecture
CTs and VTs is in the Introduction to AC Sources section in Chapter 5. A description of how digital signals are used and routed within the relay is contained in the Introduction to FlexLogic™ section in Chapter 5. T35 Transformer Management Relay GE Multilin...
Page 15: Enervista Urpc Setup Software
Video capable of displaying 800 x 600 or higher in high-color mode (16-bit color) • RS232 and/or Ethernet port for communications to the relay The following qualified modems have been tested to be compliant with the T35 and the enerVista URPC Setup software. • US Robotics external 56K FaxModem 5686 •...
Page 16 “CD” if you do not have a web connection, then click the Check Now button to list software items for the T35. Select the T35 software program and release notes (if desired) from the list and click the Download Now button to obtain the installation program.
Page 17 1 GETTING STARTED 1.3 ENERVISTA URPC SETUP SOFTWARE 10. Click Finish to end the installation. The T35 device will be added to the list of installed IEDs in the enerVista Launch- pad window, as shown below. GE Multilin T35 Transformer Management Relay...
Page 18: Connecting Enervista Urpc Setup With The T35
MODBUS TCP PORT NUMBER Click the Read Order Code button to connect to the T35 device and upload the order code. If an communications error occurs, ensure that the three enerVista URPC Setup values entered in the previous step correspond to the relay set- ting values.
Page 19 Enter the physical communications parameters (baud rate and parity settings) in their respective fields. Click the Read Order Code button to connect to the T35 device and upload the order code. If an communications error occurs, ensure that the enerVista URPC Setup serial communications values entered in the previous step correspond to the relay setting values.
Page 20 1.3 ENERVISTA URPC SETUP SOFTWARE 1 GETTING STARTED Refer to Chapter 4 in this manual and the enerVista URPC Setup Help File for more information about the using the enerVista URPC Setup software interface. NOTE 1-10 T35 Transformer Management Relay GE Multilin...
Page 21: Ur Hardware
Figure 1–4: RELAY COMMUNICATIONS OPTIONS To communicate through the T35 rear RS485 port from a PC RS232 port, the GE Multilin RS232/RS485 converter box is required. This device (catalog number F485) connects to the computer using a “straight-through” serial cable. A shielded twisted-pair (20, 22, or 24 AWG) connects the F485 converter to the T35 rear communications port.
Page 22: Using The Relay
MESSAGE key from a setting value or actual value display returns to the header display. HIGHEST LEVEL LOWEST LEVEL (SETTING VALUE) ## SETTINGS # PASSWORD ACCESS LEVEL: ## PRODUCT SETUP # SECURITY Restricted ## SETTINGS ## SYSTEM SETUP 1-12 T35 Transformer Management Relay GE Multilin...
Page 23: Relay Activation
FlexLogic™ equation editing is required for setting up user-defined logic for customizing the relay operations. See the Flex- Logic™ section in Chapter 5 for additional details. 1.5.7 COMMISSIONING Templated tables for charting all the required settings before entering them via the keypad are available from the GE Multi- lin website at http://www.GEindustrial.com/multilin. GE Multilin...
Page 24 1.5 USING THE RELAY 1 GETTING STARTED 1-14 T35 Transformer Management Relay GE Multilin...
Page 25: Product Description
Another option provides two 10BaseF fiber optic ports for redundancy. The Ethernet port supports MMS/UCA2, Modbus TCP, and TFTP protocols, and allows access to the relay via any standard web browser (T35 web pages). The IEC 60870- 5-104 protocol is supported on the Ethernet port. DNP 3.0 and IEC 60870-5-104 cannot be enabled at the same time.
Page 26 User-Programmable Fault Reports FlexLogic™ Equations User Programmable LEDs Metering: Current, Voltage, Power, Power User Programmable Pushbuttons Factor, Frequency User Programmable Self-Tests MMS/UCA Communications Virtual Inputs (32) MMS/UCA Remote Inputs/Outputs (“GOOSE”) Virtual Outputs (64) Modbus Communications T35 Transformer Management Relay GE Multilin...
Page 27: Ordering
(see Chapter 3 for full details of relay modules). Table 2–3: T35 ORDER CODES T35 - * 00 - H * * - F ** - H ** - M ** - P ** - U ** - W ** For Full Size Horizontal Mount...
Page 28 4 dcmA Inputs, 4 dcmA Outputs (only one 5A module is allowed) 8 RTD Inputs 4 RTD Inputs, 4 dcmA Outputs (only one 5D module is allowed) 4 dcmA Inputs, 4 RTD Inputs 8 dcmA Inputs T35 Transformer Management Relay GE Multilin...
Page 29: Specifications
IEEE Moderately/Very/Extremely harmonic inhibit level: 1.0 to 40.0% in steps of 0.1 Inverse; IEC (and BS) A/B/C and Short harmonic inhibit function: Adaptive, Traditional, Disabled Inverse; GE IAC Inverse, Short/Very/ harmonic inhibit mode: Per-phase, 2-out-of-3, Average Extremely Inverse; I t; FlexCurves™...
Page 30: User-Programmable Elements
Pickup & dropout delay: 0.000 to 65.535 s in steps of 0.001 chronize to a 3-bit control input NON-VOLATILE LATCHES Type: Set-dominant or Reset-dominant Number: 16 (individually programmed) Output: Stored in non-volatile memory Execution sequence: As input prior to protection, control, and FlexLogic™ T35 Transformer Management Relay GE Multilin...
Page 31: Monitoring
±1.0% of reading at I = 0.1 to 0.25 pu: ±0.05 Hz –0.8 < PF ≤ –1.0 and 0.8 < PF ≤ 1.0 I > 0.25 pu: ±0.02 Hz (when current signal is used for frequency measurement) GE Multilin T35 Transformer Management Relay...
Page 32: Inputs
Nominal AC voltage: 100 to 240 V at 50/60 Hz, 0.7 A INTERRUPTING CAPACITY Min/max AC voltage: 88 / 265 V at 48 to 62 Hz 100 000 A RMS symmetrical 10 000 A T35 Transformer Management Relay GE Multilin...
Page 33: Outputs
±0.75% of full-scale for 0 to 20 mA range 99% Settling time to a step change: 100 ms Isolation: 1.5 kV Driving signal: any FlexAnalog quantity Upper and lower limit for the driving signal: –90 to 90 pu in steps of 0.001 GE Multilin T35 Transformer Management Relay...
Page 34: Communications
1300 nm LED, Multimode –11 dBm asymmetry) channel delays using GPS satellite clock: 10 ms 1300 nm ELED, Singlemode –14 dBm 1300 nm Laser, Singlemode –14 dBm 1550 nm Laser, Singlemode –14 dBm 2-10 T35 Transformer Management Relay GE Multilin...
Page 35: Environmental
CLEANING Attach mounting brackets using 20 inch-pounds (±2 inch-pounds) Normally, cleaning is not required; but for situations where dust of torque. has accumulated on the faceplate display, a dry cloth can be used. GE Multilin T35 Transformer Management Relay 2-11...
Page 36 2.2 SPECIFICATIONS 2 PRODUCT DESCRIPTION 2-12 T35 Transformer Management Relay GE Multilin...
Page 37: Hardware
The relay must be mounted such that the faceplate sits semi-flush with the panel or switchgear door, allowing the operator access to the keypad and the RS232 communications port. The relay is secured to the panel with the use of four screws supplied with the relay. Figure 3–1: T35 HORIZONTAL MOUNTING AND DIMENSIONS GE Multilin T35 Transformer Management Relay...
Page 38: Module Withdrawal And Insertion
NOTE The version 4.0 release of the T35 relay includes new hardware (CPU and CT/VT modules). The new CPU mod- ules are specified with the following order codes: 9E, 9G, and 9H. The new CT/VT modules are specified with the following order codes: 8F, 8G, 8H, 8J, and 8K.
Page 39: Rear Terminal Layout
(nearest to CPU module) which is indicated by an arrow marker on the terminal block. See the following figure for an example of rear terminal assignments. Figure 3–4: EXAMPLE OF MODULES IN F AND H SLOTS GE Multilin T35 Transformer Management Relay...
Page 40: Wiring
3.2 WIRING 3 HARDWARE 3.2WIRING 3.2.1 TYPICAL WIRING VOLTAGE SUPV. VOLT & CURRENT SUPV. Figure 3–5: TYPICAL WIRING DIAGRAM T35 Transformer Management Relay GE Multilin...
Page 41: Dielectric Strength
(RFI) and electromagnetic interference (EMI). These protective components can be damaged by application of the ANSI/IEEE C37.90 specified test voltage for a period longer than the specified one minute. GE Multilin T35 Transformer Management Relay...
Page 42: Control Power
OCCUR! CAUTION The T35 relay, like almost all electronic relays, contains electrolytic capacitors. These capacitors are well known to be subject to deterioration over time if voltage is not applied periodically. Deterioration can be avoided by powering the relays up once a year.
Page 43 The phase voltage channels are used for most metering and protection purposes. The auxiliary voltage channel is used as input for the Synchrocheck and Volts/Hertz features. 827831AA-X5.CDR 827831AA-X3.CDR Figure 3–8: CT/VT MODULE WIRING Wherever a tilde “~” symbol appears, substitute with the Slot Position of the module. NOTE GE Multilin T35 Transformer Management Relay...
Page 44: Contact Inputs/Outputs
Cont Op x Ioff Load b) Current with optional voltage monitoring Current monitoring only Both voltage and current monitoring (external jumper a-b is required) Load c) No monitoring 827821A4.CDR Figure 3–9: FORM-A CONTACT FUNCTIONS T35 Transformer Management Relay GE Multilin...
Page 45 Fast Form-C ~6a, ~6c 2 Inputs Form-A ~7a, ~7c 2 Inputs Fast Form-C ~7a, ~7c 2 Inputs ~7a, ~7c 2 Inputs ~8a, ~8c 2 Inputs Fast Form-C ~8a, ~8c 2 Inputs ~8a, ~8c 2 Inputs GE Multilin T35 Transformer Management Relay...
Page 46 OUTPUT TERMINAL OUTPUT ASSIGNMENT ASSIGNMENT Not Used 2 Outputs Solid-State 2 Outputs Not Used 2 Outputs Solid-State 2 Outputs Not Used 2 Outputs Solid-State 2 Outputs Not Used 2 Outputs Solid-State Not Used 3-10 T35 Transformer Management Relay GE Multilin...
Page 47 3 HARDWARE 3.2 WIRING 82719CX-X1.dwg Figure 3–10: DIGITAL INPUT/OUTPUT MODULE WIRING (1 of 2) GE Multilin T35 Transformer Management Relay 3-11...
Page 48 – MOSFET Solid State Contact – MOSFET Solid State Contact 82719CX-X2.dwg Figure 3–11: DIGITAL INPUT/OUTPUT MODULE WIRING (2 of 2) CORRECT POLARITY MUST BE OBSERVED FOR ALL CONTACT INPUT CONNECTIONS OR EQUIPMENT DAMAGE MAY RESULT. CAUTION 3-12 T35 Transformer Management Relay GE Multilin...
Page 49 There is no provision in the relay to detect a DC ground fault on 48 V DC control power external output. We recommend using an external DC supply. NOTE GE Multilin T35 Transformer Management Relay 3-13...
Page 50: Transducer Inputs/Outputs
(5A, 5C, 5D, 5E, and 5F) and channel arrangements that may be ordered for the relay. Wherever a tilde “~” symbol appears, substitute with the Slot Position of the module. NOTE 827831AB-X1.CDR Figure 3–13: TRANSDUCER INPUT/OUTPUT MODULE WIRING 3-14 T35 Transformer Management Relay GE Multilin...
Page 51: Rs232 Faceplate Port
Cabling for the RS232 port is shown in the following figure for both 9 pin and 25 pin connectors. The baud rate for this port is fixed at 19200 bps. NOTE Figure 3–14: RS232 FACEPLATE PORT CONNECTION GE Multilin T35 Transformer Management Relay 3-15...
Page 52: Cpu Communications Ports
To ensure maximum reliability, all equipment should have similar transient protection devices installed. Both ends of the RS485 circuit should also be terminated with an impedance as shown below. 3-16 T35 Transformer Management Relay GE Multilin...
Page 53 When splicing optical fibers, the diameter and numerical aperture of each fiber must be the same. In order to engage or dis- engage the ST type connector, only a quarter turn of the coupling is required. GE Multilin T35 Transformer Management Relay 3-17...
Page 54: Irig-B
UR-series relays can be synchronized. The IRIG-B repeater has a bypass function to maintain the time signal even when a relay in the series is powered down. Figure 3–18: IRIG-B REPEATER 3-18 T35 Transformer Management Relay GE Multilin...
Page 55: Direct I/O Communications
3.3DIRECT I/O COMMUNICATIONS 3.3.1 DESCRIPTION The T35 direct inputs/outputs feature makes use of the Type 7 series of communications modules. These modules are also used by the L90 Line Differential Relay for inter-relay communications. The Direct I/O feature uses the communications channel(s) provided by these modules to exchange digital state information between relays.
Page 56 Channel 1 - RS422; Channel 2 - 1550 nm, single-mode, LASER IEEE C37.94, 820 nm, multi-mode, LED, 1 Channel IEEE C37.94, 820 nm, multi-mode, LED, 2 Channels OBSERVING ANY FIBER TRANSMITTER OUTPUT MAY CAUSE INJURY TO THE EYE. CAUTION 3-20 T35 Transformer Management Relay GE Multilin...
Page 57: Fiber: Led And Eled Transmitters
1 Channel 2 Channels 831720A3.CDR Figure 3–23: LASER FIBER MODULES When using a LASER Interface, attenuators may be necessary to ensure that you do not exceed Maximum Optical Input Power to the receiver. WARNING GE Multilin T35 Transformer Management Relay 3-21...
Page 58: Interface
Re-insert the G.703 module Take care to ensure that the correct module type is inserted into the correct slot position. The ejector/inserter clips located at the top and at the bottom of each module must be in the disengaged position as 3-22 T35 Transformer Management Relay GE Multilin...
Page 59 Loop Timing Mode for connections to higher order systems. For connection to a higher order system (UR- to-multiplexer, factory defaults), set to Octet Timing (S1 = ON) and set Timing Mode = Loop Timing (S5 = OFF and S6 = OFF). GE Multilin T35 Transformer Management Relay 3-23...
Page 60: Rs422 Interface
The shield pins (6a and 7b) are internally connected to the ground pin (8a). Proper shield termination is as follows: Site 1: Terminate shield to pins 6a and/or 7b; Site 2: Terminate shield to ‘COM’ pin 2b. 3-24 T35 Transformer Management Relay GE Multilin...
Page 61 1 as shown in the following figure. If the Terminal Timing feature is not available or this type of connection is not desired, the G.703 interface is a viable option that does not impose timing restrictions. GE Multilin T35 Transformer Management Relay 3-25...
Page 62 Figure 3–29: TIMING CONFIGURATION FOR RS422 TWO-CHANNEL, 3-TERMINAL APPLICATION Data Module 1 provides timing to the T35 RS422 interface via the ST(A) and ST(B) outputs. Data Module 1 also provides timing to Data Module 2 TT(A) and TT(B) inputs via the ST(A) and AT(B) outputs. The Data Module pin numbers have been omitted in the figure above since they may vary depending on the manufacturer.
Page 63: Rs422 And Fiber Interface
When using a LASER Interface, attenuators may be necessary to ensure that you do not exceed Maximum Optical Input Power to the receiver. WARNING Shld. Tx - G.703 Rx - CHANNEL 1 Tx + Rx + SURGE FIBER CHANNEL 2 Figure 3–32: G.703 AND FIBER INTERFACE CONNECTION GE Multilin T35 Transformer Management Relay 3-27...
Page 64: Ieee C37.94 Interface
Loop Timed Internal Timing Mode xt te xt te xt te xt te xt te xt te xt te xt te xt te xt te Switch Internal Loop Timed 3-28 T35 Transformer Management Relay GE Multilin...
Page 65 Once the clips have cleared the raised edge of the chassis, engage the clips simultaneously. When the clips have locked into position, the module will be fully inserted. Figure 3–33: C37.94 TIMING SELECTION SWITCH SETTING GE Multilin T35 Transformer Management Relay 3-29...
Page 66 3.3 DIRECT I/O COMMUNICATIONS 3 HARDWARE 3-30 T35 Transformer Management Relay GE Multilin...
Page 67: Human Interfaces
To start using the enerVista URPC Setup software, a site definition and device definition must first be created. See the enerVista URPC Setup Help File or refer to the Connecting enerVista URPC Setup with the T35 section in Chapter 1 for details.
Page 68 UR FIRMWARE UPGRADES The firmware of a T35 device can be upgraded, locally or remotely, via the enerVista URPC Setup software. The corre- sponding instructions are provided by the enerVista URPC Setup Help file under the topic “Upgrading Firmware”.
Page 69: Enervista Urpc Setup Main Window
Settings List control bar window Device data view window(s), with common tool bar Settings File data view window(s), with common tool bar Workspace area with data view tabs Status bar Figure 4–1: ENERVISTA URPC SETUP SOFTWARE MAIN WINDOW GE Multilin T35 Transformer Management Relay...
Page 70: Faceplate Interface
RESET command must be initiated to allow the latch to be reset. • ALARM: Indicates that the selected FlexLogic™ operand serving as an Alarm switch has operated. This indicator is never latched. T35 Transformer Management Relay GE Multilin...
Page 71 Firmware revisions 2.9x and earlier support eight user setting groups; revisions 3.0x and higher support six setting groups. For convenience of users using earlier firmware revisions, the relay panel shows eight NOTE setting groups. Please note that the LEDs, despite their default labels, are fully user-programmable. GE Multilin T35 Transformer Management Relay...
Page 72 Microsoft Word 97 or later software • 1 each of: 8.5" x 11" white paper, exacto knife, ruler, custom display module (GE Multilin Part Number: 1516-0069), and a custom module cover (GE Multilin Part Number: 1502-0015) Open the LED panel customization template with Microsoft Word. Add text in places of the LED x text placeholders on the template(s).
Page 73: Display
SETTINGS COMMANDS TARGETS " " " " ## ACTUAL VALUES ## SETTINGS ## COMMANDS No Active ## STATUS ## PRODUCT SETUP ## VIRTUAL INPUTS Targets USER DISPLAYS (when in use) " User Display 1 GE Multilin T35 Transformer Management Relay...
Page 74 FLASH MESSAGE play Properties. TIME: 1.0 s " To view the remaining settings associated with the Display Properties subheader, DEFAULT MESSAGE repeatedly press the MESSAGE key. The last message appears as shown. INTENSITY: 25% T35 Transformer Management Relay GE Multilin...
Page 75: Changing Settings
Changes are not registered by the relay until the key is pressed. Pressing NEW SETTING stores the new value in memory. This flash message momentarily appears as confirma- HAS BEEN STORED tion of the storing process. GE Multilin T35 Transformer Management Relay...
Page 76: Settings
Not Programmed message appears on the display, press the VALUE keys change the RELAY SETTINGS: selection to "Programmed". Press the key. RELAY SETTINGS: RELAY SETTINGS: NEW SETTING Not Programmed Programmed HAS BEEN STORED 4-10 T35 Transformer Management Relay GE Multilin...
Page 77 (for each security level) before a new password can be entered. In the event that a password has been lost (forgotten), submit the corresponding Encrypted Password from the PASSWORD menu to the Factory for decoding. SECURITY GE Multilin T35 Transformer Management Relay 4-11...
Page 78 4.2 FACEPLATE INTERFACE 4 HUMAN INTERFACES 4-12 T35 Transformer Management Relay GE Multilin...
Page 79: Overview
See page 5–32. # INSTALLATION See page 5–37. ## SETTINGS # AC INPUTS See page 5–38. ## SYSTEM SETUP # POWER SYSTEM See page 5–40. # SIGNAL SOURCES See page 5–41. # TRANSFORMER See page 5–43. GE Multilin T35 Transformer Management Relay...
Page 80 See page 5–101. # REMOTE INPUTS See page 5–102. # REMOTE OUTPUTS See page 5–103. # DNA BIT PAIRS # REMOTE OUTPUTS See page 5–104. # UserSt BIT PAIRS # RESETTING See page 5–104. T35 Transformer Management Relay GE Multilin...
Page 81: Introduction To Elements
FUNCTION setting: This setting programs the element to be operational when selected as "Enabled". The factory default is "Disabled". Once programmed to "Enabled", any element associated with the Function becomes active and all options become available. GE Multilin T35 Transformer Management Relay...
Page 82: Introduction To Ac Sources
BACKGROUND The T35 may be used on systems with breaker-and-a-half or ring bus configurations. In these applications, each of the two three-phase sets of individual phase currents (one associated with each breaker) can be used as an input to a breaker fail- ure element.
Page 83 INCREASING SLOT POSITION LETTER --> CT/VT MODULE 1 CT/VT MODULE 2 CT/VT MODULE 3 < bank 1 > < bank 3 > < bank 5 > < bank 2 > < bank 4 > < bank 6 > GE Multilin T35 Transformer Management Relay...
Page 84 Source is a transformer winding, on which a three phase voltage is mea- sured, and the sum of the currents from CTs on each of two breakers is required to measure the winding current flow. T35 Transformer Management Relay GE Multilin...
Page 85: Product Setup
If an entered password is lost (or forgotten), consult the factory with the corresponding ENCRYPTED PASSWORD The T35 provides a means to raise an alarm upon failed password entry. Should password verification fail while accessing a password-protected level of the relay (either settings or commands), the FlexLogic™...
Page 86: Display Properties
Some customers prefer very low currents to display as zero, while others prefer the current be displayed even when the value reflects noise rather than the actual signal. The T35 applies a cut- off value to the magnitudes and angles of the measured currents.
Page 87 VOLTAGE CUT-OFF LEVEL CURRENT CUT-OFF LEVEL as valid measurements. Unless dictated otherwise by a specific application, the default settings of “0.02 pu” for and “1.0 V” for are recommended. NOTE CURRENT CUT-OFF LEVEL VOLTAGE CUT-OFF LEVEL GE Multilin T35 Transformer Management Relay...
Page 88: Clear Relay Records
Selected records can be cleared from user-programmable conditions with FlexLogic™ operands. Assigning user-program- mable pushbuttons to clear specific records are typical applications for these commands. Since the T35 responds to rising edges of the configured FlexLogic™ operands, they must be asserted for at least 50 ms to take effect.
Page 89: Communications
0 ms The T35 is equipped with up to 3 independent serial communication ports. The faceplate RS232 port is intended for local use and is fixed at 19200 baud and no parity. The rear COM1 port type is selected when ordering: either an Ethernet or RS485 port.
Page 90 When using Modbus protocol on the RS232 port, the T35 will respond regardless of the MODBUS SLAVE programmed. For the RS485 ports each T35 must have a unique address from 1 to 254. Address 0 is the broad- ADDRESS...
Page 91 DNP POWER DEFAULT MESSAGE DEADBAND: 30000 Range: 0 to 65535 in steps of 1 DNP ENERGY DEFAULT MESSAGE DEADBAND: 30000 Range: 0 to 65535 in steps of 1 DNP OTHER DEFAULT MESSAGE DEADBAND: 30000 GE Multilin T35 Transformer Management Relay 5-13...
Page 92 47, etc. The minimum number of binary input points that can be selected is 16 (1 block). If all of the BIN INPUT BLOCK X settings are set to “Not Used”, the standard list of 928 points will be in effect. The T35 will form the binary inputs points list from the settings up to the first occurrence of a setting value of “Not Used”.
Page 93 NUMBER: The Trivial File Transfer Protocol (TFTP) can be used to transfer files from the UR over a network. The T35 operates as a TFTP server. TFTP client software is available from various sources, including Microsoft Windows NT. The dir.txt file obtained from the T35 contains a list and description of all available files (event records, oscillography, etc.).
Page 94 THRESHOLD: 30000 The T35 supports the IEC 60870-5-104 protocol. The T35 can be used as an IEC 60870-5-104 slave device connected to a single master (usually either an RTU or a SCADA master station). Since the T35 maintains one set of IEC 60870-5-104 data change buffers, only one master should actively communicate with the T35 at one time.
Page 95 T35 clock is closely synchronized with the SNTP/NTP server. It may take up to one minute for the T35 to signal an SNTP self-test error if the server is offline.
Page 96 MESSAGE (Modbus register address range) Fast exchanges (50 to 1000 ms) are generally used in control schemes. The T35 has one fast exchange (Exchange 1) and two slow exchanges (Exchanges 2 and 3). The settings menu for the slow EGD exchanges is shown below: !"...
Page 97: Modbus User Map
Range: Off, any actual value analog parameter FAULT REPORT 1 #1: MESSAGE Range: Off, any actual value analog parameter FAULT REPORT 1 #2: MESSAGE ↓ Range: Off, any actual value analog parameter FAULT REPORT 1 #32: MESSAGE GE Multilin T35 Transformer Management Relay 5-19...
Page 98: Oscillography
The user programmable record contains the following information: the user-programmed relay name, detailed firmware revision (4.0x, for example) and relay model (T35), the date and time of trigger, the name of pre-fault trigger (specific Flex- Logic™ operand), the name of fault trigger (specific FlexLogic™ operand), the active setting group at pre-fault trigger, the active setting group at fault trigger, pre-fault values of all programmed analog channels (one cycle before pre-fault trigger), and fault values of all programmed analog channels (at the fault trigger).
Page 99 Range: Off, any FlexAnalog parameter # ANALOG CHANNELS ANALOG CHANNEL 1: See Appendix A for complete list. ↓ Range: Off, any FlexAnalog parameter ANALOG CHANNEL 16: MESSAGE See Appendix A for complete list. GE Multilin T35 Transformer Management Relay 5-21...
Page 100: Data Logger
– entering this number via the relay keypad will cause the corresponding parameter to be displayed. • DATA LOGGER CONFIG: This display presents the total amount of time the Data Logger can record the channels not selected to “Off” without over-writing old data. 5-22 T35 Transformer Management Relay GE Multilin...
Page 101: User-Programmable Leds
The test responds to the position and rising edges of the control input defined by the set- LED TEST CONTROL ting. The control pulses must last at least 250 ms to take effect. The following diagram explains how the test is executed. GE Multilin T35 Transformer Management Relay 5-23...
Page 102 Stage 2. Once Stage 2 has started, the pushbutton can be released. When Stage 2 is completed, Stage 3 will automatically start. The test may be aborted at any time by pressing the pushbutton. 5-24 T35 Transformer Management Relay GE Multilin...
Page 103 LED 22 Operand LED 11 Operand LED 23 Operand LED 12 Operand LED 24 Operand Refer to the Control of Setting Groups example in the Control Elements section of this chapter for group activation. GE Multilin T35 Transformer Management Relay 5-25...
Page 104: User-Programmable Self Tests
LED test, switching setting groups, and invoking and scrolling though user-pro- grammable displays, etc. The location of the control pushbuttons in the following figure. An additonal four control pushbuttons are included when the T35 is ordered with twelve user programmable pushbuttons. 5-26...
Page 105 SYSTEM SETUP/ BREAKERS/BREAKER 1/ BREAKER 1 PUSHBUTTON CONTROL Enabled=1 TIMER FLEXLOGIC OPERAND SYSTEM SETUP/ BREAKERS/BREAKER 2/ CONTROL PUSHBTN 1 ON 100 msec BREAKER 2 PUSHBUTTON CONTROL 842010A2.CDR Enabled=1 Figure 5–4: CONTROL PUSHBUTTON LOGIC GE Multilin T35 Transformer Management Relay 5-27...
Page 106: User-Programmable Pushbuttons
MESSAGE EVENTS: Disabled The T35 has 12 optional user-programmable pushbuttons available, each configured via 12 identical menus. The pushbut- tons provide an easy and error-free method of manually entering digital information (On, Off) into FlexLogic™ equations as well as protection and control elements. Typical applications include breaker control, autorecloser blocking, ground protec- tion blocking, and setting groups changes.
Page 107: Flex State Parameters
The state bits may be read out in the "Flex States" register array beginning at Modbus address 900 hex. 16 states are packed into each register, with the lowest-numbered state in the lowest-order bit. There are 16 registers in total to accom- modate the 256 state bits. GE Multilin T35 Transformer Management Relay 5-29...
Page 108: User-Definable Displays
Range: 0 to 65535 in steps of 1 DISP 1 ITEM 3 MESSAGE Range: 0 to 65535 in steps of 1 DISP 1 ITEM 4 MESSAGE Range: 0 to 65535 in steps of 1 DISP 1 ITEM 5: MESSAGE 5-30 T35 Transformer Management Relay GE Multilin...
Page 109 This item is not being used - there is no corresponding DISP 1 ITEM 5: MESSAGE Tilde marker in Top or Bottom lines. Shows the resultant display content. USER DISPLAYS Current X 0.850 A → Current Y 0.327 A GE Multilin T35 Transformer Management Relay 5-31...
Page 110: Direct Inputs/Outputs
UR-series IEDs equipped with dual-channel communications cards apply the same data rate to both channels. Delivery time for direct input/output messages is approximately 0.2 of a power system cycle at 128 kbps and 0.4 of a power system cycle at 64 kbps, per each ‘bridge’. 5-32 T35 Transformer Management Relay GE Multilin...
Page 111 UR IED 1 BLOCK UR IED 4 UR IED 2 UR IED 3 842712A1.CDR Figure 5–7: SAMPLE INTERLOCKING BUSBAR PROTECTION SCHEME For increased reliability, a dual-ring configuration (shown below) is recommended for this application. GE Multilin T35 Transformer Management Relay 5-33...
Page 112 Figure 5–9: THREE-TERMINAL LINE APPLICATION A permissive pilot-aided scheme could be implemented in a two-ring configuration as shown below (IEDs 1 and 2 constitute a first ring, while IEDs 2 and 3 constitute a second ring): 5-34 T35 Transformer Management Relay GE Multilin...
Page 113 IED 2 to IED 3: 0.2 of power system cycle The two communications configurations could be applied to both permissive and blocking schemes. Speed, reliability and cost should be taken into account when selecting the required architecture. GE Multilin T35 Transformer Management Relay 5-35...
Page 114 EVENTS: Disabled The T35 checks integrity of the incoming Direct I/O messages using a 32-bit CRC. The CRC Alarm function is available for monitoring the communication medium noise by tracking the rate of messages failing the CRC check. The monitoring func- tion counts all incoming messages, including messages that failed the CRC check.
Page 115: Installation
MESSAGE EVENTS: Disabled The T35 checks integrity of the Direct I/O communication ring by counting unreturned messages. In the ring configuration, all messages originating at a given device should return within a pre-defined period of time. The Unreturned Messages Alarm function is available for monitoring the integrity of the communication ring by tracking the rate of unreturned mes- sages.
Page 116: System Setup
1000:1 CT before summation. If a protection element is set up to act on SRC 1 currents, then a pickup level of 1 pu will operate on 1000 A primary. The same rule applies for current sums from CTs with different secondary taps (5 A and 1 A). 5-38 T35 Transformer Management Relay GE Multilin...
Page 117 On a 14.4 kV system with a Delta connection and a VT primary to secondary turns ratio of 14400:120, the voltage value entered would be 120, i.e. 14400 / 120. Any ordered module banks containing VTs must be plugged into slot F. NOTE GE Multilin T35 Transformer Management Relay 5-39...
Page 118: Power System
"Disabled" in very unusual circumstances; consult the factory for spe- FREQUENCY TRACKING cial variable-frequency applications. NOTE Systems with a phase sequence of ACB require special consideration described in the Phase Relation- ships of Three-phase Transformers section. NOTE 5-40 T35 Transformer Management Relay GE Multilin...
Page 119: Signal Sources
A disturbance detector is provided for each Source. The 50DD function responds to the changes in magnitude of the sequence currents. The disturbance detector scheme logic is as follows: GE Multilin T35 Transformer Management Relay 5-41...
Page 120 CT/VT inputs that are used to provide the data. DSP Bank Source 1 Source 2 Amps Amps Source 3 51BF-1 51BF-2 Volts Amps Amps Volts Source 4 UR Relay Figure 5–13: EXAMPLE USE OF SOURCES 5-42 T35 Transformer Management Relay GE Multilin...
Page 121: Transformer
See page 5–44. MESSAGE The T35 Transformer Management Relay has been designed to provide primary protection for medium to high voltage power transformers. It performs this function on a variety of power transformer configurations with up to six sets of three phase inputs available.
Page 122 CTs and tapped relay windings with some combination of CT connections. The T35 simplifies these configuration issues. All CTs at the transformer are connected Wye (polarity markings pointing away from the transformer). User-entered settings in the relay characterizing the transformer being protected and allow the relay to automatically perform all necessary magnitude, phase angle, and zero sequence compensation.
Page 123 The reason the source phase sequence must be stated when describing the winding phase relationships is that these rela- tionships change when the phase sequence changes. The example shown below shows why this happens, using a trans- former described in IEC nomenclature as a type “Yd1” or in GE Multilin nomenclature as a “Y/d30.” 828716A1.CDR Figure 5–14: EXAMPLE TRANSFORMER...
Page 124 Note that the delta winding currents leads the wye winding currents by 30°, (which is a type Yd11 in IEC nomenclature and a type Y/d330 in GE Multilin nomenclature) which is in disagreement with the transformer nameplate. This is because the physical connections and hence the equations used to calculate current for the delta winding have not changed.
Page 125 5 SETTINGS 5.3 SYSTEM SETUP The T35 automatically corrects for CT mismatch errors. All currents are magnitude compensated to be in units of the CTs of one winding before the calculation of differential and restraint quantities. The reference winding (w ) is the winding to which all currents are referred.
Page 126 The T35 performs this phase angle compensation and zero sequence removal automatically, based on the settings entered for the transformer. All CTs are connected Wye (polarity markings pointing away from the transformer). All currents are phase and zero sequence compensated internally before the calculation of differential and restraint quantities.
Page 127 ------ - I – – ------ - I ------ - I ------ - I ------ - I – – ------ - I ------ - I ------ - I ------ - I – – GE Multilin T35 Transformer Management Relay 5-49...
Page 128 = magnitude, phase and zero sequence compensated winding ‘w’ phase currents = magnitude compensation factor for winding w (see previous sections) [ ] I , and = phase and zero sequence compensated winding w phase currents (see earlier) 5-50 T35 Transformer Management Relay GE Multilin...
Page 129 SYSTEM SETUP SIGNAL !" settings menu. SOURCES SOURCE n “WDG 1X” SOURCE 1 NAME: “F1” SOURCE 1 PHASE CT: “None” SOURCE 1 GROUND CT: “None” SOURCE 1 PHASE VT: “None” SOURCE 1 AUX VT: GE Multilin T35 Transformer Management Relay 5-51...
Page 130 SYSTEM SETUP SIGNAL !" settings menu. SOURCES SOURCE n “WDG 2" SOURCE 2 NAME: “M1” SOURCE 2 PHASE CT: “M1” SOURCE 2 GROUND CT: “None” SOURCE 2 PHASE VT: “None” SOURCE 2 AUX VT: 5-52 T35 Transformer Management Relay GE Multilin...
Page 131: Flexcurves
1, i.e. 0.98 pu and 1.03 pu. It is recommended to set the two times to a similar value; otherwise, the linear NOTE approximation may result in undesired behavior for the operating quantity that is close to 1.00 pu. GE Multilin T35 Transformer Management Relay 5-53...
Page 132 Multiplier and Adder settings only affect the curve portion of the characteristic and not the MRT and HCT settings. The HCT settings override the MRT settings for multiples of pickup greater than the HCT Ratio. NOTE 5-54 T35 Transformer Management Relay GE Multilin...
Page 133 URPC Setup software generates an error message and discards the proposed changes. NOTE e) STANDARD RECLOSER CURVES The standard Recloser curves available for the T35 are displayed in the following graphs. GE Multilin T35 Transformer Management Relay 5-55...
Page 134 CURRENT (multiple of pickup) 842723A1.CDR Figure 5–20: RECLOSER CURVES GE101 TO GE106 GE142 GE138 GE120 GE113 0.05 7 8 9 10 12 CURRENT (multiple of pickup) 842725A1.CDR Figure 5–21: RECLOSER CURVES GE113, GE120, GE138 AND GE142 5-56 T35 Transformer Management Relay GE Multilin...
Page 135 Figure 5–22: RECLOSER CURVES GE134, GE137, GE140, GE151 AND GE201 GE152 GE141 GE131 GE200 7 8 9 10 12 CURRENT (multiple of pickup) 842728A1.CDR Figure 5–23: RECLOSER CURVES GE131, GE141, GE152, AND GE200 GE Multilin T35 Transformer Management Relay 5-57...
Page 136 Figure 5–24: RECLOSER CURVES GE133, GE161, GE162, GE163, GE164 AND GE165 GE132 GE139 GE136 GE116 0.05 GE117 GE118 0.02 0.01 7 8 9 10 12 CURRENT (multiple of pickup) 842726A1.CDR Figure 5–25: RECLOSER CURVES GE116, GE117, GE118, GE132, GE136, AND GE139 5-58 T35 Transformer Management Relay GE Multilin...
Page 137 Figure 5–26: RECLOSER CURVES GE107, GE111, GE112, GE114, GE115, GE121, AND GE122 GE202 GE135 GE119 7 8 9 10 12 CURRENT (multiple of pickup) 842727A1.CDR Figure 5–27: RECLOSER CURVES GE119, GE135, AND GE202 GE Multilin T35 Transformer Management Relay 5-59...
Page 138: Flexlogic
Figure 5–28: UR ARCHITECTURE OVERVIEW The states of all digital signals used in the T35 are represented by flags (or FlexLogic™ operands, which are described later in this section). A digital "1" is represented by a 'set' flag. Any external contact change-of-state can be used to block an element from operating, as an input to a control feature in a FlexLogic™...
Page 139 Some types of operands are present in the relay in multiple instances; e.g. contact and remote inputs. These types of oper- ands are grouped together (for presentation purposes only) on the faceplate display. The characteristics of the different types of operands are listed in the table below. Table 5–6: T35 FLEXLOGIC™ OPERAND TYPES OPERAND TYPE STATE...
Page 140 5.4 FLEXLOGIC™ 5 SETTINGS The operands available for this relay are listed alphabetically by types in the following table. Table 5–7: T35 FLEXLOGIC™ OPERANDS (Sheet 1 of 3) OPERAND TYPE OPERAND SYNTAX OPERAND DESCRIPTION CONTROL CONTROL PUSHBTN n ON Control Pushbutton n (n = 1 to 7) is being pressed.
Page 141 5 SETTINGS 5.4 FLEXLOGIC™ Table 5–7: T35 FLEXLOGIC™ OPERANDS (Sheet 2 of 3) OPERAND TYPE OPERAND SYNTAX OPERAND DESCRIPTION ELEMENT: XFMR PCNT DIFF PKP A Transformer Percent Differential protection has picked up in Phase A Transformer Percent XFMR PCNT DIFF PKP B...
Page 142 5.4 FLEXLOGIC™ 5 SETTINGS Table 5–7: T35 FLEXLOGIC™ OPERANDS (Sheet 3 of 3) OPERAND TYPE OPERAND SYNTAX OPERAND DESCRIPTION SELF- ANY MAJOR ERROR Any of the major self-test errors generated (major error) DIAGNOSTICS ANY MINOR ERROR Any of the minor self-test errors generated (minor error)
Page 143: Flexlogic™ Rules
When making changes to settings, all FlexLogic™ equations are re-compiled whenever any new setting value is entered, so all latches are automatically reset. If it is necessary to re-initialize FlexLogic™ during testing, for example, it is suggested to power the unit down and then back up. GE Multilin T35 Transformer Management Relay 5-65...
Page 144: Flexlogic™ Example
DIGITAL ELEMENT 1 on Dropout State=Pickup (200 ms) DIGITAL ELEMENT 2 Timer 1 State=Operated Time Delay on Pickup (800 ms) CONTACT INPUT H1c State=Closed VIRTUAL OUTPUT 3 827026A2.VSD Figure 5–30: LOGIC EXAMPLE WITH VIRTUAL OUTPUTS 5-66 T35 Transformer Management Relay GE Multilin...
Page 145 Following the procedure outlined, start with parameter 99, as follows: 99: The final output of the equation is Virtual Output 3, which is created by the operator "= Virt Op n". This parameter is therefore "= Virt Op 3." GE Multilin T35 Transformer Management Relay 5-67...
Page 146 87: The input just below the upper input to OR #1 is operand “Virt Op 2 On". 86: The upper input to OR #1 is operand “Virt Op 1 On". 85: The last parameter is used to set the latch, and is operand “Virt Op 4 On". 5-68 T35 Transformer Management Relay GE Multilin...
Page 147 In the following equation, Virtual Output 3 is used as an input to both Latch 1 and Timer 1 as arranged in the order shown below: DIG ELEM 2 OP Cont Ip H1c On AND(2) GE Multilin T35 Transformer Management Relay 5-69...
Page 148: Flexlogic Equation Editor
TIMER 1 PICKUP DELAY: Sets the time delay to pickup. If a pickup delay is not required, set this function to "0". • TIMER 1 DROPOUT DELAY: Sets the time delay to dropout. If a dropout delay is not required, set this function to "0". 5-70 T35 Transformer Management Relay GE Multilin...
Page 149: Flexelements
The element can be programmed to respond either to a signal level or to a rate-of-change (delta) over a pre-defined period of time. The output operand is asserted when the operating signal is higher than a threshold or lower than a threshold as per user's choice. GE Multilin T35 Transformer Management Relay 5-71...
Page 150 The FLEXELEMENT 1 DIRECTION following figure explains the application of the FLEXELEMENT 1 DIRECTION FLEXELEMENT 1 PICKUP FLEXELEMENT 1 HYS- settings. TERESIS 5-72 T35 Transformer Management Relay GE Multilin...
Page 151 DIRECTION = Under; FLEXELEMENT INPUT MODE = Signed; FlexElement 1 OpSig FLEXELEMENT 1 PKP FLEXELEMENT DIRECTION = Under; FLEXELEMENT INPUT MODE = Absolute; FlexElement 1 OpSig 842706A2.CDR Figure 5–38: FLEXELEMENT™ INPUT MODE SETTING GE Multilin T35 Transformer Management Relay 5-73...
Page 152 “Delta”. FLEXELEMENT 1 COMP MODE This setting specifies the pickup delay of the element. The setting FLEXELEMENT 1 PKP DELAY FLEXELEMENT 1 RST DELAY specifies the reset delay of the element. 5-74 T35 Transformer Management Relay GE Multilin...
Page 153: Non-Volatile Latches
LATCH 1 SET: FLEXLOGIC OPERANDS Off=0 LATCH 1 ON Dominant LATCH 1 OFF Previous Previous SETTING State State LATCH 1 SET: Off=0 RESET 842005A1.CDR Figure 5–39: NON-VOLATILE LATCH OPERATION TABLE (N=1 to 16) AND LOGIC GE Multilin T35 Transformer Management Relay 5-75...
Page 154: Grouped Elements
TRANSFORMER # TRANSFORMER # PERCENT See page 5–77. # DIFFERENTIAL # INSTANTANEOUS See page 5–81. MESSAGE # DIFFERENTIAL The T35 Transformer Management Relay contains Percent Differential and Instantaneous Differential protection elements for transformers. 5-76 T35 Transformer Management Relay GE Multilin...
Page 155 “Σ” has as its output the vector sum of inputs, and “max” has as its output the input of maximum magnitude; these calculations are performed for each phase. GE Multilin T35 Transformer Management Relay 5-77...
Page 156 The T35 Percent Differential element is based on a configurable dual-breakpoint / dual-slope differential restraint character- istic. The purpose of the preset characteristic is to define the differential restraint ratio for the transformer winding currents at different loading conditions and distinguish between external and internal faults. Differential restraint ratio variations occur due to current unbalance between primary and secondary windings and can be caused by the following: Inherent CT inaccuracies.
Page 157 2nd harmonic function. If set to "2-out-of-3", the relay checks 2nd harmonic level in all three phases individually. If any two phases establish a blocking condition, the remaining phase is restrained automatically. GE Multilin T35 Transformer Management Relay 5-79...
Page 158 Iad5 LEVEL ACTUAL VALUES > XFMR PCNT DIFF 5TH B Ibd5 LEVEL DIFF 5TH HARM > XFMR PCNT DIFF 5TH C Icd5 LEVEL Iad5 Ibd5 Icd5 828001A5.CDR Figure 5–42: PERCENT DIFFERENTIAL SCHEME LOGIC 5-80 T35 Transformer Management Relay GE Multilin...
Page 159 XFMR INST DIFF OP C Iad > PICKUP INST DIFF BLOCK: FLEXLOGIC OPERAND Ibd > PICKUP Off=0 XFMR INST DIFF OP ACTUAL VALUE Icd > PICKUP 828000A1.CDR DIFF PHASOR Figure 5–43: INSTANTANEOUS DIFFERENTIAL SCHEME LOGIC GE Multilin T35 Transformer Management Relay 5-81...
Page 160: Phase Current
5.5.4 PHASE CURRENT a) INVERSE TOC CURVE CHARACTERISTICS The inverse time overcurrent curves used by the time overcurrent elements are the IEEE, IEC, GE Type IAC, and I t stan- dard curve shapes. This allows for simplified coordination with downstream devices. If however, none of these curve shapes is adequate, FlexCurves™...
Page 161 5.041 4.827 38.634 22.819 14.593 11.675 10.130 9.153 8.470 7.960 7.562 7.241 51.512 30.426 19.458 15.567 13.507 12.204 11.294 10.614 10.083 9.654 10.0 64.390 38.032 24.322 19.458 16.883 15.255 14.117 13.267 12.604 12.068 GE Multilin T35 Transformer Management Relay 5-83...
Page 162 0.60 1.835 1.067 0.668 0.526 0.451 0.404 0.371 0.346 0.327 0.311 0.80 2.446 1.423 0.890 0.702 0.602 0.538 0.494 0.461 0.435 0.415 1.00 3.058 1.778 1.113 0.877 0.752 0.673 0.618 0.576 0.544 0.518 5-84 T35 Transformer Management Relay GE Multilin...
Page 163 = characteristic constant, and T = reset time in seconds (assuming energy capacity is 100% RESET is “Timed”) RESET Table 5–16: GE TYPE IAC INVERSE TIME CURVE CONSTANTS IAC CURVE SHAPE IAC Extreme Inverse 0.0040 0.6379 0.6200 1.7872 0.2461...
Page 164 = Reset Time in seconds (assuming energy capacity is 100% and RESET: Timed) RESET RECLOSER CURVES: The T35 uses the FlexCurve™ feature to facilitate programming of 41 recloser curves. Please refer to the FlexCurve™ sec- tion in this chapter for additional details. 5-86...
Page 165 (Mvr) corresponding to the phase-phase voltages of the voltage restraint characteristic curve (see the figure below); the pickup level is calculated as ‘Mvr’ times the setting. If the voltage restraint feature PHASE TOC1 PICKUP is disabled, the pickup level always remains at the setting value. GE Multilin T35 Transformer Management Relay 5-87...
Page 166 Multiplier PHASE TOC1 C DPO Multiplier-Phase C PHASE TOC1 C OP SETTING PHASE TOC1 PKP PHASE TOC1 VOLT RESTRAINT: PHASE TOC1 OP Enabled PHASE TOC1 DPO 827072A4.CDR Figure 5–45: PHASE TOC1 SCHEME LOGIC 5-88 T35 Transformer Management Relay GE Multilin...
Page 167: Control Elements
The assigned VIR- operand is used to control the “On” state of a particular settings group. TUAL OUTPUT 1 Figure 5–46: EXAMPLE FLEXLOGIC™ CONTROL OF A SETTINGS GROUP GE Multilin T35 Transformer Management Relay 5-89...
Page 168: Selector Switch
SELECTOR 1 TIME-OUT: This setting defines the time-out period for the selector. This value is used by the relay in the following two ways. When the is “Time-out”, the setting specifies the required period of SELECTOR STEP-UP MODE 5-90 T35 Transformer Management Relay GE Multilin...
Page 169 3-bit control inputs. Note that the stepping up control input and 3-bit control TIME-OUT input have independent acknowledging signals ( , accordingly). SELECTOR 1 ACK SELECTOR 1 3BIT ACK GE Multilin T35 Transformer Management Relay 5-91...
Page 170 3BIT A1 3BIT A2 POS 1 POS 2 POS 3 POS 4 POS 5 POS 6 POS 7 BIT 0 BIT 1 BIT 2 STP ALARM BIT ALARM ALARM 842737A1.CDR Figure 5–47: TIME-OUT MODE 5-92 T35 Transformer Management Relay GE Multilin...
Page 171 3BIT A2 3BIT ACK POS 1 POS 2 POS 3 POS 4 POS 5 POS 6 POS 7 BIT 0 BIT 1 BIT 2 STP ALARM BIT ALARM ALARM 842736A1.CDR Figure 5–48: ACKNOWLEDGE MODE GE Multilin T35 Transformer Management Relay 5-93...
Page 172 SELECTOR 1 BIT ALARM 3-bit position out SELECTOR 1 ALARM SELECTOR 1 PWR ALARM SELECTOR 1 BIT 0 SELECTOR 1 BIT 1 SELECTOR 1 BIT 2 842012A1.CDR Figure 5–49: SELECTOR SWITCH LOGIC 5-94 T35 Transformer Management Relay GE Multilin...
Page 173: Inputs/Outputs
The DC input voltage is compared to a user-settable threshold. A new contact input state must be maintained for a user- settable debounce time in order for the T35 to validate the new contact state. In the figure below, the debounce time is set at 2.5 ms;...
Page 174 Event Records menu, make the following settings changes: "Breaker Closed (52b)" CONTACT INPUT H5A ID: "Enabled" CONTACT INPUT H5A EVENTS: Note that the 52b contact is closed when the breaker is open and open when the breaker is closed. 5-96 T35 Transformer Management Relay GE Multilin...
Page 175: Virtual Inputs
SETTING “Virtual Input 1 to OFF = 0” VIRTUAL INPUT 1 ID: SETTING (Flexlogic Operand) Virt Ip 1 VIRTUAL INPUT 1 TYPE: Latched Self - Reset 827080A2.CDR Figure 5–51: VIRTUAL INPUTS SCHEME LOGIC GE Multilin T35 Transformer Management Relay 5-97...
Page 176: Contact Outputs
L-Cont Op 1 Range: FlexLogic™ operand OUTPUT H1a OPERATE: MESSAGE Range: FlexLogic™ operand OUTPUT H1a RESET: MESSAGE Range: Operate-dominant, Reset-dominant OUTPUT H1a TYPE: MESSAGE Operate-dominant Range: Disabled, Enabled OUTPUT H1a EVENTS: MESSAGE Disabled 5-98 T35 Transformer Management Relay GE Multilin...
Page 177 5.7 INPUTS/OUTPUTS The T35 latching output contacts are mechanically bi-stable and controlled by two separate (open and close) coils. As such they retain their position even if the relay is not powered up. The relay recognizes all latching output contact cards and pop- ulates the setting menu accordingly.
Page 178: Virtual Outputs
For example, if Virtual Output 1 is the trip signal from FlexLogic™ and the trip relay is used to signal events, the settings would be programmed as follows: "Trip" VIRTUAL OUTPUT 1 ID: "Disabled" VIRTUAL OUTPUT 1 EVENTS: 5-100 T35 Transformer Management Relay GE Multilin...
Page 179: Remote Devices
This setting is used to select specific remote devices by entering (bottom row) the exact identification (ID) assigned to those devices. GE Multilin T35 Transformer Management Relay 5-101...
Page 180: Remote Inputs
Logic 0. When communication resumes, the input becomes fully operational. For additional information on the GOOSE specification, refer to the Remote Devices section in this chapter and to Appendix C: UCA/MMS Communications. NOTE 5-102 T35 Transformer Management Relay GE Multilin...
Page 181: Remote Outputs
Sync Closing SyncClsOff SyncClsOn Mode Report mode status of local GOOSE device Normal Test 28→32 Reserved For more information on GOOSE specifications, see the Remote I/O Overview in the Remote Devices sec- tion. NOTE GE Multilin T35 Transformer Management Relay 5-103...
Page 182: Resetting
These settings specify how the Direct Input information is processed. The represents the source of DIRECT INPUT DEVICE ID this Direct Input. The specified Direct Input is driven by the device identified here. 5-104 T35 Transformer Management Relay GE Multilin...
Page 183 The examples introduced in the Product Setup section for Direct I/Os are continued below to illustrate usage of the Direct Inputs and Outputs. EXAMPLE 1: EXTENDING I/O CAPABILITIES OF A T35 RELAY Consider an application that requires additional quantities of digital inputs and/or output contacts and/or lines of program- mable logic that exceed the capabilities of a single UR-series chassis.
Page 184 Figure 5–54: THREE-TERMINAL LINE APPLICATION Assume the Hybrid Permissive Overreaching Transfer Trip (Hybrid POTT) scheme is applied using the architecture shown below. The scheme output operand is used to key the permission. HYB POTT TX1 5-106 T35 Transformer Management Relay GE Multilin...
Page 185 In three-terminal applications, both the remote terminals must grant permission to trip. Therefore, at each terminal, Direct Inputs 5 and 6 should be ANDed in FlexLogic™ and the resulting operand configured as the permission to trip ( HYB POTT setting). GE Multilin T35 Transformer Management Relay 5-107...
Page 186: Transducer I/O
–20 to +180 MW; in this case the value would be “–20” and the DCMA INPUT H1 MIN VALUE DCMA INPUT H1 MAX value “180”. Intermediate values between the min and max values are scaled linearly. VALUE 5-108 T35 Transformer Management Relay GE Multilin...
Page 187: Rtd Inputs
CTs and VTs. Each channel is assigned a slot letter followed by the row number, 1 through 8 inclusive, which is used as the channel number. Both the output range and a signal driving a given output are user-programmable via the following settings menu (an exam- ple for channel M5 is shown). GE Multilin T35 Transformer Management Relay 5-109...
Page 188 VT ratio = 120. The nominal current is 800 A primary and the nominal power factor is 0.90. The power is to be monitored in both importing and exporting directions and allow for 20% overload compared to the nominal. 5-110 T35 Transformer Management Relay GE Multilin...
Page 189 0 to 1 mA. The VT secondary setting is 66.4 V, the VT ratio setting is 6024, and the VT connection setting is “Delta”. The voltage should be monitored in the range from 70% to 110% of nominal. GE Multilin T35 Transformer Management Relay 5-111...
Page 190 254.03 kV 1.27 kV – • ±0.5% of reading For example, under nominal conditions, the positive-sequence reads 230.94 kV and the worst-case error is 0.005 x 230.94 kV + 1.27 kV = 2.42 kV. 5-112 T35 Transformer Management Relay GE Multilin...
Page 191: Testing
The Test Mode starts when the selected operand assumes a Logic 1 state. TIATE When in Test Mode, the T35 remains fully operational, allowing for various testing procedures. In particular, the protection and control elements, FlexLogic™, and communication-based inputs and outputs function normally.
Page 192: Force Contact Outputs
USER PUSHBUTTON 1 PUSHBUTTON 1 FUNCTION Input 1 to initiate the Test mode, make the following changes in the !" menu: SETTINGS TESTING TEST MODE “Enabled” and “ ” TEST MODE FUNCTION: TEST MODE INITIATE: 5-114 T35 Transformer Management Relay GE Multilin...
Page 193: Actual Values
# TRANSFORMER See page 6-11. ## METERING # SOURCE SRC 1 See page 6-11. # SOURCE SRC 2 ↓ ↓ # SOURCE SRC 6 # TRACKING FREQUENCY See page 6-14. # FLEXELEMENTS See page 6-14. GE Multilin T35 Transformer Management Relay...
Page 194 # EVENT RECORDS See page 6-16. # OSCILLOGRAPHY See page 6-16. # DATA LOGGER See page 6-17. ## ACTUAL VALUES # MODEL INFORMATION See page 6-18. ## PRODUCT INFO # FIRMWARE REVISIONS See page 6-18. T35 Transformer Management Relay GE Multilin...
Page 195: Contact Inputs
The state displayed will be that of the remote point unless the remote device has been established to be “Offline” in which case the value shown is the programmed default state for the remote input. GE Multilin T35 Transformer Management Relay...
Page 196: Contact Outputs
The present state of up to 16 programmed Remote Devices is shown here. The message indi- ALL REMOTE DEVICES ONLINE cates whether or not all programmed Remote Devices are online. If the corresponding state is "No", then at least one required Remote Device is not online. T35 Transformer Management Relay GE Multilin...
Page 197: Selector Switches
There are 256 FlexState bits available. The second line value indicates the state of the given FlexState bit. 6.2.9 ETHERNET !" PATH: ACTUAL VALUES STATUS ETHERNET Range: Fail, OK # ETHERNET ETHERNET PRI LINK STATUS: OK Range: Fail, OK ETHERNET SEC LINK MESSAGE STATUS: OK GE Multilin T35 Transformer Management Relay...
Page 198: Direct Inputs
# DIRECT DEVICES DIRECT DEVICE 1 # STATUS STATUS: Offline DIRECT DEVICE 2 MESSAGE STATUS: Offline ↓ DIRECT DEVICE 8 MESSAGE STATUS: Offline These actual values represent the state of Direct Devices 1 through 8. T35 Transformer Management Relay GE Multilin...
Page 199: Egd Protocol Status
# SLOW EXCHANGE 1 EXCH 1 SIGNATURE: EXCH 1 SIZE: MESSAGE These values provide information that may be useful for debugging an EGD network. The EGD signature and packet size for the slow EGD exchanges are displayed. GE Multilin T35 Transformer Management Relay...
Page 200: Metering Conventions
PF = Lag WATTS = Negative VARS = Positive PF = Lead PF = Lag PF = Lead Current UR RELAY 827239AC.CDR S=VI Generator Figure 6–1: FLOW DIRECTION OF SIGNED VALUES FOR WATTS AND VARS T35 Transformer Management Relay GE Multilin...
Page 201 • ABC phase rotation: • ACB phase rotation: -- - V -- - V -- - V -- - V -- - V -- - V The above equations apply to currents as well. GE Multilin T35 Transformer Management Relay...
Page 202 The power system voltages are phase-referenced – for simplicity – to VAG and VAB, respectively. This, however, is a relative matter. It is important to remember that the T35 displays are always referenced as specified under SETTINGS !"...
Page 203: Transformer Differential And Restraint
0.000 c: 0.000 SRC 1 RMS Ia: MESSAGE 0.000 SRC 1 RMS Ib: MESSAGE 0.000 SRC 1 RMS Ic: MESSAGE 0.000 SRC 1 RMS In: MESSAGE 0.000 SRC 1 PHASOR Ia: MESSAGE 0.000 0.0° GE Multilin T35 Transformer Management Relay 6-11...
Page 204 SRC 1 RMS Vbc: MESSAGE 0.000 SRC 1 RMS Vca: MESSAGE 0.000 SRC 1 PHASOR Vab: MESSAGE 0.000 0.0° SRC 1 PHASOR Vbc: MESSAGE 0.000 0.0° SRC 1 PHASOR Vca: MESSAGE 0.000 0.0° 6-12 T35 Transformer Management Relay GE Multilin...
Page 205 APPARENT PWR MESSAGE φc: 0.000 SRC 1 POWER FACTOR MESSAGE 3φ: 1.000 SRC 1 POWER FACTOR MESSAGE φa: 1.000 SRC 1 POWER FACTOR MESSAGE φb: 1.000 SRC 1 POWER FACTOR MESSAGE φc: 1.000 GE Multilin T35 Transformer Management Relay 6-13...
Page 206: Tracking Frequency
XFMR RESTRAINING CURRENT = maximum primary RMS value of the +IN and -IN inputs BASE (Xfmr Iar, Ibr, and Icr Mag) (CT primary for source currents, and transformer reference primary current for transformer differential currents) 6-14 T35 Transformer Management Relay GE Multilin...
Page 207: Transducer I/O
RTD INPUT xx -50 °C Actual values for each RTD input channel that is enabled are displayed with the top line as the programmed Channel ID and the bottom line as the value. GE Multilin T35 Transformer Management Relay 6-15...
Page 208: Records
Chapter 5 for further details. A trigger can be forced here at any time by setting "Yes" to the command. Refer to the !" FORCE TRIGGER? COMMANDS menu for clearing the oscillography records. CLEAR RECORDS 6-16 T35 Transformer Management Relay GE Multilin...
Page 209: Data Logger
It counts up at the defined sampling rate. If Data Logger channels are defined, then both values are static. Refer to the !" menu for clearing data logger records. COMMANDS CLEAR RECORDS GE Multilin T35 Transformer Management Relay 6-17...
Page 210: Product Information
BOOT DATE: MESSAGE Date and time when the boot program was built. 2003/11/20 16:41:32 The shown data is illustrative only. A modification file number of 0 indicates that, currently, no modifications have been installed. 6-18 T35 Transformer Management Relay GE Multilin...
Page 211: Commands And
The states of up to 32 virtual inputs are changed here. The first line of the display indicates the ID of the virtual input. The second line indicates the current or selected status of the virtual input. This status will be a logical state ‘Off’ (0) or ‘On’ (1). GE Multilin T35 Transformer Management Relay...
Page 212 If an update occurs, the following message is shown. UPDATING... PLEASE WAIT There is no impact if there have been no changes to the hardware modules. When an update does not occur, the ORDER message will be shown. CODE NOT UPDATED T35 Transformer Management Relay GE Multilin...
Page 213: Targets Menu
In Service LED indicator is turned off • a RELAY OUT OF SERVICE event is recorded Most of the minor self-test errors can be disabled. Refer to the settings in the User-Programmable Self-Tests section in Chapter 5 for additional details. GE Multilin T35 Transformer Management Relay...
Page 214 SYSTEM EXCEPTION Abnormal restart from modules Event driven. Contact the factory. being removed/inserted when powered-up, abnormal DC supply, or internal relay failure. WATCHDOG ERROR Some tasks are behind schedule Event driven. Contact the factory. T35 Transformer Management Relay GE Multilin...
Page 215: Commissioning
CT is the 1 A or 5 A tap, and M[1] is the calculated magnitude compensation factor (see the Transformer section in Chapter 5 for details on calculating the M[1] and M[2] factors). GE Multilin T35 Transformer Management Relay...
Page 216 2 current as restraint and repeat the steps above by substituting the Breakpoint 2 value in the equations above with the new per-unit restraint current value. The above two tests can be repeated for Phases B and C. (pu) (pu) Figure 8–1: DIFFERENTIAL RESTRAINT CHARACTERISTIC T35 Transformer Management Relay GE Multilin...
Page 217: Differential Characteristic Test Examples
8.2DIFFERENTIAL CHARACTERISTIC TEST EXAMPLES 8.2.1 INTRODUCTION The T35 commissioning tests are based on secondary current injections, where two or three individually adjustable cur- rents are required. The differential protection compares the magnitudes of the varying HV and LV currents in real time.
Page 218: Test Example 1
Slope 2 Angle WRT 0° Angle WRT 0° Resistance 3Ph 10.000 ohms Resistance 3Ph 10.000 ohms APPLICATION OF EXCESSIVE CURRENT (> 3 × In) FOR EXTENTED PERIODS WILL CAUSE DAMAGE TO THE RELAY! WARNING T35 Transformer Management Relay GE Multilin...
Page 219 0 A ∠0° 0.15 A ∠0° 0.23 A ∠–180° 0.15 A ∠–180° 0.23 A ∠0° The following differential and restraint current should be read from the T35 actual values menu: PHASE DIFFERENTIAL CURRENT (I PHASE RESTRAINT CURRENT (I 0 ∠0°...
Page 220 0 A ∠0° 0.48 A ∠0° 1 A ∠–180° 0.48 A ∠–180° 1 A ∠0° The following differential and restraint current should be read from the T35 actual values menu: PHASE DIFFERENTIAL CURRENT (I PHASE RESTRAINT CURRENT (I 0 ∠0°...
Page 221: Test Example 2
0 A ∠0° 1.2 A ∠0° 3.5 A ∠–180° 1.2 A ∠–180° 3.5 A ∠0° The following differential and restraint current should be read from the T35 actual values menu: PHASE DIFFERENTIAL CURRENT (I PHASE RESTRAINT CURRENT (I 0 ∠0°...
Page 222 0 A ∠0° 0.5 A ∠0° 9 A ∠–180° 0.5 A ∠–180° 9 A ∠0° The following differential and restraint current should be read from the T35 actual values menu: PHASE DIFFERENTIAL CURRENT (I PHASE RESTRAINT CURRENT (I 0 ∠0°...
Page 223: Test Example 2
0 ∠0° 7.915 ∠0° 8.646 ∠0° 0.2 ∠0° 15 ∠–180° 7.918 ∠–180° 8.650 ∠–180° Slope 2 Operate = 95.7% 0 ∠0° 0 ∠0° 0 ∠0° 0 ∠0° 0.2 ∠–180° 0 ∠0° 7.916 ∠0° 8.650 ∠0° GE Multilin T35 Transformer Management Relay...
Page 224: Test Example 3
4 ∠0° 0 ∠0° 0 ∠0° 0 ∠0° Slope 2 Operate = 95.7% 8 ∠–180° 0.6 ∠0° 12.13 ∠–180° 12.73 ∠0° > Slope 2 = 95% 4 ∠0° 0.6 ∠–180° 12.13 ∠0° 12.73 ∠–180° 8-10 T35 Transformer Management Relay GE Multilin...
Page 225: Test Example 4
0 ∠0° 0 ∠0° 0 ∠0° 0 ∠0° Slope 2 Operate = 96% 0.18 ∠–90° 8.33 ∠–270° 8 ∠–270° 8.33 ∠–270° > Slope 2 = 95% 0.18 ∠–270° 8.33 ∠–90° 8 ∠–90° 8.33 ∠–90° GE Multilin T35 Transformer Management Relay 8-11...
Page 226: Inrush Inhibit Test Procedure
Apply a second harmonic to Phase A with a level greater than the set threshold and monitor the operation of the Per- cent Differential element. The element should drop out when the injected second harmonic level becomes three times larger than the set threshold. 8-12 T35 Transformer Management Relay GE Multilin...
Page 227: Overexcitation Inhibit Test Procedure
2 A ∠–180° 9.5% 2 pu 4 pu Block 2 A ∠0° 4 A ∠–180° 8.5% 2 pu 4 pu Operate 2 A ∠0° 4 A ∠–180° 9.5% 2 pu 4 pu Block GE Multilin T35 Transformer Management Relay 8-13...
Page 228: Commissioning Test Tables
Slope 2 Status: ____________ = _____________ 8.5.2 INRUSH INHIBIT TESTS Table 8–4: INRUSH INHIBIT TEST TABLE PHASE INECTED DISPLAYED STATUS (BLOCK/ W1 2ND W2 2ND (PU) (PU) OPERATE) CURRENT HARMONIC CURRENT HARMONIC HARMONIC 8-14 T35 Transformer Management Relay GE Multilin...
Page 229: Overexcitation Inhibit Tests
8 COMMISSIONING 8.5 COMMISSIONING TEST TABLES 8.5.3 OVEREXCITATION INHIBIT TESTS Table 8–5: OVEREXCITATION INHIBIT TEST RESULTS PHASE INECTED DISPLAYED STATUS W1 5TH W2 5TH (PU) (PU) (BLOCK/ CURRENT HARMONIC CURRENT HARMONIC HARMONIC OPERATE) GE Multilin T35 Transformer Management Relay 8-15...
Page 230 8.5 COMMISSIONING TEST TABLES 8 COMMISSIONING 8-16 T35 Transformer Management Relay GE Multilin...
Page 231: Flexanalog
SRC 3 Ib RMS 6408 SRC 5 Phase A Current Magnitude SRC 5 Ia Mag 6276 SRC 3 Phase C Current RMS SRC 3 Ic RMS 6410 SRC 5 Phase A Current Angle SRC 5 Ia Angle GE Multilin T35 Transformer Management Relay...
Page 232 SRC 1 Vbc RMS 6798 SRC 3 Phase CG Voltage Angle SRC 3 Vcg Angle 6675 SRC 1 Phase CA Voltage RMS SRC 1 Vca RMS 6799 SRC 3 Phase AB Voltage RMS SRC 3 Vab RMS T35 Transformer Management Relay GE Multilin...
Page 233 SRC 5 Vbg Angle 7176 SRC 1 Three Phase Reactive Power SRC 1 Q 6924 SRC 5 Phase CG Voltage Magnitude SRC 5 Vcg Mag 7178 SRC 1 Phase A Reactive Power SRC 1 Qa GE Multilin T35 Transformer Management Relay...
Page 234 SRC 4 Three Phase Apparent Power SRC 4 S 7696 SRC 2 Demand Ia SRC 2 Demand Ia 7282 SRC 4 Phase A Apparent Power SRC 4 Sa 7698 SRC 2 Demand Ib SRC 2 Demand Ib T35 Transformer Management Relay GE Multilin...
Page 235 Transformer Diff. 2nd Harm Icd Angle Xfmr Harm2 Icd Angle 13573 RTD Inputs 22 Value RTD Inputs 22 Value 8983 Transformer Diff. 5th Harm Icd Mag. Xfmr Harm5 Icd Mag 13574 RTD Inputs 23 Value RTD Inputs 23 Value GE Multilin T35 Transformer Management Relay...
Page 236 FlexElement 13 Actual FlexElement 13 Value 39451 FlexElement 14 Actual FlexElement 14 Value 39453 FlexElement 15 Actual FlexElement 15 Value 39455 FlexElement 16 Actual FlexElement 16 Value 40971 Current Setting Group Active Setting Group T35 Transformer Management Relay GE Multilin...
Page 237: Modbus Communications
Broadcast mode is only recognized when associated with Function Code 05h. For any other function code, a packet with broadcast mode slave address 0 will be ignored. GE Multilin T35 Transformer Management Relay...
Page 238: Algorithm
No: go to 8; Yes: G (+) A --> A and continue. Is j = 8? No: go to 5; Yes: continue i + 1 --> i Is i = N? No: go to 3; Yes: continue A --> CRC T35 Transformer Management Relay GE Multilin...
Page 239: Modbus Function Codes
DATA #1 - low NUMBER OF REGISTERS - low DATA #2 - high CRC - low DATA #2 - low CRC - high DATA #3 - high DATA #3 - low CRC - low CRC - high GE Multilin T35 Transformer Management Relay...
Page 240: Execute Operation (Function Code 05H
DATA STARTING ADDRESS - low DATA STARTING ADDRESS - low DATA - high DATA - high DATA - low DATA - low CRC - low CRC - low CRC - high CRC - high T35 Transformer Management Relay GE Multilin...
Page 241: Store Multiple Settings (Function Code 10H
PACKET FORMAT EXAMPLE (HEX) SLAVE ADDRESS SLAVE ADDRESS FUNCTION CODE FUNCTION CODE CRC - low order byte ERROR CODE CRC - high order byte CRC - low order byte CRC - high order byte GE Multilin T35 Transformer Management Relay...
Page 242: File Transfers
Cleared Date to the present date and time. To read binary COMTRADE oscillography files, read the following filenames: OSCnnnn.CFG and OSCnnn.DAT Replace “nnn” with the desired oscillography trigger number. For ASCII format, use the following file names OSCAnnnn.CFG and OSCAnnn.DAT T35 Transformer Management Relay GE Multilin...
Page 243: Modbus Password Operation
COMMAND or SETTING password security access is restricted to the particular port or particular TCP/IP connection on which the entry was made. Passwords must be entered when accessing the relay through other ports or connections, and the passwords must be re-entered after disconnecting and re-connecting on TCP/IP. GE Multilin T35 Transformer Management Relay...
Page 244: Memory Mapping
...Repeated for module number 23 0417 ...Repeated for module number 24 0418 ...Repeated for module number 25 0419 ...Repeated for module number 26 041A ...Repeated for module number 27 041B ...Repeated for module number 28 T35 Transformer Management Relay GE Multilin...
Page 245 Direct Outputs Average Message Return Time 1 0 to 65535 F001 15C9 Direct Outputs Average Message Return Time 2 0 to 65535 F001 15CA Direct Inputs/Outputs Unreturned Message Count - Ch. 1 0 to 65535 F001 GE Multilin T35 Transformer Management Relay...
Page 246 F002 1A0C Phase CG Voltage Magnitude 0 to 999999.999 0.001 F060 1A0E Phase CG Voltage Angle -359.9 to 0 degrees F002 1A0F Phase AB or AC Voltage RMS 0 to 999999.999 0.001 F060 B-10 T35 Transformer Management Relay GE Multilin...
Page 247 Reserved (4 items) F001 1C20 ...Repeated for module number 2 1C40 ...Repeated for module number 3 1C60 ...Repeated for module number 4 1C80 ...Repeated for module number 5 1CA0 ...Repeated for module number 6 GE Multilin T35 Transformer Management Relay B-11...
Page 248 Oscillography Number of Triggers 0 to 65535 F001 3001 Oscillography Available Records 0 to 65535 F001 3002 Oscillography Last Cleared Date 0 to 400000000 F050 3004 Oscillography Number Of Cycles Per Record 0 to 65535 F001 B-12 T35 Transformer Management Relay GE Multilin...
Page 249 ...Repeated for module number 19 34E6 ...Repeated for module number 20 34E8 ...Repeated for module number 21 34EA ...Repeated for module number 22 34EC ...Repeated for module number 23 34EE ...Repeated for module number 24 GE Multilin T35 Transformer Management Relay B-13...
Page 250 Direct Device States, one per register (8 items) 0 to 1 F155 0 (Offline) 3570 Direct Input States, one per register (96 items) 0 to 1 F108 0 (Off) Passwords (Read/Write Command) 4000 Command Password Setting 0 to 4294967295 F003 B-14 T35 Transformer Management Relay GE Multilin...
Page 251 40AE DNP Current Scale Factor 0 to 8 F194 2 (1) 40AF DNP Voltage Scale Factor 0 to 8 F194 2 (1) 40B0 DNP Power Scale Factor 0 to 8 F194 2 (1) GE Multilin T35 Transformer Management Relay B-15...
Page 252 Oscillography AC Input Waveforms 0 to 4 F183 2 (16 samples/cycle) 41D0 Oscillography Analog Channel X (16 items) 0 to 65535 F600 4200 Oscillography Digital Channel X (63 items) 0 to 65535 F300 B-16 T35 Transformer Management Relay GE Multilin...
Page 253 ...Repeated for module number 43 42D6 ...Repeated for module number 44 42D8 ...Repeated for module number 45 42DA ...Repeated for module number 46 42DC ...Repeated for module number 47 42DE ...Repeated for module number 48 GE Multilin T35 Transformer Management Relay B-17...
Page 254 4633 Transformer Rated Winding Temperature Rise 0 to 4 F161 1 (65°C (oil)) 4634 Transformer No Load Loss 1 to 20000 F001 4635 Transformer Type Of Cooling 0 to 3 F162 0 (OA) B-18 T35 Transformer Management Relay GE Multilin...
Page 255 F102 0 (Disabled) 4E22 User Programmable Pushbutton 1 Reserved (2 items) 0 to 65535 F001 4E24 ...Repeated for module number 2 4E48 ...Repeated for module number 3 4E6C ...Repeated for module number 4 GE Multilin T35 Transformer Management Relay B-19...
Page 256 Phase TOC 1 Curve 0 to 16 F103 0 (IEEE Mod Inv) 5905 Phase TOC 1 Multiplier 0 to 600 0.01 F001 5906 Phase TOC 1 Reset 0 to 1 F104 0 (Instantaneous) B-20 T35 Transformer Management Relay GE Multilin...
Page 257 ...Repeated for module number 10 73F0 ...Repeated for module number 11 7408 ...Repeated for module number 12 7420 ...Repeated for module number 13 7438 ...Repeated for module number 14 7450 ...Repeated for module number 15 GE Multilin T35 Transformer Management Relay B-21...
Page 258 ...Repeated for module number 35 7770 ...Repeated for module number 36 7780 ...Repeated for module number 37 7790 ...Repeated for module number 38 77A0 ...Repeated for module number 39 77B0 ...Repeated for module number 40 B-22 T35 Transformer Management Relay GE Multilin...
Page 259 0 to 2 F109 0 (Self-reset) 9013 FlexElement 1 Events 0 to 1 F102 0 (Disabled) 9014 ...Repeated for module number 2 9028 ...Repeated for module number 3 903C ...Repeated for module number 4 GE Multilin T35 Transformer Management Relay B-23...
Page 260 ...Repeated for module number 7 9A0F ...Repeated for module number 8 9A11 ...Repeated for module number 9 9A13 ...Repeated for module number 10 9A15 ...Repeated for module number 11 9A17 ...Repeated for module number 12 B-24 T35 Transformer Management Relay GE Multilin...
Page 261 ...Repeated for module number 7 AD46 ...Repeated for module number 8 AD50 ...Repeated for module number 9 AD5A ...Repeated for module number 10 AD64 ...Repeated for module number 11 AD6E ...Repeated for module number 12 GE Multilin T35 Transformer Management Relay B-25...
Page 262 ...Repeated for module number 42 C150 ...Repeated for module number 43 C158 ...Repeated for module number 44 C160 ...Repeated for module number 45 C168 ...Repeated for module number 46 C170 ...Repeated for module number 47 B-26 T35 Transformer Management Relay GE Multilin...
