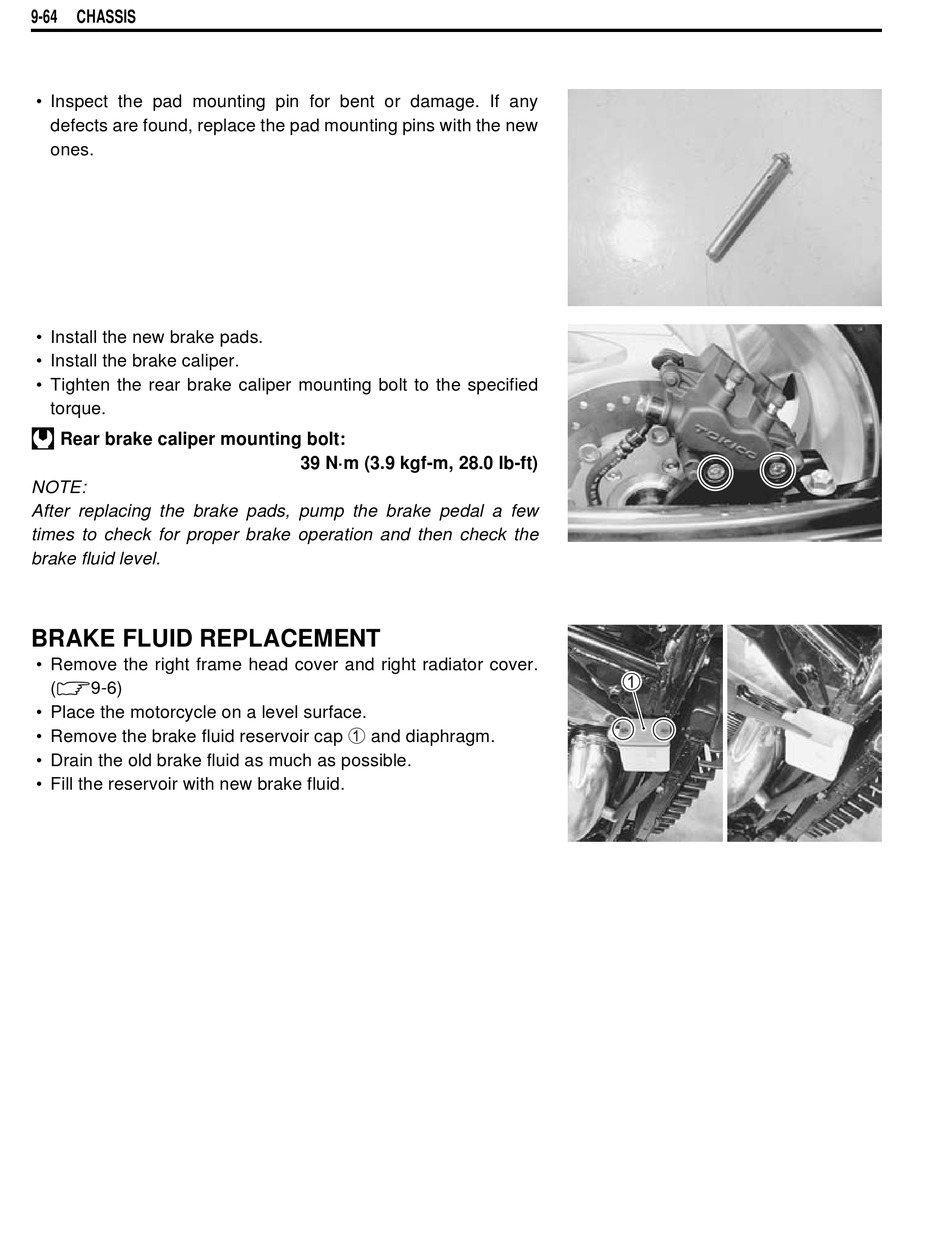

9-64 CHASSIS
• Inspect the pad mounting pin for bent or damage. If any
defects are found, replace the pad mounting pins with the new
ones.
• Install the new brake pads.
• Install the brake caliper.
• Tighten the rear brake caliper mounting bolt to the specified
torque.
# Rear brake caliper mounting bolt:
NOTE:
After replacing the brake pads, pump the brake pedal a few
times to check for proper brake operation and then check the
brake fluid level.

BRAKE FLUID REPLACEMENT

• Remove the right frame head cover and right radiator cover.
(!9-6)
• Place the motorcycle on a level surface.
• Remove the brake fluid reservoir cap 1 and diaphragm.
• Drain the old brake fluid as much as possible.
• Fill the reservoir with new brake fluid.
39 N·m (3.9 kgf-m, 28.0 lb-ft)
