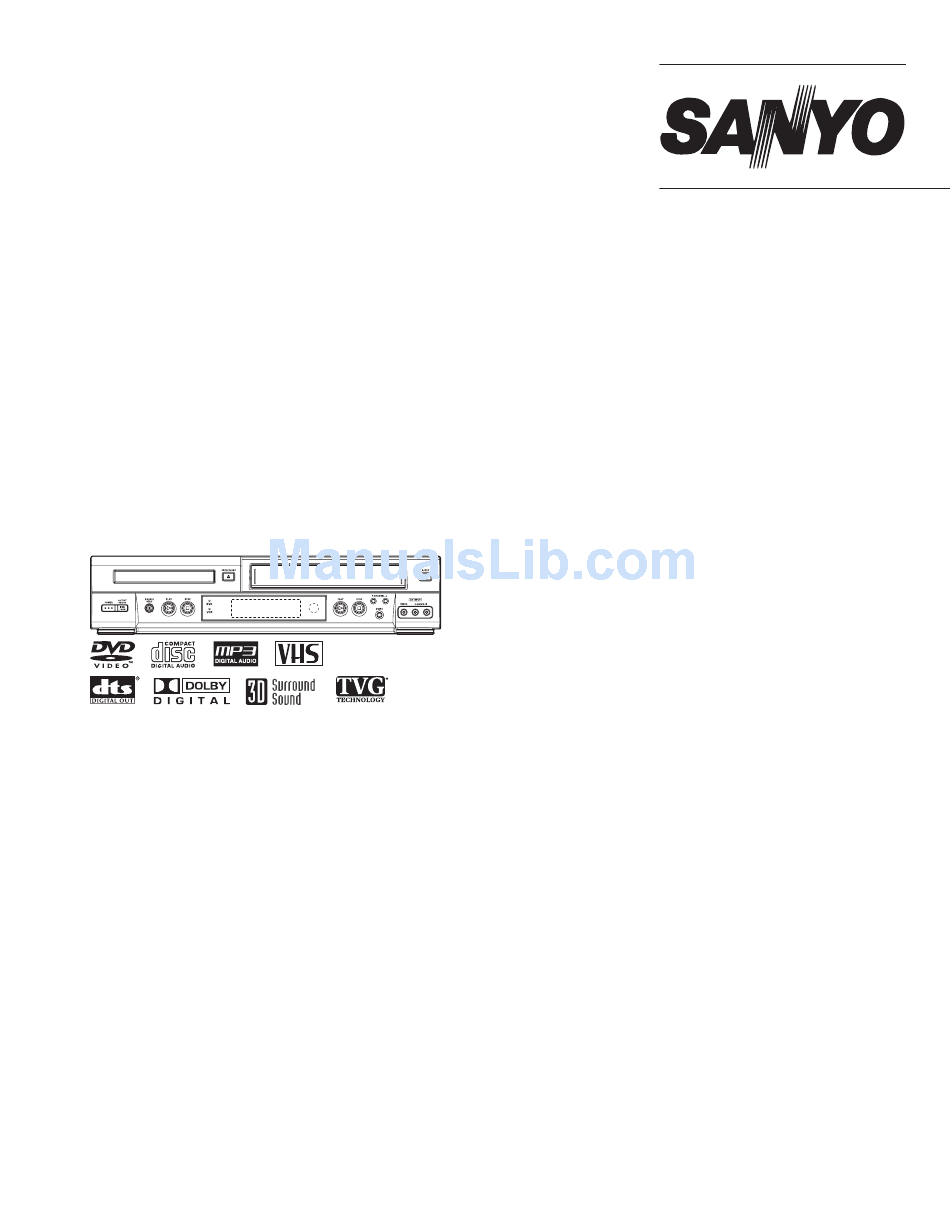

SERVICE MANUAL
DVD Player + Video Cassette
Recorder
CAUTION
This product utilizes a laser.
The adjustment other than those specified herein may result in hazardous radiation exposure.
KW4HV/U3
Hi-Fi
FILE NO.
DVW-6100
(Product Code : 143 187 12)
(U.S.A.)
REFERENCE No. SM5810440

Advertisement

Table of Contents
loading

Related Manuals for Sanyo dvw6100

Summary of Contents for Sanyo dvw6100

  • Page 1 FILE NO. SERVICE MANUAL DVD Player + Video Cassette DVW-6100 Recorder (Product Code : 143 187 12) (U.S.A.) Hi-Fi CAUTION This product utilizes a laser. The adjustment other than those specified herein may result in hazardous radiation exposure. REFERENCE No. SM5810440 KW4HV/U3...
  • Page 2 CONTENTS SECTION 1 ..SUMMARY SECTION 2 ..CABINET & MAIN CHASSIS SECTION 3 ..ELECTRICAL SECTION 4 ..MECHANISM OF VCR PART SECTION 5 ..MECHANISM OF DVD PART SECTION 6 .

  • Page 3: Table Of Contents

    SECTION 1 SUMMARY CONTENTS PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS ..... 1-3 SERVICING PRECAUTIONS ....................1-4 • General Servicing Precautions • Insulation Checking Prodedure • Electrostatically Sensitive Devices SPECIFICATIONS ........................1-5...

  • Page 4: Product Safety Servicing Guidelines For Video Products

    PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS CAUTION : DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN ANY WAY, SUBJECT : X-RADIATION NEVER PERFORM CUSTOMIZED INSTALLATIONS WITHOUT MANUFAC- 1. BE SURE PROCEDURES AND INSTRUCTIONS TO ALL SERVICE PER- TURER’S APPROVAL. UNAUTHORIZED MODIFICATIONS WILL NOT ONLY SONNEL COVER THE SUBJECT OF X-RADIATION.

  • Page 5: Servicing Precautions

    SERVICING PRECAUTIONS CAUTION : Before servicing the VCR+DVD covered by this Electrostatically Sensitive (ES) Devices service data and its supplements and addends, read and fol- Some semiconductor (solid state) devices can be damaged low the SAFETY PRECAUTIONS. NOTE : if unforeseen cir- easily by static electricity.

  • Page 6: Specifications

    SPECIFICATIONS General Power requirements AC 120V, 60 Hz Power consumption Dimensions (approx.) 430 x 97.5 x 293 mm (16.9 x 3.9 x 11.5 inches) (w x h x d) Mass (approx.) 5.1kg(11.3lbs) Operating temperature 5˚C to 40˚C (41˚F to 104˚F) Operating humidity 5% to 90% Signal system...
  • Page 7 SECTION 2 CABINET & MAIN CHASSIS CONTENTS 1. EXPLODED VIEWS ........................2-2 1. Cabinet and Main Frame Section ...................2-2 2. Packing Accessory Section ....................2-3...

  • Page 8: Cabinet And Main Frame Section

    EXPLODED VIEWS 1. Cabinet and Main Frame Section...

  • Page 9: Packing Accessory Section

    2. Packing Accessory Section 810 CABLE ASS'Y RF CABLE(COAXIAL) PLUG ASS'Y 1WAY BATTERY PLUG ASS'Y 2WAY REMOCON INSTRUCTION ASSEMBLY COVER(BATTERY) PACKING PACKING BOX CARTON...

  • Page 10: Electrical Section

    SECTION 3 ELECTRICAL CONTENTS OVERALL WIRING DIAGRAM 2. DRIVE & RF CIRCUIT DIAGRAM......3-68 ......3-2 3. MEMORY CIRCUIT DIAGRAM ......3-70 4. INTERFACE CIRCUIT DIAGRAM ......3-72 VCR PART 5. µ-COM/Expander CIRCUIT DIAGRAM ....3-74 ELECTRICAL ADJUSTMENT 6. Jack CIRCUIT DIAGRAM ........3-76 PROCEDURES ............3-3 •...

  • Page 11: Overall Wiring Diagram

    OVERALL WIRING DIAGRAM...

  • Page 12: Vcr Part

    VCR PART ELECTRICAL ADJUSTMENT PROCEDURES 1. Servo Adjustment 1) PG Adjustment • Test Equipment a) OSCILLOSCOPE b) NTSC MODEL : NTSC SP TEST TAPE • Adjustment And Specification MODE MEASUREMENT POINT ADJUSTMENT POINT SPECIFICATION V.Out PLAY R/C TRK JIG KEY 6.5 ±...

  • Page 13: Electrical Troubleshooting Guide

    ELECTRICAL TROUBLESHOOTING GUIDE 1. Power(SMPS) CIRCUIT (1) No 5.3VA (SYS/Hi-Fi/TUNER) (2) No 12VA (TO CAP, DRUM MOTOR) NO 5.3VA. NO 12VA. Replace the F101. Is the Vcc(13V) supplied Check or Replace Is the F101 normal? (Use the same Fuse) to (+) terminal in D115? the D110.
  • Page 14 (4) No 5V (TO DVD) (5) No 33V (TUNER) NO 5V. No 33V. Is 5.3VA put into Check the Power 5.3VA Line Check. Is Q162 Base “H”? the Q160 Emitter? Control. Is the Q162 Base Check the Power Check or Replace “H”? Control.
  • Page 15 (8) No 8V(TO DVD) (9) No 3.3V(TO DVD) NO 8V. NO 3.3V. Check or Replace Check or Replace Is Vcc(13V) supplied to Is Vcc(4V) supplied (+) terminal in D114? to IC152 Pin1? the D110. the D111. Check or Replace Check the Power Is Vcc(12V) supplied Is the Q162 Base to IC151 Pin1?

  • Page 16: System/Key Circuit

    2. SYSTEM/KEY CIRCUIT (1) AUTO STOP Auto Stop Does the SW30 waveform Check the Drum Motor appear at the IC501 signal. Pin18? Do T/UP Reel Pulses Do the T-UP Reel Pulses Does 5V appear at the appear at the point appear at the IC501 Pin80? RS501? between R556 and R536?

  • Page 17: Servo Circuit

    3. SERVO CIRCUIT (1) Unstable Video in PB MODE Unstable Video in PB Mode. Does the Noise level of the screen change periodically? Do the CTL pulses appear Is adjusting the height of at the IC501 Pin97? the CTL Head accurate? Does the CFG waveform Readjust the height of the appear at the IC501...
  • Page 18 2. SERVO CIRCUIT (3) When the Capstan Motor doesn’t run, When the Capstan Motor doesn’t run, Refer to “SMPS(CAPSTAN/12Volt) Does 12VA appear at the PMC01? Trouble Shooting”. Does 2.8V appear at the PMC01 Pin 9? Check the PMC01 and the Capstan Does the PWM signal appear at the IC501 Pin77? Motor Ass’y.

  • Page 19: Osd Circuit

    2. SERVO CIRCUIT (4) KEY doesn’t working KEY doesn’t working. Is 5V applied to the IC501 Refer to “SMPS 5.3VA Pin99? Trouble Shooting”. Does LED or FLD change Replace the defective when a function button is switches. pressed? 4. OSD CIRCUIT (1) No OSD display.

  • Page 20: Y/C Circuit

    5. Y/C CIRCUIT (1) No Video in EE Mode, No Video in EE Mode Does the Video signal Does the Video signal Check DVD Video Input appear at the IC301 appear at the IC302 (IC802, Pin29), Tuner Pins28, 30, 32? Pins1, 5? Video Input (TU701 Pin24), Line Video Input (JK801),...
  • Page 21 3. Y/C CIRCUIT (2) When the Y(Luminance) signal doesn’t appear on the screen in PB Mode, Is 5V applied to the IC301 Check the line of the REG 5V Line. (Power Circuit) Pins23, 44, 45, 52, 68, 77? Is the Y/C Bus siganl Refer to ‘SYSTEM Y/C applied to the IC301 BUS CHECK Trouble...
  • Page 22 3. Y/C CIRCUIT (3) When the C(Color) signal doesn’t appear on the screen in PB Mode, Is 5V applied to the IC301 Check the line of the REG 5V Line. (Power Circuit) Pins23, 44, 45, 52, 68, 77? Does the FSC signal Is normal the X301 appear at the IC301 (3.58MHZ) of oscillation...
  • Page 23 3. Y/C CIRCUIT (4) When the Video signal doesn’t appear on the screen in REC Mode, REC mode Is EE mode normal? Check the EE mode Is brightness normal? Is color normal? Is the brightness signal sup- Does signal appear at Check X301 oscillation IC301 Pins41, 50? frequency.

  • Page 24: Hi-Fi Circuit

    6. Hi-Fi CIRCUIT (1) No Sound(EE Mode) No Sound. Check the SIF.IN of IC801 Pins57. Check the TU701 SIF Pin13. Check the DVD Audio of IC801 Check the DVD MODULE. (PMD02 Pins13, 15). Pins12, 74. Check the AV1 Audio of IC801 Check the Rear Jack.
  • Page 25 3. Y/C CIRCUIT (2) Hi-Fi Playback PB mode No Sound. Check the Vcc of IC801 Check Power. (Pins3, 5, 15, 32, 36, 46, 54). Check the Hi-Fi Selection switch. Check IC501 Pin19 (A.H/SW) (IC801 Pin39) and the Tape quality. Is the RF Envelope at IC801 Pin23 over 3Vp-p? Check IC801 Pin37(Data), Check the parts of µ-COM...
  • Page 26 (3) Hi-Fi REC Hi-Fi REC. It is impossible to record Hi-Fi Audio signal. Check Vcc of IC801. Check Power. (Pins3, 5, 15, 32, 36, 46, 54) Check ports of µ-CPM. Check IC801 Pin37(Data), Pin38(CLOCK). (IC501 Pins71, 72) Check Audio input signal of IC801 Do Audio signals appear at IC801 Pin6? Pin57(TU.A.), 7, 69(DVD.A.), 11, 73(AVI.A.), 9, 71(AV2.A.)

  • Page 27: Tuner/If Circuit

    7. Tuner/IF CIRCUIT (1) No Picture on the TV screen No picture on the TV screen Does the Video signal at Is +33V applied to TU701 Check 33V line. the TU701 Pin16. Pin14? Is +5V applied to TU701 Check 5V line. Pin3? Does the Clock signal Check the lIC Clock Signal...
  • Page 28 (2) No Sound No Sound. Check the Vcc of TU701 Pins3, 14. Check 5.2V, 33V Line. Check the Tuner SiF signal at IC801 Check the Tuner SIF of TU701 Pin13. Pin57. 1. Check the Vcc(5.3VA, 9V) of IC801 Check the Audio of IC801 Pins78, 80. Pins3, 5, 36, 54.

  • Page 29: Block Diagrams

    IC102 TO DVD (R157, Q160, R158, R159, D121, C155) IC103 KIA431 (BK) (WH) HOT CIRCUIT PWR CTL FROM µ-COM BLOCK PWR CTL 'H' (Q162,R163,R164, R171,C161) NOTES : Symbol denotes AC ground. DVW-6100 Symbol denotes DC chassis ground. SANYO 3-20 3-21...

  • Page 30: Tu/If Block Diagram

    2. TU/IF BLOCK DIAGRAM 875 MOD A.IN MOD CTL 106 5.0V VCR 'H' REG. BLOCK 671 MOD V.IN IIC CLK REG. BLOCK IIC DATA 781 SIF OUT TU.V.OUT DVW-6100 SANYO 3-22 3-23...

  • Page 31: Y/C Block Diagram

    C-LPF 4.21M CONV 3.58M BPF1 COMB 4.21M DETAIL CLAMP CONV COMB LINE2 MAIN SP REC CLAMP EMPHA SP PB 'B' CONV EMPHA SP PB 'A' V.OUT V.OUT DOUBLE FM-EQ MAIN DE-EM IC301 FM-EQ LA71206M IC301 LA71206M DVW-6100 SANYO 3-24 3-25...

  • Page 32: Normal Audio Block Diagram

    4. NORMAL AUDIO BLOCK DIAGRAM (EE Mode) (PB Mode) (REC Mode) DVW-6100 SANYO 3-26 3-27...

  • Page 33: Hi-Fi Block Diagram

    DVD A.IN 'R' AV1 A.IN 'L' INPUT REAR JACK OUTPUT SELECT AV1 A.IN 'R' SELECT MODULATOR AV2 A.IN 'L' A.OUT IC801 FRONT (To Tu) AV2 A.IN 'R' LA72670M NORMAL AUDIO OUT(To AVCP) NORMAL AUDIO IN(From AVCP) DVW-6100 SANYO 3-28 3-29...

  • Page 34: System Block Diagram

    POWER FAIL SUP REEL R558 C582 IC504 CST IN RESET CST.SW/REC TAP Q503 5.3VA IC505 5.3VA C500 C517 R541 R531 CS501 R5C6 RC601 R544 Q501 L511 C552 R583 R529 R598 C595 C596 L512 C592 C503 C561 L501 DVW-6100 SANYO 3-30 3-31...

  • Page 35: Circuit Diagrams

    2. Voltages are DC-measured with a digital voltmeter MODIFIED OR ALTERED WITHOUT PERMISSION IMPLEMENTATION OF THE LATEST SAFETY AND during Play mode. FROM THE SANYO ELECTRONICS CORPORATION. PERFORMANCE IMPROVEMENT CHANGES INTO ALL COMPONENTS SHOULD BE REPLACED ONLY THE SET IS NOT DELAYED UNTIL THE NEW SERVICE WITH TYPES IDENTICAL TO THOSE IN THE ORIGI- LITERATURE IS PRINTED.

  • Page 36: Tu/If Circuit Diagram

    2. TU/IF CIRCUIT DIAGRAM 3-34 3-35...

  • Page 37: A/V Circuit Diagram

    0.033µ KTA1504 KRA103 IC306, Q307 are defective. EE, PB Screen doesn’t appear. KTC3875 KTA1504 KTC3875 C324 2SC5344 '02. 12. 04 R13733C DVW-6100(SANYO) PB Y+C FL301, Q304, Q305 are defective. REC Y+C Normal Audio Signal is not recorded. WAVEFORM 3-36 3-37...

  • Page 38: Hi-Fi Circuit Diagram

    4. Hi-Fi CIRCUIT DIAGRAM IC801 Pins37, 38 aredefective. All Audio is not appear. KTC3875 23 Pin is defective. Hi-Fi Audio is not appear. '02. 12. 04 R13734C DVW-6100(SANYO) 3-38 3-39...

  • Page 39: Jack Circuit Diagram

    5. JACK CIRCUIT DIAGRAM 220UF/6.3V L601 1µH 100µF/6.3V F603 CF106B (CSS-4206) F601 CF106B 470UF/6.3V F602 CF106B (TO DVD PMD01) KTC3875 (TO Hi-Fi) KTC3875 (FROM TO SYSTEM) '02. 12. 04 R13738C DVW-6100(SANYO) 3-40 3-41...

  • Page 40: System Circuit Diagram

    Deck will not operate. R575, R576, R577, R545 R578 are defective. EEPROM IC503 R502 R501 '02. 12. 04 R13732C Auto stop occures. RS501,RS502 are DVW-6100(SANYO) Auto Rew will not working. defective. ES501, ES502, LD501 are defective. WAVEFORM FROM TO JACK 3-42 3-43...

  • Page 41: Key Circuit Diagram

    7. KEY CIRCUIT DIAGRAM SRC1203 SRC1203 SRC1203 LD601 PT3955 C6G1 C6G2 DVW-6100(SANYO) 3-44 3-45...

  • Page 42: Waveforms

    • WAVEFORMS * IC301 Waveform * IC501 Waveform Stop : 10.0KS/s 280 Acqs Stop : 250KS/s 299 Acqs Stop : 10.0KS/s 18 Acqs Trigger Position: 12% Stop : 10.0KS/s 27 Acqs 1.00 V M 5.00ms 3.04 V 1.00 V M5.00ms 3.04 V 1.00 V M 200µs...

  • Page 43: Circuit Voltage Chart

    • CIRCUIT VOLTAGE CHART MODE MODE MODE MODE MODE MODE Base Emitter Collector Location PLAY PLAY PLAY PLAY PLAY PLAY PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. I C 3 0 1 0.68 0.93 5.19 5.19 3.86 0.23...

  • Page 44: Printed Circuit Diagrams

    PRINTED CIRCUIT DIAGRAMS 1. MAIN P.C.BOARD LOCATION GUIDE 3-50 3-51...

  • Page 45: Key 1(Left) P.c.board

    2. KEY 1(LEFT) P.C.BOARD 4. POWER P.C.BOARD NOTES) Warning NOTES) Parts that are shaded are critical NOTES) With respect to risk of fire or LOCATION GUIDE LOCATION GUIDE NOTES) electricial shock. 3. TIMER P.C.BOARD LOCATION GUIDE 3-52 3-53...

  • Page 46: Dvd Part(Ns Model)

    DVD PART (NS MODEL) ELECTRICAL TROUBLESHOOTING GUIDE (NS) 1. µ-COM Circuit A. No Power POWER ON Does Hello appear at FLD? Is PDV02 Does no DISC appear? connected normally? Reconnect it. Does Logo appear Check power. on the screen? (Refer to power) If power is normal Is PDV02 Pins8, 9,...
  • Page 47 B. Audio abnormal C. Video abnormal AUDIO ABNORMAL VIDEO ABNORMAL Check Audio jack. Check Video jack. YES (If OK) YES (If OK) Check MPEG_CLK Signal Refer to Video part. (IC501 Pin22) of MPEG part. YES (If OK) YES (If OK) Refer to Audio part.
  • Page 48 E. Picture abnormal PICTURE ABNORMAL Check the disc. Refer to Servo part If OK Check MPEG_CLK Signal (IC501 Pin22) of MPEG part YES (If OK) Check DSP YES (If OK) Check MPEG YES (If OK) Replace Main B/D F. Disc Error DISC ERROR Check Disc YES (If OK)

  • Page 49: Mpeg Circuit

    2. MPEG Circuit Power is on Does Logo appear Check power & clock. on the screen? Does the Check CD/DVD DSP output moving picture of the DVD Disc Is MPEG data signal normal? play on the screen signal. normally? Check MPEG Decoder input signal.

  • Page 50: Rf/Servo Circuit

    3. RF/Servo Circuit CHECK POINT(General) Does signal goes "High" to IC201 Pin186 when the power is on? Does signal pulse Check "2.µ-COM Part". input to IC201 Pins53, 54 when the power is on? Does Does Replace X201 or IC206 33.8688MHz clock input to 33.8688MHz clock input (33MHz clock defect) IC201 Pin138?
  • Page 51 No disc Power on. Check loading Part. Push Pick-up to inner track to Does tray open or close? the end by hand. Does DECK assembly is defective. PMD03 Pin10 change (Limit sw) high to low? Pressing the open/close key repeatedly, check the voltage of IC2M1 check µ-COM Part.
  • Page 52 DISC IN OPEN/CLOSE Fig.3. FOCUS ERROR waveform Check Check IC2A1 Pins47,50,51,52 the focus error moving the FOCUS ON? lens up and down. in DVD Mode (IC2A1 Pin39) IC201 no output : Pick-up is defective. Does the TTL level change at IC201 Replace IC201.
  • Page 53 CHECK A Fig.5. RF waveform Check RF Eye-Pattern. No signal: Pick-up is defective Check IC2A1 Pin3. RF : 1.5-1.6V(TP2A0) Does the sawtooth waveform emit Is the eye-pattern vivid? Does the 1.6V emit? Replace IC2A1. at IC2A1 Pin36? Replace IC201. Check IC201 Pin84. No signal at IC201 : IC201 is defective •...

  • Page 54: Block Diagrams

    BLOCK DIAGRAMS (NS) 1. DVD OVERALL BLOCK DIAGRAM , PAL_SW , AUTO_SW , MIC_ON DAC_RST /FLASH_CS , /RD PWEO PSENB MIRR,TZC,PE,TE FE,DFECT_IN XLAT , E_STI , E_ENB , E_DR CPLD SPINDLE FOCUS,TRACKI NG,SLED LOADING DVW-6100 SANYO DECK M ECHANI SM 3-62...

  • Page 55: Servo Block Diagram

    2. RF/CD DSP/DVD DSP/DVD SERVO BLOCK DIAGRAM DVW-6100 SANYO 3-63...

  • Page 56: Audio Block Diagram

    3. AUDIO BLOCK DIAGRAM DVW-6100 SANYO 3-64...

  • Page 57: Mpeg Block Diagram

    4. MPEG BLOCK DIAGRAM AD[ 04 : 21 ] DVW-6100 SANYO 3-65...

  • Page 58: Circuit Diagrams

    CIRCUIT DIAGRAMS (NS) 1. DVD DSP CIRCUIT DIAGRAM TO/FROM MPEG DSP II '02. 12. 04 R17147A TRACKING LOOP SLED LOOP DVW-6100(SANYO) WAVEFORM FOCUS LOOP SPINDLE LOOP 3-66 3-67...

  • Page 59: Drive & Rf Circuit Diagram

    2. DRIVE & RF CIRCUIT DIAGRAM TO/FROM MEMORY Q2A5, Q2A6 TO/FROM DSP TO/FROM DSP TO/FROM MEMORY TO/FROM MPEG TO/FROM MEMORY TO/FROM DSP TO/FROM DSP '02. 12. 04 R17145A DVW-6100(SANYO) TRACKING LOOP SLED LOOP WAVEFORM FOCUS LOOP SPINDLE LOOP 3-68 3-69...

  • Page 60: Memory Circuit Diagram

    Digitron all not display system not workry DRIVE & RF Digitron all not display system not working Tray not open/close Digitron all not display '02. 12. 04 R17148A system not working Tray not open/close DVW-6100(SANYO) 3-70 3-71...

  • Page 61: Interface Circuit Diagram

    4. INTERFACE CIRCUIT DIAGRAM (TO/FROM VCR POWER) PDV01-PPD01 (TO/FROM VCR SYSTEM) PDV02-PMD01 TO/FROM MPEG TO/FROM JACK TO/FROM MPEG (TO/FROM VCR JACK) PDV03-PMD02 TO/FROM MEMORY '02. 12. 04 R17150A DVW-6100(SANYO) 3-72 3-73...

  • Page 62: Μ-Com/Expander Circuit Diagram

    5. µ-COM/EXPANDER CIRCUIT DIAGRAM HB-1S1608 MM74HCT244 '02. 12. 04 R17146A Optical/Coaxial out Y/Pb/Pr(Componet) WAVEFORM DVW-6100(SANYO) Y/C(S-VHS) CVBS 3-74 3-75...

  • Page 63: Jack Circuit Diagram

    6. JACK CIRCUIT DIAGRAM DAP202K '02. 12. 04 R17149A DVW-6100(SANYO) 3-76 3-77...

  • Page 64: Waveforms

    • WA VEFORMS (NS) Te k Stop : 2.50MS/s 4 Acq s M20. 0µs Glitch 2 Apr 1999 500mV 14:47:27 IC2A1 IC2A1 Pin 36 IC2A1 Pin 36 IC501 Pin 118, Composite IC501 Pin 112, Chrominanc e IC501 Pin 114, Luminance TP2A0 Tr acking Erro r VBR TRACKING...

  • Page 65: Circuit Voltage Chart

    • CIRCUIT VOLTAGE CHART (NS) MODE MODE MODE MODE MODE MODE MODE MODE MODE MODE STOP PLAY PLAY PLAY PLAY PLAY PLAY PLAY PLAY PLAY PLAY PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO.
  • Page 66 MODE MODE MODE MODE MODE MODE MODE MODE MODE MODE PLAY PLAY PLAY PLAY PLAY PLAY PLAY PLAY STOP PLAY STOP PLAY PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO.
  • Page 67 MODE MODE PLAY STOP PLAY PIN NO. PIN NO. CAPACITOR Q2A1 C3F3 3.25 5.09 5.05 C293 3.25 5.09 5.24 C262 3.25 0.00 0.00 Q2A2 C281 1.60 C279 2.14 5.07 0.00 C285 2.07 5.07 0.00 C297 3.25 0.00 1.82 Q2A5 C280 2.71 C278 2.13...

  • Page 68: Printed Circuit Diagrams

    PRINTED CIRCUIT DIAGRAMS (NS) 1. SUB P.C.BOARD (TOP VIEW) LOCATION GUIDE 3-86 3-87...

  • Page 69: Sub P.c.board (Bottom View)

    2. SUB P.C.BOARD (BOTTOM VIEW) LOCATION GUIDE 3-88 3-89...
  • Page 70 SECTION 4 MECHANISM OF VCR PART CONTENTS DECK MECHANISM PARTS DECK MECHANISM ADJUSTMENT LOCATIONS • Tools and Fixtures for Service ....4-12 1. Mechanism Alignment Position Check..4-13 • Top View............4-1 2. Preparation for Adjustment......4-14 • Bottom View ..........4-1 3. Checking Torque ........4-14 4.

  • Page 71: Deck Mechanism Parts Locations

    DECK MECHANISM PARTS LOCATIONS • Top View Procedure Fig- Part Fixing Type Starting 1 Drum Assembly 3 Screw 2 Plate Top 2 Hook 3 Holder Assembly CST Chassis Hole 4 Opener Door Chassis Hole 5 Bracket Assembly 3 Hook L/D Motor 2,3,4 6 Gear Assembly Rack F/L 1 Hook, Chassis Hole A-2...

  • Page 72: Deck Mechanism Disassembly

    DECK MECHANISM DISASSEMBLY Stator (S2) (S2) (S3) Drum Motor (S3) Rotor Drum Sub Assembly (Fig. A-1-1) Drum FPC Carbon Brush (S1) (S1) (S1) Holder FPC Fig. A-1 (Fig. B-1) 1. Drum Assembly (Fig. A-1-1) 1) Unplug the Drum FPC Connector. 2) Remove three Screws(S1) on bottom side and separate the Drum assembly.
  • Page 73 DECK MECHANISM DISASSEMBLY (Fig. A-2-1) Plate Top (B') (Fig. A-2-2) Holder Assembly CST (Fig. A-2-6) Arm Assembly F/L (C1) (Fig. A-2-7) Lever Assembly S/W (H8) Bracket Assembly L/D Motor Spring Lever S/W (Fig. A-2-4) (C') (E') Opener Door (Fig. A-2-3) (H6) Chassis Gear Assembly Rack F/L...

  • Page 74: Plate Top

    DECK MECHANISM DISASSEMBLY 2. Plate Top (Fig. A-2-1) 2) Unhook three Hooks(H3, H4, H5) on bottom side of the Chassis, lift up the Bracket Assembly L/M and disassem- 1) Pull the (B) portion of the Plate Top back in direction of ble the Bracket Assembly L/D Motor.

  • Page 75: Arm Assembly Cleaner

    DECK MECHANISM DISASSEMBLY Arm Assembly Cleaner (Fig. A-3-1) (S4) Base Assembly A/C Head (Fig. A-3-3) Head F/E (Fig. A-3-2) Chassis Fig. A-3 9. Arm Assembly Cleaner (Fig. A-3-1) 11. Base Assembly A/C Head (Fig. A-3-3) 1) Breakaway the (A) portion as Fig. A-3-1 from the 1) Remove the Screw(S4) and lift the Base Assembly A/C embossing of the Chassis, turn the Arm assembly Head up.

  • Page 76: Brake Assembly T

    DECK MECHANISM DISASSEMBLY Arm Assembly Tension (Fig. A-4-3) (H11) Spring TB Brake Assembly T (Fig. A-4-1) Spring Tension Reel S Reel T (Fig. A-4-4) (Fig. A-4-4) Spring RS Brake Assembly RS (Fig. A-4-2) (H12) (H9) (H10) Base Tension Chassis Fig. A-4 12.

  • Page 77: Base Assembly P4

    DECK MECHANISM DISASSEMBLY Opener Lid (Fig. A-5-2) Assembly Pinch (Fig. A-5-3) Base Assembly P4 Lever T/up (H13) (Fig. A-5-1) (Fig. A-5-4) (H13) Arm T/up (Fig. A-5-5) Chassis Fig. A-5 16. Base Assembly P4 (Fig. A-5-1) NOTE 1) Breakaway the (A) portion of the Base Assembly P4 from When reassembling, confirm the (C) portion of the Arm the embossing of the Chassis.

  • Page 78: Belt Capstan/Motor Capstan

    DECK MECHANISM DISASSEMBLY Belt Capstan (Fig. A-6-1) Motor Capstan (Fig. A-6-2) Washer(W1) Clutch Assembly D35 (Fig. A-6-4) (L1) (L1) Brake Assembly Capstan (Fig. A-6-5) Lever F/R (Fig. A-6-3) (L2) Chassis (S5) Fig. A-6 20. Belt Capstan (Fig. A-6-1)/ 22. Clutch Assembly D35 (Fig. A-6-4) Motor Capstan (Fig.

  • Page 79: Gear Drive/Gear Cam

    DECK MECHANISM DISASSEMBLY (H14) Gear Cam Hole(B) Gear Cam (Fig. A-7-2) Gear Drive Hole(A) Washer (W2) Gear Sector (Fig. A-7-3) Plate Slider Gear Drive (Fig. A-7-4) (Fig. A-7-1) Lever Tension (Fig. A-7-5) Lever spring (L3) (Fig. A-7-6) Gear Drive Hole(C) Base Loading (H15) (H16)

  • Page 80: Gear Assembly P2

    DECK MECHANISM DISASSEMBLY Gear Assembly P2 Hole Gear Assembly P3 Hole Gear Assembly P3 (Fig. A-8-2) Gear Sector Hole(A) Lever Spring Boss Gear Assembly P2 Plate Slider Hole(B) (Fig. A-8-1) Chassis Base Assembly P3 (Fig. A-8-4) Base Assembly P2 (Fig. A-8-3) Fig.

  • Page 81: Base Loading

    DECK MECHANISM DISASSEMBLY (S7) Base Tension Base Loading (Fig. A-9-2) Arm Assembly Idler (Fig. A-9-1) (Fig. A-9-3) Chassis Fig. A-9 31. Base Loading (Fig. A-9-1) 33. Arm Assembly Idler (Fig. A-9-3) 1) Remove the Screw(S7). 1) Make narrower the two parts, (B) and (C), as Fig. A-9-3. 2) Lift the Base Loading up.

  • Page 82: Deck Mechanism Adjustment

    DECK MECHANISM ADJUSTMENT • Tools and Fixfures for Service 1. Cassette Torque Meter 2. Alignment Tape 3. Torque Gauge SRK-VHT-303(Not SVC part) Parts No NTSC: DTN-001 600g.Cm ATG Parts No: D00-D006 PAL:DTN-0002 Parts No:D00-D002 4. Torque Gauge Adaptor 5. Post Height Adjusting Driver 6.

  • Page 83: Mechanism Alignment Position Check

    DECK MECHANISM ADJUSTMENT 1. Mechanism Alignment Position Check Purpose:To determine if the Mechanism is in the correct position, when a Tape is ejected. Test Conditions (Mechanism Test Equipment/ Fixture Check Point Condition) • Mechanism and Mode Switch Position • Blank tape •...

  • Page 84: Preparation For Adjustment

    DECK MECHANISM ADJUSTMENT 2. Preparation for Adjustment (To set the cassette without tape. Cover the holes of the End Sensors at the both sides of Deck Mechanism of the loading state the Chassis to prevent a light leak. without inserting a cassette tape). Then the Deck Mechanism drives to the Stop Mode.

  • Page 85: Guide Roller Height Adjustment

    DECK MECHANISM ADJUSTMENT 4.Guide Roller Height Adjustment Purpose: To regulate the height of the tape so that the bottom of the tape runs along the tape guide line on the Lower Drum. 4-1. Preliminary Adjustment Test Equipment/ Fixture Test Conditions (Mechanism Condition) Adjustment Point •...

  • Page 86: Audio/Control (A/C) Head Adjustment

    DECK MECHANISM ADJUSTMENT 5. Audio/Control (A/C) Head Adjustment Purpose: To insure that the tape passes accurately over the Audio and Control Tracks in exact alignment of the both Record and Playback Modes. 5-1. Preliminary Adjustment (Height and Tilt Adjustment) Perform the Preliminary Adjustment, when there is no Audio Output Signal with the Alignment Tape. Test Equipment/ Fixture Test Conditions (Mechanism Condition) Adjustment Point...

  • Page 87: Precise Adjustment(Azimuth Adjustment)

    DECK MECHANISM ADJUSTMENT 5-2. Confirm that the tape passes smoothly (2) If folding or curling is observed at the top of it then slowly turn the Tilt Adjustment Screw(C) in the between the Take-up Guide and Pinch counterclockwise direction. Roller(using a mirror or the naked eye). 1) After completing Step 5-1.(Preliminary Adjustment), check NOTE: that the tape passes around the Take-up Guide and Pinch...

  • Page 88: Adjustment After Replacing Drum Assembly (Video Heads)

    DECK MECHANISM ADJUSTMENT 7. Adjustment after Replacing Drum Assembly (Video Heads) Purpose: To correct for shift in the Roller Guide and X value after replacing the Drum. Test Conditions Test Equipment/ Fixture Connection Point Adjustment Points (Mechanism Condition) • CH-1: PB RF Envelope •...

  • Page 89: Maintenance/Inspection Procedure

    MAINTENANCE/INSPECTION PROCEDURE 1. Check before starting repairs The following faults can be remedied by cleaning and oil- ing. Check the needed lubrication and the conditions of cleanliness in the unit. Check with the customer to find out how often the unit is used, and then determine that the unit is ready for inspec- tion and maintenance.

  • Page 90: Required Maintenance

    MAINTENANCE/INSPECTION PROCEDURE 2. Required Maintenance 4. Supplies Required for Inspection and Maintence The recording density of a VCR(VCP) is much higher than that of an audio tape recorder. VCR(VCP) components must (1) Grease : Kanto G-311G (Blue) or equivalent be very precise, at tolerances of 1/1000mm, to ensure com- (2) Isopropyl Alcohol or equivalent patibility with the other VCRs.

  • Page 91: Greasing

    MAINTENANCE/INSPECTION PROCEDURE 5-2) Greasing (2) Periodic greasing Grease specified locations every 5,000 hours. (1) Greasing guidelines 1) Loading Path Inside & Top side 6) Plate Slider Guide Sections Apply grease, with a cleaning patch. Do not use exces- 2) Base Assembly P2,P3 stopper 7) Plate Slider Guide Sections sive grease.
  • Page 92 MAINTENANCE/INSPECTION PROCEDURE Lever, F/R, Base, Tension GEAR AY, P2 & P3 Boss Lever, F/R Base, Tension Clutch (G-754. Yellow) Arm Tension Guide Hole 4-22...

  • Page 93: Mechanism Troubleshooting Guide

    MECHANISM TROUBLESHOOTING GUIDE 1.Deck Mechanism Auto REW doesn't work. Is the output of END sensor of supply side "H"? “H”: more than 3.5V “L”: less than 0.7V~1V Is the Vcc. voltage of End Check the syscon power. sensor 5V? Replace the End sensor. Is the voltage across IR LED Replace the IR LED.
  • Page 94 MECHANISM TROUBLESHOOTING GUIDE AUTO STOP. (PLAY/CUE/REV) Check alignment positions (page 4-13). In Play/Cue/Rev, Is the Pinch Roller in contact with the Is the output of DFG, DPG OK? Replace the Drum Motor. Capstan Shaft? Are there T/up and Supply Reel Check the Servo, Syscon.
  • Page 95 MECHANISM TROUBLESHOOTING GUIDE In PB mode Tape Presence not sensed. Is the Pinch Roller attached Check Alignment positions to the Capstan Motor Shaft? (page 4-13). Does the T/Up Reel turn? Is the Belt ok? Replace the Belt. Check the Clutch and Idler Does the Capstan Motor turn? Assembly.

  • Page 96: Front Loading Mechanism

    MECHANISM TROUBLESHOOTING GUIDE 2. Front Loading Mechanism Cassette cannot be inserted. Does the Lever Assembly Is the Lever Assembly Switch Replace or add the Lever Switch work? Spring damaged or omitted? Assembly Switch Spring. Does the CST IN Switch work Replace the CST IN Switch.
  • Page 97 MECHANISM TROUBLESHOOTING GUIDE Cassette does not load. Does the cassette insert? Does the Opener Lid work? Does the Gear Assembly Rack F/L Replace the Opener Lid. work? Replace the Gear Rack F/L. Does the Opener Door work? Check the opener Door assembled Does the Arm Assembly F/L work? correctly.

  • Page 98: Exploded Views

    EXPLODED VIEWS 1. Front Loading Mechanism Section 4-28...

  • Page 99: Moving Mechanism Section (1)

    EXPLODED VIEWS 2. Moving Mechanism Section(1) OPTIONAL PART 4-29...

  • Page 100: Moving Mechanism Section (2)

    EXPLODED VIEWS 3. Moving Mechanism Section(2) OPTIONAL PART 4-30...
  • Page 101 SECTION 5 MECHANISM OF DVD PART(NS MODEL) CONTENTS 5. Frame Assembly Up/Down ....5-4 DECK MECHANISM PARTS 6. Belt Loading........5-4 LOCATIONS 7. Gear Pulley ........5-4 8. Gear Loading ........5-4 • Top View..........5-1 9. Guide Up/Down.........5-4 • Top View(without Tray Disc) ....5-1 •...

  • Page 102: Deck Mechanism Parts Locations

    DECK MECHANISM PARTS LOCATION • Top View (With Tray) Procedure Disass Fig- Parts Fixing Type embly Starting No. Holder 2 Screws, Clamp 2 Locking Tabs Clamp Assembly Disc 1, 2 Plate Clamp 1, 2, 3 Magnet Clamp 1, 2, 3, 4 Clamp Upper Tray Disc 1, 6...

  • Page 103: Deck Mechanism Disassembly

    DECK MECHANISM DISASSEMBLY PLATE CLAMP CLAMP HOLDER DISC CLAMP ASSEMBLY MAGNET CLAMP DISC TRAY UPPER CLAMP (S1) (S1) (Fig. A) CLAMP HOLDER MAIN BASE EMERGENCY EJECT HOLE (L1) MAIN BASE LEVER (L1) CLAMP HOLDER MAIN BASE BOTTOM SIDE VIEW Fig. 5-1 Fig.

  • Page 104: Base Assembly Sled

    DECK MECHANISM DISASSEMBLY (L2) MIDDLE GEAR (S2) RUBBER DAMPER (BLACK) (S3) GEAR RACK ASSEMBLY FEED GEAR ASSEMBLY (S2) RUBBER DAMPER (BLACK) (S2) RUBBER DAMPER (GREEN) GENERAL PICK UP ASSEMBLY BASE PU(OUTSER (C1) (S2) (GREEN) GENERAL PICK UP ASSEMBLY RUBBER DAMPER SPINDLE MOTOR ASSEMBLY FEED GEAR ASSEMBLY MIDDLE GEAR...

  • Page 105: Frame Assembly Up/Down

    DECK MECHANISM DISASSEMBLY UP/DOWN GUIDE LOADING GEAR (L3) (L6) PULLEY GEAR (L6) (L4) LOADING BELT MAIN BASE PWB(PCB) ASSEMBLY, OTHERS (H1) (L6) (C2) (S5) MAIN BASE (S4) FRAME UP/DOWN (L5) UP/DOWN GUIDE FIG. (A) FIG. (B) UP/DOWN GUIDE UP/DOWN GUIDE FIG.

  • Page 106: Exploded View

    EXPLODED VIEWS 1. Deck Mechanism Exploded View 011A...
  • Page 107 NOTES) With respect to risk of fire or "IC3F1A" NOTES) electricial shock. SECTION 6 REPLACEMENT PARTS LIST SANYO MODEL : DVW-6100(NS MODEL) NSP : Not avallable as service parts. RUN DATE : 12-JUNE-03 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION...
  • Page 108 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS ALTERNATE LG5040R-0047B RUBBER DAMPER(E2,5040H-1054A),CHUNPOO 012A LG5040R-0047C RUBBER DAMPER(HARDNESS=30),DARKGREEN ALTERNATE 012A LG5040R-0047D RUBBER DAMPER(HARDNESS=30),DARKGREEN LG4400R-0006B BELT DECK/MECHA DP2-5, DP7C,DP7A OT LG4400R-0006A BELT LOADING LG4470R-0055A GEAR PULLEY LG6871RZ5130A PWB(PCB) ASSEMBLY,OTHERS SUB,L/D (DP-4V,DVD+VCR) DI LG4470R-0050B GEAR ASSY FEED (DI) LG4470R-0056A...
  • Page 109 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C338 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F) C339 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) C340 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5) C341 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP C342 LG0CE1054K638...
  • Page 110 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C583 LG0CH4102K416 CAPACITOR,FIXED CERAMIC(High d 1000PF 50V 5% NP0 2012 R/TP C584 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5) C585 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP C586 LG0CE1064F638 CAPACITOR,ELECTROLYTIC...
  • Page 111 F603 LG6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K FL301 LG633-032K COIL,IFT BIAC OSC,1CHIP 5V(KS-75M) KWAN IC301 LG0ILNRSA012A IC,LINEAR LA71206M-MPB SANYO 80PIN QFP T IC302 LG0IJR223400D IC,JRC NJM2234L SIP8 ST S/W IC(3INPUT IC501 LG0IMCRMI051C IC,MICRO CONTROLLER M37762MCA-1H5GP MITSUBISHI 100 IC504 LG0IKE703100A IC,KEC KIA7031P 3P 3.1V RESET(TAPING)
  • Page 112 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS JK601 LG6612J00025E JACK,RCA RCA/DIN-36(SILVER) YUQIU L301 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP L303 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP L305 LG0LR0102K035 INDUCTOR RADIAL LEAD 10M K 6X6 L5 TP L501 LG0LR1000K035...
  • Page 113 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R324 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D R325 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D R326 LG0RH1502D622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 10 W 2012 5.00% D R327 LG0RH6801D622 RESISTOR,METAL GLAZED(CHIP)
  • Page 114 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R541 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D R542 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D R543 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D R544 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP)
  • Page 115 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R702 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D R703 LG0RH3901D622 RESISTOR,METAL GLAZED(CHIP) 3.9K OHM 1 / 10 W 2012 5.00% D R706 LG0RH6800D622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 10 W 2012 5.00% D R707 LG0RH6800D622 RESISTOR,METAL GLAZED(CHIP)
  • Page 116 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS ZD501 LG0DZ560009CA DIODE,ZENER MTZ5.6B TP ROHM-K ZD502 LG0DZ560009CA DIODE,ZENER MTZ5.6B TP ROHM-K ZD751 LG0DZ102609BB DIODE,ZENER UZ-10BSB 26MM TP PYUNG CHANG D ZD752 LG0DZ562609AB DIODE,ZENER UZ-5.6BSC 26MM TP PYUNG CHANG *** BOARD ASSEMBLY , TIMER *** LG3501R-6413A BOARD ASSEMBLY VCR VYC601M TIMER...
  • Page 117 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS *** PWB(PCB) ASSEMBLY , TOTAL POWER *** LG6871R-8311B PWB(PCB) ASSEMBLY,TOTAL VYC601M NA1USS POWER BD01 LG636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P BD02 LG636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P BD101 LG0DD160000DA DIODE S1WBA60(1A 600V) SHIDENKEN C101 LG624-088L...
  • Page 118 RACK F/L LG4261R-0023A ARM ASSY LG4510R-0046A LEVER ASSY SWITCH LG6723R-0306A DRUM(CIRC) ASSEMBLY SUB D35-6CH (8C6W) LG4680R-B008A MOTOR(MECH) DRUM VH4302-800 SANYO FOR D35K ALTERNATE LG4680R-B010A MOTOR(MECH) DRUM MDVC-035KA LGIT FOR D35K ALTERNATE LG4680R-B009A MOTOR(MECH) DRUM I2OAL21 SANKYO FOR D35K ALTERNATE LG4680R-B005A...
  • Page 119 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS LG4580R-0004A ROLLER CLEANER LG4260R-0039A CLEANER LG6850R-HG18Z CABLE,FLAT P=1.25 FFC UL2896(0.05X0.8) 7 LG4260R-0038A T/UP(D35) LG4261R-0022A ARM ASSY TENSION(D35) LG3041R-0037A BASE ASSY LG3041R-0038A BASE ASSY LG3041R-0039A BASE ASSY LG5870R-0005A OPENER LID(D35) LG3041R-0036B BASE ASSEMBLY A/C HEAD (TDK) LG3041R-0036A BASE ASSEMBLY...
  • Page 120 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS LG3040R-0056A BASE TENSION(D35) LG3301R-M022A PLATE ASSEMBLY 100A LG3300R-0184A PLATE 100B LG3300R-M118A PLATE TOP(D35) LG4970R-0130A SPRING COIL D35 (STOPPER) LG4930R-0276A HOLDER SIDE(L) LG4930R-0274A HOLDER LG4930R-0275A HOLDER SIDE(R) LG4510R-0044A LEVER STOPPER LG5870R-0004A OPENER DOOR LG4260R-0035A F/L(L) LG3070R-0002A...
  • Page 121 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C252 LG0CH4100K112 CHIP CAPA CERAMIC M/L T.C F/S 10P 50V D COG 1.6X0.8 R/TP C253 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP C254 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP C255 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD...
  • Page 122 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C2D2 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP C2D3 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP C2D4 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) C2D5 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
  • Page 123 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C414 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP C415 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) C416 LG0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T C417 LG0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP C418...
  • Page 124 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C554 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608 C555 LG0CH4101K412 CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP C556 LG0CH4101K412 CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP C557 LG0CH4270K412 CAPACITOR,CHIP[CERAMIC M/L TC...
  • Page 125 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS L605 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D L606 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D L607 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D Q2A1 LG0TR103709BB TRANSISTOR,BIPOLARS...
  • Page 126 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R2B4 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D R2B5 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R2B6 LG0RH0182C622 RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D R2B7 LG0RH0182C622 RESISTOR,METAL GLAZED(CHIP)
  • Page 127 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R2P0 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D R2P1 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D R2P2 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D R2P3 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP)
  • Page 128 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R431 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R432 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D R433 LG0RH5600C622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 16 W 1608 5.00% D R434 LG0RH5600C622 RESISTOR,METAL GLAZED(CHIP)

Table of Contents
