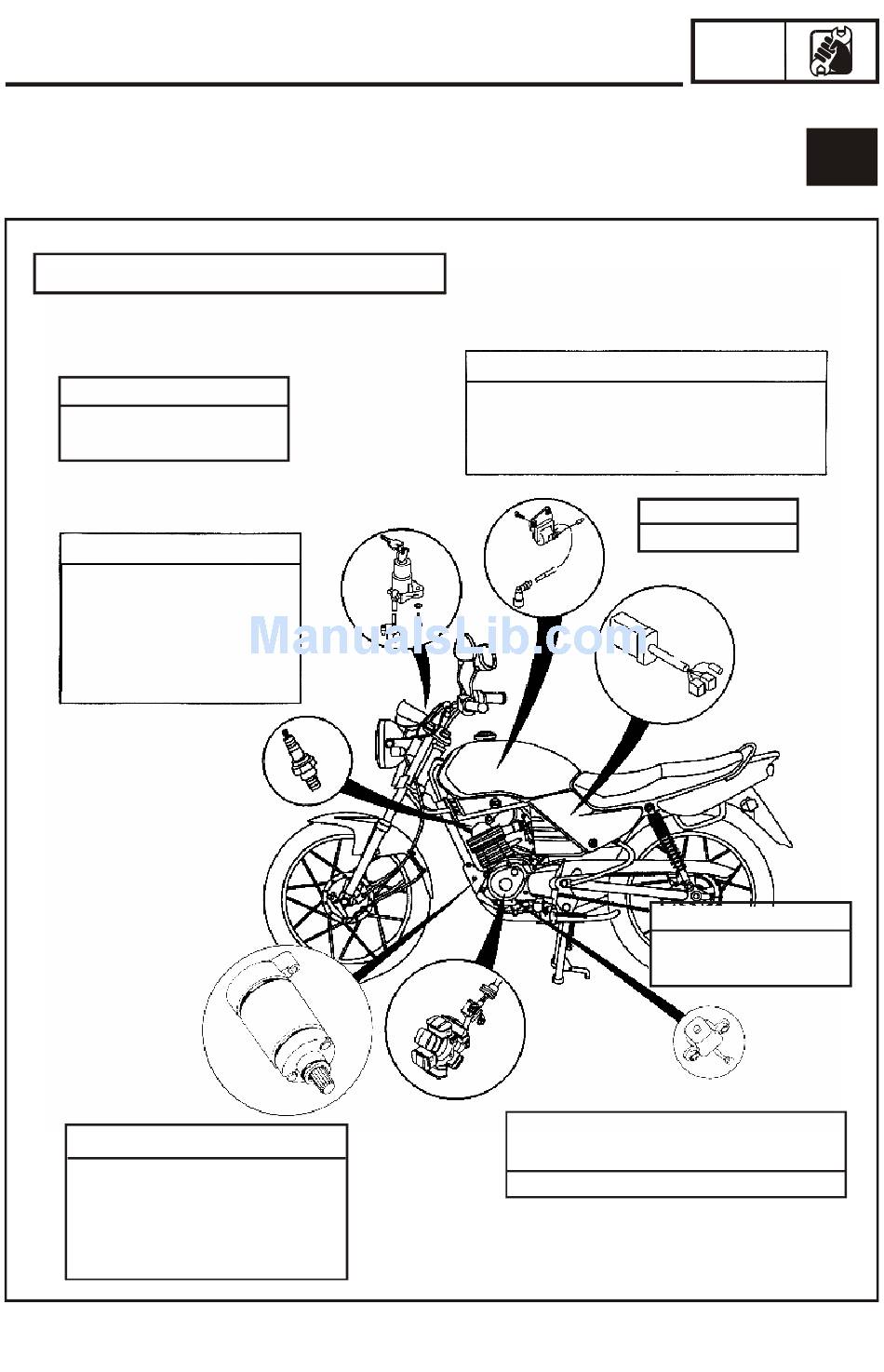

Troubleshooting of engine
Electric Appliance system
*Check all socket connector of guide wire
Main switch
Short-circuit of main switch
·
·Break or short-circuit of
guide wire
Spark plug
·Apparent carbon deposit
·Moisture of electrode
·Improper spark plug clearance
leads to damage of spark plug
Starter motor(rdfer to page) 7-14
·Damage or failure of starter motor
·Failure of starter relay
·Failure of starter cultch
·Failure breaking relay
Troubleshooting of engine
Ignition coil(refer to page ) 7-8
·Damage of short-circuit of main coil
or secondary coil
·Failure of high-pressure guide wire
·Failure of spark plug cap
Lighting coil/ignition charge coil(refer to page
7-7/7-22)-7/7-22
Damage of winding
8-1
Trouble
CDI unit assy
Damage of CDI unit assy
Pulse coil(refer to page7-8)
Damage of winding
Incorrect ignition timing
)
8
