READ YOUR OPERATOR'S MANUAL COMPLETELY AND CAREFULLY BEFORE
ATTEMPTING TO SET UP OR OPERATE YOUR NEW POWER TOOL. ALL OPERATORS OF THIS
EQUIPMENT SHOULD READ AND UNDERSTAND ALL SAFETY RULES PRINTED ON THE MACHINE
AND IN THIS OPERATOR'S MANUAL BEFORE USE.
NOTICE: On the nameplate of your machine you will find MFG date code of your unit.
Please record these numbers on this manual cover for future service reference.
MFG. DATE : ________ PURCHASE DATE: _________
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-456-8934, 8:00 a.m.-6:00 p.m., EST, Monday-Thursday,
8:00 a.m.-5:00 p.m., EST, Friday.
CAUTION - FOR YOUR SAFETY
TM
20in. 12A Lawn Mower
ITEM # 123845
MODEL # 25073
PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 25073 and is the answer not in the manual?

Questions and answers

Tony Avalos
February 15, 2025

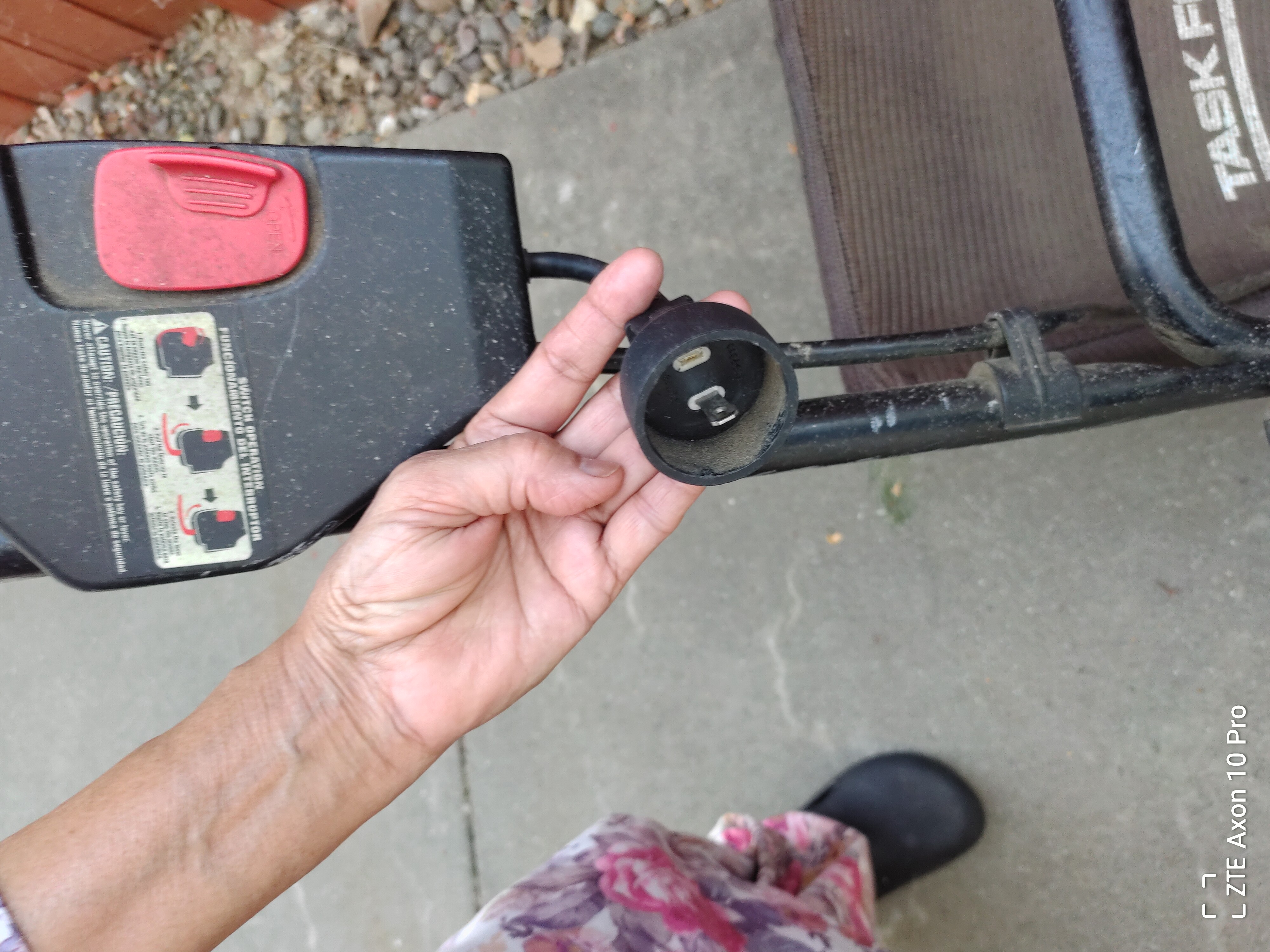

**** I able to purchase mower blade, mdl # 3331238-1 or equivalent?

User image 67b108a88eb5d
0

Related Manuals for Task Force 25073

Summary of Contents for Task Force 25073

  • Page 1 ITEM # 123845 20in. 12A Lawn Mower MODEL # 25073 CAUTION - FOR YOUR SAFETY READ YOUR OPERATOR’S MANUAL COMPLETELY AND CAREFULLY BEFORE ATTEMPTING TO SET UP OR OPERATE YOUR NEW POWER TOOL. ALL OPERATORS OF THIS EQUIPMENT SHOULD READ AND UNDERSTAND ALL SAFETY RULES PRINTED ON THE MACHINE AND IN THIS OPERATOR’S MANUAL BEFORE USE.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Product Specifications………........................………..…2 Safety Information……………………........................…3 Know your lawn mower…………….........................…..6 Assembling your lawn mower………........................7 Operating your lawn mower……..................……........14 Service……………………………….......................………..1 8 Troubleshooting……………………….......................……..19 Warranty…………………………..…….......................…..20 Replacement parts list……………….….......................…..21 PRODUCT SPECIFICATIONS 20 IN. ELECTRIC LAWN MOWER Item No..................................123845 Motor ..............................1 20 V AC 60Hz 12A No-load speed ..............................3600 RPM Cutting path ................................20 in.

  • Page 3: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. These safety instructions are not meant to cover every possible condition that could occur. If you have any questions regarding the product please call customer service at 1-866-456-8934, 8:00 a.m.- 6:00 p.m., EST, Monday-Thursday, 8:00 a.m.- 5:00 p.m., EST, Friday.
  • Page 4 SAFETY INFORMATION 14. Store Idle Lawn Mower Indoors - When not in use, lawn mower should be stored in an indoor dry and locked-up place - out of reach of children. 15. Maintain Lawn Mower With Care - Keep cutting edges sharp and clean for best and safest petformance.

  • Page 5: Extension Cord

    SAFETY INFORMATION Double insulated lawn mower This mower is “DOUBLE INSULATED” Replacement Parts: When servicing use only identical replacement parts. Polarized Appliance Connections: To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other) and will require the use of a polarized extension cord.

  • Page 6: Know Your Lawn Mower

    KNOW YOUR LAWN MOWER Power switch assembly Upper handle Lower handle Height adjustment Grass catcher bag lever Side discharge cover Motor Side discharge housing chute Wheels Fig.4 Read this operator's manual and safety rules before operating your lawn mower. Compare the illustration in Fig. 4 to your lawn mower in order to familiarize yourself with the location of various controls and adjustments.

  • Page 7: Assembling Your Lawn Mower

    ASSEMBLING YOUR LAWN MOWER Parts List: Mulch plug Grass catcher bag Side discharge chute Note: Carefully remove the parts from the box. • Inspect the parts carefully to make sure no breakage or damage occurred during shipping. • Do not discard the packing material until all parts are examined. • If any parts are damaged or missing, please call 1-866-456-8934 for assistance.
  • Page 8 ASSEMBLING YOUR LAWN MOWER INSTALLING THE GRASS CATCHER BAG 1. UNPLUG THE POWER CORD, AND WAIT FOR BLADE TO COME TO A COMPLETE STOP. 2. Lift the chute cover (1). 3. While holding up the cover (1), place the grass catcher bag hanger hooks (2) into the opening on the chute cover (1) to allow the hanger hooks to attach to the rod (4) which secures the chute cover.
  • Page 9 ASSEMBLING YOUR LAWN MOWER INSTALL THE SIDE DISCHARGE CHUTE This mower has 3 different functions - mulch, side discharge, and rear bag. If you wish to discharge the clippings rather than mulch, perform these steps. 1. UNPLUG THE POWER CORD, AND WAIT FOR BLADE TO COME TO A COMPLETE STOP. 2.
  • Page 10 ASSEMBLING YOUR LAWN MOWER INSTALLATION OR REMOVAL OF THE MULCH PLUG 1. UNPLUG THE POWER CORD, AND WAIT FOR BLADE TO COME TO A COMPLETE STOP. 2. To remove the mulch plug lift the chute cover (1) and pull out on the handle. 3.
  • Page 11 ASSEMBLING YOUR LAWN MOWER SWITCH USE Your mower is equipped with a switch. To operate the switch, insert your finger into the opening and push the lever out so that you can grasp it with your other handle. Pull the lever back to turn the unit on and hold it against the mower handle to keep it running.

  • Page 12: Adjust The Cutting Height

    ASSEMBLING YOUR LAWN MOWER ADJUST THE CUTTING HEIGHT 1. Simply depress the lever (1) towards the wheel and move to desired position. This sets all wheels to the same position. 2. To raise the height, pull the height adjustment lever from the current stop position towards the back of the mower. 3.
  • Page 13 ASSEMBLING YOUR LAWN MOWER ADJUST THE UPPER HANDLE HEIGHT 1. Loosen the upper handle knob. 2. Adjust the handle to the most comfortable of the 3 positions. 3. Tighten the upper handle knob as tight as you can.

  • Page 14: Operating Your Lawn Mower

    OPERATING YOUR LAWN MOWER SLOPE GAUGE WARNING: Slopes are a major factor related to slip and fall accidents that can result in severe injury. Operation on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. For your safety, use the slope gauge included as part of this manual to measure slopes before operating this unit on a sloped or hilly area.

  • Page 15: Mulching Tips

    OPERATING YOUR LAWN MOWER MULCHING TIPS NOTE: ALWAYS INSPECT AREA WHERE MOWER IS TO BE USED AND REMOVE ALL STONES, STICKS, WIRE, BONES AND OTHER DEBRIS WHICH MIGHT BE THROWN THE ROTATING BLADE. 1. Release switch to turn mower OFF when crossing any graveled area(stones can be thrown by the blade). 2.
  • Page 16 OPERATING YOUR LAWN MOWER CUTTING BLADE REPLACEMENT WARNING: Always protect hands by wearing heavy gloves and/or wrapping cutting edges with rags or other materials when performing any blade maintenance. RELEASE SWITCH LEVER TO TURN MOWER OFF AND WAIT FOR THE BLADE TO STOP. While wearing leather padded gloves, wedge a block of wood between the blade and mower deck to prevent the blade from turning when the nut is being removed.
  • Page 17 OPERATING YOUR LAWN MOWER CLEAN THE MOWER WARNING: To reduce the risk of electric shock, do not expose the mower to water. The underside of mower deck should be cleaned after each use as grass clippings, leaves, dirt and other debris will accumulate causing rust and corrosion.

  • Page 18: Service

    SERVICE 1. When servicing the lawn mower, use only identical replacement parts listed in this manual. Use of parts, which do not meet the original equipment specifications, may lead to improper performance and compromise safety. 2. Before cleaning, repairing, or inspecting, make certain the blade and all moving parts have stopped.

  • Page 19: Troubleshooting

    TROUBLESHOOTING Problem Possible Cause(s) Solution Mower not starting. Extension cord not connected Reconnect the cord and using to the mower plug. the cord restraint keep the cord close to the motor/blade control. Replace motor/blade control Motor/blade control switch switch. defective. Connect the extension cord to a Extension cord not connected live 120 V AC 60 Hz receptacle.

  • Page 20: Warranty

    LIMITED TWO-YEAR WARRANTY The manufacturer warranties to the original purchaser that each new product and service part is free from defects in material and workmanship and agrees to repair or replace under this warranty any defective product or part as follows from the original date of purchase.

  • Page 21: Replacement Parts List

    REPLACEMENT PARTS LIST...
  • Page 22 3331035 Electrical bridge heat sync 3610138 12A motor assembly 34104222 Front bumper 3220537 Lock Nut M6 31301227 20"Mower deck - Task Force 3220439 Nut M5 3220575 Machine Screw M5 x 10 31101222 20"front wheel axle assy. 3320237 Front wheel spacer 34201222 7"Front wheel...
  • Page 23 Height adjustment shifter handle Cord guide 3411135 Grass bag assembly 31104227 Grass bag frame 40-1 3331338 40-2 34902227 Task Force Grass Bag 20"Lower handle assembly 33302227 20"Upperhandle assembly 31102227 20"Upper handle (bar only) 42-1 33301227 42-2 34901227 Foam grip for upper handle...
