ABB solar inverters
Product manual
PVS300 string inverters

Advertisement

Table of Contents
loading

Related Manuals for ABB PVS300

Summary of Contents for ABB PVS300

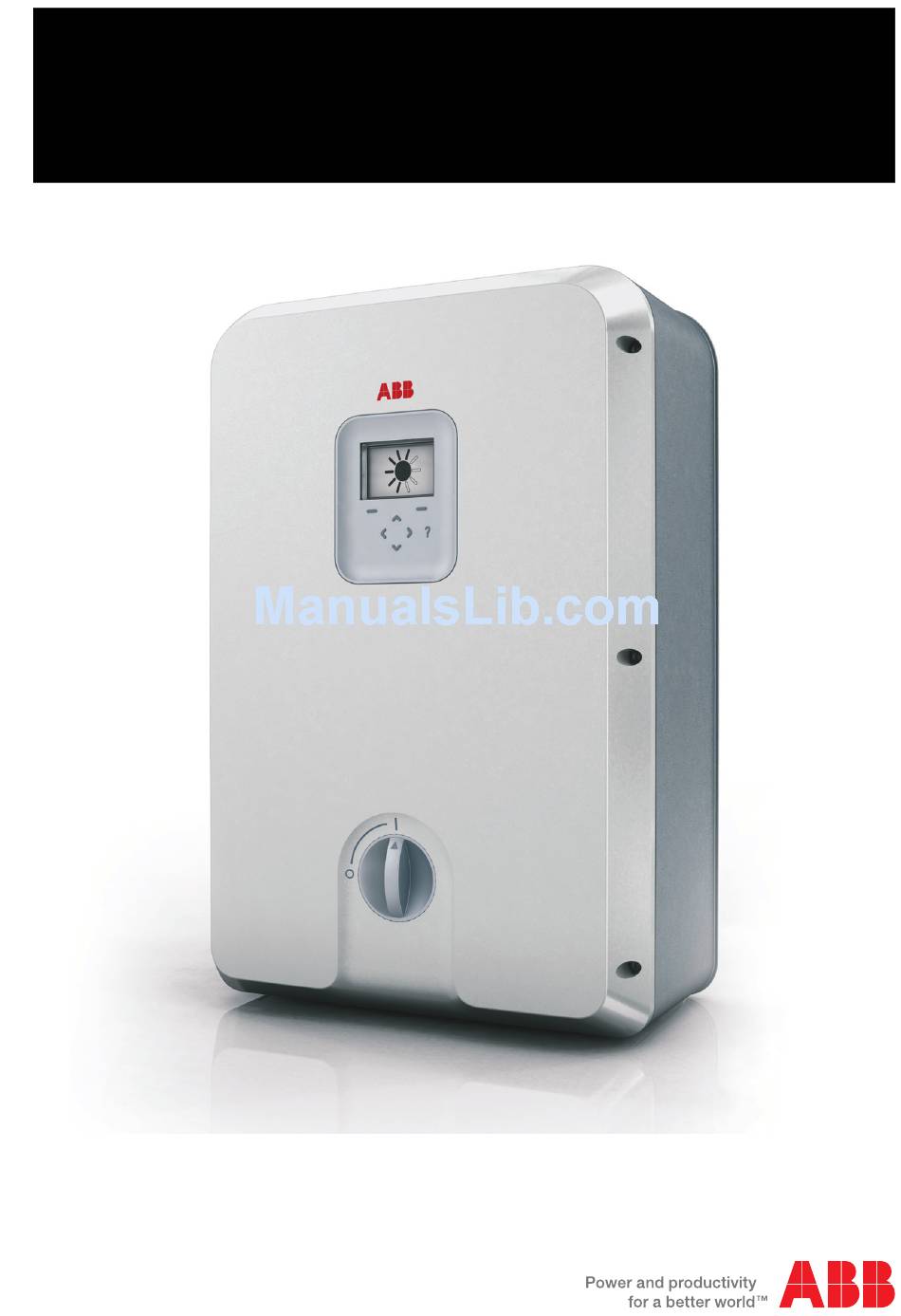

  • Page 1 ABB solar inverters Product manual PVS300 string inverters...

  • Page 2: List Of Related Manuals

    List of related manuals PVS300 manuals Code (English) PVS300 user’s guide 3AUA0000100680 Option manuals and guides PVS-APK-F control unit wall mounting kit installation 3AUA0000100645 guide PVS-APK-M control unit table stand and wireless 3AUA0000100644 communication kit installation guide SREA-50 Remote monitoring adapter Product Manual...
  • Page 3 Product manual PVS300 string inverters Table of contents 1. Safety 4. Mechanical installation 5. Electrical installation 7. Start-up © 2011 ABB Oy. All Rights Reserved. 3AUA0000096321 Rev A EFFECTIVE: 2011-05-13...

  • Page 5: Table Of Contents

    PVS300 block diagram ........
  • Page 6 6 Table of contents RJ45 data connector X6 ..........31 Additional PE terminal .
  • Page 7 The operating modes of the PVS300 string inverter ....... .
  • Page 8 Providing feedback on ABB inverter manuals ........

  • Page 9: Safety

    Safety 9 Safety What this chapter contains This chapter presents the safety instructions which you must follow when installing, operating and servicing the inverter. Read these safety instructions carefully before working with the product. Failure to observe these instructions can result in physical injury or death, and may also damage the product or associated equipment.

  • Page 10: Intended Use

    Electrical safety WARNING! Ignoring the following instructions can cause physical injury or death, or damage to the equipment. Only qualified electricians are allowed to install and connect the PVS300 inverter! Electrical safety rules for electricians • Comply with all relevant electrical safety regulations of the installation country or region.
  • Page 11 • Isolate the inverter from all power sources before working on it. Isolating the PVS300 inverter from external power sources Isolating the PVS300 inverter from external power sources Turn off the main disconnector and circuit breaker(s) at the AC distribution board.

  • Page 12: Grounding Safety (Pe)

    • Never ground the DC+ or DC- live conductors. Notes: • PVS300 is a transformerless inverter; the DC side and AC grid are not galvanically separated. Therefore PVS300 must not be used with solar modules which require DC+ or DC- conductor grounding.

  • Page 13: Safe Start-Up And Operation

    • The inverter is not field repairable. Never attempt to repair a malfunctioning unit; contact your supplier, local ABB representative or Authorized Service Center for a replacement. • Protect the inverter so that dust from drilling cannot enter it during installation.
  • Page 14 14 Safety...

  • Page 15: Introduction To The Manual

    Applicability The manual is applicable to PVS300 inverters only. Target audience This manual is intended for people who plan the installation, install, commission, use and service the inverter.

  • Page 16: Related Documents

    16 Introduction to the manual Planning the installation describes the steps which must be completed prior to actual installation. Mechanical installation describes the mechanical installation. Electrical installation describes the electrical installation. Installation checklist contains a list for final checking of the installation. Start-up describes the start-up procedure, configuration of remote monitoring and 3- phase system monitoring.

  • Page 17: Quick Installation And Start-Up Flowchart

    Accessory manuals (if applicable): layout, compatibility with solar arrays and Installation guide for the remote mounting kit other system equipment. Select the cables of PVS300 control unit and fastening components. User’s manual, Remote monitoring adapter, SREA-50 Unpack, and check the inverter delivery.

  • Page 18: Terms And Abbreviations

    18 Introduction to the manual Terms and abbreviations Term/abbreviation Explanation Alternating current. Cable lug A connector which is crimped onto the end of cable. Also known as a crimp connector or cable anchor. Circuit breaker Automatic switch which will trip to OFF and protect the load circuit in the event of short circuit and overcurrent situations.
  • Page 19 Introduction to the manual 19 Term/abbreviation Explanation Parameter User-adjustable operation instruction to the inverter, or signal measured or calculated by the inverter. Photovoltaic cell, In this manual, solar power system components based on generator, module, photovoltaic effect are called solar cell, solar module, solar array, string, array and array solar string and solar array junction box as defined below.
  • Page 20 20 Introduction to the manual...

  • Page 21: Operation Basics And Hardware Description

    PVS300 is suitable for small and medium-size solar systems. PVS300 is designed for installation in air-cooled outdoor rated enclosures. Installation is performed with the help of a mounting plate. The DC and AC cable connections at the inverter are made with quick connectors.
  • Page 22 22 Operation basics and hardware description 1. As the sun rises, the inverter wakes up when there is enough daylight for the solar modules to generate DC voltage in excess of the minimum inverter operating limit. 2. After waking up, the inverter verifies the status of the power line and then switches to the normal operating mode.

  • Page 23: Layout Drawing

    Operation basics and hardware description 23 Layout drawing No. Description No. Description Front cover Inlet conduits for control cables, 3 pcs Control area: display, LEDs, keypad Cooling fan and holder DC switch handle 0=Off, 1=On DC connectors Main enclosure AC and PE connection points Type designation label Bottom cover, interlocking Control unit...

  • Page 24: Single Line Diagrams Of The System

    The figure below shows the single-phase system configuration. 1/N/PE AC 230 V 50 Hz PVS300 Description Solar module/panel String (array) of solar modules/panels DC input (up to 4 parallel strings) String inverter PVS300 AC output, single phase AC distribution board...

  • Page 25: Block Diagram Of Three-Phase Solar System

    Description Solar module/panel String (array) of solar modules/panels DC input (up to 4 parallel strings) String inverter PVS300 AC output, three phases AC distribution board Inverter to inverter communication link (I2I) enabling three-phase grid monitoring Note: Depending on the local grid code requirements, the circuit breaker at the AC distribution board can be either a single 3 pole circuit breaker or three identical single pole circuit breakers.

  • Page 26: Pvs300 Block Diagram

    26 Operation basics and hardware description PVS300 block diagram Component Description DC terminals Connection of DC cabling from solar arrays Main board Integrated circuit board onto which the main circuit components are attached String fuses Short circuit protection for string circuits...

  • Page 27: Features

    Maximum power point tracking is a software function which operates the inverter automatically at the optimal operation point of connected solar modules. PVS300-TL inverters have one MPP tracker. Residual current detection In accordance with VDE0126-1-1; the inverter has a DC and AC sensitive residual current monitoring unit (RCMU) which measures and sums the currents of L and N conductors.

  • Page 28: User Interface And Communication Features

    The I2I link enables inverters to share monitored information. Three phase configuration With help of I2I link, three PVS300 inverters can be connected to and monitoring three separate phases to form a solar system which has three phase AC output and grid monitoring. In this configuration the power output difference between phases is limited to 4.6kW.

  • Page 29: Type Designation Label

    You find the type designation on the type designation label attached to the inverter. The first digits from the left express the basic configuration, for example PVS300-TL-3300W-2. The final digits are reserved for optional selections. The type designation selections are described below.

  • Page 30: Optional Accessories

    The remote control unit terminal is used together with accessory kit PVS-APK-F. I2I link terminal X3 The I2I link terminal is used to establish communication between three PVS300 inverters, each feeding into separate phases. This communication is the basis for 3-phase monitoring function and enables 3- phase solar generator connection to the grid.

  • Page 31: Clamp Connections For Cable Shields

    Operation basics and hardware description 31 Clamp connections for cable shields Clamp connections for the cables shields are used to equalise the control cable shields and inverter control board potential. RJ45 data connector X6 RJ45 (8p8c) connector is used for connecting the control unit or wireless communication (part of PVS-APK-M) kit to the inverter’s control board.
  • Page 32 32 Operation basics and hardware description...

  • Page 33: Planning The Installation

    Planning the installation 33 Planning the installation What this chapter contains This chapter instructs in planning the mechanical and electrical installation. Selecting the location for the inverter WARNING! Do not install the inverter in a location where: • corrosive, explosive or flammable materials are used or stored •...

  • Page 34: Selecting The Power Cables

    34 Planning the installation • The installation room or cabinet must have adequate ventilation and/or cooling for all equipment inside. See Mechanical data on page 103. • There must be enough space for the inverter for proper airflow. See section Required clearances for cooling on page 107.

  • Page 35: Selecting The Control Cables

    Recommended relay cable type Cable type with a braided metallic screen (for example, Lapp Kabel ÖLFLEX or equivalent) has been tested and approved by ABB.

  • Page 36: Recommended Cable Type For Modbus Over Eia/Rs-485

    36 Planning the installation Recommended cable type for Modbus over EIA/RS-485 Shielded twisted pair cable (STP), impedance 100...150 ohm with 120 ohm ® termination resistors (for example, Lapp Kabel UNITRONIC LiHCH (TP) or equivalent) is recommended. Tools needed during installation Depending on the system size, selected mounting location and materials used, mechanical and electrical installers could need the following equipment and tools: General tools...

  • Page 37: Checking Solar Array And Inverter Compatibility

    Planning the installation 37 Checking solar array and inverter compatibility Check that: • Solar modules and DC cables used in the system are Protection Class II certified (double insulated). • Solar modules used in the system do not require grounding of DC+ or DC- terminals.

  • Page 38: Protecting The Solar Array And Dc Input Cables From Short-Circuits

    B devices are allowed on the output (AC) side of this product. In normal operation, PVS300 inverters generate up to 60 mA leakage current peaks. Therefore, if an external RCD is used, it must have a nominal rating of at least 60 mA...

  • Page 39: Mechanical Installation

    Mechanical installation 39 Mechanical installation What this chapter contains This chapter describes how to check the installation location and inverter delivery, the installation tools required and the mechanical installation procedure for the inverter. WARNING! Ignoring the following instructions can cause physical injury or death, or damage to the equipment.
  • Page 40 4. Avoid removing items from the sales package until you are ready to install them. 5. Read the documentation and keep it available at the installation site. 6. Store the PVS300 user’s guide near the inverter so that it will be readily available for users to refer to it.

  • Page 41: Removing And Replacing The Front Cover And Bottom Cover

    Mechanical installation 41 Removing and replacing the front cover and bottom cover The front and bottom covers can only be removed and replaced when the DC switch (1) is set to the OFF position. It is not possible to turn the DC switch, or operate the inverter, when either of the covers is removed.

  • Page 42: Removing And Replacing The Bottom Cover

    42 Mechanical installation Removing and replacing the bottom cover To remove the bottom cover, turn the DC switch (1) to the OFF position and then gently pull the bottom cover (4) downwards. To replace the bottom cover, ensure that the DC switch is in the OFF position and gently push the over upwards.

  • Page 43: Installing The Mounting Plate Onto The Supporting Structure

    Mechanical installation 43 Installing the mounting plate onto the supporting structure See section Dimension drawing on page for details of dimensions, weights and free space requirements. Description Cantilever support for inverter hanging Pilot securing point, ∅ 6.5 mm Wall securing points, 3pcs, ∅ 6.5 mm Slot for antitheft padlock Securing point to inverter Bottom hook for inverter support...

  • Page 44: Installation Sequence

    44 Mechanical installation Mounting dimensions Clearances inches 16.2 7.87 9.41 5.63 11.3 2.40 3.43 1.85 7.13 19.7 Installation sequence Note: Ensure that dust from drilling will not enter the inverter during the installation. Note: When a self-carrying wall surface, such as a brick wall, is not available:...
  • Page 45 Mechanical installation 45 • If stud work can be located behind the wall surface and the mounting plate holes can be aligned with it, the mounting plate can be fastened to the stud work. • If suitable stud work cannot be located, a strong supporting structure (for example, stud work, boards, railings) must be prepared on the wall surface.

  • Page 46: Installing The Inverter Onto The Mounting Plate

    46 Mechanical installation Installing the inverter onto the mounting plate Installation sequence 1. Remove the bottom cover from the inverter. See Removing and replacing the front cover and bottom cover on page 41. 2. With the top of the inverter tilted slightly towards you, lift it up so that the bottom hook of the mounting plate goes into slot on the back of the inverter 3.

  • Page 47: Electrical Installation

    Note: The installation must always be designed and made according to applicable local laws and regulations. ABB does not assume any liability whatsoever for any installation which breaches the local laws and/or other regulations. Furthermore, if the recommendations given by ABB are not followed, the inverter may experience problems that the warranty does not cover.

  • Page 48: Routing The Cables

    48 Electrical installation Routing the cables General rules Ideally, the input, output and control cables should be installed on separate trays. If control cables must cross over power cables, arrange them at an angle as near to 90 degrees as possible. Try to ensure that control cables and the AC output cable are kept at least 20 cm (8 inches) apart.

  • Page 49: Inverter

    Electrical installation 49 Inverter The inverter has been tested for insulation between the main circuit and the chassis (1500 V rms 50 Hz for 1 second) at the factory. Do not perform any additional voltage tolerance or insulation resistance tests, for example with hi-pot or megger, on any part of the inverter.

  • Page 50: Connection Diagram

    50 Electrical installation Connection diagram Description Description Relay output terminal (optional) RJ45 data type 8P8C plug Remote control unit terminal RJ45 data type 8P8C jack I2I link terminal AC cable connector RS-485 embedded fieldbus interface Additional PE terminal* Clamp connections for cable shields 10 Input DC + and - connectors * Required if the conductivity of the primary PE conductor is insufficient.

  • Page 51: Connecting The Power Cables

    Electrical installation 51 Connecting the power cables See section Selecting the power cables on page 34. Connection area layout Description Negative DC inputs, female panel receptacles, 4 in parallel Positive DC inputs, male panel receptacles, 4 in parallel Feedthrough rubber grommets for control cables, 3 pcs. AC cable connector for Line, Neutral and Protective Earth conductors Place for additional PE cable and cable lug, M6 thread...

  • Page 52: Dc Cabling Connection Procedure

    Turn OFF the DC switch on the inverter front panel and isolate the inverter from all possible power sources. See Isolating the PVS300 inverter from external power sources on page 11. The manufacturer’s type codes for required MC4 cable connectors:...
  • Page 53 Electrical installation 53 Description Use connector type PV-KBT4 for the DC+ connection and connector type PV-KST4 for the DC- connection. Check that the cables are of the right type and diameter. Check that the conductor diameter corresponds to the internal diameter of the metal contact.
  • Page 54 54 Electrical installation Description Insert the test pin with the corresponding side into the socket or plug. If the contact is properly assembled, the white marking on the test pin must still be visible. Screw on the cable gland hand-tight and then tighten it to the correct torque.

  • Page 55: Ac Cabling Connection Procedure

    Electrical installation 55 AC cabling connection procedure Description Isolate the inverter from all possible power sources. See Isolating the PVS300 inverter from external power sources on page 11. Insert AC cable through AC connector body and multilayer rubber grommet. Discard unused parts of the rubber grommet.

  • Page 56: Connecting The Control Cables

    X3 spring terminal, RS-485 I2I interface for communication purposes between 3 inverters in 3~ system. X4 spring terminal, RS-485 embedded fieldbus interface. X5 connector, for ABB Fieldbus adapters (not in use). X6 RJ45 data type 8P8C plug connector, RS-485 Interface for local installation of Control Unit or optional wireless transceiver.

  • Page 57: Output Relay, Terminal X1

    Electrical installation 57 Output relay, terminal X1 Name Description X1:1 RO_COM Relay output, common X1:2 RO_NC Relay output, normally closed X1:3 RO_NO Relay output, normally open Control unit remote installation, terminal X2 At inverter control board At remote location RJ45 data type 8P8C plug connector (option) Name Name...

  • Page 58: Embedded Fieldbus Interface, Terminal X4

    58 Electrical installation Embedded fieldbus interface, terminal X4 Name Description X4:1 Data + Inverter RS-485 transmit data X4:2 Data - Inverter RS-485 receive data X4:3 GND_A Functional ground, isolated Embedded fieldbus interface, termination resistor switch Switch Name Description S1:1 BIAS_ENA Not used, default OFF S1:2 TER_ENA...

  • Page 59: Connection Procedure

    Electrical installation 59 Connection procedure 1. Remove the front and bottom covers. See Removing and replacing the front cover and bottom cover on page 41. 2. If necessary, fit DC connectors to the ends of the cables coming from the solar strings.
  • Page 60 60 Electrical installation...

  • Page 61: Installation Checklist

    Go through the checklist with another person. Follow the instructions given in chapter Safety on page before you work on the inverter. Site owner and contact details: Installation company and address: Site address: Installers’ names and contact details: Installed inverter types: PVS300-TL-3300W-2 QTY:____pcs. PVS300-TL-4000W-2 QTY:___pcs. PVS300-TL-4600W-2 QTY:____pcs. PVS300-TL-6000W-2 QTY:___pcs. PVS300-TL-8000W-2 QTY:____pcs.
  • Page 62 There are no tools, foreign objects or dust from drilling outside or inside of the inverter. The type labels or the inverters are intact and visible for the user. The PVS300 user’s guide is situated at the inverter where users can find it. Electrical installation (see...
  • Page 63 Installation checklist 63 Electrical installation (see Electrical installation on page 47) The external line circuit breakers are adequately sized. See AC Output data and grid requirements on page 102. The AC distribution board is installed, wired and inspected correctly and according to local regulations.
  • Page 64 64 Installation checklist...

  • Page 65: Start-Up

    Start-up 65 Start-up What this chapter contains This chapter describes the start-up procedure of the inverter. WARNING! Only qualified electricians are allowed to perform installation, cabling or testing work on the inverter! The safety instructions in chapter Safety on page must be followed during the installation and start-up procedure.
  • Page 66 66 Start-up First start-up Switch ON the AC line circuit breaker at the AC distribution board. The control board and graphical display wakes The boot screen appears with a counterclockwise rotating arrow. After 10 seconds, the splash screen appears for a few seconds. Select the user language with the Up or Down Arrow keys.
  • Page 67 Start-up 67 First start-up First start assistance appears automatically to the screen if the inverter has been powered up for the first time after factory tests. First start assistance also appears automatically if the unit has been powered up but the first start-up settings have not been confirmed by the user.
  • Page 68 Navigate Back with the left softkey if corrections are required. Press the right softkey to confirm installation country. Note: After confirmation only authorized ABB service partners can make modifications to Installation Country. The inverter shall update internal settings and it shall be ready for automatic operation.
  • Page 69 Start-up 69 Setting up I2I interface for 3-phase system configuration 74.01 Node address. Set the node address of the inverter to match the AC grid phase. For example, phase L1 to address “01”, L2 to “02” and L3 to “03”. 75.01 Enable 3 phase monitoring.
  • Page 70 70 Start-up...

  • Page 71: Operation

    Operation 71 Operation What this chapter contains This chapter describes the operating modes, operation of the control unit, the information shown by LEDs and the graphical display. The inverter user interface The control unit sits behind the front panel. Normally, the inverter is controlled using the buttons on the front panel which activate the corresponding buttons on the control unit.
  • Page 72 72 Operation Front cover on Front cover off Description Graphical display Left softkey Right softkey Status LED, dual color green or red Up/Down/Left/Right arrow keys Help key USB connector and lid (for use by service only) The inverter’s main user interface is a control unit, featuring buttons, LEDs and an LCD graphical display.

  • Page 73: The Operating Modes Of The Pvs300 String Inverter

    Operation 73 The operating modes of the PVS300 string inverter Operating status Example graphical display Description Sleep This is a low power consumption mode in which only essential electronics use power. The inverter enters sleep mode when the DC input voltage is below a...

  • Page 74: Control Buttons

    74 Operation Operating status Example graphical display Description Warning The inverter has temporarily entered the stand-by mode. Normal operation will resume automatically if the cause of the warning is temporary, for example if there’s a temporary power outage of the AC grid.

  • Page 75: Editing Parameters

    Operation 75 • The left softkey is used to select items shown on the bottom left of the display. This key is usually used for stepping backwards, for example to select cancel, exit, no and back. If held down, the left softkey exits each menu and nested view in turn, finally returning to the Output View.

  • Page 76: Led On Control Unit

    76 Operation LED Description and behavior Operational status, red or green, OFF, ON or flashing. Danger of electric shock, red symbol, steady ON if inverter has diagnosed an active ground fault. LED on control unit LED Description and behavior Bi-colour LED illuminates red or green. Can be OFF, ON or flashing. Indicates the operating status, warnings and faults.

  • Page 77: Led Status Indications

    Operation 77 LED status indications Control board LEDs Status Control unit bi-colour LED Dual colour LED Red fault LED Going to sleep Fault ON Red ON Red (fault can ON only if there is be reset) an active ground fault Flashing Red (requires DC and AC disconnection...

  • Page 78: Common Display Zones

    78 Operation Common display zones Status bar Includes the heading of the current view, the date and the status icon (sun, moon etc.). Not shown in special screens. Content area Different for each view. It displays the actual subject matter of the current view, be it a menu, a parameter, a help page etc.

  • Page 79: Start Up Assistant

    Note: The installation country is permanent once the setting has been confirmed. If you need to change the installation country, contact your ABB partner for advice. If necessary, these parameters, except for installation country, can be adjusted later. Start-up on page for the setting procedure.

  • Page 80: Menu

    Use the down arrow to access the technical information page. The Sun display shows the current state of the unit and the output power in graphical format. See The operating modes of the PVS300 string inverter on page for examples. Use the up arrow to access the sun display.

  • Page 81: Special Screens

    Operation 81 Events submenu This is subdivided into two menus, one for faults and the other for events. In both cases the view shows the date and nature of the fault or event. Push the Help (?) button to see any available additional information about the event. Events remain in the event log even after the faults have been solved.

  • Page 82: Help

    82 Operation Help Help pages contain context-sensitive problem-solving instructions and descriptions of functions and parameters. Press the Help (?) button to display the help page, if there is one, for the currently selected fault, menu item, parameter etc. Progress indication A progress bar is shown whenever the panel is busy.

  • Page 83: Maintenance

    Only a limited number of parts can be replaced. Replacement fans can be delivered quickly through your installation company or local ABB service. In the event of severe damage, the whole inverter will usually need to be replaced. In case of severe inverter damage or an unidentified fault, please contact your installation company or local ABB service.

  • Page 84: Requirements For Maintenance Personnel

    Maintenance procedures and intervals The table below lists the routine maintenance intervals recommended by ABB. The maintenance intervals are suggested for a typical inverter, in a typical location for a typical operating duration.

  • Page 85: Replacing Fans

    Maintenance 85 Interval Maintenance Instruction action Monthly Check Check that cables are properly routed to the inverter. (Yearly if the connections Cables should be tidy, secure and in good condition. inverter is Check that connectors are properly connected and that indoors with they are in a safe, unbroken condition.

  • Page 86: Available Spare Part Kits

    10 Turn the DC switch on the front of the inverter to the ON position. Available spare part kits ABB material code Material description 3AUA0000090483FAN KIT PVS300 Cooling fan spare part kit 3AUA0000090484FAN KIT PVS300 Stirring fan spare part kit...

  • Page 87: Troubleshooting

    Troubleshooting 87 Troubleshooting What this chapter contains This chapter explains how to replace inverter components. It also presents the possible malfunction indications and symptoms along with the corrective actions. Replacing string fuses 1. Switch OFF the DC switch on the inverter. 2.

  • Page 88: Replacing The Surge Protection Device

    88 Troubleshooting 11. Push the fuse holders back into position. 12. Repeat steps 7 to 11 for all string inputs in use. 13. Reconnect all DC cables to the corresponding inputs on the inverter. 14. Replace the front and bottom covers. See section Removing and replacing the front cover and bottom cover on page 41.

  • Page 89: Fault Messages

    Troubleshooting 89 Fault messages Fault Fault message Causes of fault and corrective actions message description ID code Overcurrent Inverter has performed overcurrent trip and has disconnected from the grid. Possible causes for overcurrent peak are an AC side short-circuit, other sudden AC side voltage drop or inverter malfunction.
  • Page 90 If inverter returns to normal operation; monitor the inverter’s operation carefully for a few days. If the fault occurs frequently; record the event’s date & time and inform your system supplier or your local ABB service about inverter behavior. Ground fault Inverter’s RCMU has diagnosed leakage current to the ground...
  • Page 91 This is HW fault and cannot be reset. Inverter must be replaced. Record the event’s date & time, inverter’s serial number and inform your system supplier. Parameter rating Inverter diagnosed parameter error. mismatch Record the event’s date & time, inverter’s serial number and inform local ABB service.
  • Page 92 92 Troubleshooting Fault Fault message Causes of fault and corrective actions message description ID code PWR BRD ID Inverter cannot detect the power board. This can be HW or SW fault fault which cannot be reset. Inverter must be replaced. Record the event’s date &...
  • Page 93 Troubleshooting 93 Fault Fault message Causes of fault and corrective actions message description ID code CTLBRD Inverter has diagnosed control board temperature to be over trip Overtemp. Fault limit and has performed over temperature trip and disconnected from the grid. Inverter’s control board temperature has been rising over trip limit despite output current reduction function.
  • Page 94 SW internal Illegal SW function was detected. This is SW fault which cannot be reset. Inverter’s SW must be updated. Record the event’s date & time, inverter’s serial number and inform your system supplier or your local ABB service.

  • Page 95: Warning Messages

    Troubleshooting 95 Warning messages Warning Warning Cause of warning and inverter’s behavior Maintenance or message message service person description actions ID code 1000 DC fuse DC string fuse has failed. If there are several Maintenance or blown inputs connected and some of them without service person should solar fuse failure;...
  • Page 96 96 Troubleshooting Warning Warning Cause of warning and inverter’s behavior Maintenance or message message service person description actions ID code 1006 EXT fan max. Inverter’s software has calculated that To minimize close runtime cooling fan’s reported lifetime by the fan future output power manufacturer adjusted to inverter’s actual losses and service...
  • Page 97 Troubleshooting 97 Warning Warning Cause of warning and inverter’s behavior Maintenance or message message service person description actions ID code 2995 PBREMOTE 3-phase monitoring: One of the inverter’s User should monitor grid fault connected to remaining AC grid phases has for 10 min or so if the sensed instability of the 3-phase supply and inverter returns to...
  • Page 98 98 Troubleshooting...

  • Page 99: Decommissioning

    Removing the inverter from service 1. Switch OFF the DC switch on the front panel of inverter. 2. Electrically isolate the inverter. See Isolating the PVS300 inverter from external power sources on page 11. 3. Turn off all disconnecting switches and circuit breakers on the DC side.

  • Page 100: Recycling

    Do not dispose of inverter with normal waste. At the end of its operational lifetime, return the inverter to any recycling facility which receives and handles electronic goods. Alternatively, the product can be returned to ABB. Please contact your local ABB representative for shipping details.

  • Page 101: Technical Data

    Surge protection SPD between all DC terminals and ground, monitored Surge protection device type (SPD) ABB, OVR PV 40 1000 P TS or Phoenix Contact, Type VAL-MS 1000DC/2+V-FM-UD Solar string fault current protection Solar string fuse, 10x38mm, 1000 VDC...

  • Page 102: Ac Output Data And Grid Requirements

    102 Technical data Inverter type PVS300-TL- 3300W-2 4000W-2 4600W-2 6000W-2 8000W-2 Tested and approved solar string fuse Cooper Bussmann, PV-1…20A10F, 1000 VDC types Ferraz Shawmut, PV Fuse HP10M1…20A, 1000 VDC Solar string fuse nominal current 12 A rating Type Cooper Bussmann PV-12A10F included to...

  • Page 103: Environmental Data And Requirements

    Technical data 103 Environmental data and requirements Inverter type PVS300-TL- 3300W-2 4000W-2 4600W-2 6000W-2 8000W-2 Environmental category Outdoor, wet locations Ingress protection class IP55 Pollution degree classification Acoustic noise level < 45 dBA Ambient temperature range allowed - 25 … + 60 °C (- 13 … +140 °F)

  • Page 104: Performance Data

    104 Technical data Inverter type PVS300-TL- 3300W-2 4000W-2 4600W-2 6000W-2 8000W-2 Remote monitoring adapter type SREA-50, optional accessory including graphical user interface, datalogger, Ethernet and GSM modem connectivity Programmable relay output 2A, 30Vdc/250Vac, electrically isolated Normally open or normally closed.

  • Page 105: Dimension Drawing

    Dimension drawing 105 Dimension drawing What this chapter contains This chapter presents the external dimensions of the inverter and also shows the clearance dimensions to ensure that the inverter is properly ventilated. Inverter dimensions...
  • Page 106 106 Dimension drawing...

  • Page 107: Required Clearances For Cooling

    Dimension drawing 107 Required clearances for cooling...
  • Page 108 108 Dimension drawing...

  • Page 109: Navigation Map

    Navigation map 109 Navigation map What this chapter contains This chapter presents the navigation map in conjunction with instructions for how to read it. How to read the navigation map The top row of the navigation map shows the start-up sequence, from left to right, which is followed when the inverter is started up for the very first time.

  • Page 110: The Navigation Map

    110 Navigation map The navigation map...
  • Page 111 Navigation map 111...
  • Page 112 112 Navigation map...

  • Page 113: Further Information

    Product and service inquiries Address any inquiries about the product to your local ABB representative, quoting the type designation and serial number of the unit in question. A listing of ABB sales, support and service contacts can be found by navigating to www.abb.com/solar...
  • Page 114 Contact us ABB Oy ABB Inc. ABB Beijing Drive Systems Co. Ltd. Drives Automation Technologies No. 1, Block D, A-10 Jiuxianqiao Beilu P.O. Box 184 Drives & Motors Chaoyang District FI-00381 HELSINKI 16250 West Glendale Drive Beijing, P.R. China, 100015...
