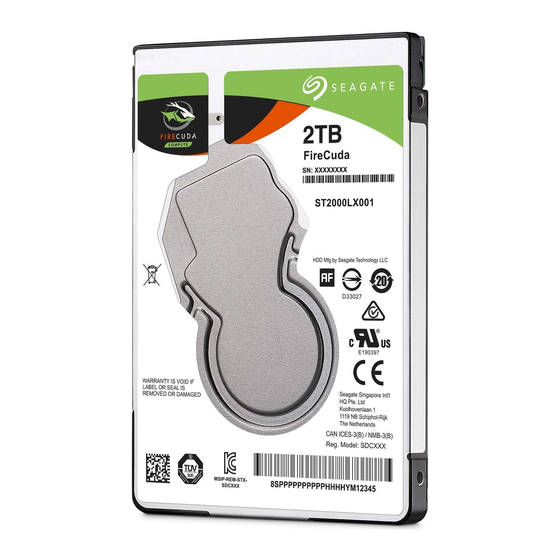

- Page 1 ™ 5400 RPM - SATA Product Manual Standard models ST2000LX001 ST1000LX015 ST500LX025 1007802299, Rev. C August 2016...
- Page 2 Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. SeaTools and 3D Defense System are either a trademark or registered trademark of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a certification mark of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian governments.
-
Page 3: Table Of Contents
Seagate® Technology Support Services ........ - Page 4 Mounting Dimensions ................. 19 Seagate FireCuda Product Manual, Rev. C...
-
Page 5: Seagate® Technology Support Services
For information regarding online support and services, visit: http://www.seagate.com/contacts/ For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/data-recovery-services/ For Seagate OEM, Distribution partner and reseller portals, visit: http://www.seagate.com/partners/ Seagate FireCuda Product Manual, Rev. C... -
Page 6: Introduction
Introduction This manual describes the functional, mechanical and interface specifications for the following Seagate® FireCuda™ model drives: Standard models ST2000LX001 ST1000LX015 ST500LX025 These drives provide the following key features: • 1000 Gs non-operating shock and 400 Gs of operating shock. -
Page 7: Drive Specifications
Wet bulb temperature 40.0°C max (non-operating) Altitude, operating –304.8 m to 3048 m (–1000 ft to 10,000+ ft) Altitude, non-operating –304.8 m to 12,192 m (–1000 ft to 40,000+ ft) (below mean sea level, max) Seagate FireCuda Product Manual, Rev. C... -
Page 8: Formatted Capacity
When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where n is the number of guaranteed sectors as defined above. Refer to Configuring and Mounting the Drive on page 18 (words 60-61 and 100-103) for additional information about 48-bit addressing support of drives with capacities over 137 GB. Seagate FireCuda Product Manual, Rev. C... -
Page 9: Physical Organization
(such as track-to-track and average), are expected to meet the noted values. Note However, due to the manner in which these drives are formatted, benchmark tests that include command overhead or measure logical seeks may produce results that vary from these specifications. Seagate FireCuda Product Manual, Rev. C... -
Page 10: Start/Stop Times
During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. Standby power is measured at steady state (after 200ms from transition) Seagate FireCuda Product Manual, Rev. C... -
Page 11: Figure 1 Typical 1D - 5V Startup And Operation Current Profile
Drive Specifications 2.7.1.1 Typical current profiles The typical 5V startup and operation current profile is shown in Figure 1 Figure Figure 1 Typical 1D - 5V Startup and Operation Current Profile Seagate FireCuda Product Manual, Rev. C... -
Page 12: Figure 2 Typical 2D - 5V Startup And Operation Current Profile
Drive Specifications Figure 2 Typical 2D - 5V Startup and Operation Current Profile Seagate FireCuda Product Manual, Rev. C... -
Page 13: Conducted Noise
If the standby timer reaches zero before any drive activity is required, the drive makes a transition to standby mode. In both Idle and standby mode, the drive accepts all commands and returns to active mode when disk access is necessary. Seagate FireCuda Product Manual, Rev. C... -
Page 14: Environmental Specifications
The non-operating shock level that the drive can experience without incurring physical damage or degradation in performance when subsequently put into operation is 1000 Gs based on a nonrepetitive half-sine shock pulse of 1 ms duration. Seagate FireCuda Product Manual, Rev. C... -
Page 15: Vibration
Test for prominent discrete tones (PDTs) Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses the lower limit for the threshold curve* to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards. -
Page 16: Electromagnetic Immunity
From this page, click on the “Is my Drive under Warranty” link. The following are required to be pro- vided: the drive serial number, model number (or part number) and country of purchase. The sys- tem will display the warranty information for the drive. Seagate FireCuda Product Manual, Rev. C... -
Page 17: Agency Certification
Information Technology Equipment (ITE). Emission levels are defined by EN 55022, Class B and the immunity levels are defined by EN 55024. Drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with the directives when used in the test systems, we cannot guarantee that all systems will comply with the directives. -
Page 18: Environmental Protection
Users should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive chemicals as electronic drive component reliability can be affected by the installation environment. The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic components should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an ambient relative humidity greater than 95%. -
Page 19: Configuring And Mounting The Drive
For installations which require cables, users can connect the drive as shown in Figure Figure 3 Attaching SATA Cabling Signal connector Power connector Signal cable Power cable Each cable is keyed to ensure correct orientation. FireCuda drives support latching SATA connectors. Seagate FireCuda Product Manual, Rev. C... -
Page 20: Drive Mounting
• Avoid excessive drive distortion when mounting. Refer to the following specifications for stiffness/deflection information: Top cover stiffness/deflection Operating: no performance degradation, emitted noise, 10 mm probe: 2.0kgf (typical) mechanical damage, or hard errors Non-operating: no hard errors 10 mm probe: maximum 2.0kgf (instantaneous) Figure 4 Mounting Dimensions Seagate FireCuda Product Manual, Rev. C... -
Page 21: Serial Ata (Sata) Interface
• the signal pins and the rest of the power pins. There are three power pins for each voltage. One pin from each voltage is used for pre-charge when installed in a blind-mate backplane configuration. All used voltage pins (V ) must be terminated. Seagate FireCuda Product Manual, Rev. C... -
Page 22: Supported Ata Commands
Set Max Features register as defined to the right. Password: Lock: Unlock: Freeze Lock: Set Max Address Ext Set Multiple Mode S.M.A.R.T. Disable Operations B0h/D9h S.M.A.R.T. Enable/Disable Autosave B0h/D2h S.M.A.R.T. Enable Operations B0h/D8h Seagate FireCuda Product Manual, Rev. C... - Page 23 Write Sectors Extended ATA-standard power-management commands Check Power Mode Idle Idle Immediate Sleep Standby Standby Immediate ATA-standard security commands Security Set Password Security Unlock Security Erase Prepare Security Erase Unit Security Freeze Lock Security Disable Password Seagate FireCuda Product Manual, Rev. C...
-
Page 24: Identify Device Command
The maximum value that shall be placed in this field is ST500LX025 = 0FFFFFFFh 0FFFFFFFh. The 0FFFFFFFh value applies to all capacities over 137GB (see Section 2.1, Formatted Capacity for related information). Seagate FireCuda Product Manual, Rev. C... - Page 25 ST2000LX001 = 3,907,029,168 (see Section 3.2, Configuring the Drive for related information) 100–103 ST1000LX015 = 1,953,525,168 These words are required for drives that support the 48-bit addressing ST500LX025 = 1,953,525,168 feature. Maximum value: 0000FFFFFFFFFFFFh. Seagate FireCuda Product Manual, Rev. C...
- Page 26 160–221 ATA-reserved 0000 Transport major version number 101F 223–254 ATA-reserved 0000 Integrity word xxA5 See the bit descriptions below for words 63, 88 and 93 of the Identify Drive data. (on next page) Note Seagate FireCuda Product Manual, Rev. C...
- Page 27 Ultra DMA mode 4 is currently active. Ultra DMA mode 5 is currently active. Ultra DMA mode 6 is currently active. Word 93 1 = 80-conductor cable detected, CBLID above VIH 0 = 40-conductor cable detected, CBLID below VIL Seagate FireCuda Product Manual, Rev. C...
-
Page 28: Set Features Command
Disable the Free Fall Protection feature (41 above enables the Free Fall Protection feature) Report full capacity available At power-on, or after a hardware or software reset, the default values of the features are as indicated above Note Seagate FireCuda Product Manual, Rev. C... -
Page 29: Commands
) that eliminates unnecessary drive returns. The diagnostic software ships with all new drives and is also available at: http://www.seagate.com/support/downloads/seatools/. This drive is shipped with S.M.A.R.T. features disabled. Users must have a recent BIOS or software package that supports S.M.A.R.T. to enable this feature. - Page 30 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00 Publication Number: 1007802299, Rev. C...
