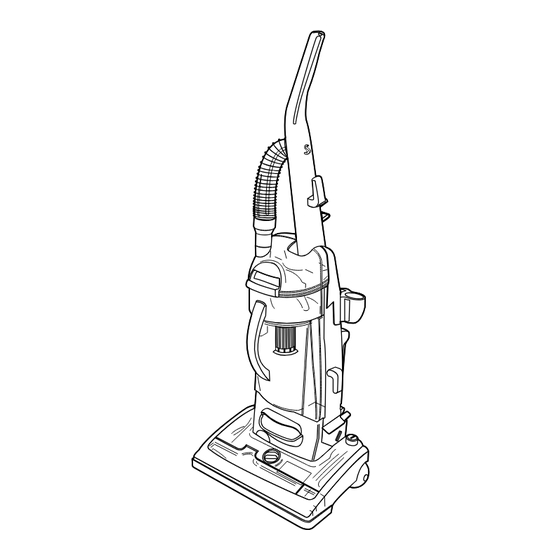

Upright Vacuum Cleaner
Owner's Guide
Household Type
Z4640 and Z4680 Series
Index
Important Safeguards .................. 2
Service Information ..................... 4
Guarantee.................................... 4
Assembly .................................. 5-6
Thermal Cut Off..................... 3 & 7
Use .............................................. 7
Accessories ................................. 8
Dirt Alert ...................................... 9
Cyclonic Dust Cup ................ 10-11
Brush Roll.................................. 12
Brush Roll Belt........................... 12
Hose Blockage .......................... 13
Filters......................................... 14
HEPA Filter ................................ 15
Light Bulb................................... 16
Problem Solving ........................ 18
IMPORTANT
For any advice
on your cleaner and to
order dust bags, filters
and accessories,
please telephone
Customer Care
08706 055055
www.electrolux.com

Advertisement

Table of Contents
loading

Related Manuals for Electrolux Z4680 SERIES

Summary of Contents for Electrolux Z4680 SERIES

  • Page 1: Table Of Contents

    Upright Vacuum Cleaner Owner’s Guide Household Type Z4640 and Z4680 Series Index Important Safeguards ....2 Service Information ..... 4 Guarantee........4 Assembly ........5-6 Thermal Cut Off..... 3 & 7 Use ..........7 Accessories ......... 8 Dirt Alert ........9 Cyclonic Dust Cup ....

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER. WARNING To reduce the risk of fire, electric shock, or injury: • Do not use outdoors or on wet surfaces. •...

  • Page 3: Before You Start

    2. Examine the mains supply cable for damage (only after removing the plug from the socket outlet). 3. If there is any sign of damage to the supply cable it MUST be renewed. The repair MUST be carried out by an Electrolux Service Agent or a similar qualified person.

  • Page 4: Guarantee

    This appliance conforms with the requirements of the amended E.E.C. directive No. 89/336/EEC relating to electromagnetic compatibility (EMC) CE. Electrolux, may introduce modifications to their product from time to time, and consequently the details given in this booklet are subject to alteration without notice.

  • Page 5: Assembly

    HOW TO ASSEMBLE CAUTION: Assemble the cleaner before using. NOTE: Features may vary by model yet all parts assemble the same. Step A Attach Handle Step B Attach Hose CAUTION: Do not catch cord under handle. Button Hole Groove Groove Hose Hose Retainer 1.
  • Page 6 Step C Store Hose and Accessories Step D Store Electrical Cord Cord Hook Combination Tool Hook Cord Hook Crevice Tool Carrying Handle Extension Wand or Wands HEPA Filter (on some models) Tabs Hose Retainer...

  • Page 7: Thermal Cut Off

    6. After 30 minute cool down period, plug the cleaner in and push the switch pedal. The cleaner should turn on. 7. If the cleaner still does not operate, take it to any Electrolux Call Centre on 08706 055055 for repair authorisation.

  • Page 8: Accessories

    How To Use Accessories Dusting Brush is for furniture, blinds, books, lamp shades, shelves. (On some models.) NOTE: Do not place cleaner on furniture or steps as the brush roll may cause damage. Place cleaner on floor with the handle in storage position while using accessories.

  • Page 9: Dirt Alert

    When using your new vacuum you may be cleaning deep down hidden dirt missed by your old vacuum causing the light to stay red longer. With frequent cleaning, after the first few times you use your new Electrolux vacuum, the red light should go on less.

  • Page 10: Assembly

    5. When all parts are completely dry, replace filter on gray dust lid by twisting clockwise to snap and lock in place. Gray Filter Assembly Pleated Filter Use a Genuine Electrolux replacement pleated filter. Call Electrolux on 08706 055055 for assistance.

  • Page 11: Emptying The Dust Cup

    HOW TO MAINTAIN (continued) How To Empty Dust Cup NOTE: Turn off the switch and unplug the electrical cord before emptying dust cup. Never operate the vacuum cleaner without the dust cup and filter assembly properly installed. FOR INSTRUCTIONS ON HOW TO REMOVE THE DUST CUP FROM THE CLEANER BODY, REFER TO PAGE 10.

  • Page 12: Brush Roll

    HOW TO MAINTAIN (continued) Brush Roll The brush roll turns as it sweeps and combs the carpet nap. Remove hair and threads from the brush roll so it continues brushing the carpet. To maintain the most efficient cleaning, the bristles must touch the carpet. To test the bristle length, hold a ruler against the underneath side of the cleaner.
  • Page 13 HOW TO MAINTAIN (continued) How to Clear Hose Clogs NOTE: Turn off the switch and unplug the electrical cord before clearing hose. Hose Adapter Hose Retainer 3. On the back of the cleaner, pull up on hose assembly to release from hose retainer. 1.
  • Page 14 Rinsable Micron Filters in Filter Frame (Only for models with Micron filter frame) Check the Micron filter each time the dust cup is emptied. To remove Rinsable Micron Filter from filter frame. 1. Push down latch and pull filter frame back. 2.
  • Page 15 3. Reinstall filter after completely dry. NOTE: If rubber gasket separates from motor adapter, reposition securely on top edge before using cleaner. Use GENUINE ELECTROLUX replacement pre-motor filters.
  • Page 16 5. Place new light bulb into socket; turn to secure. 6. Push light bulb and socket back so bulb will not touch lens cover. 7. Replace lens cover. 8. Secure with two screws. Use a GENUINE ELECTROLUX 15 watt replacement light bulb. Call Electrolux on 80706 055055 for assistance.
  • Page 17 STAIR CLEANING HOSE (Only on Certain Models) WARNING: Never position any cleaner on the stairs as this could damage the carpet. Some models will come complete with an extra bonus hose which is ideal for cleaning stairs. HOW TO ASSEMBLE AND USE WARNING Always work with the cleaner below you, pulling hose from side of cleaner;...

  • Page 18: Filters

    Dirt Alert red light will not go off. New carpet fibers. Over time loose new carpet fibers will diminish and will not trip the dirt alert sensors. ✓ Dirt Alert red light will not come Dirt sensor is not working. Call Electrolux on 08706 055055 for assistance.
  • Page 20 1 hose assembly 1 hardware package 1 vacuum cleaner 1 wand (2 screws) handle Thank you for selecting an Electrolux cleaner. Don’t Forget to Use Genuine Electrolux Belts and Filters ©1999 White Consolidated Industries, Inc. Part No. 70983B Printed in U.S.A.
