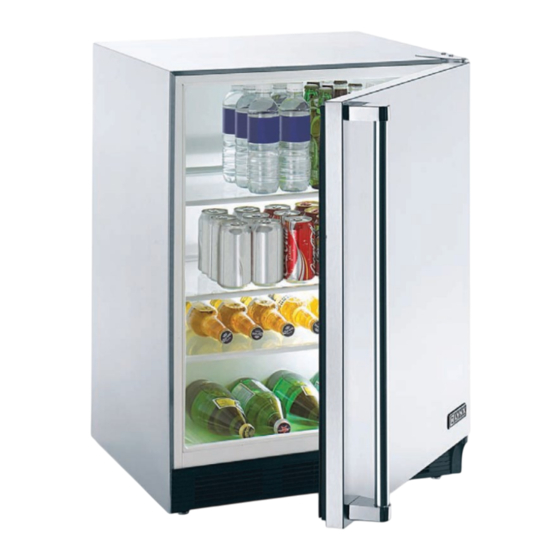

Lynx L24REF User's Manual & Installation Instructions
Hide thumbs
Also See for L24REF:
- Care & use/installation manual (28 pages) ,
- User's manual & installation instructions (13 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Lynx L24REF
Summary of Contents for Lynx L24REF
- Page 1 Lynx Grills 7300 Flores Street Downey, CA 90242 Customer Care: 888-289-5969 Tel: 562-299-6900 Fax: 562-299-6978 www.lynxgrills.com As product improvement is an ongoing process at Lynx, we reserve the right to change specifications and design without notice P/N 33349 Rev. D 3/15...
-
Page 2: Appliance Safety
7. Unplug the unit when not in use and before cleaning. 8. Do not operate any appliance with damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact Lynx Customer Care Department for service information or additional details. -
Page 3: Installation Instructions
Page 3 Lynx Grills Inc. L24REF Proper Disposal of Your Old Appliance: Old refrigerators can represent a suffocation hazard to children! 1. Remove the doors from your old refrigerator . 2. Leave shelves in place. 3. If an old refrigerator contains refrigerants, it must be recycled by a licensed service or disposal company. - Page 4 Page 4 Lynx Grills Inc. L24REF INSTALLATION INSTRUCTIONS L24REF DIMENSIONS, AND CUTOUT DIMENSIONS...
-
Page 5: Recommended Grounding Method
Page 5 Lynx Grills Inc. L24REF INSTALLATION INSTRUCTIONS CHOOSING THE RIGHT PLACE Place the appliance in a dry and regularly ventilated place. Never place the appliance near heat emitting devices (e.g. cooker, radiator, water heater or similar devices). RECOMMENDED GROUNDING METHOD A 115 Volt, 60 Hz. -
Page 6: Appliance Use
Page 6 Lynx Grills Inc. L24REF APPLIANCE USE In order to ensure proper temperature, you need to permit proper airflow in the appliance. Do not block any air vents. If the vents are blocked, airflow will be prevented, and temperature and moisture problems may occur. -
Page 7: Appliance Operation
NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to replace the bulb with one of the same size, shape, base size and wattage. The required bulb is a T7 base and must not exceed 15 watts. You can pur- chase bulbs by calling Lynx Grills Customer Care. 1. Unplug appliance or disconnect power. -
Page 8: Appliance Care
Page 8 Lynx Grills Inc. L24REF APPLIANCE CARE CLEANING YOUR FRONT-FREE REFRIGERATOR Use nonflammable cleaners. Frost-free means that you do not have to defrost your appliance. Frost is removed by air moving and collecting any moisture and depositing it on the cooling coil. The cooling coil periodically warms up enough to melt the frost, and the water then flows down to the drain pan (located behind the base grill) where it is evaporated. -
Page 9: Temperature Selection
Page 9 Lynx Grills Inc. L24REF TEMPERATURE SELECTION HOW TO ADJUST THE THERMOSTAT The refrigerator is controlled with a thermostat knob located inside the unit, towards the right-hand corner. Turn the knob clockwise from the STOP (0) position toward the higher numbers for colder temperatures. -
Page 10: Troubleshooting
This prevents air transfer and makes the motor work harder. Clean the condenser coils. Is the door gasket sealed all the way around? Contact Lynx Customer Care. NOTE: If the problem is not due to any of the above, remember that the compressor on your new appliance will operate longer than your old one due to its high-efficiency motor. -
Page 11: If You Need Replacement Parts
If you need to order replacement parts, we recommend that you only use factory specified parts. Factory specified parts will fit right and work right, because they are made with the same precision used to build eve- ry new LYNX appliance. 1. Check the plug, fuse and/or circuit breaker. -
Page 12: Outdoor Refrigerator
Page 12 Lynx Grills Inc. L24REF L24REF Replacement Parts List Outdoor Refrigerator Lynx Description Part No. 32160 Glass Shelf 31557 Upper Hinge 34277 Starting Relay 33530 Thermostat 33015 Bulb 34278 Adjustable Foot 34280 Condenser 34281 Light Switch 34279 Adjustable Foot Support... -
Page 13: Cabinet Assembly
Page 13 Lynx Grills Inc. L24REF EXPLODED VIEW CABINET ASSEMBLY... - Page 14 Page 14 Lynx Grills Inc. L24REF EXPLODED VIEW DOOR ASSEMBLY DOOR ASSEMBLY LAMP & THERMOSTAT ASSEMBLY...
- Page 15 Page 15 Lynx Grills Inc. L24REF EXPLODED VIEW COMPRESSOR AND CONDENSER ASSEMBLY...
-
Page 16: Electrical Diagram
Page 16 Lynx Grills Inc. L24REF ELECTRICAL DIAGRAM... -
Page 17: One-Year Limited Warranty
Page 17 Lynx Grills Inc. L24REF Warranty Call customer Care toll free in the U.S.A. @ 1-888-289-5969; Monday to Friday 6:00AM - 4:30PM, Saturday 8AM to 1PM PacificTime. ONE YEAR LIMITED WARRANTY Within the 48 contiguous United States, and Canada, for one year from the date of purchase, when this appli- ance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory specified parts and repair labor to correct defects in materials or workmanship. - Page 18 Lynx Grills, Inc. 7300 Flores Street, Downey, CA 90242 Ph.: 562-299-6900 Customer Care Ph.: 888-289-5969 www.lynxgrills.com...
