Toro 22295 Operator's Manual

Toro 22295 Operator's Manual

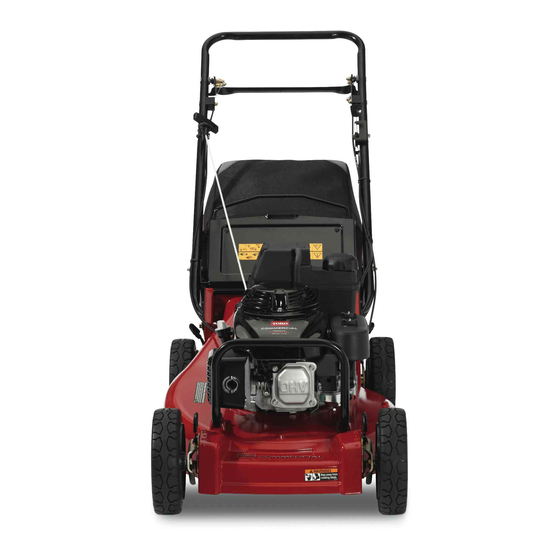

21in heavy-duty recycler/rear bagger lawn mower
Hide thumbs Also See for 22295:
Table of Contents

Advertisement

Quick Links

Register at www.Toro.com.
Original Instructions (EN)
21in Heavy-Duty Recycler
Bagger Lawn Mower
Model No. 22295—Serial No. 316000001 and Up
Form No. 3401-792 Rev B
®
/Rear
*3401-792* B

Advertisement

Table of Contents
loading

Related Manuals for Toro 22295

Summary of Contents for Toro 22295

  • Page 1 Form No. 3401-792 Rev B 21in Heavy-Duty Recycler ® /Rear Bagger Lawn Mower Model No. 22295—Serial No. 316000001 and Up *3401-792* B Register at www.Toro.com. Original Instructions (EN)
  • Page 2 Proposition 65 Warning product properly and safely. This product contains a chemical or chemicals You may contact Toro directly at www.Toro.com for product known to the State of California to cause cancer, and accessory information, help finding a dealer, or to register birth defects, or other reproductive harm.

  • Page 3: Table Of Contents

    1 Installing the Handle ..........7 comply with these safety instructions. 2 Installing the Recoil-Start Rope ....... 9 Toro designed and tested this lawn mower for reasonably 3 Filling the Crankcase with Oil ......... 9 safe service; however, failure to comply with the following 4 Adjusting the Self-Propel Drive......10...

  • Page 4: Maintenance And Storage

    Turf conditions can affect performance of your Toro equipment, count on Toro the stability of the machine. Use caution while operating genuine parts. When it comes to reliability, Toro delivers the machine near drop-offs. replacement parts designed to the exact engineering •...

  • Page 5: Safety And Instructional Decals

    Hauling • Use full-width ramps for loading the machine into a trailer or a truck. • Use care when loading or unloading the machine into a • trailer or truck. Tie the machine down securely using straps, chains, cable, or ropes. Both the front and the rear straps should be directed down and outward from the machine.
  • Page 6 125-8406 1. Choke 3. Slow 2. Fast 130-6722 1. Attention—read the Operator's Manual. 130-9670 1. Severing hazard of hand or foot; mower blade—keep away from moving parts; keep all guards and shields in place.

  • Page 7: Setup

    Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. Handle Hex-head-flange bolt (5/16 x 1-1/2 inches) Install the handle. Carriage bolt (5/16 x 1-1/2 inches) Flange nut (5/16 inch) – No parts required Install the starter rope.
  • Page 8 Important: Ensure that the bolt heads are on the 3. Set the machine to the desired cutting height; refer to Adjusting the Cutting Height (page 12). inside of the handle and that the nuts are on the outside of the handle. 4.

  • Page 9: Installing The Recoil-Start Rope

    Installing the Recoil-Start Filling the Crankcase with Oil Rope No Parts Required No Parts Required Procedure Procedure The engine crankcase is shipped without oil. Before starting the engine, fill the crankcase with oil. The Pull the recoil-start rope through the rope guide on the engine crankcase can hold 0.65 L (22 oz) of oil.

  • Page 10: Adjusting The Self-Propel Drive

    through until the oil level is at the Full mark on the dipstick. • If the oil level is above the upper-limit mark on the dipstick, drain the excess oil until the oil level on the dipstick is at the Full mark. Refer to Changing the Engine Oil (page 18).

  • Page 11: Product Overview

    Product Overview Operation Note: Determine the left and right sides of the machine from the normal operating position. Each time before you mow, ensure that the self-propel drive and the blade-control bar operate properly. When you release the blade-control bar, the blade and the self-propel drive should stop.

  • Page 12: Filling The Fuel Tank With Gasoline

    If the oil level is below the lower-limit mark, add oil. Refer to DANGER 3 Filling the Crankcase with Oil (page Adjusting the cutting-height levers could bring your hands into contact with a moving blade and result Filling the Fuel Tank with in serious injury.

  • Page 13: Shutting Off The Engine

    Note: Allow the rope to return slowly to the rope guide on the handle. 6. When the engine starts, move the throttle-control lever to the F position (Figure 16). Shutting Off the Engine Release the blade-control bar. Both the engine and the blade should stop within 3 seconds.

  • Page 14: Recycling The Clippings

    Check the grass bag frequently. If it is damaged, Recycling the Clippings install a new Toro replacement bag. This machine comes from the factory ready to recycle grass and leaf clippings back into the lawn. To prepare the machine...

  • Page 15: Operating Tips

    Periodically file down nicks on the blade. 1. Rear door 3. Notch (2) • Replace the blade when necessary with an original Toro 2. Bag-rod end (2) replacement blade. • Mow only dry grass or leaves. Wet grass and leaves tend 3.
  • Page 16 blade at a time. Do not cut below the 64 mm (2-1/2 inch) setting unless the grass is sparse or it is late fall when grass growth begins to slow down. • When cutting grass over 15 cm (6 inches) tall, first mow at the highest cutting-height setting and walk slower;...

  • Page 17: Maintenance

    Maintenance Note: Determine the left and right sides of the machine from the normal operating position. Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Change the engine oil. After the first 20 hours • Have an authorized engine servicing dealer check and adjust the flywheel brake pad. •...

  • Page 18: Changing The Engine Oil

    5. Remove the foam and paper elements from the base of 14. Securely install the cover with the 2 nuts that you the air cleaner (Figure 22). removed in step 3. 6. Remove the foam element from the paper element (Figure 22).

  • Page 19: Servicing The Spark Plug

    Servicing the Spark Plug Drive System Maintenance Service Interval: Every 100 hours—Inspect, clean, and adjust the spark plug gap; replace the spark plug if necessary. Adjusting the Self-Propel Drive Use an NGK BPR5ES spark plug or equivalent. If the machine is new, does not self-propel, or it tends to 1.

  • Page 20: Blade Maintenance

    Blade Maintenance Maintaining the Blade Always mow with a sharp blade. A sharp blade cuts cleanly and without tearing or shredding the grass blades. 1. Shut off the engine and wait for all moving parts to stop. 2. Disconnect the wire from the spark plug. Figure 26 3.
  • Page 21 Installing the Blade blade. Maintain it more frequently if the edge dulls quickly in rough or in sandy 1. Install a sharp, balanced Toro blade, the accelerator, the conditions. lock washer, and the blade bolt. The sail of the blade...

  • Page 22: Cleaning

    Cleaning Note: The blade will draw in water and wash out the clippings. Let the water run until you no longer see clippings being washed out from under the machine. Cleaning under the Machine 4. Shut off the engine and wait for all moving parts to stop.

  • Page 23: Cleaning Under The Belt Cover

    Cleaning under the Belt Cover 2. After cleaning, apply a small amount of anti-seize to the gears. Service Interval: Every 50 hours—Remove grass clippings Note: If you operate the machine in extreme conditions, and debris from under the belt cover. cleaning the wheels more frequently than recommended will 1.

  • Page 24: Storage

    Storage 3. Remove grass clippings, dirt, and grime from the external parts of the engine, the shrouding, and the top of the mower housing. To prepare the machine for off-season storage, perform the recommended maintenance procedures; refer to Maintenance 4. Check the condition of the blade; refer to Inspecting (page 17).

  • Page 25: Troubleshooting

    Troubleshooting Problem Possible Cause Corrective Action The engine does not start. 1. The fuel tank is empty or the fuel 1. Drain and/or fill the fuel tank with system contains stale fuel. fresh gasoline. If the problem persists, contact an Authorized Service Dealer. 2.
  • Page 26 Notes:...
  • Page 27 Notes:...
  • Page 28 Customers who have purchased Toro products outside the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor's service or have difficulty obtaining guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.
