RESIDENTIAL POWER DIRECT VENT GAS-FIRED WATER HEATERS
INSTALLATION AND OPERATING INSTRUCTIONS
READ THESE INSTRUCTIONS CAREFULLY BEFORE BEGINNING THE INSTALLATION. PROPER INSTALLATION WILL PROVIDE SAFE
& EFFICIENT SERVICE, AND AVOID NEEDLESS EXPENSES NOT COVERED BY THE WARRANTY. READ THE PRODUCT WARRANTY
IN THE OWNER'S MANUAL AND REMEMBER TO FILL OUT AND RETURN TO THE MANUFACTURER ALL RELEVANT WARRANTY
CARDS AND CERTIFICATES. SHOULD YOU HAVE ANY QUESTIONS, PLEASE CONTACT YOUR LOCAL DEALER OR REFER TO THE
GETTING SERVICE FOR YOUR WATER HEATER SECTION OF THE OWNER'S MANUAL.
SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.
For your records, write the model and serial number here:
Model # ___________________________
Serial # ____________________________
54000032
© 2015 Giant Factories Inc. Printed in Canada
(EQUIPPED WITH FVIR TECHNOLOGY)
OWNER'S MANUAL
IMPORTANT
WARNING
This water heater IS NOT design certified for installation
in a mobile home or for installation outdoors.
WARNING
If the information in these instructions is not
followed exactly, a fire or explosion may result causing
pro-perty damage, personal injury, or death.
DO
NOT
store
flammable vapours and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS
• DO NOT try to light any appliance.
• DO NOT touch any electrical switch.
• DO NOT use any phone in your building.
• From a neighbour's phone, immediately call
your gas supplier. Follow the gas supplier's instruc-
tions.
• If you cannot reach your gas supplier, call the fire depart-
ment.
Installation and service must be performed by a
qualified installer, service agency, or the gas supplier.
or
use
gasoline
or
R
ISO 9001
REGISTRED
other
GI-IM027En-0115

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UG50 series and is the answer not in the manual?

Questions and answers

Aurora Di Pasquale
April 19, 2025

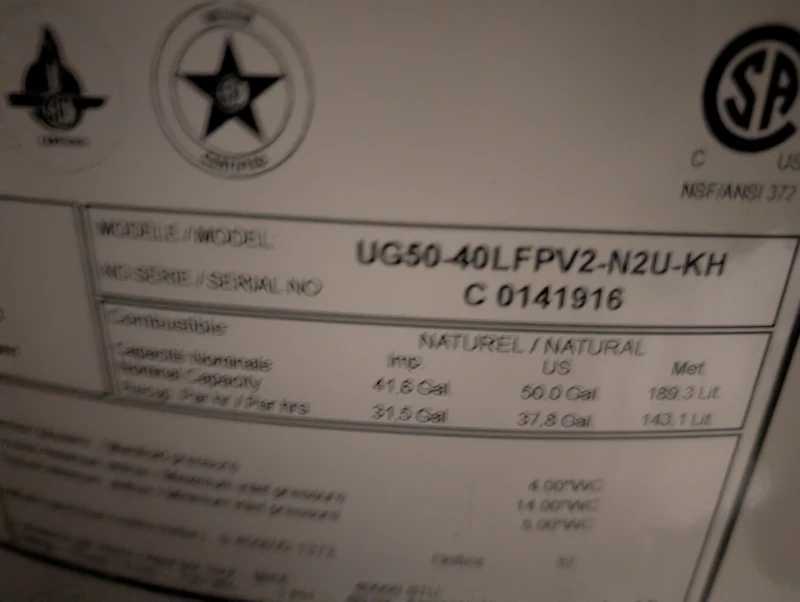

What is the UEF (Uniform Energy Factor) for UG50-40LFPV2-N2U. Is it a power vent or direct vent?

User image 6803ecb0158de
0

Related Manuals for Giant UG50 series

Summary of Contents for Giant UG50 series

  • Page 1 GETTING SERVICE FOR YOUR WATER HEATER SECTION OF THE OWNER’S MANUAL. SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE. For your records, write the model and serial number here: Model # ___________________________ ISO 9001 REGISTRED Serial # ____________________________ 54000032 © 2015 Giant Factories Inc. Printed in Canada GI-IM027En-0115...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Information ....Operating Instructions ... . 17 Installation Instructions ... Lighting the Water Heater .

  • Page 3: Safety Information

    SAFETY INFORMATION Your safety and the safety of others is extremely important during the installation, operation, and servicing of this water heater. Many safety-related messages have been provided in this manual and on your water heater. Always read and abide by all safety messages. These messages will point out the potential hazard, tell you how to reduce the risk of injury, and tell you what will happen if the instruc- tions are not followed.

  • Page 4: Installation Instructions

    INSTALLATION INSTRUCTIONS IMPORTANT These instructions have been written as a guide for the proper installation and operation of your water heater, and the manufac- turer of this water heater will not accept any liability where these instructions have not been followed. However, for your safety and to avoid damage caused by improper installation, this water heater must be installed by a Certified Licensed Professional, and meet all local codes or, in the absence of local codes, the latest edition of CAN/CSA B149.1, Natural Gas and Propane Gas Installation Code, in Canada, and/or the latest edition of the National Fuel Gas Code, ANSI Z223.1/NFPA 54, in the United States.

  • Page 5: Venting Connection To The Water Heater

    INSTALLATION INSTRUCTIONS will be installed as specified by all local codes or, in the absence IMPORTANT of local codes, the latest edition of CAN/CSA B149.1, Natural Gas and Propane Installation Code, in Canada, and/or the latest According to the CAN/CSA-B149, Natural Gas and Propane edition of the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Installation Code, plastic vent systems installed in Canada in the United States (see Figure 4).
  • Page 6 INSTALLATION INSTRUCTIONS Figure 2 8'' min. IN ANY DIRECTION 2" 3'' min. / 8'' max. 18'' min. 18'' min. 18'' min. 18'' min. VENT TERMINAL 90° INTAKE TERMINAL 8'' min. (See Figure 7A) 90° INTAKE TERMINAL Figure 3 Connection to a 3-inch (7.6 cm) Connection to a vent system...
  • Page 7 INSTALLATION INSTRUCTIONS Figure 4 NONMECHANICAL AIR SUPPLY MECHANICAL AIR SUPPLY AREA WHERE TERMINAL AIR SUPPLY VENT IS NOT PERMITTED INLET TERMINAL The Vent Termination must have a: Canadian Installations U.S. Installations A) Clearance above grade, veranda, porch, deck, or balcony. 12 inches (30 cm) 12 inches (30 cm) 9 inches (23 cm) or...

  • Page 8: Through-The-Wall Venting Installation

    INSTALLATION INSTRUCTIONS POLYPROPYLENE PIPE FROM DURAVENT air intake terminal and the vent terminal must terminate on the (Polypro single wall gas vent system): same exterior wall (same atmospheric pressure zone). PolyPro ® Use special appliance adapter from DuraVent and insert into the IMPORTANT vent system adaptor on the outlet of the blower assembly.

  • Page 9: Through-The-Roof Venting Installation

    INSTALLATION INSTRUCTIONS Figure 7a Figure 7b 1" (2,5 cm) Min. : Vent Terminal shall never be installed below air intake Clamp or Strap 2" (5 cm) Max. (field supplied) terminal and within 8” (20.3 cm) of air intake terminal. Optional Exhaust Elbow* 8"...

  • Page 10: Pipe Assembly

    INSTALLATION INSTRUCTIONS enclosed area, make sure to leave at least one (1) inch (2.5 cm) 7) QUICKLY assemble parts while cement is fluid! If you wait clearance around the piping for air circulation. too long, re-coat pipe/fitting. 8) Push the vent pipe completely into the coupling, FOR PVC AND CPVC PIPING: turning as it goes until it bottoms out.

  • Page 11: Restrictor Screens

    INSTALLATION INSTRUCTIONS be used with the vent system. A wire mesh screen must be from IPEX, be sure to install the three (3) inch (7.6 cm) installed in the termination elbows. black restrictor screen in all cases. POLYPROPYLENE VENT SYSTEM: POLYPROPYLENE VENT SYSTEM: PolyPro ®...

  • Page 12: Condensation In The Venting System

    INSTALLATION INSTRUCTIONS To protect from excessive pressure and/or temperature, the WARNING manufacturer has installed a temperature and pressure-relief valve that meets the requirements of the Standard for Relief When the installation is complete, visually inspect the Valves and Automatic Gas Shut-Off Devices for Hot Water venting system to make sure that all joints are properly Supply Systems, CSA 4.4, in Canada, and ANSI Z21.22, in the connected and all instructions have been followed.

  • Page 13: Filling The Water Heater

    INSTALLATION INSTRUCTIONS Filling the Water Heater WARNING WARNING NEVER use an open flame to test for gas leaks. A fire NEVER operate the water heater unless it is completely or explosion could occur resulting in property damage, filled with water. Failure to follow this instruction personal injury, or death.

  • Page 14: Wiring

    INSTALLATION INSTRUCTIONS Wiring Installation Instructions for Water Heaters Approved for Combination Space Heating and WARNING Potable Water Heating (see Figure 11) A water heater cannot be used for space heating only. When This water heater uses an external electrical source for using a water heater for combination space and potable power.
  • Page 15 INSTALLATION INSTRUCTIONS 4) Do not use toxic chemicals to clean the potable water heating system. 5) Where water temperature in excess of 140 F (60 C) is required for a space heating application, a mixing valve must be installed in the potable side of the system. This will temper the water and reduce the risk of scalding.

  • Page 16: Installation Checklist

    INSTALLATION INSTRUCTIONS Installation Checklist Location • Is the water heater located within the venting requirements and close to the main use of hot water? ... • Is the water heater protected from freezing temperatures? ..........•...

  • Page 17: Operating Instructions

    OPERATING INSTRUCTIONS Lighting the Water Heater WARNING DO NOT light this water heater if: Before lighting or re-lighting your water • It is not full of water. heater, make sure that you have read and • The gas supplied does not match the type listed on understood all of the instructions and warnings in this manual and on your water the rating plate.

  • Page 18: Water Temperature Regulation

    OPERATING INSTRUCTIONS Water Temperature Regulation WARNING The higher the temperature setting, the greater the risk of scalding. Hot water can cause third degree burns in under one (1) second at 160 F (71 C), in five (5) sec- onds at 140 F (60 C), and in thirty (30) seconds at 130 C).

  • Page 19: Out Of Fuel

    OPERATING INSTRUCTIONS The gas control valve pictured in this manual is equipped After a flammable vapour incident has occurred and the flam- with a single-use type automatic high temperature cut-off. mable vapours have dissipated, the FV sensor is designed to Should the temperature of the water exceed 195 F (91 automatically reset itself.

  • Page 20: Burner Ignitor Assembly

    GENERAL MAINTENANCE anode and hydrogen sulfide gas dissolved in the water, which Burner Ignitor Assembly Every three (3) months, check the burner and flame ignitor occurs frequently in well systems. This problem can usually be eliminated or reduced by changing the anode to a type more assembly.

  • Page 21: Getting Service For Your Water Heater

    GENERAL MAINTENANCE Getting Service for your Water Heater If you are having problems with your water heater, follow these three easy steps: 1) Consult the Troubleshooting Guide contained in this manual (see Page 23). It lists the most com- mon problems experienced with your gas-fired water heater.

  • Page 22: Replacement Parts

    REPLACEMENT PARTS Item Description Gas Control Valve Flammable Vapour Sensor Protective Cover Ignitor Assembly Burner Assembly Inner Access Doors Outer Access Door Drain Valve Overflow Tube Dip tube Magnesium Anode Temperature & Pressure-Relief Valve Baffle Inlet Rubber Adaptor Vacuum Switch - Inlet Vacuum Switch - Outlet High Limit Switch Outlet Rubber Adaptor...

  • Page 23: Troubleshooting Guide

    TROUBLESHOOTING GUIDE WARNING Disconnect the electrical power before servicing the water heater. Service should only be performed by a qualified service technician. Failure to follow these instructions can result in personal injury and/or death. CONDITION (code#) CAUSE REMEDY An open earth ground 1) Check that the earth ground conductor is properly connected at the fuse box or circuit to the ignition.
  • Page 24 TROUBLESHOOTING GUIDE CONDITION CAUSE REMEDY The burner will not ignite. No gas. Check with gas utility company. Dirt in gas line. Notify utility. Install drip leg in gas line. Air intake terminal is blocked. Check outside for debris in the terminal or frozen air intake ter- minal and remove.
  • Page 25 TROUBLESHOOTING GUIDE CONDITION CAUSE REMEDY Leaking water. Poorly sealed, hot or cold water connections, gas Tighten threaded connections. control valve threads, relief valve, or drain valve. Leakage from plumbing system or other appliances. Inspect plumbing system and other appliances. Condensation. Refer to Condensation.
  • Page 28 Notes : __________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________...
