QuickSpecs
Overview
The ML350 Gen9 is the 2P premium server which delivers a class-leading combination of performance, availability, expandability,
manageability, reliability and serviceability making it the choice for remote offices, growing businesses and data centers.

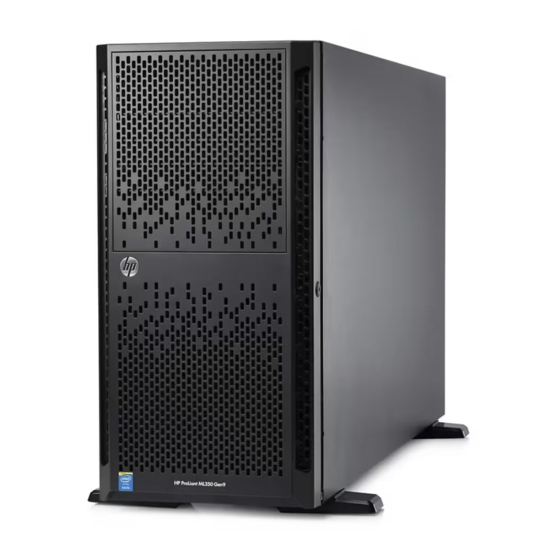

Front view details for Rack (SFF) and Tower (LFF)
1.
Optional HDD cage Drive Cage Bays (Rack shown with blanks. Tower shown with 16 LFF Optional drives)
2.
Quick removal access panel (shown on Rack)
3.
Slim Height Drive Bay for Optional Slim Height SATA DVD-ROM or DVD RW Optical Drive (shown on Tower)
4.
Media Drive Cage Bays - (Rack supports two half height or one full height device; Tower supports one half height device)
5.
Systems Insight Display Bay for Optional SID (Rack models only)
6.
Two (2) USB 2.0 connectors
7.
Unit ID LED button
8.
Health LED
9.
NIC Activity LED
10.
Power On /Standby button & system power LED button
11.
Eight (8) SFF (Rack)/LFF (Tower) SAS/SATA HDD cage
12.
Serial label pull tab
DA - 15035 Worldwide QuickSpecs — Version 2 — 9.23.2014
HP ProLiant ML350 Generation9 (Gen9)
Page 1
