2.

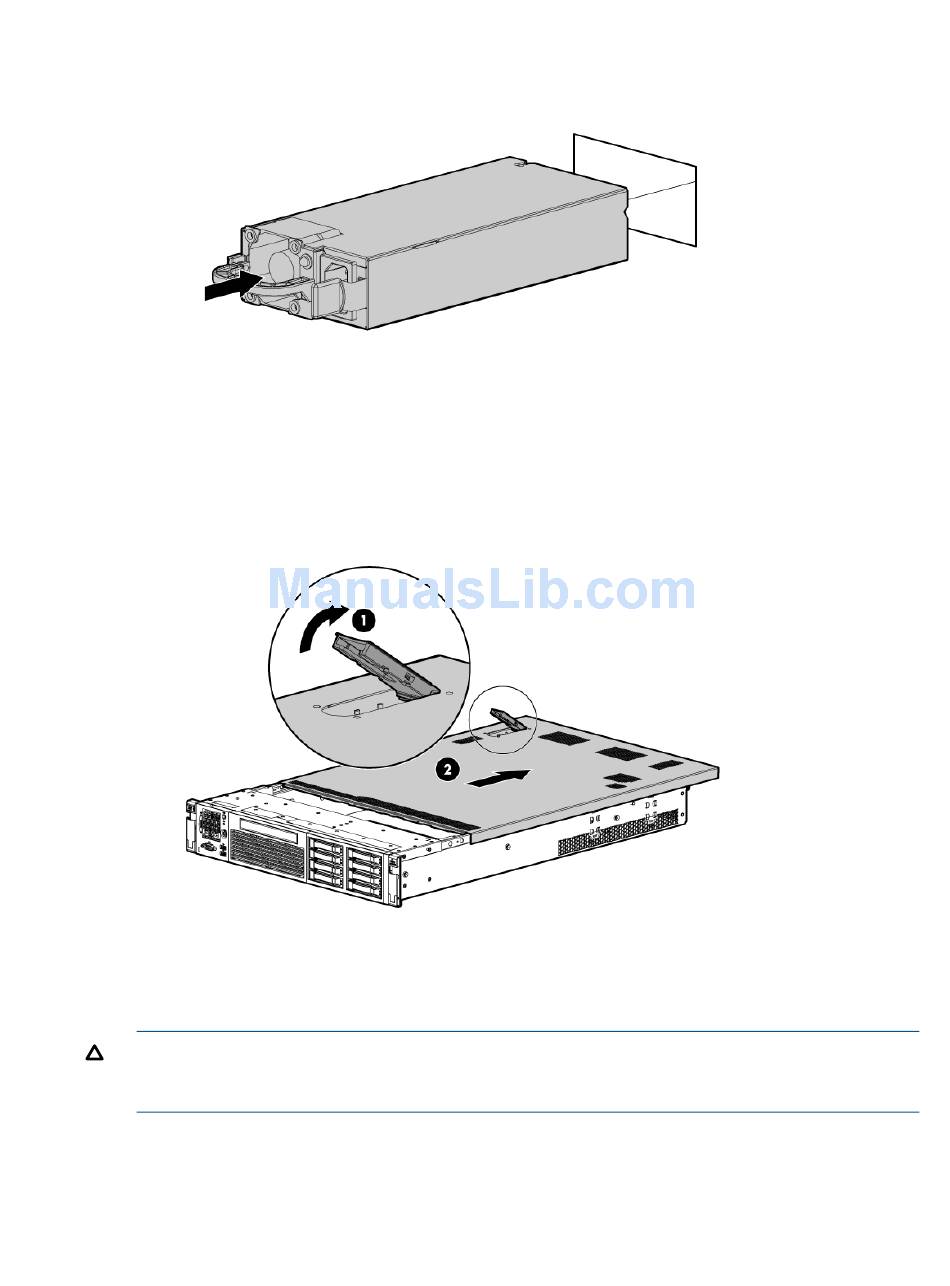

Install the power supply.
Removing the access panel
1.
Use the T- 1 5 Torx screwdriver attached to the rear of the server to loosen the security screw
on the hood latch.
2.
Lift the hood latch handle, and then remove the access panel.
To replace the component, reverse the removal procedure.
Removing the PCI riser cage
CAUTION:
expansion slot covers, or blanks installed. If the server supports hot-pluggable components, minimize
the amount of time the access panel is open.
1.
Disconnect any cables connected to optional I/O cards before removing cage.
For proper cooling, do not operate the server without the access panel, baffles,
Removing the access panel
43
