Set Time Out Value; Reset System; Ilo Mp - HP Carrier-Grade rx2800 i2 Server DC User's & Service Manual

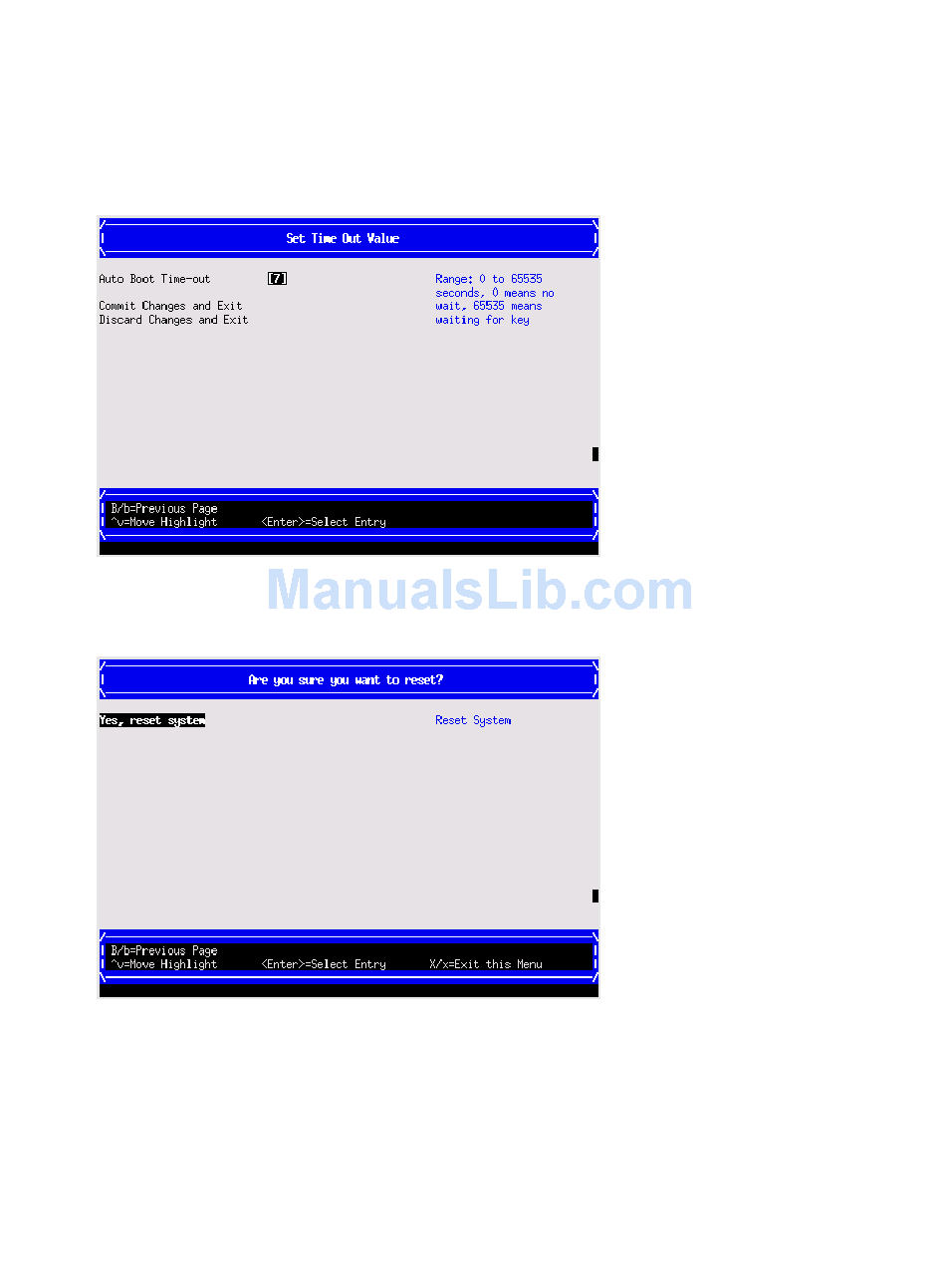

Set time out value

Use this option to set the amount of time the server pauses before attempting to launch the first item
in the Boot Options list.
Interrupting the timeout during the countdown stops the Boot Manager from loading any boot
options automatically. If there is no countdown, boot options must be selected manually.
To set the auto boot timeout value, in seconds, select Set Timeout Value and enter the desired
value.

Reset system

Use this option to perform a system reset.

iLO MP

The iLO MP is an independent support system for the server. It provides a way for you to connect
to a server and perform administration or monitoring tasks for the server hardware.
The iLO MP controls power, reset, ToC capabilities, provides console access, displays and records
system events, and displays detailed information about the various internal subsystems. The iLO
MP also provides a virtual front panel used to monitor server status and the state of front panel
LEDs. All iLO MP functions are available through the LAN and the local RS-232 port.
The iLO MP is available whenever the server is connected to a power source, even if the server
main power switch is off.
144 Utilities
