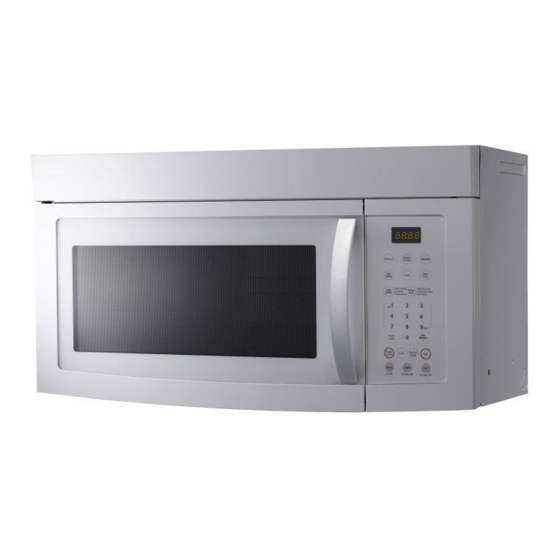

Samsung SMH9151 User Manual

Hide thumbs Also See for SMH9151:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

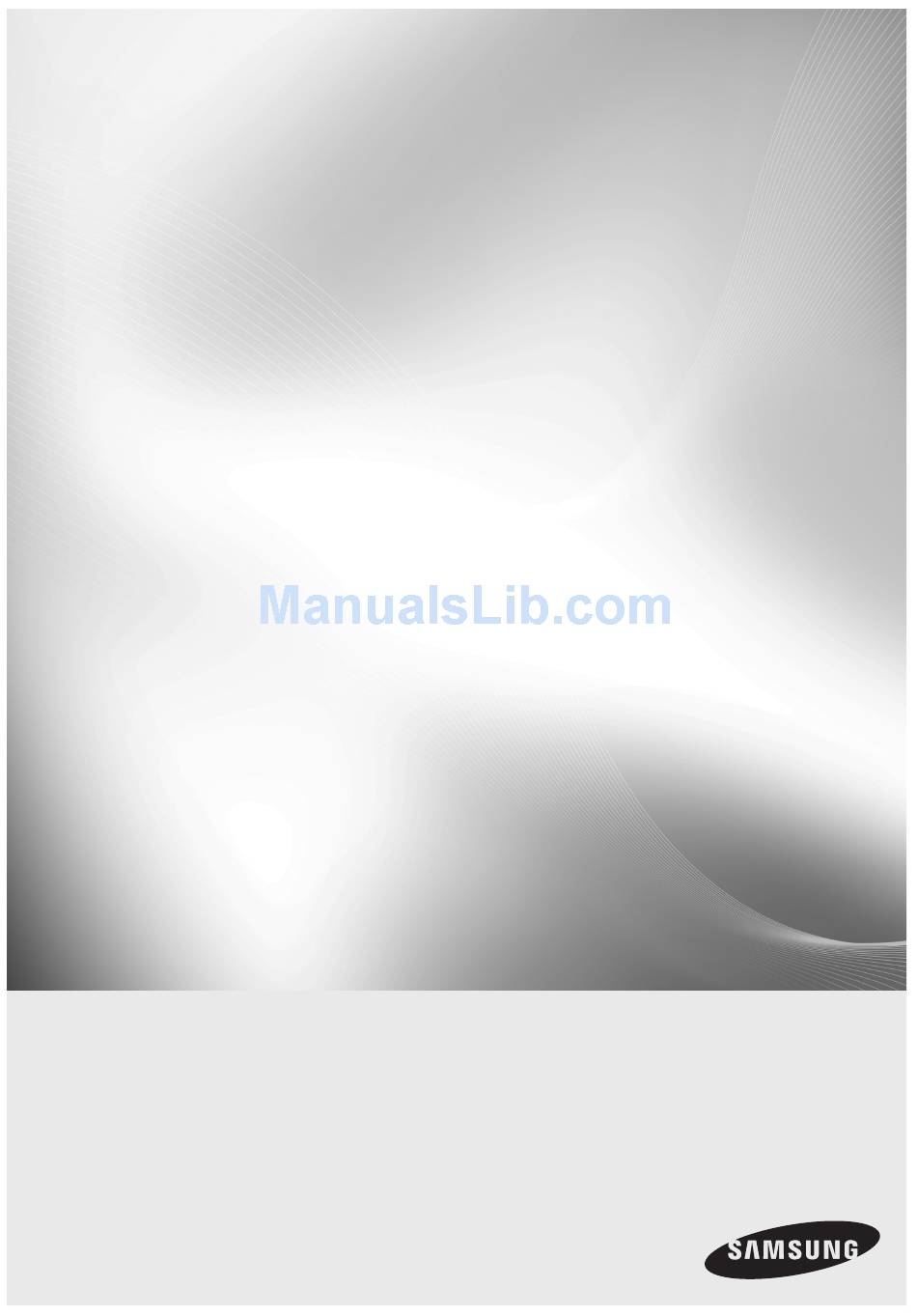

SMH9151
Microwave Oven
user manual
imagine
the possibilities
Thank you for purchasing this Samsung
product. Please register your product at
www.samsung.com/global/register

Advertisement

Table of Contents
loading

Related Manuals for Samsung SMH9151

Summary of Contents for Samsung SMH9151

  • Page 1 SMH9151 Microwave Oven user manual imagine the possibilities Thank you for purchasing this Samsung product. Please register your product at www.samsung.com/global/register...
  • Page 2 features of your new microwave oven • Luxurious Look The Stainless Steel (STSS) exterior delivers a luxurious look to your kitchen. The design matches perfectly with your other kitchen appliances, providing a harmonious kitchen interior. • Controllable Ventilation System Depending on the duct location, you can set the orientation of the vent. You can also select the ventilation power (High, Low, Off) depending on your cooking selection.
  • Page 3 It’s your responsibility to use common sense, caution, and care when installing, maintaining, and operation your microwave oven. Samsung is not liable for damages resulting from improper use. What the icons and signs in this manual mean: WARNING: Hazards or unsafe practices that may result in severe personal injury or death.

  • Page 4: Important Safety Instructions

    Always observe Safety Precautions when using your oven. Never try to repair the oven on your own - there is dangerous voltage inside. If the oven needs to be repaired, call 1-800-SAMSUNG (7267864) for the name of an authorized service center near you.
  • Page 5 When cleaning the door and oven surfaces, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. Remove lids from baby food before heating. After heating baby food, stir well and test temperature by tasting before serving. This over-the-range oven was designed for use over ranges no wider than 36 inches.

  • Page 6: To Reduce The Risk Of Injury To Persons

    important safety instruction to Reduce the Risk of fiRe in the oVen: Remove wire twist-ties from plastic cooking bags before placing bags in oven. Do not use the oven compartment for storage purposes. Do not leave paper products, cooking utensils, or food in the oven when not in use. Do not overcook food.

  • Page 7: The Vent Fan

    imPoRtant gRounding instRuctions This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electrical current. This appliance is equipped with a power cord that includes a grounding wire and a grounding plug.

  • Page 8: Table Of Contents

    contents seTTING Up yOUR NeW Checking the parts mICROWAve OveN Warranty and service information Setting up your microwave oven Checking the control panel Child lock Demonstration mode Setting the time UsING yOUR mICROWAve OveN Using the Kitchen Timer Button Using the One Minute+ Button Using the More/Less Buttons Using the Vent Hi/Lo/Off Button Using the Light Hi/Lo/Off Button...
  • Page 9 CleANING ANd mAINTAINING yOUR Cleaning the exterior mICROWAve OveN Cleaning the interior Cleaning the door and door seals Cleaning the turntable and roller rings Cleaning the grease filter Storing and repairing your microwave oven Replacing the Cooktop/Night light Replacing the oven light Replacing the charcoal filter TROUbleshOOTING Check these points if your microwave oven…...

  • Page 10: Setting Up Your New

    Carefully unpack your microwave oven, and make sure you’ve received all the parts shown below. If your microwave oven was damaged during shipping, or if you do not have all the parts, contact Samsung Customer Service. (Refer to the “WARRANTY AND SERVICE INFORMATION” on page 11.)

  • Page 11: Warranty And Service Information

    To help us to serve you better, please complete the enclosed registration card and promptly return it by mail. If the registration card is missing, you can call Samsung Electronics, Inc., at 1-00-sAmsUNG (-) or register online at www.samsung.com/global/register.

  • Page 12: Checking The Control Panel

    setting up your new microwave oven CheCkIng The COnTrOL paneL 1_ setting up your new microwave oven...

  • Page 13: Power Level

    The display displays the time when the microwave is not being used, as dIsplAy well as your selected cook times and cooking functions. The Auto Cook buttons consist of frequently used items allowing you AUTO COOk to select them quickly and conveniently without having to select manual bUTTONs settings.

  • Page 14: Child Lock

    setting up your new microwave oven ChILd LOCk The Child Lock function allows you to lock the microwave buttons so that the microwave oven cannot be operated accidentally. The oven can be locked at any time. activating/deactivating If you want to activate or deactivate the child lock function, press the start button for 3 seconds. The display will show an when the oven is locked.

  • Page 15: Using Your Microwave Oven

    Cooking has never been easier than with your new Samsung microwave oven. The following section describes everything you need to know about using your microwave oven. uSIng The kITChen TImer BuTTOn This microwave allows you to use your microwave oven as a timer. Use the Kitchen Timer for timing up to 99 minutes, 99 seconds.

  • Page 16: Using The Auto Cook Button

    using your microwave oven uSIng The auTO COOk BuTTOnS The Auto Cook buttons consist of frequently used items allowing you to select these quickly and conveniently. Use the more (9)/less (1) buttons to set your temperature preference. If the food is not thoroughly cooked or reheated when using the auto cook feature, complete the cooking process by selecting a power level and cook time.
  • Page 17 pizza Slice Pizza Slice auto cook button lets you reheat up to three 3-5 oz. Slices of pizza. example: To reheat 1 Slice of pizza. 1. Touch pizza slice button once. . The oven will start automatically. . When the cook time is over, you will hear four beeps and will displayed.
  • Page 18 using your microwave oven TImes TO CATeGORy AmOUNT INsTRUCTIONs pRess Beverage once Use measuring cup or mug; do not cover. Cook Place the beverage in the oven. After (Ac-1) heating, stir well. Let oven cool for at least 5 minutes before using again. Note: •...

  • Page 19: Using The Auto Defrost Button

    uSIng The auTO defrOST BuTTOn The defrost choices are preset in the oven. The defrost cycle provides you with the best defrosting method for frozen foods, because the oven automatically sets the defrosting times according to the entered weight. For added convenience, the auto defrost function beeps to remind you to check or turn over the food during the defrost cycle.

  • Page 20: Using The Auto Reheat Button

    using your microwave oven auto defrosting table Follow the instructions below when defrosting different types of food. sTANdARd CATeGORy pROCedURe AmOUNT roast Beef, pork Start with the food placed fat side down. After each stage, turn the food over and shield any warm portions 2.5 - 6.0 lbs.
  • Page 21 auto reheating table CATeGORy dIReCTIONs AmOUNT plate of food Use only pre-cooked, refrigerated foods. Cover the plate with a vented plastic wrap or waxed paper tucked under the plate. If the food is not as hot as you would like after using the reheat function, continue 1 serving heating using additional time and power.
  • Page 22 using your microwave oven uSIng The SOfTen/meLT BuTTOn SOFTEN/MELT lets you soften or melt 3 categories of food: melt Chocolate, soften Cream Cheese and melt butter. example: To melt chocolate. 1. Touch sOFTeN/melT pad. . Choose food category(1-3). . Touch eNTeR/sTART pad. Soften/melt chart table Amount or ITem RemARks servings melt chocolate...

  • Page 23: Microwave Power Level

    Cooking with more than one cook cycle For best results, some recipes call for one Power Level for a certain length of time, and another Power Level for another length of time. Your oven can be set to change from one to another automatically, if the first cycle is the defrost cycle. 1.
  • Page 24 cookware guide To cook food in the microwave oven, the microwaves must be able to penetrate the food without being reflected or absorbed by the dish. It is important to choose the correct cookware, therefore look for cookware that is marked microwave-safe.
  • Page 25 COOkWARe mICROWAve-sAFe COmmeNTs Plates, cups, napkins and For short cooking times and warming. Also Kitchen paper to absorb excess moisture. Recycled paper Do not use recycled paper towels, which may contain metal and may catch fire or cause arcing. plastic Containers Can be used if heat-resistant thermoplastic.
  • Page 26 cooking guide mICrOwaVeS Microwave energy actually penetrates food, attracted and absorbed by the water, fat and sugar content. The microwaves cause the molecules in the food to move rapidly and the rapid movement of these molecules creates friction and the resulting heat cooks the food. Cooking meat Place the meat fat-side down on a microwave-safe roasting rack in a microwave-safe dish.
  • Page 27 Cooking poultry Place the poultry on a microwave-safe roasting rack in a microwave-safe dish and cover with wax paper to prevent spattering. Use aluminum foil to shield the bone tips, thin pieces of meat, or areas that are starting to overcook. Check the temperature in several places before letting the poultry stand the recommended time.
  • Page 28 cooking guide Cooking eggs Never cook eggs in their shells, and never warm up hard-boiled eggs in their shells as they can explode. Always pierce whole eggs to keep them from bursting. WARNING Cooking vegetables Vegetables should be washed prior to cooking. Usually no extra water is needed. If dense vegetables such as potatoes, carrots and green beans are being cooked, add about ¼...
  • Page 29 cleaning and maintaining your microwave oven Keeping your microwave oven clean improves its performance, wards off unnecessary repairs, and lengthens its life. CLeanIng The exTerIOr It’s best to clean spills on the outside of your microwave oven as they occur. Use a soft cloth and warm, soapy water.
  • Page 30 cleaning and maintaining your microwave oven CLeanIng The greaSe fILTer The grease fi lter should be removed and cleaned at least once a month. To avoid risk of personal injury or property damage, do not operate oven hood without fi lters in place. WARNING 1.
  • Page 31 repLaCIng The COOkTOp/nIghT LIghT When replacing the night light, make sure that you are wearing gloves to avoid injury from the heat of the bulb. 1. Unplug the oven or turn off the power at the main power supply. . Remove the bulb cover, and mounting screws. .
  • Page 32 If your oven is vented to the inside, the charcoal fi lter should be replaced every 6 to 12 months and more often if necessary. The charcoal fi lter cannot be cleaned. To order a new charcoal fi lter, contact the Parts Department at 1-800-627-4368 or your Samsung dealer.You can also order online at www.samsungparts. (Charcoal fi lter part no.: de-00e) 1.
  • Page 33 troubleshooting CheCk TheSe pOInTS If yOur mICrOwaVe OVen… pROblem sOlUTION display is not working. Make sure the plug is properly connected to a grounded outlet. If the wall outlet is controlled by a wall switch, make sure the wall switch is turned on. Remove the plug from the outlet, wait ten seconds, and plug it in again.

  • Page 34: Specifications

    appendix SpeCIfICaTIOnS mOdel NUmbeR smh911 1.5 CuFt Oven Cavity Controls 10 power levels, including defrost Timer 99 minutes, 99 seconds 120 VAC, 60 Hz power Source power Consumption 1580 Watts power Output 1000 Watts 19 5/16”(W) X 9 5/8”(H) X 14 3/8”(D) Oven Cavity dimensions Outside dimensions 29 7/8”(W) X 16 1/2”(H) X 15 1/16”(D) Shipping dimensions 33 3/8”(W) X 19 15/16”(H) X 19 13/32”(D)
  • Page 35 SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.
  • Page 36 QUESTIONS OR COMMENTS COUNTRy CAll OR vIsIT Us ONlINe AT 1-800-SAMSUNG (7267864) www.samsung.com/us Code No.: DE68-03588C...
