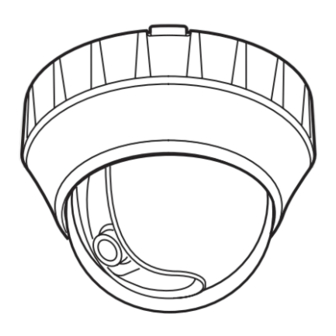

INSTALLATION MANUAL
Color CCD Camera
THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED
SERVICE PERSON AND SHOULD CONFORM TO ALL LOCAL
CODES.
Please read this manual before installing and using this unit, and always follow the instructions
in it for proper use. Please also read the separate INSTRUCTION MANUAL before using the unit
for proper use.
This unit can be installed on the ceiling or wall.
Ceiling Installed (see page 5)
(In-ceiling routing)
(Surface routing)
Wall Installed (see page 7)
(In-wall routing)
(Surface routing)
VCC-PN9575P
Important
• Be careful when opening holes for installing
the unit. Work with the power and video
cables pulled out for easy installation.
• Make sure to properly perform waterproofing
for the ceiling or wall where you are installing
the unit.
• Make sure that the surface in the installation
location has no unevenness and is strong
enough to bear the total weight of the unit.
• Install this unit in an environment where the
temperature range stays between -10°C
and +40°C (no condensation allowed).
• As a precaution against static electricity
damage, touch a nearby metal object (door
knob, etc.) to dissipate static electricity in
your body before touching this unit.
b When routing the cables on ceiling or wall
surfaces:
Twist off the knockout piece (B) above the rib
mark (A) with a pair of pliers, etc. and pass the
connection cables through the hole.
B
A
b Replacement timing of major parts
If the unit is used continuously, parts will become worn
and deteriorated depending on the environment of use.
It is recommended that parts be replaced
approximately every 2 years (approximately 1,200,000
times) in order to maintain unit performance.
• Motor, cables used in mechanical parts, gears, etc.
