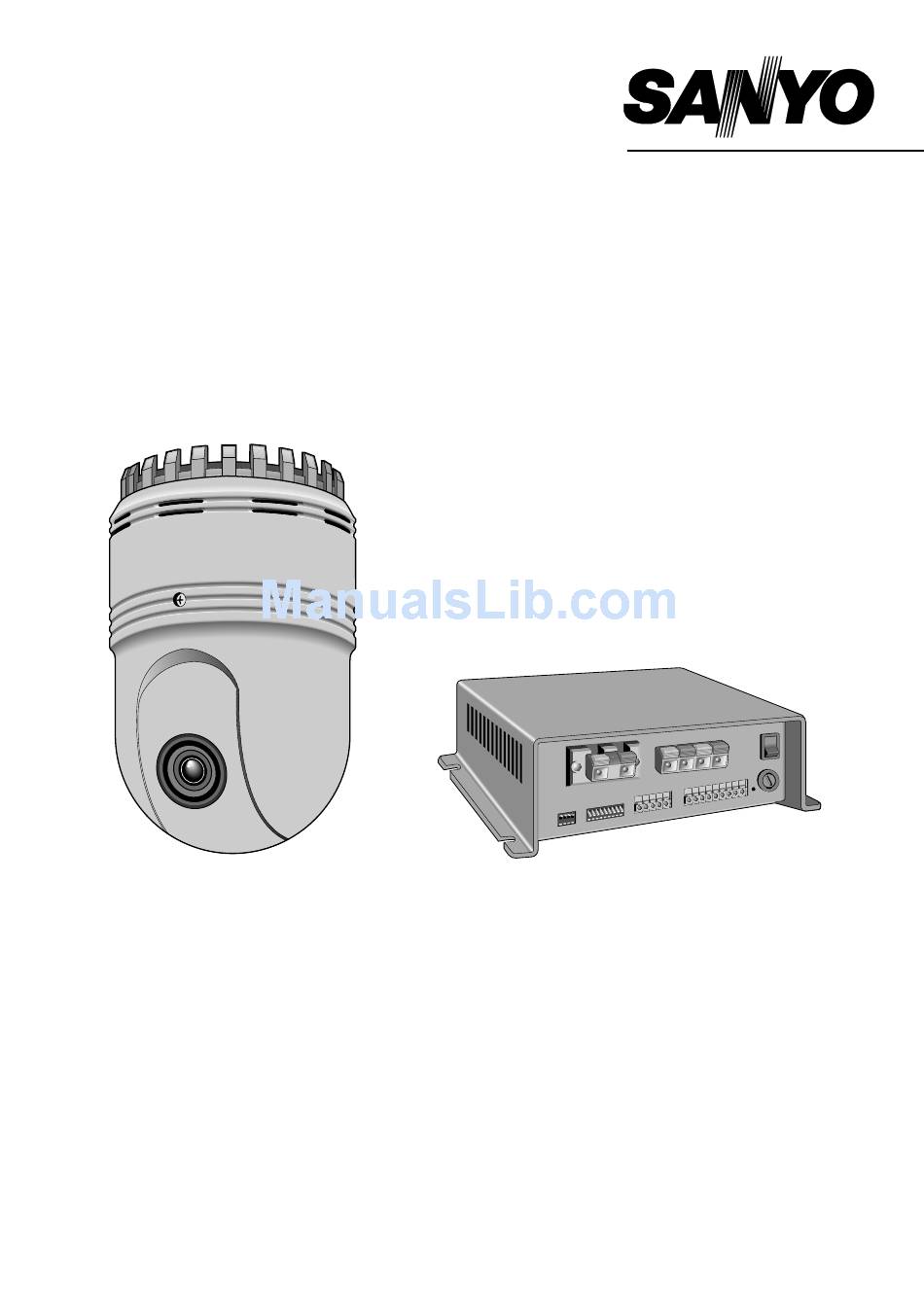

INSTRUCTION MANUAL

Colour Compact Pre-set Camera
About this manual
•
Before installing and using this unit, please read this manual
carefully. Be sure to keep it handy for later reference.
•
This manual gives basic connections and operating
instructions.
VCC-9250P

Advertisement

Table of Contents
loading

Related Manuals for Sanyo VCC-9250P

Summary of Contents for Sanyo VCC-9250P

  • Page 1: Instruction Manual

    VCC-9250P INSTRUCTION MANUAL Colour Compact Pre-set Camera About this manual • Before installing and using this unit, please read this manual carefully. Be sure to keep it handy for later reference. • This manual gives basic connections and operating instructions.

  • Page 2: Table Of Contents

    Do not use the camera if smoke or a strange odour comes from PRECAUTIONS ..........1 the unit, or if it seems not to function correctly. Disconnect the power cord immediately, and consult your dealer (or a Sanyo PARTS NAMES ..........2 Authorized Service Centre).

  • Page 3: Parts Names

    PARTS NAMES Camera (External sync control circuit board) (Control circuit board) 24V AC power input terminals (AC24V) Control circuit board Connect the camera power input terminals to the power unit Address setting output terminals (AC24V OUT). When using the camera with a power unit, the address for both must be the same.
  • Page 4 PARTS NAMES Power unit AC24V IN AC24V OUT POWER RS-485 DATA ALARM IN RS-485 RS-485 A B A B G 1 2 3 4 5 6 7 8 G BAUD RATE ADDRESS TERMINATE 24V AC output terminals (AC24V OUT) Address/Terminate setting switch (RS-485 ADDRESS/ TERMINATE) Connect the camera power input terminals (AC24V) to the power unit output terminals.

  • Page 5: Connections

    CONNECTIONS Before making any connection, make sure all the devices are turned off. Before making the connections, please refer to the instruction manual accompanying each device. Basic connections Power supply cord (sold separately) AC 24 INPUT AC24V IN AC24V OUT POWER RS-485 DATA ALARM IN...
  • Page 6 CONNECTIONS Multiple cameras connections • When the cameras are connected to the power units without an RS485 control terminal connection, up to 127 sets can be used. However, if the connection is made between the power unit RS485 control terminal and the camera, a power unit can only control one camera and up to 64 sets only can be used.

  • Page 7: Functions

    FUNCTIONS Preset memory function Auto pan function The preset memory function will memorise camera positions and The auto pan function allows you to have the camera move back zoom, focus, etc. settings. Up to 255 preset camera positions and forth automatically, at a preset speed, between the 2 preset can be memorised.
  • Page 8 FUNCTIONS Sequential pan function The camera will move back from position No. 6 to the home position (No. 1). You can set the camera to move sequentially to the 6 preset camera positions memorised in numbers 1 to 6. • Before this function can be used, the 6 sequential pan positions (No.

  • Page 9: Basic Operation

    BASIC OPERATION Connect the camera to the power unit and to the system controller (sold separately), then use the system controller to operate the camera. This section principally gives instructions concerning the camera and the power unit. Make all the connections. Tighten the cover attaching screw to install the cover, then turn all the devices on.

  • Page 10: Alarm Operation

    BASIC OPERATION Alarm operation Power supply synchronization setting (L-L) If alarm input sources such as a door bell, an interphone, etc., are connected to the ALARM IN terminals on the power unit, Make this adjustment if the image on monitor rolls vertically. when an external alarm trigger is received at the alarm input terminals, the camera will move to its corresponding preset Select the sync signal...

  • Page 11: Installation

    INSTALLATION This camera unit is designed to be hanged from a ceiling. Other installation method may cause abnormal operation. Refer to the mounting bracket (sold separately) etc. instruction manual. Location Filming results • • Ceiling structure Ghosting The ceiling must be strong enough to support the weight of If a light source (such as a spotlight, etc.) is directed to the the camera and its accessories.

  • Page 12: Address Setting Table

    ADDRESS SETTING TABLE Camera Switch number Switch number Switch number Address Address Address (camera (camera (camera number) number) number) 0 (no use)
  • Page 13 ADDRESS SETTING TABLE Power unit Switch number Switch number Switch number Address Address Address (camera (camera (camera number) number) number) ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON...

  • Page 14: Specifications

    SPECIFICATIONS Camera functions Signal format : PAL standard (625 TV line, 25 frame/sec.) Image device : 1/3 inch solid state image device CCD Picture elements : 795 (H) x 596 (V) Effective picture elements : 752 (H) x 582 (V) Synchronizing system : Internal sync, Line lock sync switchable Resolution...
  • Page 15 SPECIFICATIONS Camera dimensions: mm ø130 ø120 19.6 (1.5) A: Three 10-mm holes for M4 tapping screws are provided. B: Four 8-mm holes for M3 tapping screws are provided. ø125 C: 17 ventilation holes with diameters of 5 mm are provided. Power unit dimensions: mm 140±0.3 188.2...
  • Page 16 SANYO Electric Co., Ltd. 1AC6P1P2289-- L53Y4/XE (1000KP-DSP) Printed in Japan...
