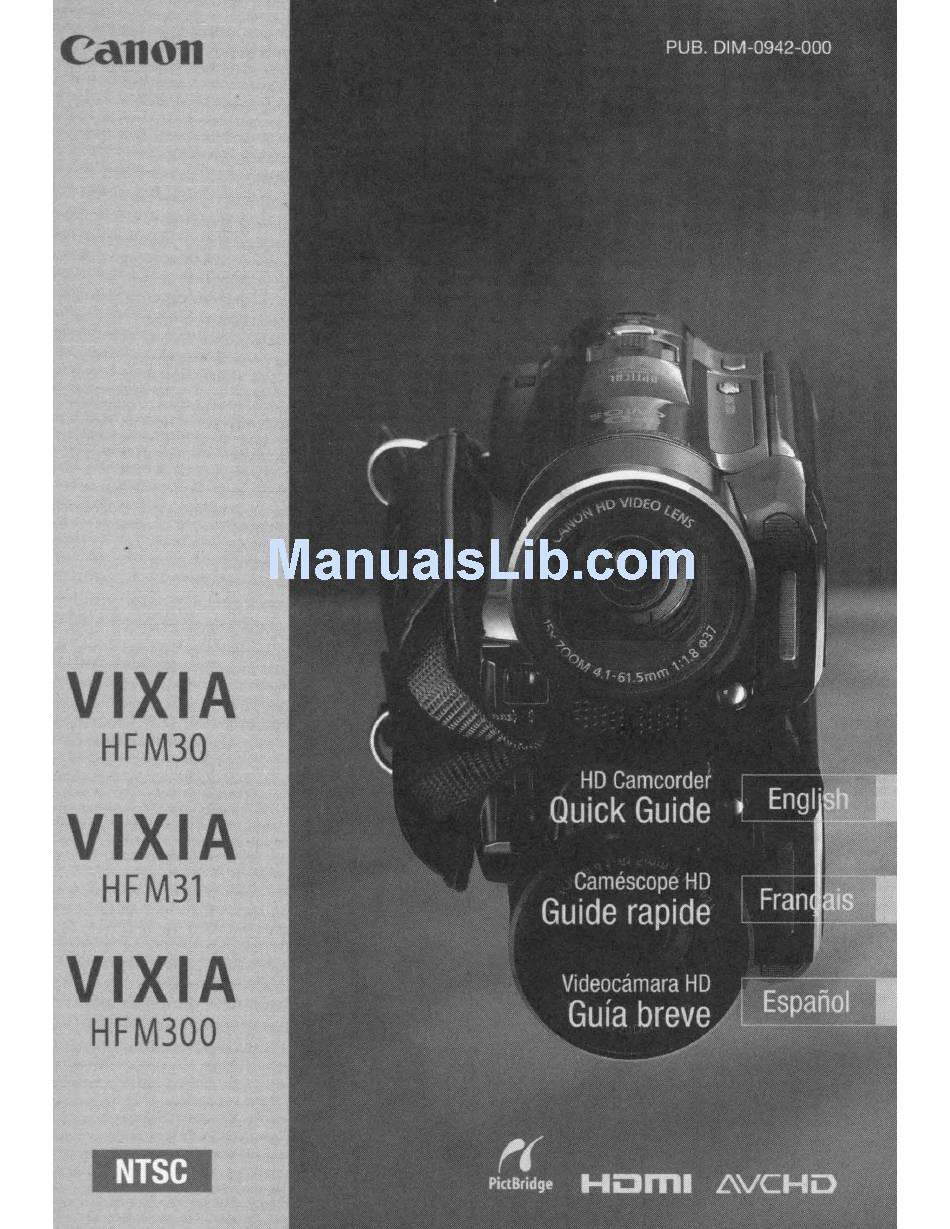

Canon VIXIA HFM30 Quick Manual

Hide thumbs Also See for VIXIA HFM30:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual, Quick Manual
Canon
VIXIA
HFM30
VIXIA
HFM31
VIXIA
HFM300
NTSC

Advertisement

Table of Contents
loading

Related Manuals for Canon VIXIA HFM30

Summary of Contents for Canon VIXIA HFM30

  • Page 56: Instruction Manual

    PUB. DIE-0339-000 HD Camcorder Instruction Manual...

  • Page 57: Important Usage Instructions

    If such changes or modifications should be made, you could be required to stop operation of the equipment. Canon U.S.A., Inc. One Canon Plaza, Lake Success, NY 11042, U.S.A. Tel No. (516)328-5600 CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
  • Page 58 The Mains plug is used as the disconnect device. The Mains plug shall remain readily operable to disconnect the plug in case of an accident. CAUTION: • Danger of explosion if the wrong type of batteries are attached. Use only the same type of batteries.

  • Page 59: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS In these safety instructions the word “product” refers to the Canon HD Camcorder VIXIA HF M30 A / VIXIA HF M31 A / VIXIA HF M300 A and all its accessories. Read these instructions. Keep these instructions.
  • Page 60 Placing or Moving — Do not place on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
  • Page 61 Replacement Parts — When replacement parts are required, be sure the service technician has used replacement parts that are specified by Canon or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
  • Page 62 Trademark Acknowledgements • The SD logo is a trademark. The SDHC logo is a trademark. • Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. • Macintosh and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries. •...

  • Page 63: Exciting Features And New Functions

    (0 39). “Full HD 1080” refers to Canon camcorders compliant with high-definition video composed of 1,080 vertical pixels (scanning lines). Video is recorded at this resolution only when the recording mode is set to MXP or FXP mode.

  • Page 64: Image Stabilization

    Smart AUTO (0 43) Smart AUTO automatically selects the best scene mode for the scene you want to shoot. You get spectacular recordings every time without worrying about settings. Just point the camcorder and it will automatically select the best settings for your subject Video Snapshot (0 68)
  • Page 65 Enjoying your Recordings on Other Devices AVCHD discs Photo DVDs Connect the camcorder to the optional DW-100 DVD Connect the camcorder Burner (0 131, 135) to an HDTV (0 124) AVCHD-compatible HDTVs and Play video directly digital recorders with an SD from your recorded memory card slot memory card...
  • Page 67 Table of contents „ Introduction Exciting Features and New Functions About this Manual Getting to Know the Camcorder Supplied Accessories and CD-ROMs Names of Parts „ Preparations Getting Started Charging the Battery Pack Preparing the Accessories Adjusting the Position and Brightness of the LCD Screen Basic Operation of the Camcorder Using the Touch Screen Operating Modes...
  • Page 68 „ Dual Shot Mode Basic Recording Shooting Video and Taking Photos in Dual Shot Mode About the Smart AUTO mode Zooming Quick Start Function „ Video Basic Playback Playing Back the Video The Index Selection Screen: Selecting the Content to Play Back 3D Flip View Narrowing Down the Scenes Shown in the Index Screen...
  • Page 69 Using the Mini Advanced Shoe Using an External Microphone Using a Zoom Remote Controller Selecting the Playback Starting Point Playing Back Scenes Set to Background Music Onscreen Displays and Data Code Playlist and Scene Operations Editing the Playlist: Adding, Deleting, Moving and Playing Back Capturing Photos and Video Snapshot Scenes from a Movie...
  • Page 70 „ External Connections 121 Terminals on the Camcorder Connection Diagrams 124 Playback on a TV Screen 126 Saving and Sharing Your Recordings e Copying Recordings to a Memory Card Saving Recordings on a Computer Saving Movies onto High-Definition Discs (AVCHD/Blu-ray Discs) e Saving Movies onto Standard-Definition Discs (DVD) Saving Photos on Photo DVDs...

  • Page 71: About This Manual

    About this Manual Thank you for purchasing the Canon VIXIA HF M31 / VIXIA HF M30 / VIXIA HF M300. Please read this manual carefully before you use the camcorder and retain it for future reference. Should your camcorder fail to operate correctly, refer to Troubleshooting (0 168).
  • Page 72 indicates that a function is available in the Brackets [ ]are used to refer to control operating mode indicated and indicates buttons and menu options you will that the function is not available. For a detailed touch on the screen and to other explanation refer to Operating Modes (0 31).

  • Page 73: Supplied Accessories And Cd-Roms

    Supplied Accessories and CD-ROMs The following accessories are supplied with the camcorder: XCA-570 Compact Power Adapter (incl. power cord) BP-808 Battery PackW XWL-D89 Wireless Controller (incl. CR2025 lithium button battery) STV-250N Stereo Video CableW Yellow • Red • White plugs XCTC-100/S Component Cable Red •...
  • Page 74 The following CD-ROMs and software are supplied with the camcorder: • PIXELA Application - Disc 1 CD-ROM* and ‘PIXELA Applications’ Installation Guide - ImageMixer 3 SE Transfer Utilities – Software for saving and transferring movies and music files you can use as background music. •...

  • Page 75: Names Of Parts

    Names of Parts Left side view 1 DISP. (onscreen display) button (0 93)/ BATT. INFO button (0 167) 2 2 (camera/play) button (0 31) 3 Speaker (0 51) 4 Memory card slot cover 5 Memory card slot (0 38) 6 MIC terminal (0 85) 7 AV OUT terminal (0 121, 123)/ X (headphones) terminal (0 82) 8 BATTERY RELEASE switch (0 24)
  • Page 76 Top view A l Mini advanced shoe (0 83) S q Mode switch (0 31) S a PHOTO button (0 42, 104) S s Zoom lever (0 46) S d VIDEO SNAP (video snapshot) button (0 68) S f POWER button S g ON/OFF (CHG) (charge) indicator: Green –...
  • Page 77 Bottom view D s Serial number D d Tripod socket (0 187) Wireless Controller WL-D89 1 START/STOP button (0 42, 58) 2 b (index selection) button (0 52) Press and hold for more than 2 seconds to switch between shooting and playback mode.

  • Page 78: Getting Started

    Preparations This chapter describes basic operations, such as using the touch panel, navigating the menus, and first time settings to help you learn more about your camcorder. Getting Started Charging the Battery Pack The camcorder can be powered with a battery pack or directly using the compact power adapter.
  • Page 79 5 Charging will start when the ON/OFF (CHG) (charge) indicator camcorder is turned off. • If the camcorder was on, the green ON/OFF (CHG) indicator will go out when you turn off the camcorder. After a moment, the ON/OFF (CHG) indicator will start flashing in red (battery pack charging).
  • Page 80 • To prevent equipment breakdowns and excessive heating, do not con- nect the supplied compact power adapter to voltage converters for overseas travels or special power sources such as those on aircraft and ships, DC-AC inverters, etc. NOTES • The battery pack will be charged only when the camcorder is off. •...

  • Page 81: Preparing The Accessories

    Preparing the Accessories Wireless Controller First, insert the supplied CR2025 lithium button battery into the wire- less controller. 1 Press the tab in the direction of the arrow and pull out the battery holder. 2 Place the lithium button battery with the + side facing up.
  • Page 82 Grip Belt and Straps Fasten the grip belt. Adjust the grip belt so that you can reach the zoom lever with your index finger, and the g button with your thumb. To remove the grip belt 1 Lift the padded handgrip's flap and detach the strap from the Velcro pad.

  • Page 83: Adjusting The Position And Brightness Of The Lcd Screen

    To attach an optional wrist strap Pass the attaching end of the wrist strap through the rear bracket on the camcorder, thread the wrist strap through the loop and fasten. You can also attach the wrist strap to the strap mount on the grip belt to use both for extra convenience and protection.
  • Page 84 180° 180° 90° Subject can monitor the LCD screen NOTES • About the LCD screen: The screen is produced using extremely high-pre- cision manufacturing techniques, with more than 99.99% of the pixels operating to specification. Less than 0.01% of the pixels may occasion- ally misfire or appear as black, red, blue or green dots.

  • Page 85: Basic Operation Of The Camcorder

    Basic Operation of the Camcorder Using the Touch Screen The control buttons and menu items that appear on the touch screen change dynamically depending on the operating mode and the task you are performing. With the intuitive touch screen interface you have all the controls at your fingertips.

  • Page 86: Operating Modes

    • For details about how to take care of the touch screen, refer to Handling Precautions (0 186), Cleaning (0 191). Operating Modes Recording When recording video or photos, the camcorder’s operating mode is determined by the position of the mode switch and the onscreen con- trol buttons.

  • Page 87: Using The Menus

    Initial mode Operating mode Operation Press S in Playing back movies mode. ([Original] index screen) (0 49). Viewing photos Press S in mode. ([Photos] index screen) (0 100). NOTES • e When switching to a playback mode, the memory selected for playback will be the same currently used for recording.
  • Page 88 mode, touch [Edit] to display a similar panel contain- ing the various operations that are available after selecting one or more scenes or photos (for example, deleting, adding scenes to the playlist, protecting photos, etc.). Touch the control button of the desired opera- tion.
  • Page 89 NOTES • A small font size is used in menu screens so you can see the options currently selected. You can enlarge the font size by setting 6 [Font Size] to [A Large] but only the icons of the currently selected options will appear on the screen.

  • Page 90: First Time Settings

    First Time Settings Setting the Date and Time You will need to set the date and time of the camcorder before you can start using it. The [Date/Time] screen will appear automatically when the cam- corder’s clock is not set. When the [Date/Time] screen appears, the year will be selected.

  • Page 91: Changing The Language

    Changing the Language The default language of the camcorder is English. You can set it to one of 22 other languages. Operating modes: [Language a] [FUNC.]* [MENU] Desired language * Only when performing the procedure in a recording mode. NOTES •...

  • Page 92: Using A Memory Card

    Using a Memory Card Memory Cards Compatible for Use with the Camcorder You can use commercially available SDHC (SD high capacity) memory cards and SD memory cards with this camcorder. How- ever, depending on the memory card, you may not be able to record movies.

  • Page 93: Inserting And Removing A Memory Card

    Inserting and Removing a Memory Card Make sure to initialize (0 40) all memory cards before using them with this camcorder. 1 Turn off the camcorder. Make sure the indicator ON/OFF (CHG) is off. 2 Open the memory card slot cover. 3 Insert the memory card straight, with the label facing up, all the way into the memory card slot until it...

  • Page 94: 39 E Relay Recording Of Movies

    POINTS TO CHECK • Be sure you understand the information provided in Eye-Fi Cards (0 37) before using an Eye-Fi card. [FUNC.] [MENU] [Rec Media for Movies] or [Rec Media for Photos] [f] (built-in memory)or [g] (memory card)* * When selecting the memory, you can check the approximate available recording time/number of photos, based on currently used settings.

  • Page 95: Initializing The Built-In Memory (E Only) Or Memory Card

    NOTES • Any of the following actions will deactivate the relay recording function: - Turning off the camcorder. - Opening the memory card slot cover. - Changing the position of the mode switch. - Changing the camcorder's operating mode. - Selecting the memory card as the memory for recording movies. Initializing the Built-in Memory (e only) or Memory Card Initialize memory cards when you use them with this camcorder for the first time.
  • Page 96 * Touch this option if you want to physically erase all the data rather than just clear the file allocation table of the memory. ** If you selected the [Complete Initialization] option, you can touch [Cancel] [OK] to cancel the initialization while it is in progress. All recordings will be erased and the memory can be used without any problem.

  • Page 97: Basic Recording

    Dual Shot Mode This chapter covers how to easily record video and photos in the all-automatic Dual Shot mode, and how to use basic shoot- ing functions like zoom and Quick Start. To enjoy full access to menus and more advanced functions, refer to the relevant chapters for video (0 58) and photos (0 104).

  • Page 98: About The Smart Auto Mode

    When you have finished recording 1 Make sure that the ACCESS indicator is off. 2 Turn off the camcorder. 3 Close the LCD panel. About Dual Shot • Only the following functions are available in mode. - Zoom (0 46). - Quick Start (0 47).
  • Page 99 Smart AUTO icons Background o Bright Blue skies Vivid colors Sunsets (color of the icon) (grey) (light blue) (green/red) (orange) Subject p People (stationary) — People (moving) — Subjects other than people, such as landscapes Close objects — The icon in parentheses appears under backlight conditions. Background o Dark (dark blue)
  • Page 100 • Be sure to save your recordings regularly (0 126), especially after making important recordings. Canon shall not be liable for any loss or corruption of data. • When recording photos on an Eye-Fi card, photos will be uploaded automatically if you are within the range of a configured network. Always verify that Eye-Fi cards have been approved in the country/region of use.

  • Page 101: Zooming

    Zooming Operating modes: There are three ways you can zoom in and out: using the zoom lever on the camcorder, using the zoom buttons on the wireless controller or using the zoom controls on the touch screen. In addition to the 15x optical zoom*, in mode, you can turn on the 300x digital zoom with the 7 [Digital Zoom] setting.

  • Page 102: Quick Start Function

    2 Touch the zoom controls to operate the zoom. Touch anywhere within the Q area to zoom out or anywhere within the P area to zoom in. Touch closer to the center for a slow zoom ([Speed 1]); touch closer to the e/d icons for faster zooms ([Speed 3]).
  • Page 103 2 When you wish to resume recording, open the LCD panel. The ON/OFF (CHG) indicator turns back green and the camcorder is ready to record. IMPORTANT • Do not disconnect the power source during standby mode (while the ON/OFF (CHG) indicator is lit in orange). NOTES •...

  • Page 104: Basic Playback

    Video This chapter covers functions related to movies, including play- back, advanced shooting, advanced functions and playlist and scene operations. For details about basic video shooting, refer to Dual Shot Mode (0 42). Basic Playback Playing Back the Video Operating modes: 1 Press S.
  • Page 105 A Memory being read B Index screen currently displayed C Drag your finger left for the next index page* D Drag your finger right for the previous index page* E Select a different index screen to read different content or from a different memory (e only) (0 52) F Scene's timeline (0 87) and recording information G Narrow down the scenes shown in the index screen...
  • Page 106 A Stop the playback. B Jump to the beginning of the scene. Double-tap to jump to the previous scene. C Pause the playback. D Drag your finger left and right along the volume bar to adjust the volume. E Touch anywhere else to hide the playback controls. F Fast playback backward*.

  • Page 107: The Index Selection Screen: Selecting The Content To Play Back

    IMPORTANT • Observe the following precautions while the ACCESS indicator is on or flashing. Failing to do so may result in permanent data loss. - Do not open the memory card slot cover. - Do not disconnect the power source or turn off the camcorder. - Do not change the camcorder’s operating mode.
  • Page 108 A e Touch the tab of the desired memory: built-in memory or memory card. B Touch a control button to select the content you want to play back. Options [Original] Original movies as you recorded them. [Playlist] Scenes that were added to the playlist (0 94) and may have been rearranged to your liking.

  • Page 109: 3D Flip View

    3D Flip View 3D Flip View is a fun way to display your video recordings (original scenes) in a 3D layout, organized by recording date. In any index screen, touch [b] [3D Flip View]. During single photo view, touch the screen once to display the controls then touch [Q] to open the [Photos] index screen.

  • Page 110: Narrowing Down The Scenes Shown In The Index Screen

    Narrowing Down the Scenes Shown in the Index Screen From the [Original] index screen, you can narrow down the scenes shown, leaving only scenes that were recorded on a specific date or only those scenes in which people's faces were detected. Operating modes: Showing Only Scenes that Contain People’s Faces This will narrow down the scenes shown in the [Original] index screen,...

  • Page 111: Deleting Scenes

    2 Open the calendar screen. [y All Scenes] [Scenes by Date] • Dates that contain scenes (that is, movies were recorded on that date) appear in black against a silver background. Dates without recordings appear grayed out. • Touch [y] or [A] to jump to the previous/next calendar month that contains recordings.
  • Page 112 3 Touch on the individual scenes you want to delete. • A checkmark O will appear on scenes selected. Touch a selected scene again to remove the checkmark. • To select all the scenes at once: Touch [Select All] instead of touching individual scenes.

  • Page 113: Advanced Functions

    - Do not disconnect the power source or turn off the camcorder. - Do not change the camcorder’s operating mode. • Be sure to save your recordings regularly (0 126), especially after making important recordings. Canon shall not be liable for any loss or corruption of data. Š...

  • Page 114: Selecting The Video Quality (Recording Mode)

    NOTES • The zoom, Quick Start function, power saving modes, etc. operate the same way in mode as in mode. For details, refer to Dual Shot Mode (0 42). Selecting the Video Quality (Recording Mode) The camcorder offers 5 recording modes. Changing the recording mode will change the recording time available on the memory.

  • Page 115: Special Scene Recording Programs

     Approximate recording times Default value Recording mode o  Memory p 4 GB 20 min. 30 min. 40 min. 1 hr. 1 hr. 10 min. 30 min. Memory card 8 GB Memory card/ 40 min. 1 hr. 1 hr. 2 hr.
  • Page 116 Sports] To record sports scenes such as tennis or golf. Night Scene] To record nightscapes with lower noise. Snow] To record in bright ski resorts without the subject being underexposed. Beach] To record on a sunny beach without the subject being underexposed. Sunset] To record sunsets in vibrant colors.
  • Page 117 Underwater] To record underwater scenes in natural colors. Surface] To record after getting out of the water, such as on a boat after diving. NOTES • [F Portrait]/[G Sports]/[I Snow]/[J Beach]: The picture may not appear smooth during playback. • [F Portrait]: The blur effect of the background increases the more you zoom in (P).

  • Page 118: Cinema Mode: Giving A Cinematic Look To Your Recordings

    - p will appear on the screen when the camcorder's temperature becomes too high. If this happens, turn off the camcorder, take it out of the waterproof case and keep it in a cool place until the temperature goes down. If the camcorder becomes too hot, it will turn off automatically.

  • Page 119: Advanced Image Stabilization

    Operating modes: To change the frame rate [FUNC.] [MENU] [Frame Rate] [E PF24] Advanced Image Stabilization The image stabilizer reduces camcorder blur (blur due to the cam- corder moving) so you can get nice, stable shots. Select the image sta- bilization mode according to the shooting conditions.

  • Page 120: Pre-Recording

    Powered IS When shooting video, you can use Powered IS to make the image stabilization even more powerful. Powered IS is most effective when you are stationary and zooming in on far subjects using high zoom ratios (the more you approach the telephoto end). Holding the LCD panel with your left hand will add to the stability of the shot.
  • Page 121 1 Activate the pre-recording function. [FUNC.] [d Pre REC] [A On] • d appears. • Repeat, selecting [B Off], to turn off pre-recording. 2 Press g. The scene recorded in the memory will start 3 seconds before g was pressed. NOTES •...

  • Page 122: Face Detection

    POINTS TO CHECK • Select a recording program other than [q Night Scene], [p Low Light], [M Fireworks] or [r Underwater]. By default, face detection is activated. If the function was turned off, per- form the following procedure to turn it on. [FUNC.] [MENU] [A On o]...

  • Page 123: Touch & Track

    Touch & Track When recording people, face detection (0 66) will track the main sub- ject and keep it always in focus. But also when recording other moving subjects such as your pet, a moving vehicle or people not facing the camera directly, you can use Touch &...

  • Page 124: Digital Effects

    1 Press z. • A blue border appears on the screen. • Press z again to return to normal video recording mode. 2 Press • By default, the camcorder records for about 4 seconds (the blue frame serves as a visual progress bar) and then automatically returns to record pause mode.

  • Page 125: Manually Setting The Shutter Speed Or Aperture

    To fade in/out Press g in record pause mode (M) to start recording with a fade in. Press g while recording ( ) to fade out and pause the recording.  Options Default value)  Off] Select this setting when you do not intend to use the dig- ital effects.
  • Page 126 [FUNC.] [Rec. Programs] [B Shutter-Pri. AE] or [C Aperture-Pri. AE] Drag your finger left and right along the dial to set the desired shutter speed (B) or aperture value (C)  Options Default value)  [A Programmed AE] The camcorder automatically adjusts the aperture and shutter speed to obtain the optimal exposure for the subject.
  • Page 127 Shutter Speed and Aperture Value Guidelines XWith slower shutter speed you can add a nice motion blur and sense of movement. With faster shutter speeds you can “freeze the action” for powerful images of moving subjects.W mode A mode 1/15 1/30 1/60 1/100...

  • Page 128: Manual Exposure Adjustment

    Manual Exposure Adjustment At times, backlit subjects may appear too dark (underexposed) or sub- jects under very strong lights may appear too bright or glaring (overex- posed). To correct this, you can adjust the exposure manually or use the Touch AE function to automatically set the optimal exposure for the subject you select.

  • Page 129: Automatic Gain Control (Agc) Limit

    NOTES • If the recording program is changed during exposure lock, the cam- corder will return to automatic exposure. • When shooting subjects with a strong light source behind them, the camcorder automatically corrects for the backlight. You can turn off the automatic backlight correction with the 7/8 [Auto Backlight Correction] setting.
  • Page 130 POINTS TO CHECK • Adjust the zoom before you start the procedure. 1 Open the manual focus screen. [FUNC.] [X Focus] 2 Touch a subject that appears inside the X frame. • The Touch AF mark (P) will flash and the focusing distance will be adjusted automatically.

  • Page 131: White Balance

    White Balance The white balance function helps you to accurately reproduce colors under different lighting conditions so that white objects will always look truly white in your recordings. Operating modes: POINTS TO CHECK • Select a recording program other than the Special Scene recording pro- grams.

  • Page 132: Image Effects

    NOTES • When you select the custom white balance: - Set 7 [Digital Zoom] to [B Off]. - Reset the white balance when you change locations or the lighting or other conditions change. - Depending on the light source, g may keep flashing. The result will still be better than with [Y Automatic].

  • Page 133: Mini Video Light

     Options Default value)  [U Off] Records with no image enhancing effects. [V Vivid] Emphasizes the contrast and color saturation. [W Neutral] Tones down the contrast and color saturation. [X Low Sharpening] Records subjects with softened outlines. [Y Soft Skin Detail] Softens the details in the skin tone area for a more complimentary appearance.

  • Page 134: Self Timer

    NOTES • We recommend not using the mini video light while the optional Wide- converter or Tele-converter is attached; its shadow can appear on the screen. Using an External Video Light You can use the optional VL-5 Video Light or VFL-2 Video Flash Light when you need a video light that is stronger than the built-in mini video light.

  • Page 135: Audio Recording Level

    mode: Press j, first halfway to activate the autofocus and then fully. The camcorder will record the photo after a 10-second countdown*. The countdown appears on the screen. * 2 seconds when using the wireless controller. NOTES • Once the countdown has begun, any of the following actions will cancel the self timer.
  • Page 136 Manual audio level adjustment Audio level indicator Current audio level Audio level adjustment bar 2 Touch and hold [y] or [A] to adjust the audio recording level as necessary. As a guideline, adjust the audio recording level so that the audio level meter will go to the right of the -12 dB mark (yellow area) only occasionally.

  • Page 137: Using Headphones

    Using Headphones Use headphones for playback or to check the audio level while record- ing. The headphones are connected to the AV OUT/X terminal, which is used for both the headphones and the audio/video output. Before connecting the headphones, follow the procedure below to change the function of the terminal from AV output to X (headphones) output.

  • Page 138: Using The Mini Advanced Shoe

    IMPORTANT • When using headphones, make sure to lower the volume to an appro- priate level. • Do not connect the headphones to the AV OUT/X terminal if the J icon does not appear on the screen. The noise output in such case may be harmful to your hearing.

  • Page 139: Using An External Microphone

    NOTES • Accessories designed for the Advanced Accessory Shoe cannot be used with this camcorder. Look for video accessories bearing this logo to ensure compatibility with the mini advanced shoe. Using an External Microphone When recording in very quiet surroundings, the built-in microphone may pick up the sound of the camcorder's internal machinery.

  • Page 140: Using A Zoom Remote Controller

    Using other microphones You can also use commercially avail- able microphones. Connect the exter- nal microphone to the MIC terminal. Use commercially available condenser microphones with their own power supply. You can connect almost any stereo microphone with a ‡ 3.5 mm plug but audio recording levels may vary.
  • Page 141 Attach the optional RA-V1 Remote Control Adapter to the mini advanced shoe. Refer to Using the Mini Advanced Shoe (0 83). appears. For details about using the adapter, refer to the instruction manual of the RA-V1. For details about using the zoom remote controller, refer to the instruction manual of the ZR-2000 or ZR-1000.

  • Page 142: Selecting The Playback Starting Point

    Selecting the Playback Starting Point If you have a very long scene, you may want to start playing back the scene from a certain point. You can use the movie timeline to break the scene to segments at fixed time intervals ranging from 6 seconds to 6 minutes.
  • Page 143 A Touch twice to return to the index screen. B Previous/next scene. C Drag your finger left along the ruler to display the next 5 frames. D Current scene / Total number of scenes. E Scene's recording mode and length. F Recording date and time.

  • Page 144: Playing Back Scenes Set To Background Music

    Playing Back Scenes Set to Background Music You can play back video snapshot scenes, scenes in the playlist and photo slideshows set to background music (instead of the original sound). You can use one of the supplied music tracks or connect an external audio player to use your favorite songs as background music.
  • Page 145 A Select the desired music track. B Play back the original sound (no background music). C Delete the music track selected. D Listen to the music track selected. Touch again (B) to stop the playback. 3 Back in the index screen, touch a scene to start the playback set to the selected music track.
  • Page 146 2 Activate the external audio input. y / z [MENU] [External Audio Input] [A On 3 Connect the external player to the camcorder's MIC terminal. 4 Adjust the audio input as necessary. • Start the music playback on the external player and adjust its volume according to the onscreen indications.
  • Page 147 NOTES • You can also add to the playlist just the video snapshot scenes you want to watch and arrange their playback order. • Initializing a memory card will permanently erase any music files you may have transferred to the card. (e The music files that come pre-installed in the built-in memory will be restored after it is initialized.) - Windows useres: Use the supplied software ImageMixer 3 SE to transfer music files from the supplied Camcorder Supplemental Disc...

  • Page 148: Onscreen Displays And Data Code

    Onscreen Displays and Data Code You can turn most onscreen displays on or off. Operating modes: Repeatedly press h to turn the onscreen displays on/off in the following sequence: mode: • All displays on • Most displays off mode mode •...

  • Page 149: Playlist And Scene Operations

    Playlist and Scene Operations Editing the Playlist: Adding, Deleting, Moving and Playing Back Create a playlist to play back only the scenes you prefer and in the order of your choice. You can play back the scenes in the playlist using your favorite song as background music (0 89).
  • Page 150 • e You can copy scenes from the built-in memory to the mem- ory card (0 126) to include in the memory card’s playlist also scenes that were originally recorded in the built-in memory. Deleting Scenes from the Playlist Deleting scenes from the playlist will not affect your original recordings. 1 Open the [Playlist] index screen.

  • Page 151: Capturing Photos And Video Snapshot Scenes From A Movie

    A Destination icon. B Move the scene to the position indicated by the destina- tion icon. C Touch an empty box to select it as the destination. D Scene selected to be moved. E Original position of the scene and currently selected des- tination.
  • Page 152 NOTES • A video snapshot scene can be captured only during playback; it can- not be captured during playback pause mode. • e The captured video snapshot scene is saved to the same memory that contains the source scene. • Video snapshot scenes cannot be captured from any of the following types of scenes.

  • Page 153: Dividing Scenes

    To capture the photos 1 Play back the scene from which you want to capture the photo. 2 Pause the playback at the point you want to capture. 3 Press j fully. To capture a photo sequence, hold j pressed down. The scene will be played back by frames and each frame captured as a separate photo.
  • Page 154 2 Select the scene you want to divide and touch it to start playing it back. 3 Pause the playback at the point where you want to divide the scene. 4 Open the scene division screen. [Edit] [Divide] 5 Bring the scene to a precise point, if necessary. •...

  • Page 155: Basic Playback

    Photos Refer to this chapter for details on taking photos (advanced shooting functions), viewing photos and printing them. For details about basic photo shooting, refer to Dual Shot Mode (0 42). Basic Playback Viewing Photos Operating modes: 1 Press S. 2 Open the [Photos] index screen, if it is not displayed.
  • Page 156 A Memory being read. B Index screen currently displayed. C Drag your finger left for the next index page. D Drag your finger right for the previous index page. E Select a different index screen to read different content or from a different memory (e only) (0 52).

  • Page 157: Deleting Photos

    IMPORTANT • Observe the following precautions while the ACCESS indicator is on or flashing. Failing to do so may result in permanent data loss. - Do not open the memory card slot cover. - Do not disconnect the power source or turn off the camcorder. - Do not change the camcorder’s operating mode.
  • Page 158 3 Touch on the individual photos you want to delete. • A checkmark O will appear on photos selected. Touch a selected photo again to remove the checkmark. • To select all the photos at once: Touch [Select All] instead of touching individual photos.

  • Page 159: Additional Functions

    Additional Functions Taking Photos in y Manual Mode Operating modes: 1 Set the mode switch to y. 2 Turn on the camcorder. • e By default, photos are recorded in the built-in memory. You can select the memory that will be used to record photos (0 38).

  • Page 160: Selecting Photo Size And Quality

    NOTES • If the subject is not suitable for autofocus, h turns yellow. Adjust the focus manually (0 74). • When the subject is too bright, [Overexp.] will flash on the screen. In such case, use the optional FS-H37U ND filter. Deleting a Photo Right After Recording It You can delete a photo you have just recorded while reviewing it within the time set for the 8...
  • Page 161 Options Large capacity memory cards, like those usually used for video record- ing, can contain a very large number of photos. As a reference, the number of photos that can be recorded on a 1 GB memory card is given in the following table. NOTES •...

  • Page 162: Flash

    Approximate number of photos available on a 1 GB memory card  Default value Memory card Photo quality  Photo size p E [Super Fine] G [Normal] [Fine]  L 2100x1575 1,265 K 2304x1296 1,390 M 1600x1200 1,075 2,115 H 1920x1080 1,000 1,970 N 640x480...
  • Page 163 2 Press , first halfway to activate the autofocus and then fully to record the photo. Depending on the setting selected and shooting conditions, the flash will fire.  Options Default value)  [U Automatic] The flash fires automatically according to the brightness of the subject.

  • Page 164: Drive Mode: Continuous Shooting And Exposure Bracketing

    • About the AF-Assist Lamp: While you press j halfway, if the sur- roundings of the subject are too dark, the mini video light may light up briefly in order to enable the camcorder to focus more accurately (AF- assist lamp). - You can also set 8 [AF-Assist Lamp] to [B Off] so the assist lamp is not activated.

  • Page 165: Taking Photos While Recording Movies (Simultaneous Recording)

     Options Default value)  [A Single] Records a single photo. [D AE Bracketing] The camcorder records 3 photos using 3 dif- ferent exposures (dark, normal, light in 1/2 EV steps), allowing you to choose the photo you like the best. [B Continuous], [C Hi-Speed Cont.] Captures a series of up to 60 photos as long as you hold j pressed down.
  • Page 166 [FUNC.] [MENU] [Simultaneous Recording] Desired photo quality* (top row)** Desired photo size* (bottom row) * The number displayed on the right corner indicates the approximate number of photos that can be recorded with the current quality/size setting. ** Touch [X] if you do not intend to use simultaneous recording. Operating modes: While recording, or in record pause mode, press j to capture the photo.

  • Page 167: Light Metering Mode

    Light Metering Mode The camcorder measures the light reflected from the subject in order to calculate the optimal exposure settings. Depending on the subject, you may want to change the way the light is measured and evaluated. Operating modes: POINTS TO CHECK •...

  • Page 168: Magnifying Photos During Playback

    Slideshow set to a music track 3 Touch the screen to display the playback controls, then touch [A] to play back the slideshow set to the selected music track. Slideshow not linked to the external audio 3 Touch the screen to display the playback controls, then touch [A] to start the slideshow.

  • Page 169: Rotating Photos

    2 Drag your finger across the photo to display the area you want to see enlarged. To cancel the magnification, move the zoom lever toward Q until the frame disappears. Rotating Photos You can rotate photos 90 degrees to change their orientation. Operating modes: 1 In single photo view, select the photo you want to rotate.

  • Page 170: Protecting Photos

    The histogram and Exif information panel are displayed as well. Press h to hide the histogram and Exif information panel. The area to the right of the histogram represents highlights and the left side represents shadows. A photo whose histogram skews to the right is relatively bright;...
  • Page 171 [Edit] [Protect] [Protect]* [OK] * Touch [Remove Protection] to remove the protection from the selected photos. IMPORTANT • Initializing the memory will permanently erase all recordings, including protected photos. You can also use the following functions... The following functions and features of the camcorder can be used either for shooting video or for taking photos.

  • Page 172: Printing Photos

    You can mark in advance the photos you want to print and set the desired number of copies as a print order (0 119). Canon printers: SELPHY printers of the CP, DS and ES series and PIXMA printers carry- ing the PictBridge logo.
  • Page 173 • Refer also to the printer’s instruction manual. • If you have no intention to use the optional DW-100 DVD Burner, you can set 8 [USB Connection Type] to [N Computer/Printer] so the device type selection screen does not appear every time you con- nect the camcorder to a printer.

  • Page 174: Print Orders

    If that option is not available, touch [Stop] and then restart printing from the beginning. • Other printers or if the error still persists with a Canon printer: If printing does not resume automatically, disconnect the USB cable and turn off the camcorder.
  • Page 175 • To cancel the print order, set the number of copies to 0. 4 Drag your finger left/right to select another photo to mark with a print order or touch [a]. Setting Print Orders from the Index Screen 1 Open the [Photos] index screen. Check that you have selected the g tab (memory card).

  • Page 176: Terminals On The Camcorder

    External Connections This chapter explains how to connect your camcorder to an external device such as a TV, VCR, or computer. Terminals on the Camcorder COMPONENT OUT Terminal* Access: Open the rear terminal cover. The component video terminal is for video only. When you use connection B do not forget the audio connections using the AV OUT/X terminal.

  • Page 177: Connection Diagrams

    Connection Diagrams In the following connection diagrams, the left side shows the terminals on the camcorder and the right side shows (for reference only) an example of terminals on a connected device. Connection A HDMI Type: Digital Quality: High definition Output only Connect to a high-definition TV (HDTV) with an HDMI input terminal.
  • Page 178 Connection B Component Video Type: Analog Quality: High Definition Output only Connect to a high-definition TV (HDTV) with component video input terminals. Change the following settings on the camcorder: [AV/Headphones] to [H AV] Blue CTC-100/S Component Cable Green (supplied) White STV-250N Stereo Video Cable (supplied) Connection C...

  • Page 179: Playback On A Tv Screen

    Connection D Type: Digital data connection Connect to a computer to save your recordings, to the optional DW-100 DVD Burner to create DVD discs from them, or to a printer to print out photos. USB Cable (supplied) NOTES • To be able to write back scenes and to transfer music files from the computer to the camcorder, power the camcorder using the compact power adapter and only then connect it to the computer using the sup- plied USB cable.
  • Page 180 NOTES • To correctly play back movies recorded with x.v.Color (0 156) on an HDTV compatible with this standard, additional settings may be required on the connected HDTV. Refer to the TV’s instruction manual. • We recommend powering the camcorder using the compact power adapter.

  • Page 181: Saving And Sharing Your Recordings

    Saving and Sharing Your Recordings e Copying Recordings to a Memory Card You can copy your recordings only one-way: from the built-in memory to the memory card. Scenes and photos will be copied from the index screen you selected to the corresponding index screen on the memory card.
  • Page 182 Copying a Single Photo Operating modes: 1 In single photo view, select the photo you want to copy. Check that you are viewing photos recorded in the built-in memory. (f appears next to the photo number.) 2 Touch the screen to display the playback controls. 3 Copy the photo.

  • Page 183: Saving Recordings On A Computer

    IMPORTANT • Observe the following precautions while the ACCESS indicator is on or flashing. Failing to do so may result in permanent data loss. - Do not open the memory card slot cover. - Do not disconnect the power source or turn off the camcorder. - Do not change the camcorder’s operating mode.
  • Page 184 Using the software See ‘ImageMixer 3 SE Software Guide’ (PDF file on the Transfer Utili- ties CD-ROM). Saving Photos With the supplied software Photo Applications you can save photos to your computer, and easily organize and edit them. Installation Install the software before you connect the camcorder to the computer for the first time.
  • Page 185 IMPORTANT • When the camcorder is connected to a computer: - Do not open the memory card slot cover and do not remove the memory card. - Do not access, change or delete any of the camcorder’s folders or files directly from the computer as this may result in permanent data loss.

  • Page 186: Saving Movies Onto High-Definition Discs

    • If you connect the camcorder to the computer while it is set to mode, the process of creating scene thumbnails will start automatically. If your intention was to save photos to the computer, you can touch [Skip] to stop the process and use the computer’s Safely Remove Hard- ware function (Windows) or Eject function (Mac OS) to end the connec- tion to the camcorder.
  • Page 187 3 For original recordings only: Choose whether to add to the disc all the scenes or only scenes that have not been previously added to a disc. When you create the disc from the [Playlist] index screen (including the playlist of video snapshot scenes), the disc will contain the entire playlist.
  • Page 188 • When the last disc is finalized, [Task completed] will be displayed. Take out the disc and close the disc tray. When the data requires multiple discs After a disc is finalized, it will be ejected automatically and a message will appear.
  • Page 189 Playing back AVCHD discs created with the DW-100 DVD Burner DVD players not AVCHD-compatible compatible DVD players, Blu-ray DW-100 with AVCHD* Disc players AVCHD disc created with the DW-100 (no MXP scenes) * Do not insert a disc into an incompatible device, as you may not be able to eject the disc.
  • Page 190 6 Select the scene you want to play back and touch it to start playing it back. IMPORTANT • While the camcorder is connected to the DVD Burner, do not open the memory card slot cover and do not remove the memory card. NOTES •...
  • Page 191 Operating modes: Converting Scenes into Standard Definition 1 Power the camcorder using the compact power adapter. 2 Make sure there is a memory card in the camcorder with sufficient available space. 3 Open the [Original], [Playlist] or [Video Snapshot] o [Original]/ [Playlist] index screen.
  • Page 192 To select the bit rate Using a higher bit rate will result in better video quality for the con- verted scenes. [Bit Rate (Quality)] Desired option NOTES • When converting scenes in the [Playlist] or [Video Snapshot] o [Original]/ [Playlist] index screen: - The scenes are converted with the selected background music 89) instead of the original sound.
  • Page 193 4 Click [Disc writing] and continue the operation on the computer following the software's indications. See also ‘ImageMixer 3 SE Software Guide’ (PDF file on the Transfer Utilities CD-ROM). IMPORTANT • While the camcorder is connected to the computer, do not open the memory card slot cover and do not remove the memory card.

  • Page 194: Saving Photos On Photo Dvds

    To play back standard-definition DVDs Standard-definition DVDs are created using DVD-Video specifications. Play back these DVDs using standard DVD players. NOTES • When the camcorder contains a large number of scenes to be saved on discs, it may take a long time for the connection to the DVD Burner (0 132, step 2) to be completed.

  • Page 195: Copying Recordings To An External Video Recorder

    To play back Photo DVDs Photo DVDs are created using DVD-Video specifications. Play back these DVDs using standard DVD players. If you computer has a DVD drive, you can play back the slideshow as a DVD and you can also access individual photos as JPG files.

  • Page 196: E Uploading Movies To Video Sharing Web Sites

    2 Turn on the camcorder and set it to mode. Verify that 6 [AV/Headphones] is set to [H AV]. 3 Camcorder: Locate the scene you wish to copy and pause the playback shortly just before the desired scene. 4 Camcorder: Resume playback. By default, onscreen displays will be embedded in the output video signal.
  • Page 197 Operating modes: Converting Scenes into Standard Definition 1 Power the camcorder using the compact power adapter. 2 Make sure there is a memory card in the camcorder with sufficient available space. 3 Open the [Original], [Playlist] or [Video Snapshot] o [Original]/ [Playlist] index screen.
  • Page 198 7 When the conversion is completed, a confirmation screen will appear. Connect the camcorder to the computer at this point (0 144) to continue uploading the converted videos to the Web or touch [End Without Connecting] to connect to the computer later. To embed the recording date and time The recording date and time will always be displayed on the converted scene.
  • Page 199 • When converting scenes in the [Playlist]: - All the scenes are merged into one converted scene. - If the converted scene is too large, it will be split into smaller 10- minute long scenes. - When converting only part of a scene, the maximum length of the converted scene will be 10 minutes from the starting (playback pause) point.
  • Page 200 IMPORTANT • While the camcorder is connected to the computer, do not open the memory card slot cover and do not remove the memory card. • Observe the following precautions while the ACCESS indicator is on or flashing. Failing to do so may result in permanent data loss. - Do not open the memory card slot cover.
  • Page 201 IMPORTANT Using an Eye-Fi Card • This product is not guaranteed to support Eye-Fi card functions (includ- ing wireless transfer). In case of an issue with an Eye-Fi card, please check with the card manufacturer. Also note that an approval is required to use Eye-Fi cards in many countries or regions.

  • Page 202: Appendix: Menu Options Lists

    Additional Information This chapter contains troubleshooting advice, screen mes- sages, handling and maintenance tips, and other information. Appendix: Menu Options Lists Menu items not available appear grayed out. For details about how to select an item, refer to Using the Menus (0 32). For details about each function, see the reference page.
  • Page 203 4 3 0 Control Button Setting options/Function [S Flash] [U Automatic], [V Red-Eye Auto], – [S Flash On], [W Flash Off] [X Focus] [2] (manual focus): Toggle on (x) or off (w), Touch AF frame [e Exposure] [y] (manual exposure): Toggle on (x) or off (w), Touch AE frame Zoom controls, g control [ZOOM]...
  • Page 204 [Edit] Panel - Mode 1: Original scenes s: Playlist scenes (including the playlist only of video snapshot scenes) Z: Original video snapshot scenes u: SD scenes on the memory card (e only) 1 s Z u 0 Control Button Target Scenes/Function [Selected Scenes] –...
  • Page 205 [Edit] Panel - Mode Single Photo View Control Button Index Screen [Selected Photos], [Copy ( [All Photos] [Delete] [Protect] [Print Orders] [Rotate] – Š Additional Information...

  • Page 206: Setup Menus

    Setup Menus 7 / 8 Camera Setup 4 3 0 Menu item Setting options [Digital Zoom] [B Off], [G 60x], [H 300x] – – [Zoom Speed] [I Variable], [J Speed 3], [K Speed 2], [L Speed 1] [AF Mode] [R Instant AF], [S Normal AF] –...
  • Page 207 [Digital Zoom]: Determines the Optical zoom Digital zoom operation of the digital zoom. The color of the indicator indi- cates the zoom. • When activated, the cam- White Light Dark corder will switch automatically to digital zoom when you zoom blue blue in beyond the optical zoom...
  • Page 208 • Using focus assistance will not affect the recordings. It will be cancelled automatically after 4 seconds or when you start recording. [Auto Slow Shutter]: The camcorder automatically uses slow shutter speeds to obtain brighter recordings in places with insufficient lighting. •...
  • Page 209 [Onscreen Markers]: You can display a grid or a horizontal line at the cen- ter of the screen. Use the markers as a reference to make sure your sub- ject is framed correctly (vertically and/or horizontally). • Using the onscreen markers will not affect the recordings. [POWERED IS Button]: Determines the operation mode of the POWERED IS button.
  • Page 210 Menu item Setting options [Photo Quality/Size] [K 2304x1296], – – – [L 2100x1575], [M 1600x1200], [N 640x480] [E Super Fine], [F Fine], [G Normal] [Photo Capture from [A Single Photo], – – – Video] [B Photo Sequence] [Photo Capture [P Super Fine / 1920x1080], –...
  • Page 211 [Memory Info]: Displays a screen where you can verify how much of the built-in memory ( only) or the memory card is currently in use (l total recording time and k total number of photos) and how much space remains available for recording. •...
  • Page 212 • The photo number indicates the name and location of the file on the memory card. For example, the file name of a photo numbered 101- 0107 is “IMG_0107.JPG”, stored under the folder “DCIM\101CANON”. [USB Connection Type]: Select the connection protocol to use when con- necting the camcorder to an external device using the supplied USB cable.

  • Page 213: System Setup

    • When the TV type is set to [ Normal TV], during the playback of video originally recorded with an aspect ratio of 16:9, the picture will not be displayed fullscreen. 6 System Setup Menu item Setting options [Font Size] [A Large], [B Small] –...
  • Page 214 Menu item Setting options [P Built-in Mem.], [Initialize f/g] [g Mem. Card] [Complete Initialization]: Toggle on (x) or off (w) [Complete Initialization]: [Initialize g] Toggle on (x) or off (w) [Time Zone/DST] [S] (home time zone) or [V] (travel time zone): [New York], list of world time zones [U] (DST adjustment) [Date/Time]...
  • Page 215 [Font Size]: Changes the size of the font for the menu and other screens. • When the font size is set to [ Large], some information may be dis- played in shortened form (icons only, etc.). Some screens will be dis- played using the small font size regardless of the setting.
  • Page 216 • You can set Quick Start to [B Off], for example, if the camcorder is set on a fixed position and you want to keep recording video with the LCD panel closed in order to conserve the battery's power. [Calendar Start Day]: Select the day on which the week in the calendar screen (0 55).
  • Page 217 [Demo Mode]: The demonstration mode displays the camcorder's main features. It starts automatically when the camcorder is powered with the compact power adapter if you leave it turned on without a memory card for more than 5 minutes. • To cancel the demo mode once it has started, press any button or turn off the camcorder.

  • Page 218: Appendix: Onscreen Icons And Displays

    Appendix: Onscreen Icons and Displays Recording Movies (in Dual Shot mode) 7 Zoom (0 46) 1 Smart AUTO mode (0 43) 8 Recording mode (0 59) 2 Onscreen zoom controls (0 46) 9 Control button: Start/Stop video 3 Operating mode (0 31) recording 4 In record pause mode: A q Face detection frame (0 66)
  • Page 219 Recording Movies (in y Manual mode) S g x.v.Color (0 156) A s Control button: Open the FUNC. S h Face detection (0 66) panel (0 32) S j Photo quality/size A d Recording program (0 60, 63, 70) (simultaneous recording) (0 110) A f R Instant AF (0 152), S k Wind screen off (0 153) MF Manual focus (0 74)
  • Page 220 Recording Photos (in y Manual mode) F g Photo quality/size (0 105) D k Drive mode (0 109) F h Control button: Switch to movie D l Light metering mode (0 112) recording (0 58) F q Control button: Last function used F j AF frame (0 152) ([MENU] in this case) F k Focus and exposure lock...
  • Page 221 Viewing Photos Exif information panel H s Control button: Slideshow (0 112) G g Control button: Open the setup H d Control button: Open the Edit panel menus (0 151) (0 150) G h Protected photo mark (0 115) H f Control button: Switch to [Photos] G j Current photo / Total number of index screen (0 100) photos...
  • Page 222 5 Memory operation N Record, M Record pause, A Playback, C Playback pause, I Fast playback, J Fast reverse playback, G Slow playback, H Slow reverse playback, E Frame advance, F Frame reverse. 6 Remaining battery time • The icon shows a rough estimate of 100% the remaining charge as a percentage of the full charge of the...

  • Page 223: Troubleshooting

    - please read the “CHECK THIS FIRST” box before going on to the more detailed problems and solutions. Consult your dealer or a Canon Service Center if the problem persists. CHECK THIS FIRST Power supply •...
  • Page 224 - The camcorder cannot communicate with the battery pack attached. Such battery packs can- not be charged using this camcorder. A noise can be heard from the compact power adapter. - A faint sound can be heard while the compact power adapter is connected to a power outlet. This is not a malfunction.
  • Page 225 - The camcorder may become hot after using it continuously for long periods of time; this is not a malfunction. If the camcorder becomes unusually hot or it becomes hot after using it only for a short while, it may indicate a problem with the camcorder. Consult a Canon Service Cen- ter.
  • Page 226 - The camcorder has malfunctioned. Consult a Canon Service Center. Even after stopping recording, the ACCESS indicator does not go off. - The scene is being recorded in the memory. This is not a malfunction.
  • Page 227 The red ON/OFF (CHG) indicator flashes very slowly ( one flash at 2- second intervals). - The temperature of the battery pack is outside the charging range. If the battery pack’s tem- perature is below 0 °C (32 °F), warm it before charging it; if it is above 40 °C (104 °F), let the battery pack cool down before charging it.
  • Page 228 Sound is distorted or is recorded at lower levels. - When recording near loud sounds (such as fireworks, shows or concerts), sound may become distorted or it may not be recorded at the actual levels. Activate the microphone attenuator (0 153) or adjust the audio recording level manually (0 80). The picture is displayed correctly but there is no sound from the built-in speaker.
  • Page 229 Connections with External Devices Video noise appears on the TV screen. - When using the camcorder in a room where a TV is located, keep a distance between the compact power adapter and the power or antenna cables of the TV. Playback looks fine on the camcorder but there is no image on the TV screen.

  • Page 230: List Of Messages

    - The data transfer rate was too high for the memory card in use and the recording was stopped. Replace the memory card with one rated Speed Class 2, 4, 6 or 10. e Built-in memory error - The built-in memory could not be read. Contact a Canon Service Center. Š Additional Information...
  • Page 231 Cannot communicate with the battery pack. Continue using this battery pack? - You attached a battery pack that is not recommended by Canon for use with this camcorder. - If you are using a battery pack recommended by Canon for use with this camcorder, there may be a problem with the camcorder or battery pack.
  • Page 232 - There is a problem with the built-in memory. Save your recordings (0 128) and initialize the built-in memory using the [Complete Initialization] option (0 40). If the problem persists, contact a Canon Service Center. Cannot play back Check the memory card - There is a problem with the memory card.
  • Page 233 Change the battery pack - Battery pack is exhausted. Replace or charge the battery pack. Check the memory card - Cannot access the memory card. Check the memory card and make sure it is inserted cor- rectly. - A memory card error occurred. The camcorder cannot record or display the image. Try remov- ing and reinserting the memory card, or use a different memory card.
  • Page 234 Error writing on the memory card. Data may be recovered if the memory card has not been removed. Attempt recovering the data? - This message will appear the next time you turn on the camcorder if power supply was acci- dentally interrupted while the camcorder was writing on the memory card.
  • Page 235 Need to recover files from the memory card. Change the position of the LOCK switch on the memory card. - This message will appear the next time you turn on the camcorder if power supply was acci- dentally interrupted while the camcorder was writing on the memory card and later the posi- tion of the card's LOCK switch was changed to prevent erasure.
  • Page 236 The lens cover is not fully open. Turn the camcorder off, then on again. - The lens cover did not open fully. Turn the camcorder off, then on again. If this does not solve the problem, consult a Canon Service Center. This memory card contains scenes. Delete all scenes to use relay recording.
  • Page 237 To record video on this memory card, it is recommended to use only the XP+/SP/LP recording modes - Movies may not be recorded correctly on this memory card if the recording mode is set to MXP or FXP mode (0 59). To use this function change the camcorder's mode from 5 to y mode.
  • Page 238 Connect the compact power adapter - The camcorder is being powered by the battery pack. Connect the compact power adapter to the camcorder. Disc access failure. Check the disc. - There was an error when reading the disc or attempting to write onto it. - This message can appear also if condensation has formed (0 191).
  • Page 239 - Check the printer status. - Ink tank errors have occurred. Replace the ink tank. Ink absorber full - Touch [Continue] to resume printing. Consult a Canon Service Center (refer to the list included with the printer) to replace the ink absorber. Ink error - The ink level cannot be detected correctly or the ink cartridge is out of ink.
  • Page 240 USB cable. Check the printer status. NOTES About Canon PIXMA/SELPHY DS Printers: If the printer’s error indicator flashes or an error message appears on the printer’s operation panel, refer to the printer’s instruction manual.

  • Page 241: Handling Precautions

    (0 126) and save them on a regular basis. This will protect your impor- tant recordings in case of damage and create more free space on the memory. Canon shall not be liable for any data loss. • Do not carry the camcorder by the LCD panel. Be careful when closing the LCD panel.
  • Page 242 • When mounting the camcorder on a 5.5 mm tripod, make sure that the tripod's fas- tening screw is shorter than 5.5 mm (0.2 in.). Using other tripods may dam- age the camcorder. • When recording movies, try to get a calm, stable picture.
  • Page 243 Regarding the use of non-Canon battery packs • For your safety, battery packs that are not genuine Canon battery packs will not be charged even if you attach them to this camcorder or to the optional CG-800 Battery Charger.
  • Page 244 • Secure Digital (SD) memory cards have a physical switch to prevent writ- ing on the card so as to avoid the accidental erasure of the card's con- tent. To write-protect the memory card set the switch to the LOCK position. LOCK switch Built-in Rechargeable Lithium Battery The camcorder has a built-in rechargeable lithium battery to keep the...
  • Page 245 • Wipe the battery with a clean dry cloth to ensure proper contact. • For California, USA only: The lithium battery included contains Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate for details. Disposal When you delete movies or initialize the memory, only the file allocation table is altered and stored data is not physically erased.

  • Page 246: Maintenance/Others

    Maintenance/Others Cleaning Camcorder Body • Use a soft, dry cloth to clean the camcorder body. Never use chemically treated cloths or volatile solvents such as paint thinner. Lens and Instant AF Sensor • If the lens surface or Instant AF sensor is dirty, autofocus may not work properly.

  • Page 247: Using The Camcorder Abroad

    You can use the compact power adapter to operate the camcorder and to charge battery packs in any country with power supply between 100 and 240 V AC, 50/60 Hz. Consult a Canon Service Center for information on plug adapters for overseas use.

  • Page 248: Accessories

    Accessories (Availability differs from area to area) AVCHD discs/ Photo DVDs D PictBridge- compatible printers Card reader/writer Computer TV/HDTV VCR/DVD recorder Optional accessories not listed below are described in more detail in the following pages. SS-600/SS-650 Shoulder Strap IFC-300PCU USB Cable WS-20 Wrist Strap Memory card WL-D89 Wireless Controller...

  • Page 249: Optional Accessories

    Use of genuine Canon accessories is recommended. This product is designed to achieve excellent performance when used with genuine Canon accessories. Canon shall not be liable for any dam- age to this product and/or accidents such as fire, etc., caused by the malfunction of non-genuine Canon accessories (e.g., a leakage and/or...
  • Page 250 5 CG-800 Battery Charger Use the battery charger to charge the battery packs. It plugs directly into a power outlet without a cable. Charging Times The charging times given in the following table are approximate and vary according to charging conditions and initial charge of the battery pack. Battery packo BP-808 BP-819...
  • Page 251 Using a memory card Recording mode Battery pack Usage time Recording (maximum) 95 min. 95 min. 100 min. 100 min. 105 min. BP-808 Recording (typical)* 60 min. 60 min. 65 min. 65 min. 65 min. BP-809 Playback 160 min. 160 min. 160 min. 165 min. 165 min. Recording (maximum) 200 min.
  • Page 252 A q FS-H37U Filter Set Neutral density and MC protector filters help you to control difficult lighting condi- tions. A a SC-2000 Soft Carrying Case A handy camcorder bag with padded compartments and plenty of space for accessories. A s SM-V1 Surround Microphone Use 5.1ch surround sound to add a sense of presence to your movies.
  • Page 253 This case allows you to record movies and take photos underwater without get- ting the camcorder wet. This mark identifies genuine Canon video accessories. When you use Canon video equipment, we recommend Canon-brand accessories or products bearing the same mark.

  • Page 254: Product Codes

    Product Codes Provided Accessories CA-570 Compact Power Adapter 8468A002AA BP-808 Battery Pack 2740B002AA WL-D89 Wireless Controller D83-0790-000 STV-250N Stereo Video Cable 3067A002AA (D82-0590-002) IFC-300PCU USB Cable 6906A001AA Optional Accessories BP-809 Battery Pack 2588B003AA (silver), 2588B004AA (black) BP-819 Battery Pack 2589B002AA BP-827 Battery Pack 3185B002AA CG-800 Battery Charger...

  • Page 255: Specifications

    Specifications VIXIA HF M31 / VIXIA HF M30 / VIXIA HF M300 / System • Recording System Movies: AVCHD Video compression: MPEG-4 AVC/H.264; Audio compression: Dolby Digital 2ch; Dolby Digital 5.1ch* * Only when using the optional SM-V1 Surround Microphone. Photos: DCF (Design rule for Camera File system), compatible with Exif* Ver.
  • Page 256 • Lens f=4.1-61.5 mm, F/1.8-3.2, 15x optical zoom 35 mm equivalent: Movies: [Dynamic] IS mode: 39.5 – 711 mm Other IS modes: 39.5 – 592.5 mm Photos: 39.5 – 592.5 mm • Lens Configuration: 11 elements in 9 groups (1 double-sided aspheric element) •...
  • Page 257 Power/Others • Power supply (rated) 7.4 V DC (battery pack), 8.4 V DC (compact power adapter) • Power consumption: 3.5 W (SP mode, AF on, LCD normal brightness) • Operating temperature: 0 – 40 °C (32 – 104 °F) • Dimensions [W x H x D] (excluding the grip belt): 68 x 60 x 123 mm (2.7 x 2.4 x 4.8 in.) •...
  • Page 258 Audio sampling: 48 kHz, 16 bits, 2 channels Minimum length: 1 second File extension: WAV The music data is saved in the memory under the following folder structure. e In the built-in memory: CANON MY_MUSIC MUSIC_01.WAV to MUSIC_99.WAV On the memory card: CANON PRIVATE MY_MUSIC MUSIC_01.WAV to MUSIC_99.WAV...

  • Page 259: Index

    Index ....191 ... . .63 Condensation 24p Cinema Mode ....54 Connections to external 3D Flip View .
  • Page 260 ....114 ....156 Histogram Photo numbers ....105 Photo quality .
  • Page 261 ....22 Serial number ... . .33, 151 Setup menus . . 62 Underwater (recording program) .
  • Page 262 B) If the Equipment is defective as a result of leaking batteries, sand, dirt or water damage; C) If defects or damages are caused by the use of unauthorized parts or by service other than by Canon USA's factory service centers or authorized service facilities;...
  • Page 263 THE USE, MISUSE OR INABILITY TO USE THE EQUIPMENT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF CANON USA HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST CANON USA BE GREATER THAN THE PURCHASE PRICE OF THE EQUIPMENT SOLD BY CANON USA AND CAUSING THE ALLEGED DAMAGE.
  • Page 264 Ship your Equipment in its original carton, box or equivalent, properly packed, fully insured with shipping charges prepaid, together with a copy of your bill of sale or other proof of purchase and a description of the problem to any of the Canon Service Facilities in Canada.
  • Page 265 CANON CANADA INC. MONTREAL 8801 Route Transcanadienne, Saint-Laurent, QC H4S 1Z6 ❖ If you have any questions, call the Canon Canada Information Center toll free (in Canada only) at 1-800-OK-CANON (1-800-652-2666). ❖ Si vous avez des questions, veuillez téléphoner 1-800-OK-CANON (1-800-652-2666, sans frais au Canada seulement).
