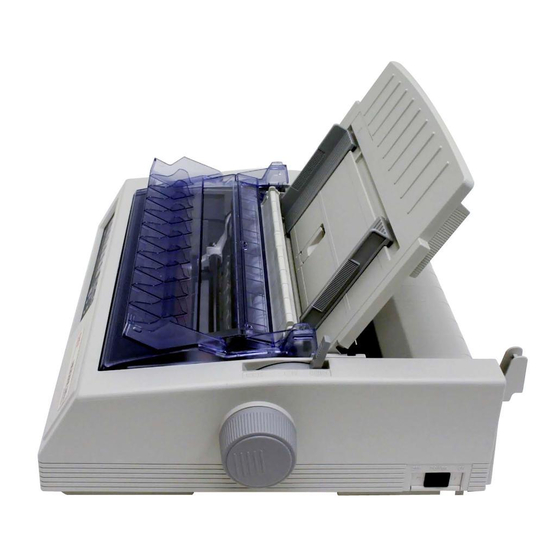

MICROLINE
®
ML590 & ML591
User's Guide
Guide de l' utilisateur
Guiá del usuario
Guia do Usuário

Advertisement

loading
Need help?

Need help?

Do you have a question about the ML590 and is the answer not in the manual?

Questions and answers

Related Manuals for OKIDATA ML590

Summary of Contents for OKIDATA ML590

  • Page 1 MICROLINE ® ML590 & ML591 User’s Guide Guide de l' utilisateur Guiá del usuario Guia do Usuário...

  • Page 2: Year 2000 Compliance

    Mount Laurel, NJ 08054-3405 OKIDATA and MICROLINE are registered trademarks/marques déposées/marcas eegistradas, Oki Electric Indus- try Company, Ltd. OKISMART TYPER is a trademark of Oki Electric Industry Company, Inc. is a registered trademark of the United States Environmental Protection Agency.

  • Page 3: Important Safety Instructions

    To protect your printer from overheating, make sure no openings on the printer are blocked. Don’t put the printer on or near a heat source, such as a radiator or heat register. If you put the printer in any kind of enclo- sure, make sure it is well ventilated.

  • Page 4: Consignes De Sécurité Importantes

    Consignes de sécurité importantes Votre imprimante OKIDATA a été conçue pour vous assurer un fonctionnement fiable et sécuritaire pendant de nombreuses années. Cependant, comme avec tout matériel électrique, des précautions élémentaires sont à prendre pour éviter de vous blesser ou d'endommager l'imprimante : •...

  • Page 5: Instrucciones Importantes De Seguridad

    Instrucciones Importantes De Seguridad Su impresora OKIDATA ha sido cuidadosamente diseñada para prestar muchos años de operación segura y con- fiable. No obstante, igual que con todos los equipos eléctricos, deben tomarse ciertas medidas básicas de pre- caución para evitar daños personales o al equipo. •...

  • Page 6: Instruções Importantes Sobre Segurança

    Instruções Importantes Sobre Segurança Sua impressora OKIDATA foi projetada cuidadosamente para oferecer-lhe desempenho seguro e confiável por muitos anos. Entretanto, como com qualquer equipamento elétrico, você deve tomar algumas precauções bási- cas para evitar se machucar ou avariar a impressora: •...

  • Page 7: Table Of Contents

    Continuous-Form Paper ...26 3: Testing Your Printer ...27 The Font Test (Self Test) ...28 The Rolling ASCII Test ...28 4: Setting Up Your Printer with Software ...29 Basic Terminology ...30 Emulations ...30 Changing Emulations ...30 Selecting a Printer Driver ...31 5: Using the Control Panel ...32...
  • Page 8 Table des matries: Français 1: Installation de votre imprimante... 1 Déballage... 2 Vérification du contenu ... 2 Retrait du film protecteur ... 3 Retrait des cales de protection en carton... 3 Installation de la cartouche de ruban ... 4 Connexion de votre ordinateur et branchement sur l'alimentation électrique 5 Mise sous tension de l'imprimante...
  • Page 9 1: Instalación de la impresora ... 1 Desembalaje... 2 Comprobación del contenido ... 2 Retire la película protectora... 3 Retire los retenedores de embarque ... 3 Instale el cartucho de cinta ... 4 Conecte la impresora a la computadora y a la fuente de alimentación ... 5 Encienda la impresora ...
  • Page 10 Indice: Português 1: Instalação da impressora ... 1 Desembalagem ... 2 Verificação do conteúdo ... 2 Remoção do plástico protetor ... 3 Remoção dos materiais de acondicionamento ... 3 Instalação do cartucho de fita ... 4 Conexão com o computador e à rede elétrica ...

  • Page 11: 1: Setting Up Your Printer

    Setting Up Your Printer Installation de votre imprimante Instalación de la impresora Instalação da impressora...

  • Page 12: Unpacking

    Unpacking Check The Contents Unpack your printer and check to be sure you have the following items: • printer • diskette • power cord • ribbon cartridge If you are missing any of these items, contact your dealer immediately Déballage Vérification du contenu...

  • Page 13: Remoção Dos Materiais De Acondicionamento

    Remove the Protective Film Peel the plastic film from the carriage cover ( 2 ), then swing carriage cover back into place. the access cover ( Remove the Shipping Retainers Open the access cover and remove the shipping retainer for the printhead ( remove the second shipping retainer ( 2 ).

  • Page 14: Install The Ribbon Cartridge

    Note: Leave the ribbon shield on the cartridge! Make sure the printer is turned off. Slide the printhead to the center of the platen ( 2 ), fit the grooves in the flat end of the cartridge over the posts on the ribbon plate ( 3 ).

  • Page 15: Connexion De Votre Ordinateur Et Branchement Sur L'alimentation Électrique

    Connect to Your Computer and to the Power Line Turn both the computer and the printer off. Plug the parallel interface cable (you must supply the cable) into the parallel interface port on the back of the printer ( Note: FCC regulations require the use of a shielded cable no longer than 6 ft. (1.8 m).

  • Page 16: Turn On The Printer

    Turn on the Printer Turn on the printer (the power switch is on the right side of the housing). The printhead crosses back and forth along the platen and the pins gently fire to determine the printhead gap 1 ) comes on. The ALARM light ( 2 ) also comes on, indicating that there is no paper setting.

  • Page 17: 2: Loading Paper

    Loading Paper Chargement du papier Carga de papel Colocação do papel...

  • Page 18: Single-Sheet Paper

    Single-Sheet Paper Use single-sheet paper for letterhead stationery, memos, and envelopes. It is also recommended for printing graphs and charts because it provides the most accurate control of the paper, producing solid black graphics and vibrant color charts. Note: If you have continuous-form paper in the paper path, press the PARK button on the front panel to remove it from the path before loading single-sheet paper!

  • Page 19: Preliminaries

    Preliminaries Make sure the printer is turned on and that the ALARM light ( paper path. Note: If the ALARM light is off, continuous-form paper is loaded in the paper path. Press the PARK button ( 2 ) to remove it from the path before attempting to load single-sheet paper.

  • Page 20: Loading Single-Sheet Paper

    ( paper automatically feeds into the printer. The printhead travels back and forth, gently firing its pins to sense the paper thickness and set the printhead gap.
  • Page 21 Note: If the sheet of paper doesn't feed in properly, the “15” light on the front panel flashes. To correct this, press the SHIFT and RESET buttons simultaneously ( 1 ), then reload the paper. Remarque : Si la feuille de papier n'est pas correctement alimentée dans l'imprimante, le voyant “15” du panneau avant clignote.

  • Page 22: Ajuste Do Início Da Impressão Para Folhas Avulsas De Papel

    Setting the Top of Form for Single-Sheet Paper Make sure the printer is deselected (SEL light off—press the SEL button to deselect). To set the Top of Form (the position where the first line of printing begins) for single-sheet paper, use the front panel buttons indicated below ( 1 ).

  • Page 23: Modificação Temporária Do Início Da Impressão Para Folhas Avulsas De Papel

    To temporarily change the Top of Form setting for a page, deselect the printer (press SEL button) and press the 1 ) until you reach the Top of Form position you want to use. The printer retains this setting until the LF button ( next sheet feeds in.

  • Page 24: Rear-Feed Paper

    Rear-Feed Paper Load continuous-form paper on the rear-feed paper path for printing spreadsheets, long reports, etc. For graphics or charts, use the single-sheet paper path to obtain the best results. Note: If you have single-sheet paper in the paper path, press the FF/LOAD button to remove it from the path before loading rear-feed paper.

  • Page 25: Preliminaries

    Preliminaries Make sure the printer is turned on and that the ALARM light ( paper path. Note: If the ALARM light is off, paper is loaded in the paper path. Press the FF/LOAD button ( 2 ) to remove single-sheet paper or the PARK button ( 3 ) to remove continuous-form paper from the path before proceeding.

  • Page 26: Chargement Du Papier Par La Voie D'alimentation Arrière

    Loading Rear-Feed Paper Move the paper lever to the position marked REAR ( the front edge of the paper separator and swing it up ( up on the lock levers to release the rear-feed tractors and swing open the tractor covers, then move the right-hand tractor to fit the width of the paper you’re installing ( Chargement du papier par la voie d'alimentation arrière Placez le levier d'entraînement du papier sur la position REAR (...
  • Page 27 Pull the paper through the opening between the printer and the rear cover, and place the first two holes on 1 ). Close the tractor covers and move the left tractor to align the edge of each side of paper over tractor pins (...
  • Page 28 The printhead travels back and forth, gently firing the pins to sense the thickness of the paper and to set the printhead gap. Press the SEL button to select the printer, then set the Top of Form using the procedure described for single-sheet paper on page 12.

  • Page 29: Del Margen Superior Para El Papel Alimentado Desde Atrás

    Temporarily Changing the Top of Form Setting for Rear-Feed Paper To change the Top of Form setting for a single page, deselect the printer (press SEL button) and press the LF button until you reach the Top of Form position you want to use. The printer retains this setting for one page only.

  • Page 30: Paper Handling Features

    1 ) to advance continuous forms up to the tear position so you can easily tear off a Press the TEAR button ( printed sheet without wasting paper or readjusting the printer. To return the paper to the print position, press the TEAR button again.

  • Page 31: Form Tear-Off Feature

    This feature automatically moves continuous-form paper up to the tear position after the selected amount of time. The paper will return to the initial printing position when the printer receives data. This feature is normally turned off. To activate it, hold the SHIFT button and press the SEL button to enter the 1 ).
  • Page 32 Form Tear-Off Feature (continued) To adjust the tear position with the Forms Tear-Off feature engaged, press and hold the SHIFT button while 1 ) to feed the paper down in small increments or the FF button ( 2 ) to feed the paper up in using the LF button ( small increments.
  • Page 33 Note: Some programs, such as high resolution graphics packages, pause occasionally while sending data to the printer. If the pause lasts more than two seconds, the paper advances to the tear-off position until more data is received. No data is lost, but this extra paper movement can cause uneven print registration in graphics.

  • Page 34: Paper Park Feature

    Paper Park Feature 1 ) to move continuous-form paper out of the paper path. To move the parked Press the PARK button ( continuous-form paper back to the print position, press the FF/LOAD button. Fonction de stationnement du papier Appuyez sur le bouton PARK ( 1 ) afin de déplacer le papier en continu hors de la voie d'alimentation.

  • Page 35: Remplacement Du Papier En Continu Par Des Feuilles Individuelles

    2 ). path. Lift the paper separator to the upright position and move the paper lever to the position marked TOP ( Load single-sheet paper into the paper separator. The printer automatically feeds the sheet of paper into the print position.

  • Page 36: Remplacement Des Feuilles Individuelles Par Du Papier En Continu

    Switching from Single-Sheet Paper to Continuous-Form Paper To switch from single-sheet paper to continuous-form paper which has been parked: 1 ) to remove the single-sheet paper from the paper path. Lower the paper separa- Press the FF/LOAD button ( tor to the continuous-forms position. Move the paper lever to the position marked REAR ( 1 ) to advance the continuous-forms paper into the print position.

  • Page 37: 3: Testing Your Printer

    Testing Your Printer Test de votre imprimante Comprobación de la impresora Teste da impressora ML590 F/W XX.XX YR4084-3066-01 XX.XX !”#$%&’()*+,-./0123456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmno !”#$%&’()*+,-./0123456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmnop ”#$%&’()*+,-./0123456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmnopq #$%&’()*+,-./0123456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmnopqr $%&’()*+,-./0123456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmnopqrs %&’()*+,-./0123456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmnopqrst &’()*+,-./0123456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmnopqrstu ’()*+,-./0123456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmnopqrstuv ()*+,-./0123456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmnopqrstuvw )*+,-./0123456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmnopqrstuvwx *+,-./0123456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmnopqrstuvwxy +,-./0123456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmnopqrstuvwxyz ,-./0123456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmnopqrstuvwxyz{ -./0123456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmnopqrstuvwxyz{| ./0123456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmnopqrstuvwxyz{|} /0123456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmnopqrstuvwxyz{|}~ 0123456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmnopqrstuvwxyz{|}~ 123456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmnopqrstuvwxyz{|}~ ! 23456789:;<=>?ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_‘abcdefghijklmnopqrstuvwxyz{|}~ !”...

  • Page 38: The Font Test (Self Test)

    The Rolling ASCII Test provides a continuous printout of all 96 ASCII characters. To start the Rolling ASCII Test, load paper and turn off the printer, then press and hold the QUIET button ( for several seconds while turning the printer on Test de fontes (auto test) Le test de fontes vous fournit une page imprimée contenant des échantillons de chaque caractère...

  • Page 39: Configuration De Votre Imprimante À L'aide Du Logiciel

    Setting Up Your Printer with Software Configuration de votre imprimante à l'aide du logiciel Configuración de la impresora por medio de Software Configurar a impressora usando o software...

  • Page 40: Basic Terminology

    Changing Emulations Your printer is set at the factory for the Epson LQ emulation. If you wish to change to one of the other emulations, hold the SHIFT button and press the SEL button to enter the Menu Mode (...

  • Page 41: Selecting A Printer Driver

    If your software does not have a printer driver from near the top of the list, call the software manufacturer to see if they have added any drivers to those supplied when you purchased your software.

  • Page 42: 5: Using The Control Panel

    Print Mode: Press to select/ deselect printer. Press while holding SHIFT Print Mode: button to enter Press to feed Menu Mode. paper down line Menu Mode: by line. Press while Press while holding SHIFT holding SHIFT button to exit button to move Menu Mode.
  • Page 43 Print Mode : Appuyez sur ce bouton pour Print Mode : sélectionner/ Appuyez sur ce désélectionner bouton pour l'imprimante. alimenter le papier Menu Mode : ligne par ligne. Appuyez sur ce Appuyez sur ce bouton tout en bouton tout en maintenant le mainte-nant le bouton SHIFT...
  • Page 44 Modo de Impresión Pulse para seleccionar/poner fuera de línea la Modo de Impresión : impresora. Pulse para alimentar Pulse mientas papel hacia abajo de mantiene pulsado el a una línea por vez. botón SHIFT para Pulse mientras entrar en el modo mantiene pulsado el Menu.
  • Page 45 Modo Imprimir: Pressione para selecionar/ desselecionar a Modo Imprimir: impressora. Pressione para Pressione enquanto mover o papel linha aperta o botão SHIFT por linha. para entrar no modo Pressione enquanto Menu. aperta o botão SHIFT Modo Menu: para mover para Pressione enquanto cima o início da aperta o botão SHIFT...

  • Page 46: Print Mode

    Print Suppress mode. 3 ALARM Light: Lights when an error condition exists, such as when the printer is out of paper, if there is a paper jam, or if the paper lever is set to the wrong paper path for the paper loaded.
  • Page 47 Code 128 sets A, B and C . For more details, use the Okidata Faxable Facts (call 1-800-OKIDATA and follow the recorded instructions). To reset the character pitch to the factory default (10 cpi), deselect the printer, then hold the SHIFT button while pressing the CHARACTER PITCH button.

  • Page 48: Mode Menu

    Menu Mode and are retained even if you turn the printer of. To reset your printer to the factory defaults for the menu, turn the printer off, then press and hold the SEL and LF buttons while turning the printer back on again.

  • Page 49: Entering The Menu Mode

    Entering the Menu Mode To place your printer in the Menu Mode, hold the SHIFT button while pressing the SEL button. The MENU light comes on and the SEL light goes out. Exiting the Menu Mode When you are done making changes in the Menu Mode, exit the mode (saving the changes you have made) by holding the SHIFT button while pressing the SEL button.

  • Page 50: The Printer Menu

    The Printer Menu The printer menu is made up of groups. Within each group is a list of items, each of which has various settings. The illustration at the right shows a printout of the factory settings for the menu. To generate a printout...

  • Page 51: Active Buttons In Menu Mode

    Active Buttons in Menu Mode GROUP Button: Each time you press this button, the menu line that prints shows the next group. ITEM Button: Each time you press this button, the menu line that prints shows the next item within that group. SET Button: Each time you press this button, the menu line that prints shows the next setting for that item.

  • Page 52: 6: Problem Solving & Maintenance

    Problem Solving & Maintenance Résolution des problèmes et entretien Solución de problemas y mantenimiento Manutenção da impressora e solução de problemas...

  • Page 53: Problem Solving

    Solutions: (1) The printer may be deselected. If the SEL light is out, press the SEL button to select the printer. (2) The printer cable may be loose: check to be sure that it is securely connected to both the printer and your PC.
  • Page 54 Problem: The printing is too light or too dark. Solution: The head gap setting needs adjustment. Enter the Menu Mode and change the setting for “Printhead Gap Adjust” under the Group “Setup.” The default setting is 0. If the printing is lighter, change the setting to- 1;...
  • Page 55 Problem: The first line is printing too far down on the page and I can’t get it any higher using the SHIFT-LF/ Micro Feed Down keys. Solution: The setting for the Top of Form will be restricted if you have the Form Tear-Off feature engaged when you set the Top of Form.
  • Page 56 Menu settings. To set your printer to ignore the reset command, enter the printer Menu and change the Reset Inhibit item in the Set-Up group to Yes. Please note that while this stops the reset command from resetting your printer, other commands in the initialization string may still override the printer Menu and/or front panel settings.
  • Page 57 Solution: The Operator Panel Function item on the printer menu can be used to disable these buttons. If the printer is a part of a customized system or if it is used by a number of people, the system manager may have used this option to make sure the printer is always set properly.

  • Page 58: Suppression Des Bourrages De Papier Alimenté Par L'arrière

    Turn the printer off and open the paper separator out of the printer, removing any ripped pieces of paper. Re-load paper ( two holes in paper on pins, close tractor covers. Turn the printer on and press the FF/LOAD button ( Paper separator Séparateur de papier...

  • Page 59: Persistant De Bourrage De Papier Alimenté Par L'arrière

    If the rear-feed paper keeps jamming, you probably have bits of paper stuck in the paper path. Turn the printer off. Open the access cover, lift off the pull-up roller assembly ( paper from around the carriage. Open the paper separator and use the platen knob to back the paper out of the printer ( 2 ).
  • Page 60 Back the quadruple-thick paper out of the printer using the platen knob. Replace the pull-up roller assembly 1 ), re-load your regular continuous-form paper ( 2 ), and close the paper separator and the access cover ( 3 ).

  • Page 61: Suppression Des Bourrages De Feuilles De Papier Individuelles

    Turn the printer off. Rotate the platen knob to back the paper out of the carriage ( access cover and lift the pull-up roller assembly to provide access to remove any ripped pieces from around 2 ), then re-install the pull-up roller assembly and close the access cover. Turn the printer back on the carriage (...

  • Page 62: Cleaning The Housing

    Caution! Never use solvents or strong detergents on the housing — they could damage it! You should clean the printer every six months (or after about 300 hours of operation). Turn the printer off and move the paper out of the paper path. Open the access cover and remove the pull-up roller assembly ( 1 ).

  • Page 63: 7: Accessories & Replacement Parts

    Accessories & Replacement Parts Accessoires et pièces de rechange Accesorios y piezas de recambio Acessórios e peças de reposição...

  • Page 64: Accessories

    Accessories Color Ribbon Kit... 52106003 Cut Sheet Feeder, ML 590... 70022501 Cut Sheet Feeder, ML 591... 70022701 Bottom-Feed Push Tractor, ML 590 ... 70022901 Bottom-Feed Push Tractor, ML 591 ... 70023101 Top-Mount Pull Tractor, ML 590 ... 70023001 Top-Mount Pull Tractor, ML 591 ... 70023201 Roll Paper Stand ...

  • Page 65: Reference Section 1: English

    Reference Section 1: English Contents Menu Table... 56 How to Get Information on Programming Codes ... 58 How to Order Parts... 58 Specifications ... 59 FCC Radio Frequency Interference Information ... 61 Material Safety Data Sheet ... 62...

  • Page 66: Menu Table

    The table below lists the Menu entries for your printer. The factory defaults are shown in bold italic. Note: The table includes all possible Menu settings available with your printer. Some of the entries, as noted, appear only when a specific emulation is selected or when the appropriate option is installed.
  • Page 67 Group Item Set-Up (continued) Operator Panel Function Print Registration Reset Inhibit Print Suppress Effective Auto LF Auto CR (appears only when IBM Proprinter emulation is selected) SI Select Pitch, 10 cpi (appears only when IBM Proprinter emulation is selected) SI Select Pitch, 12 cpi (appears only when IBM Proprinter emulation is selected) Time Out Print...

  • Page 68: How To Get Information On Programming Codes

    You may view this document by accessing it on the CD provided with your printer. How to Order Parts Note: See page 54 for a listing of parts and accessories for your ML590/591 printer. Before you order, make sure you know your printer model number (on the front of the unit) and have the correct part number and description of the item.

  • Page 69: Specifications

    Specifications Print Method: Impact dot matrix Printhead: 24 pins, 0.20 mm diameter, automatically adjusting to paper thickness,with thermal protection Print Speed: Mode Characters Per Inch (cpi) Utility Letter Quality (LQ) Characters Per Line (cpl): Setting 10 cpi 12 cpi 15 cpi 17.1 cpi 20 cpi Emulations:...
  • Page 70 Reliability Mean Time Between Failures (MTBF): Mean Time to Repair (MTTR): Printhead life: 35% page density Ribbon Life (on average, 10 cpi utility): Paper type Cut sheets Single-part continuous forms Carbonless, multi-part continuous form (original + 4 copies) Interleaf, multi-part continuous forms (original + 4 copies) Labels Envelopes, single feed...

  • Page 71: Federal Communications Commission Radio Frequency Interference Statement For 120-Volt Models

    Federal Communications Commission Radio Frequency Interference Statement for 120-Volt Models WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 72: Material Safety Data Sheet

    MATERIAL SAFETY DATA SHEET # 58087501 For ML 590/591 Black Ribbon (P/N 52106001) For more information, contact Okidata at 2000 Bishops Gate Blvd. Mount Laurel, NJ 08054-4620 For Emergency Information, call 1-800-OKIDATA Emergency First Aid Procedures Emergency Procedure Contact occurs Flush eyeswith large quantities of with eyes water for 15 minutes, keeping eyelids...
  • Page 73 Precautions for Handling or Storage: Store in a dark, cold place. Do not pull ribbon out of cassette except for mounting on printer. Other Precautions: Not applicable The information contained in this Material Safety Data Sheet (MSDS) is based on data considered accurate; however, no warranty is expressed or implied regarding the accuracy of these data or the results to be obtained from the use thereof.

  • Page 74: Reference Section 2: French

    Section de référence 2 : Français Table des matières Tableau du menu ... 65 Comment recevoir des informations sur les codes de programmation ... 67 Comment commander des pièces ... 68 Spécifications... 69 Fiche de données de sécurité ... 72 Déclaration du ministère canadien des communications sur les interférences radio...

  • Page 75: Tableau Du Menu

    Remarque : Ce tableau comprend tous les paramètres possibles du menu disponibles sur votre imprimante. Certaines des entrées, comme il est indiqué, n'apparaissent que lorsqu’une émulation spécifique a été sélectionnée ou lorsque l’option appropriée est installée. Groupe Item Printer Control Emulation Mode Font Print Mode Pitch...
  • Page 76 Auto CR (n’apparaît que lorsque l’émulation IBM Proprinter est sélectionnée) SI Select Pitch, 10 cpp (n’apparaît que lorsque l’émulation IBM Pro- printer est sélectionnée) SI Select Pitch, 12 cpp (n’apparaît que lorsque l’émulation IBM Pro- printer est sélectionnée) Time Out Print...

  • Page 77: Comment Recevoir Des Informations Sur Les Codes De Programmation

    Groupe Item Parallel I/F I-Prime Pin 18 Auto Feed XT (n’apparaît que lorsque l’émulation Epson LQ est sélectionnée) Serial I/F (n’apparaît que lorsque Parity l’interface série optionnelle est installée) Serial Data 7/8 Bits Protocol Diagnostic Test Busy Line Baud Rate DSR Signal DTR Signal Busy Time...

  • Page 78: Comment Commander Des Pièces

    Comment commander des pièces Remarque : Voir la page 56 pour une liste des pièces et des accessoires pour votre imprimante ML590/591. Avant de passer votre commande, assurez-vous que vous connaissez le numéro de modèle de votre imprimante (situé sur l’avant de votre unité) et ayez la description et le numéro de la pièce à...

  • Page 79: Spécifications

    Spécifications Méthode d’impression : matricielle (à impact) Tête d’impression : 24 aiguilless, diamètre de 0.20 mm, avec ajustement automa tique suivant l’épaisseur du papier et protection thermique Vitesse d’impression : Caractères par pouce (cpp) Caractères par ligne (cpl) : Paramètre 10 cpp 12 cpp 15 cpp...
  • Page 80 Durée de vie du ruban (en moyenne, utilitaire 10 cpp) : Spécifications de papier Largeur minimum : Largeur maximum : Poids : Epaisseur, alimentation arrière : Epaisseur, alimentation inférieure : Type de papier Feuilles précoupées Imprimés continus en une partie Imprimé...
  • Page 81 Dimensions (l x Ø x h) Modèle 590: Modèle 591: Poids Modèle 590: Modèle 591: Exigences liées à l’environnement Température de fonctionnement : Température de stockage : Humidité de fonctionnement : Humidité de stockage : Caractéristiques électriques Ces spécifications sont susceptibles de changement sans préavis. 17 x 15 x 6.5 pouces (431 x 380 x 166 mm) 23 x 15 x 6.5 pouces (585 x 380 x 166 mm) 16.5 lb.

  • Page 82: Fiche De Données De Sécurité

    FICHE DE DONNEES DE SECURITE N°58087501 Pour ruban encreur noir ML 590/591 (P/N 52106001) Pour plus d’informations, contactez Okidata à l’adresse suivante : 2000 Bishops Gate Blvd. Mount Laurel, NJ 08054-4620 Informations en cas d’urgence, composez le 1-800-OKIDATA (aux USA et au Canada) Mesures de premiers secours en cas d’urgence Cas d’urgence Mesures...
  • Page 83 Précautions à prendre pour la manipulation et l’utilisation des matières en toute sécurité Protection respiratoire : Non applicable Gants protecteurs et/ou protection des yeux : n’est normalement pas requis. Le port de gants protecteurs est recommandé dans certains cas. Ventilation : Non applicable Autre équipement protecteur et/ou mesures d’hygiène : Non applicable Précautions spéciales...

  • Page 84: Déclaration Du Ministère Canadien Des Communications Sur Les Interférences Radio

    Déclaration du ministère canadien des communications sur les interférences radio 120 Volts Cet appareil est confore aux critères établis par la Classe B en ce qui concerne les interférences radio, telles que spécifié par le Industrie Canada dans les Règlements relatifs aux interférences Radio. 230/240 Volts Cet appareilOKIDATA est conforme aux critères établis par la Classe A en ce qui concerne les interférences radio, telles que spécifié...

  • Page 85: Reference Section 3: Spanish

    Sección de referencia 3: Español Contenido Tabla de menú ... 76 Cómo obtener infomación acerca de los códigos de programación... 78 Especificaciones... 79 Hoja de datos de seguridad de los materiales ... 82 Consejo de la Unión Europea de la Declaración de las Comunidades Europeas de Cumplimiento Electromagnético para modelos de 230/240 Voltios...

  • Page 86: Tabla De Menú

    Nota: La tabla incluye todas las definiciones disponibles con la impresora. Algunas de las entradas, como se indica, solamente aparecen cuando se selecciona una emulación específica o cuando se instala la opción correcta. Grupo Elemento Printer Emulation Mode Control Font Print Mode...
  • Page 87 Auto CR (aparece solamente cuando se selecciona la emulación IBM Proprinter) SI Select Pitch, 10 cpi (aparece solamente cuando se selecciona la emulación IBM Pro- printer) SI Select Pitch, 12 cpi (aparece solamente cuando se selecciona la emulación IBM Pro- printer)

  • Page 88: Cómo Obtener Infomación Acerca De Los Códigos De Programación

    Grupo Elemento Serial I/F Diagnostic Test (continuación) Busy Line Baud Rate DSR Signal DTR Signal Busy Time CSF Bin 1 Line Spacing (aparece sola- mente cuando está instalado el accesorio opcional de ali- mentación de hojas sueltas) Bottom Margin Page Width (Modelo 591 solamente) Page Length Gap Control...

  • Page 89: Especificaciones

    Especificaciones Método de impresión: Matriz de puntos por impacto Cabeza de impresión: 24 pines, 0,20 mm de diámetro, se ajusta automáticamente al espesor del papel, con protección térmica Velocidad de impresión: Modo Caracteres por pulgada (cpp) Utilidad Calidad de correspondencia (LQ) Caracteres por línea (cpl): Ajustes ML 590...
  • Page 90 Vida de la cabeza de impresión: Vida útil de la cinta (pro- medio, utilidad de 10 cpp): Especificaciones del papel Ancho Mínimo: Máximo: Peso: Espesor Alimentación desde atrás: Alimentación desde abajo: Tipo de papel Hojas sueltas Papel continuo de una sola parte Papel continuo de varias copias sin papel carbón (original + 4 copias)
  • Page 91 Dimensiones (ancho x profundo x alto) Modelo 590: Modelo 591: Peso Modelo 590: Modelo 591: Requisitos ambientales Temperatura de funcionamiento: Temperatura de almacenamiento: Humedad de funcionamiento: Humedad de almacenamiento: Requisitos eléctricos Especificaciones sujetas a cambios sin aviso previo. 431 x 380 x 166 m (17 x 15 x 6.5 pulgadas ) 585 x 380 x 166 mm (23 x 15 x 6.5 pulgadas) 7,5 kg.

  • Page 92: Hoja De Datos De Seguridad De Los Materiales

    HOJA DE DATOS DE SEGURIDAD DE LOS MATERIALES # 58087501 Para la cinta negra ML 590/591 (P/N 52106001) Para obtener más información llame a Okidata al: 2000 Bishops Gate Blvd. Mount Laurel, NJ 08054-4620 Procedimientos de primeros auxilios de emergencia Emergencia Procedimientos En contacto con los...

  • Page 93: Consejo De La Unión Europea De La Declaración De Las Comunidades Europeas De Cumplimiento Electromagnético Para Modelos De 230/240 Voltios

    Consejo de la Unión Europea de la Declaración de las Comunidades Europeas de Cumplimiento Electromagnético para modelos de 230/240 Voltios Este producto cumple con los requisitos de la Directive del Consejo 89/336/CEE sobre la aproximación de la legislación de los Esta- dos Miembros por cuanto respecta a la compatibilidad electromagnética.

  • Page 94: Reference Section 4: Portuguese

    Seção de consulta 4: Português Conteúdo Tabla de menu ... 85 Como Obter Informações Sobre os Códigos de Programação... 87 Especificações... 88 Folha de dados de segurança de materiais... 91 Conselho da União Européia da Declaração das Comunidades Européias sobre a Conformidade Eletromagnética para modelos de 230/240 Volts...

  • Page 95: Tabla De Menu

    Observação: A tabela inclui todos os parâmetros possíveis disponíveis para sua impressora. Algumas das informações, conforme observado, aparecem somente quando uma emulação específica é selecionada ou quando a opção apropriada estiver instalada. Grupo Item Printer Control Emulation Mode Font Print Mode Pitch...
  • Page 96 Grupo Item Top Feed (continuação) Page Length Gap Control Wait Time Page Length Control Set-Up Graphics Receive Buffer Size Paper Out Override Print Registration Operator Panel Function Reset Inhibit Print Suppress Effective Auto LF Auto CR (aparece somente quando a emulação IBM Proprinter está...

  • Page 97: Como Obter Informações Sobre Os Códigos De Programação

    Grupo Serial I/I (continuação) CSF Bin 1 (aparece somente quando o acessório opcional para alimentação de folha avulsa está instalado) CSF Bin 2 (aparece somente quando o acessório opcional para alimentação de folha avulsa está instalado) Como Obter Informações Sobre os Códigos de Programação O Manual de refêrencia Microline oferece listas completas de todos os comandos, juntamente com as informações sobre como usá-los.

  • Page 98: Especificações

    Especificações Médoto de impressão: Cabeçote de impressão: Velocidade de impressão: Modo Utilitário Qualidade Carta (LQ) Caracteres por linha (cpl): Parâmetro 10 cpp 12 cpp 15 cpp 17.1 cpp 20 cpp Emulações Interface: Resolução gráfica: Fontes residentes Qualidade Carta: Utilitário: Código de barras: Tamanho do buffer: Confiabilidade Tempo Médio Entre Defeitos...
  • Page 99 Confiabilidade (continuação) Vida útil do cabeçote: Vida útil da fita (em média, Utilitário 10 cpp): Especificações do papel Largura, Mínima: Largura, Máxima: Peso: Espessura, Alimentação por trás: Espessura, Alimentação infe- rior: Tipo de papel Folhas avulsas Formulário contínuo Formulário contínuo com diver- sas vias sem carbono (original + 4 cópias) Formulário contínuo com diver-...
  • Page 100 Dimensões (C x L x H) Modelo 590: 431 x 380 x 166 mm Modelo 591: 585 x 380 x 166 mm Peso Modelo 590: 7,5 kg Modelo 591: 9 kg Requisitos ambientais Temperatura de operação: 5 a 40 graus C Temperatura de armazena- -10 a +50 graus C gem:...

  • Page 101: Folha De Dados De Segurança De Materiais

    FOLHA DE DADOS DE SEGURANÇA DE MATERIAIS Nº 58087501 Para fita preta para ML 590/591 (P/N 52106001) Para maiores informações, contate a Okidata: 2000 Bishops Gate Blvd. Mount Laurel, NJ 08054-4620 Procedimentos para emergência Emergência Procedimento Contato com os Lave os olhos com bastante olhos água por 15 minutos, man- tendo as pálpebras abertas...

  • Page 102: Conselho Da União Européia Da Declaração Das Comunidades Européias Sobre A Conformidade Eletromagnética Para Modelos De 230/240 Volts

    Conselho da União Européia da Declaração das Comunidades Européias sobre a Conformidade Eletromagnética para modelos de 230/240 Volts Este produto obedece aos requisitos da Directiva do Conselho 89/336/CEE sobre a aproximação das leia dos estados memvros relativamente à compatibilidade electromagnética.
  • Page 103 6, 36 Print mode 36-37 Print speed PRINT button PRINT QUALITY button Printhead specifications life Printer drivers 30-31 Printer housing, cleaning Problem solving 43-47 Programming codes Protective Film Pull tractor Push tractor QUIET button QUIET light Rear-Feed clearing jams 48-50...
  • Page 104 Index: Français Accessoires Alimentation arrière papier, chargement 14-18 suppression des bourrages papier 48-50 Boîtier de l'imprimante, nettoyage 52 Bourrage de papier, suppression alimentation arrière 48-50 feuille individuelle 51 Bouton CHARACTER PITCH 33 Bouton FF/LOAD 33 Bouton GROUP 41 Bouton ITEM 41 Bouton LF 33 Bouton PRINT 41 Bouton PRINT QUALITY 33...
  • Page 105 Accesorios 54 alimentación por atrás eliminar atascos 48-50 Papel, carga 14-19 Alimentador de hojas sueltas (opción) 54 Alimentador de orugas de montaje superior Alojamiento de la impresora, limpieza 52 Atasco de papel, eliminar alimentación por atrás 48-50 hoja suelta 51 Botón CHARACTER PITCH 34 Botón FF/LOAD 34 Botón GROUP 41...
  • Page 106 Indice: Português Acessórios 54 Alimentaçao por trás eliminar bloqueios 48-50 papel, colocar 14-19 Alimentador de folhas avulsas de papel 54 Bloqueio de papel, eliminar alimentaçao por trás 48-50 folha avulsa de papel 51 Botão CHARACTER PITCH 35 Botão FF/LOAD 35 Botão GROUP 41 Botão ITEM 41 Botão LF 35...
