TABLE OF CONTENTS Philips Selecon Offices............................ 0 IMPORTANT INFORMATION Warnings and Notices............................1 Additional Resources for DMX512......................... 1 Philips Selecon Limited Three-Year Warranty ....................1 TABLE OF CONTENTS PREFACE About this Manual ..............................4 Accessories ................................4 PLFRESNEL1 LED Luminaire Power Input Cables ..................4 PLFRESNEL1 LED Luminaire Lens Accessories.................. - Page 5 PLFRESNEL1 LED Luminaires Installation & User’s Manual DMX CONTROL 16-Bit Mode................................20 8-Bit Mode................................22 DMX 3-Channel (3-Chan) Mode ......................... 24 Lighting Console Settings for Preset White ......................25 PLFRESNEL1 LED Luminaire DMX Timing Channel Detail................25 CLEANING AND CARE Special Cleaning and Care Instructions........................
-
Page 6: Preface
Note: All PLFRESNEL1 LED Luminaires are universal voltage (100VAC to 240VAC, Auto-ranging). 2. Accessories Contact your Authorized Philips Selecon Dealer for price and availability of all accessories for PLFRESNEL1 LED Luminaires. Additional information can be found on the Philips Selecon web site at www.seleconlight.com. -
Page 7: Plfresnel1 Led Luminaire Overview

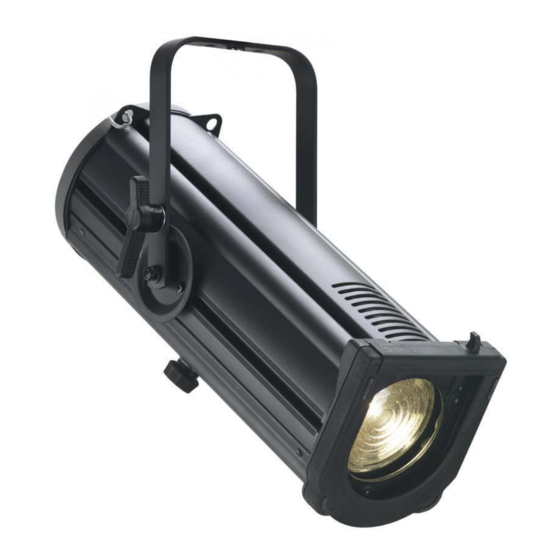

PLFRESNEL1 LED Luminaires Installation & User’s Manual PLFRESNEL1 LED LUMINAIRE OVERVIEW 1. PLFRESNEL1 LED Luminaire Components Major Luminaire Components Top Box Assembly (PLICB) Front of Unit (AC Input/Thru and DMX In/Out Connections) Yoke Locking Handle Accessory Holder (with latching door) Rear of Unit Multi-Conductor Fixture Connection... -
Page 8: Top Box (Plicb) Luminaire Connections
PLFRESNEL1 LED Luminaires Installation & User’s Manual Top Box (PLICB) Luminaire Connections DMX512 Input Multi-Conductor Top Box to Luminaire Connection DMX512 Output/Thru Side View 1 AC (Power) Input Multi-Conductor Top Box to Luminaire Connection Side View 2 AC (Power) Output Figure 2: Top Box (PLICB) Connections LCD Display / Menu System 1) LCD Display (Menu System) -
Page 9: Installation And Set Up Power Requirements
PLFRESNEL1 LED Luminaires Installation & User’s Manual INSTALLATION AND SET UP 1. Power Requirements The PLFRESNEL1 LED Luminaire operates on 100 to 240 volts AC (+/- 10%, auto-ranging). The luminaire contains an auto-ranging power supply. Depending on supply voltage, each luminaire can draw up to 1.5 amps. Table 1: PLFRESNEL1 LED Luminaire Voltage vs. -
Page 10: Connecting To The Dmx512 Network
PLFRESNEL1 LED Luminaires Installation & User’s Manual Table 2: PLFRESNEL1 LED Luminaire AC Input Connections Main / Neutral Wire Color Purpose Line Brown Main / Line (120 to 240VAC) Blue Neutral AC Input Connector Green/Yellow Ground (on back of unit) Ground / Earth 3. -
Page 11: Mounting
PLFRESNEL1 LED Luminaires Installation & User’s Manual 4. Mounting WARNING! Before attempting any installation or service, disconnect all power at power source. Dimming the luminaire does not disconnect power. Installation and service should only be performed by a trained and qualified professional. -
Page 12: Pan And Tilt Adjustments
PLFRESNEL1 LED Luminaires Installation & User’s Manual codes. Loop or attach safety cable to luminaire safety cable anchor point as shown and attach to structure. You should always consult and follow all local and national codes and regulations for mounting and installation of luminaire. 5. -
Page 13: Beam Adjustments
Figure 7: Zoom and Focus Adjustment Knobs 2. Barndoor Assembly Philips Selecon offers as an optional accessory, a four-leaf barndoor assembly. This assembly is sold separately and available from your Authorized Philips Selecon Authorized Dealer. For information on all available accessories for the PLFRESNEL1 LED Luminaire, refer to "Accessories"... -
Page 14: Operation And Programming
PLFRESNEL1 LED Luminaires Installation & User’s Manual OPERATION AND PROGRAMMING 1. LCD Menu Operation The PLFRESNEL1 LED Luminaire’s LCD Display and Menu System provides local control for accessing all the fixture’s status information, menu options, and settings. Note: If there are multiple luminaires in a system, changes would need to be made at each LCD Menu as desired. Upon power up, the LCD will display the main screen showing the product type/name. -
Page 15: Lcd Menu System
PLFRESNEL1 LED Luminaires Installation & User’s Manual 2. LCD Menu System The LCD Display Menu system consists of several categories. Use the four arrow buttons as required (refer to Figure 8 on page 12) to access and make changes to the menu items. When the desired menu item is reached, press [OK] to display the menu options. -
Page 16: Menu Structure
PLFRESNEL1 LED Luminaires Installation & User’s Manual Menu Structure LCD Display / Menu System MAIN MENU Save as Preset Sub Menu Options Comments Users can: • Save the current settings (look) to a specific recallable Preset in the Scratch Pad fixture’s memory. -
Page 17: Color Mix
PLFRESNEL1 LED Luminaires Installation & User’s Manual Menu Structure (continued) Continued from previous page Edit a Preset Sub Menu Options Comments Users can: • Edit the current settings (look) to a specific recallable Preset in the fix- ture’s memory. • Edit the values for Red, Green, Scratch Pad Blue, White, and Intensity values... -
Page 18: Security
PLFRESNEL1 LED Luminaires are shipped with default passwords. Users may set their own password (four-digit number). When setting a password, write it down and keep it in a secure location. Note, Philips Selecon does not have records of passwords established by users or owners. -
Page 19: Security Levels
PLFRESNEL1 LED Luminaires Installation & User’s Manual Step 3. Select a Level to change ( Level 1 PIN / Level 2 PIN / Level 3 PIN). Step 4. Press [OK] to edit using the [UP ARROW], [DOWN ARROW], [LEFT ARROW] or [RIGHT ARROW] keys to enter a four-digit password (using 0 to 9). -
Page 20: Editing Preset Names
PLFRESNEL1 LED Luminaires Installation & User’s Manual Preset 0, the "off" preset is also Locked to the OFF value. Protected Protected Presets are also Factory Calibrated, and by default are Protected from changes to their Color Mix. Their Intensity can be changed. Protected Presets are Presets 5-25. They can be Un-Protected by setting "Protected" to "No";... - Page 21 PLFRESNEL1 LED Luminaires Installation & User’s Manual General When the Fixture Powers-Up what does it Off, Scratch Pad, output. Scratch Pad is an automatically Warm White, Cool saved Preset. Last Set is the last thing Power-Up White, Day Light, Cool White coming out of the fixture, this could be Preset30, Preset31, Warm White with the intensity changed...
-
Page 22: 16-Bit Mode
PLFRESNEL1 LED Luminaires Installation & User’s Manual DMX CONTROL This section contains information for operating the luminaire using DMX control in 16-Bit, 8-Bit, or 3-Channel (3- Chan) modes. For Menu options and detailed information, see "Settings" on page Note: These tables assume a DMX start address of 1. When a different starting address is used, this address becomes channel 1 function and other functions follow in sequence. - Page 23 PLFRESNEL1 LED Luminaires Installation & User’s Manual Table 3: PLFRESNEL1 LED Luminaire DMX Channel Mapping (16-Bit Mode) Allows for luminaire timing of intensity. Profile should default to DMX 255 for smoothest Intensity Time 0 - 255 0 - 100% console fade times. Refer to "PLFRESNEL1 LED Luminaire DMX Timing Channel Detail"...
-
Page 24: 8-Bit Mode
PLFRESNEL1 LED Luminaires Installation & User’s Manual 2. 8-Bit Mode Table 2-1 provides DMX channel mapping of all DMX512 control values when the PLFRESNEL1 LED Luminaire is in 8-bit DMX512 mode (as set by the luminaire’s menu system). Table 2-1: PLFRESNEL1 LED Luminaire DMX Channel Mapping (8-Bit Mode) Default - recommended Parameter... - Page 25 PLFRESNEL1 LED Luminaires Installation & User’s Manual Table 2-1: PLFRESNEL1 LED Luminaire DMX Channel Mapping (8-Bit Mode) Used to set different modes, parameters, and functions of the luminaire. Set control channel value for desired action. Hold value for at least 3 seconds.
-
Page 26: Dmx Control
PLFRESNEL1 LED Luminaires Installation & User’s Manual 3. DMX 3-Channel (3-Chan) Mode Table 2-2 provides DMX channel mapping of all DMX512 control values when the PLFRESNEL1 LED Luminaire is in 3-Channel (3-Chan) DMX512 mode (as set by the luminaire’s menu system). Table 2-2: PLFRESNEL1 LED Luminaire DMX Channel Mapping (3-Chan Mode) Default - recommended... -
Page 27: Lighting Console Settings For Preset White
PLFRESNEL1 LED Luminaires Installation & User’s Manual 4. Lighting Console Settings for Preset White 16-Bit Mode Below are the DMX512 console values and levels* for Warm White, Cool White, and Day Light presets in 16-bit mode. Red Channel Green Channel Blue Channel White Channel White Preset... - Page 28 PLFRESNEL1 LED Luminaires Installation & User’s Manual Table 3: PLFRESNEL1 LED Luminaire Timing Channel Detail % Value = Seconds 0 (Full Speed) 10.2 DMX CONTROL...
- Page 29 PLFRESNEL1 LED Luminaires Installation & User’s Manual % Value = Seconds 10.4 10.6 10.8 11.2 11.4 11.6 11.8 12.2 12.4 12.6 12.8 13.2 13.4 13.6 13.8 14.2 14.4 14.6 14.8 15.2 15.4 15.6 15.8 16.2 16.4 16.6 16.8 17.2 17.4 17.6 17.8 18.2...
- Page 30 PLFRESNEL1 LED Luminaires Installation & User’s Manual % Value = Seconds DMX CONTROL...
- Page 31 PLFRESNEL1 LED Luminaires Installation & User’s Manual % Value = Seconds PLFRESNEL1 LED Luminaire DMX Timing Channel Detail...
- Page 32 PLFRESNEL1 LED Luminaires Installation & User’s Manual % Value = Seconds 250* 60mS 251* 80mS 252* 100mS 253* 120mS 254* 140mS 255* 160mS (default) Note: * DMX values 250 to 255 provide smoothing when using console fade timing. DMX value 255 (recommended default) will provide the smoothest timing.
-
Page 33: Cleaning And Care
PLFRESNEL1 LED Luminaire. These types of cleaners or solvents can permanently damage the optics or housings of the fixture. If you have any questions regarding the use or care of your PLFRESNEL1 LED Luminaire, please contact Philips Selecon technical support or your local Authorized Dealer. -
Page 34: Troubleshooting
1. Troubleshooting Guide The chart below provides possible causes and remedies for various error messages and/or symptoms. WARNING! Any service and maintenance (including troubleshooting), other than described herein should be performed by an Authorized Philips Selecon Dealer or Service Center. Description Symptom Possible Cause/Remedy Unit is set to Preset Off... -
Page 35: Technical Specifications
ETL / cETL Listed (North America models) and CE Marked (International models) Note: Common model specifications shown. For specific model specifications, features, and accessories, refer to the product specification sheet or visit the Philips Selecon web site at www.seleconlight.com for more details.
