5. Specifications

Max bowl diameter: 305 mm
Max between centres: 393 mm
Max swing over bed: 305 mm
Spindle speeds: 350, 670, 1025, 1500, 2225 & 3250 rpm
Motor:
230 V / 50 Hz / 1/2 hp / 375 W
Full load current:
2.6 A
Tailstock spindle travel: 60 mm
Thread: 3/4" x 16 TPI or M33 x 3.5 mm (please refer to machine specification label)
Taper: 1 or 2 Morse Taper (please refer to machine specification label)
Noise Emission: Sound power level < 83 dB (A)
Sound pressure level < 83 dB (A)
Size: L807 x W457 x H292 mm
Weight: 39 kg

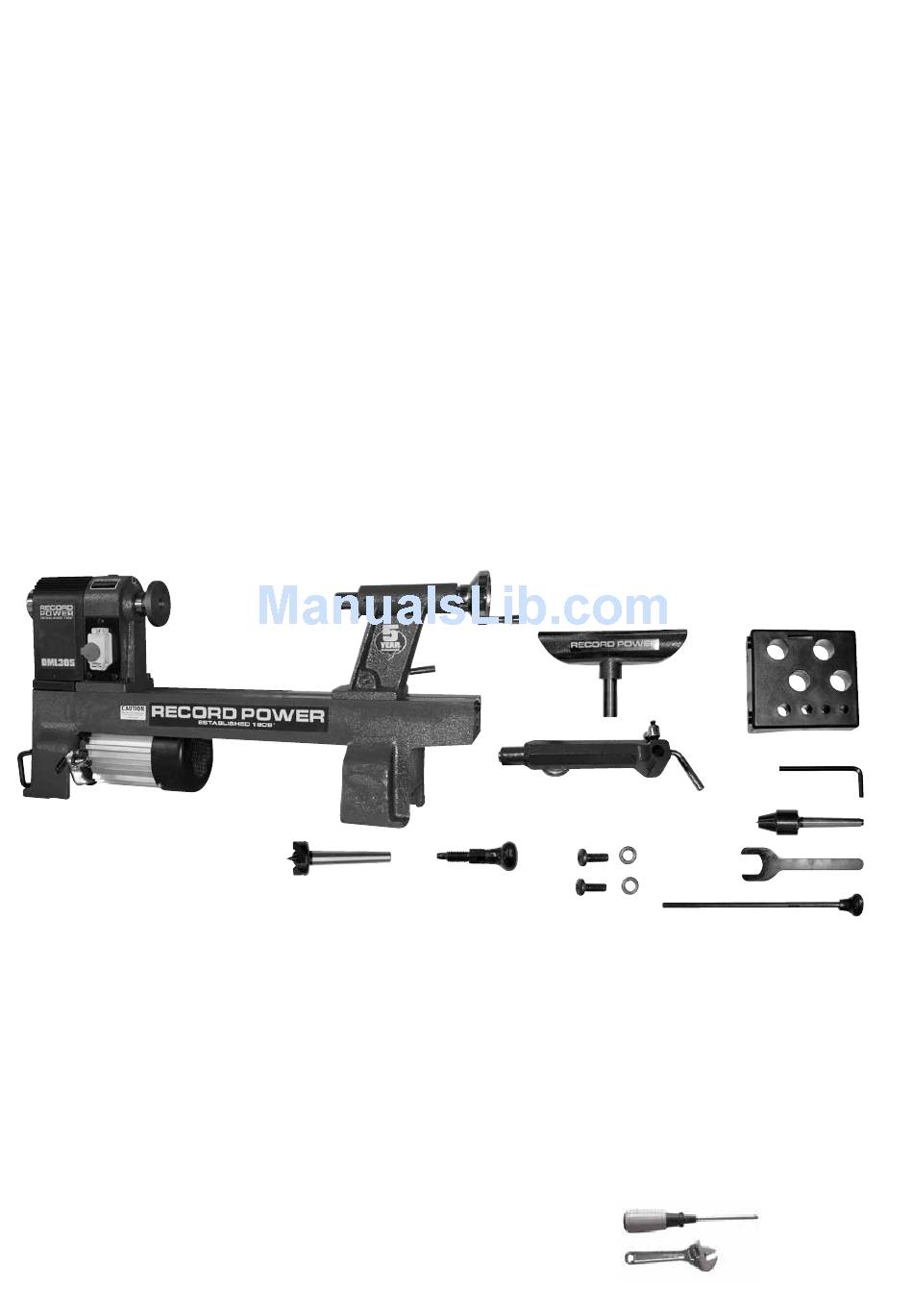

6. Contents of the Package

Item Description
A
Lathe with faceplate
and tailstock installed
B Knockout bar
C
Spindle wrench
D Tool rest
E Tool rest holder
Unpacking and Cleaning
1. Carefully lift the lathe from the carton and check that all of the components and contents have been
included. Place parts on a protected surface.
2. Clean all rust protected surfaces with kerosene or white spirit. Do not use gasoline, paint thinner,
mineral spirits, etc. These may damage painted surfaces. Make sure the area is well ventilated and
that there are no naked flames or sources of ignition.
3. Set packing material and shipping cartons aside. Do not discard until the machine has been set up
and is running properly.
8
A
Quantity Item Description
F
Revolving centre
1 G 4 prong drive centre
1 H Indexing assembly
I
1 4 mm hex wrench
1 J Tool holder
K Pan head screws and washers
G H
Quantity
D
E
K
1
1
1
1
1
2
Tools Required for Assembly
(Not Supplied)
J
I
F
C
B
Phillips screwdriver
Adjustable wrench
