TCXO-9 Unit (Option)

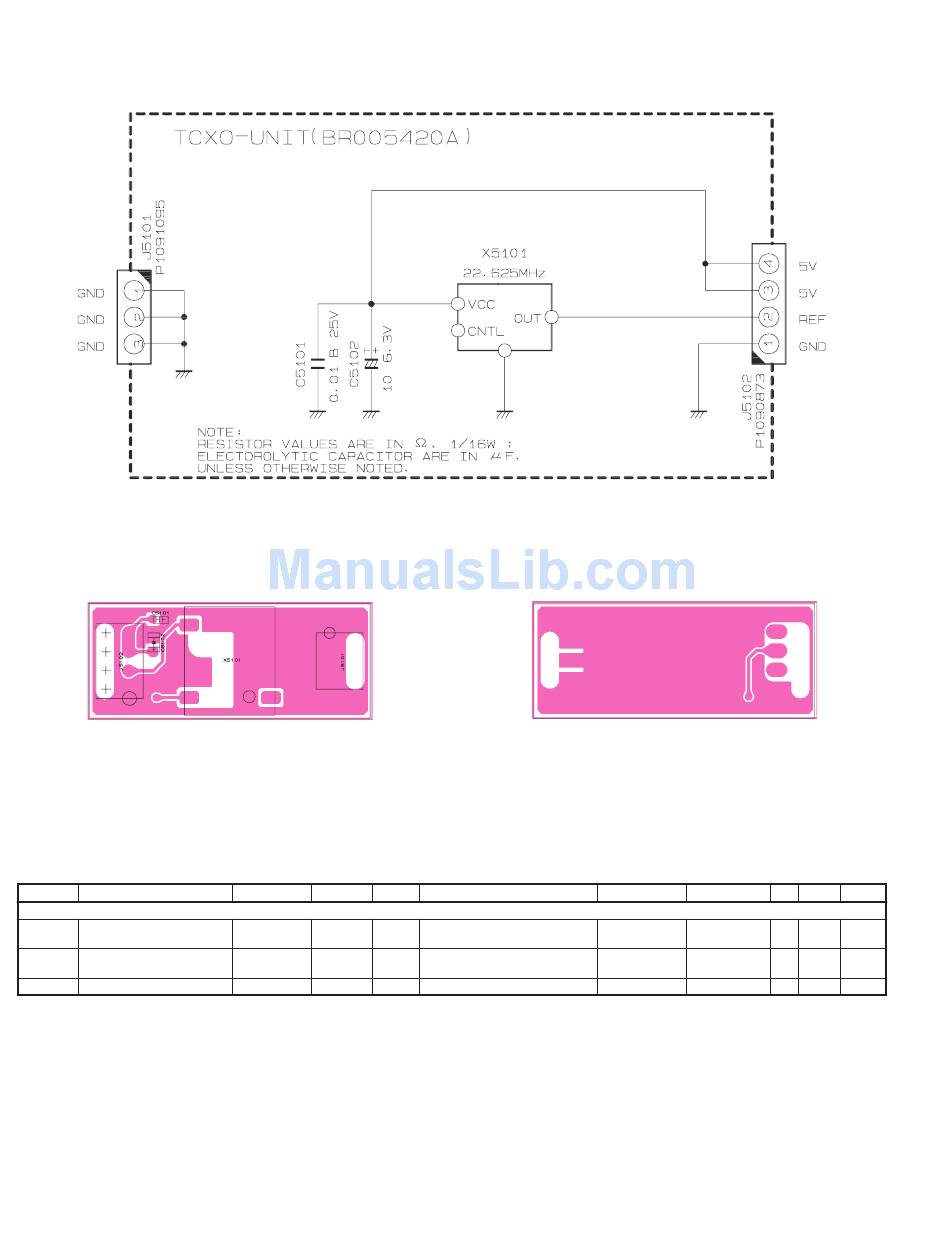

Circuit Diagram
Parts Layout
Parts List
REF DESCRIPTION
Printed Circuit Board
C 5101 CHIP CAP.
C 5102 CHIP TA.CAP.
J 5101 CONNECTOR
J 5102 CONNECTOR
X 5101 XTAL OSC
106
Side A
VALUE V/W TOL.
0.01uF 25V B
10uF 6.3V
22.625MHz
MFR'S DESIG VXSTD P/N
FR005860C
GRM39B103K25PT K22144803
TESVSP0J106M-8R K78080055
9117S-03D P1091095
9117S-04D P1090873
NTO-801BS 22.625MHZ H9500560
Side B
VERS. LOT SIDE LAY ADR
1-
1-
1-
1-
1-
1-
