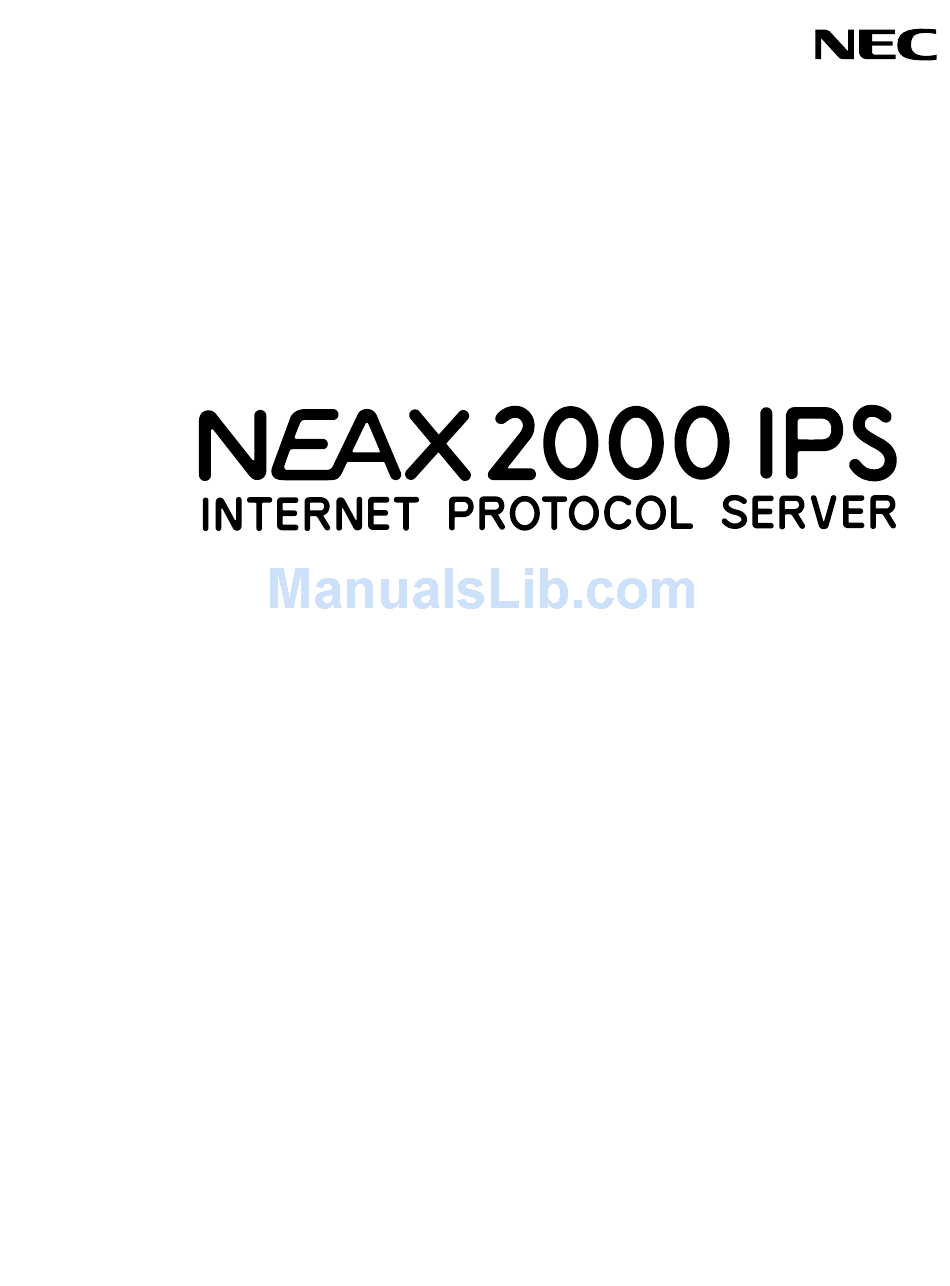

NDA-24347
ISSUE 1
STOCK # 152051
®

Configuration Guide

MAY, 2002
NEC America, Inc.

Advertisement

Table of Contents
loading

Related Manuals for NEC NEAX 2000 IPS

Summary of Contents for NEC NEAX 2000 IPS

  • Page 1: Configuration Guide

    NDA-24347 ISSUE 1 STOCK # 152051 ® Configuration Guide MAY, 2002 NEC America, Inc.
  • Page 2 NEC Corporation reserves the right to change the specifications, functions, or features, at any time, without notice. NEC Corporation has prepared this document for use by its employees and NEC subsidiary. The information contained herein is the property of NEC Corporation and shall not be reproduced without prior written approval from NEC Corporation.
  • Page 3 ISSUE No. PAGE No. ISSUE 1 DATE MAY, 2002 DATE ISSUE 5 DATE DATE NEAX 2000 IPS Configuration Guide PAGE No. ISSUE 2 DATE ISSUE 6 DATE ISSUE No. ISSUE 3 DATE ISSUE 7 DATE ISSUE 4 ISSUE 8 Revision Sheet 1/2...
  • Page 4 ISSUE No. PAGE No. ISSUE 1 DATE MAY, 2002 DATE ISSUE 5 DATE DATE NEAX 2000 IPS ConfigurationGuide PAGE No. ISSUE 2 DATE ISSUE 6 DATE ISSUE No. ISSUE 3 ISSUE 4 DATE ISSUE 7 ISSUE 8 DATE Revision Sheet 2/2...

  • Page 5: Table Of Contents

    NEAX 2000 Internet Protocol Server (IPS) ........
  • Page 6 NEAX 2000 IPS Circuit Cards ........
  • Page 7 System-based Device Registration Server (DRS) ........

  • Page 8: List Of Figures

    Figure 1-4 NEAX 2000 IPS MP and IP-PAD Configuration ......Figure 2-1 System Configuration with Dterm IP (512-Port Configuration) .
  • Page 9 Dterm IP Display (ID Registration with Password) ......NEAX 2000 IPS Configuration Guide...
  • Page 10 Traffic Capacity ............Table 8-7 System-based Device Registration Server (DRS) ......Page vi...

  • Page 11: Chapter 1 Introduction

    Interface Module (PIM), in the same manner as the NEAX 2000 IVS configuration, the NEAX 2000 IPS supports 512 LT ports which can be 448 Dterm IP telephones and 64 Legacy LT ports, and 256 ports for Legacy AP cards.

  • Page 12: Figure 1-2 Simplified View Of Neax 2000 Ips System Connectivity

    SLT/Dterm LC/DLC IP-PAD Switching HUB (100 Mbps) Dterm IP Switching Dterm IP Client PC Figure 1-2 Simplified View of NEAX 2000 IPS System Connectivity Chapter 1 Introduction NEAX 2000 IPS PSTN (via IPT: CCIS) Internet /Intranet IPT (H.323 Handler) H.323 GK...

  • Page 13: Neax 2000 Ips Highlights

    Time Division switching. The pure IP switching is provided for communications between Dterm IP telephones and for CCIS network with another NEAX 2000 IPS/2400 IPX (CCIS over IP). On the other hand, the TDM switching is provided for communications between Legacy stations/trunks.

  • Page 14: Figure 1-4 Neax 2000 Ips Mp And Ip-Pad Configuration

    • One-board Main Processor (MP) with Integrated Functionality NEAX 2000 IPS Main Processor (MP) is the heart of pure IP connections and TDM-based connections. The MP employs a high-speed CPU, which is equivalent with Pentium. With this processing power and System On Chip (SOC)
  • Page 15 Enhanced Built-in Firmware Processor (FP) on MP NEAX 2000 IVS three or more PIMs. In the case of the NEAX 2000 IPS, an FP in PIM 0 is not required since the Built-in FP function in the MP has been improved, providing more call processing capability.
  • Page 16 • Extended Application Processor (AP) Port Capacity The NEAX 2000 IPS provides maximum 256 AP ports and it is independent of the 512 ports for the Line/Trunk (LT). Therefore, more number of AP cards can be used in the system such as T1/E1 digital link.

  • Page 17: Chapter 2 System Configuration

    Chapter 2 System Configuration Port Interface Modules (PIMs) NEAX 2000 IPS consists of a number of Port Interface Modules (PIMs) depending on the system configuration. There are two types of PIMs: • Physical PIM • Virtual PIM The Physical PIM is a hardware PIM and is used to accommodate an MP, FPs, IP PADs, Legacy LT and AP cards, and power supply units.

  • Page 18: Figure 2-1 System Configuration With Dterm Ip (512-Port Configuration)

    PIM 6 PIM 1 PIM 5 PIM 1 PIM 5 PIM 0 PIM 4 PIM 0 PIM 4 512 LT ports + 448 LT ports + 0 Dterm IPs 64 Dterm IPs NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...

  • Page 19: Floor-Standing Installation

    Chapter 2 System Configuration Floor-standing Installation In Floor-standing Installation, the NEAX 2000 IPS is comprised of up to eight Port Interface Modules (PIMs). NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 PIM 1 PIM 0 PIM 0 BASE BASE (64 ports)

  • Page 20: Wall-Mounting Installation

    Wall-mounting Installation Wall-mounting Installation The NEAX 2000 IPS can be wall-mounted in a single or multiple PIM configuration. A maximum of eight PIMs can be mounted in this way. Page 10 Chapter 2 System Configuration Figure 2-3 Wall-mounting Installation NEAX 2000 IPS Configuration Guide...

  • Page 21: 19-Inch Rack-Mounting Installation

    Chapter 2 System Configuration 19-inch Rack-mounting Installation The NEAX 2000 IPS can be mounted in the IEC-standard 19-inch rack. A maximum of four PIMs can be mounted in this way. NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 Figure 2-4...

  • Page 22: System Outline

    System Outline System Outline The NEAX 2000 IPS is an IP communication system that integrates the voice terminals to the IP network through Peer-to-Peer connection. The system is a hybrid system to accommodate both IP multi-line terminals (Dterm IP) and the terminals used in Legacy PBXs (Legacy terminal).

  • Page 23: Station-To-Station Connection

    These cards are used to control and convert the voice data. The control signals are managed by the MP card in both types of connections. NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 Control Signal...

  • Page 24: Ccis Connection

    Dterm IP (Peer-to-Peer Connection) Figure 2-7 System Outline of CCIS Connection Chapter 2 System Configuration Legacy Terminal TDSW IP-PAD INTERNET/ INTRANAT (CCIS via IP) ROUTER Voice Data NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 LC/DLC Control Signal Dterm IP...

  • Page 25: H.323 Connection

    FP and FP Number 01-03 are set to Signaling Converter (Virtual FP) in default. • 64 ports are used per Virtual FP/AP number. • The DTMF sender signal width of Dterm/Dterm IP is 112-128 milliseconds. NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 TDSW Voice Signal H.323 IPT IP-PAD...

  • Page 26: Peer-To-Peer Connection

    • Dterm IP-to-Dterm IP connection (Peer-to-Peer connection) via CCIS is available only when the destination office is NEAX 2000 IPS or NEAX 2400 IPX. • The built-in CCH-IPT of MP card can be connected to a maximum of 127 trunks.

  • Page 27: Maintenance

    Chapter 2 System Configuration Conditions for Maintenance Maintenance • MATWorX can be used as the maintenance program for NEAX 2000 IPS. Direct connection (RS-232C), Modem connection and LAN (TCP/IP) connection are available to connect to the Maintenance Administration Terminal (MAT). •...

  • Page 28: Figure 2-9 Mounting Ip-Pad Card

    Note Note IP-PAD IP-PAD Figure 2-9 Mounting IP-PAD Card This slot must be vacant except for the VCT card. Chapter 2 System Configuration L/T must not be mounted L/T must not be mounted NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...

  • Page 29: Mounting Vct Card

    3. Mount the second VCT (VCT 1) card in the LT slots, next to the VCT 0 card. Note 1: Note 2: NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 PIM 0 - 7 IP-PAD...

  • Page 30: Mounting Conditions Of Ip-Pad/Vct Card

    (LT05 - LT11) LT/AP (LT08 - LT11) AP Only (LT08 - LT11) AP Only (LT05 - LT11) LT/AP (LT05 - LT11) LT/AP (LT08 - LT11) AP Only (LT08 - LT11) AP Only NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...

  • Page 31: Bus Cable Connection Between Ip-Pad And Vct Cards

    When two VCT cards are mounted, connect the VCT1B/VCT0B connector on the VCT card with the VCT1A/VCT0A connector on the next VCT card, one after another. Note: NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 BUS Cable Connection between IP-PAD and VCT Cards IP-PAD...

  • Page 32: Lan Cable Connection Of Ip-Pad Card

    Not used Not used Not used RD + TD - TD + Pins (RJ-45 Connector) Pins (RJ-45 Connector) Figure 2-12 IP-PAD - Switching HUB Cable Connection Chapter 2 System Configuration Switching HUB NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...

  • Page 33: Lan Cable Connection Of Ether Card

    Pins (RJ-45 Connector) Figure 2-13 ETHER - Router/Switching HUB Cable Connection The port number of the NEAX 2000 IPS for OAI is fixed to 60030 and for MAT is fixed to 60000. LAN Cable Connection of ETHER Card Router/Switching HUB...
  • Page 34 This page is for your notes. NEAX 2000 IPS Configuration Guide Page 24 NDA-24347, Issue 1...

  • Page 35: Chapter 3 Module And Installation Hardware

    Chapter 3 Module and Installation Hardware The NEAX 2000 IPS is comprised of up to eight Port Interface Modules (PIMs). For installing the PIMs in various installation methods, additional installation hardware is required. (Refer to the Modules A PIM provides 13 card slots for Common Control, Line/Trunk (LT), and Application Port Interface Processor (AP) cards.

  • Page 36: Figure 2-8

    Only 8PFT card can be mounted in this space. Other cards cannot be mounted. It is recommended that the LT00 slot should be used to mount the PZ-VM00-M (AD-8) card, if provided. *Note 2 Note 1 NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 Note 3...

  • Page 37: Battery Module (Battm)

    Bracket, 1.1 G shockproof is provided for a 1- to 3-PIM stack, and 0.5 G shockproof is provided for a stack of four or more PIMs. To enhance the shockproof capability to NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 Table 3-1 ABBR.

  • Page 38: Neax 2000 Ips

    For the purpose of simplifying orders, a Base/Top ASSEM includes a Power cable for PIM 0 and Label. Chapter 3 Module and Installation Hardware QUANTITY NEAX 2000 IPS Front Cover (Blue) Left Top Cover Triangle/Name Plate Left Top Cover Triangle/Name Plate One per Stack...

  • Page 39: Figure 3-3 Floor-Standing Installation

    Chapter 3 Module and Installation Hardware Installation Hardware TOP COVER COVER PARTS BASE Figure 3-3 Floor-standing Installation NEAX 2000 IPS Configuration Guide Page 29 NDA-24347, Issue 1...

  • Page 40: Figure 3-4 Wall-Mounting Installation

    Installation Hardware Chapter 3 Module and Installation Hardware HANGER ASSEM HOOK HOOK BASE SCREWS FRONT Figure 3-4 Wall-mounting Installation NEAX 2000 IPS Configuration Guide Page 30 NDA-24347, Issue 1...

  • Page 41: Figure 3-5 19-Inch Rack-Mounting Installation (Bracket A)

    Chapter 3 Module and Installation Hardware Installation Hardware Figure 3-5 19-inch Rack-mounting Installation (Bracket A) NEAX 2000 IPS Configuration Guide Page 31 NDA-24347, Issue 1...

  • Page 42: Figure 3-6 19-Inch Rack-Mounting Installation (Bracket B)

    Installation Hardware Chapter 3 Module and Installation Hardware BASE PLATE Figure 3-6 19-inch Rack-mounting Installation (Bracket B) NEAX 2000 IPS Configuration Guide Page 32 NDA-24347, Issue 1...

  • Page 43: Figure 3-7 Mounting Bracket

    Chapter 3 Module and Installation Hardware Installation Hardware FRONT SCREWS MOUNTING BRACKET Figure 3-7 Mounting Bracket NEAX 2000 IPS Configuration Guide Page 33 NDA-24347, Issue 1...

  • Page 44: Figure 3-8 I/F Bracket

    Installation Hardware Chapter 3 Module and Installation Hardware FRONT SIDE SCREW PIM 3 PIM 7 SCREW I/F BRACKET Figure 3-8 I/F Bracket NEAX 2000 IPS Configuration Guide Page 34 NDA-24347, Issue 1...

  • Page 45: Figure 3-9 Base Tray Assembly

    Chapter 3 Module and Installation Hardware Installation Hardware BASE TRAY Figure 3-9 Base Tray Assembly NEAX 2000 IPS Configuration Guide Page 35 NDA-24347, Issue 1...
  • Page 46 This page is for your notes. NEAX 2000 IPS Configuration Guide Page 36 NDA-24347, Issue 1...

  • Page 47: Chapter 4 Circuit Cards

    Chapter 4 Circuit Cards NEAX 2000 IPS Circuit Cards NEAX 2000 IPS circuit cards are divided into the following three types. According to these card types, the mounting location of the card and port allocation of the Time Division Switch varies.

  • Page 48: Table 4-1 Location Of Cards

    <If two IP PADs are used> Chapter 4 Circuit Cards TYPE OF CARD MOUNTED LT or AP PIM 0: MP PIM 2, 4, 6: FP PIM 1, 3, 5, 7: Not Used AP cards can be mounted NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...
  • Page 49 Chapter 4 Circuit Cards Note 2: PIM 0 PIM 1 - 7 NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 IP Trunk The Voice CODEC card (VCT) needs to be next to the IP Trunk card (IPT) or other VCT card due to cable length.
  • Page 50 Installation cable is inserted from BWB Chapter 4 Circuit Cards For the first two circuits, the installation cable is inserted from BWB. For the last two circuits, the cable is inserted from front side via connector. NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...

  • Page 51: Common Control Cards

    Chapter 4 Circuit Cards Common Control Cards Table 4-2 shows a summary of the common control cards for NEAX 2000 IPS. Table 4-2 ABBR. NAME CODE SPN-CP24A MP (UA) PN-CP24-A SP-3499 IXS KUL PROG-A1 SP-3643 IPS DTG-A1 IL-C2-1-0001 CONTACT ETHER...

  • Page 52: Main Processor (Mp)

    16 sets of 3-way conference circuitry 32 circuits (digit 0 to 9, *, and # are generated) Two types are available (Melody or External Source) Two ports (Source/Receiver) Four circuits NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 Note 1 Note 2...

  • Page 53: Figure 4-2 Port Allocation Of Time Division Switch

    Chapter 4 Circuit Cards NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 64 Ports 128 Ports/FP 64 Ports 64 Ports 128 Ports/FP 64 Ports 64 Ports 128 Ports/FP 64 Ports 64 Ports 128 Ports/FP 64 Ports 128 Ports 128 Ports...

  • Page 54: Firmware Processor (Fp)

    This card provides Ethernet interface between MP and LAN for call control of Dterm Ethernet Card IP telephones/CCIS over IP with another NEAX 2000 IPS/2400 IPX. It also provides interface for MATWorX and the OAI/ACD server. The FP provides supervision and status analysis of Line/Trunk ports, which reside in Firmware the PIM.

  • Page 55: Line/Trunk (Lt) Cards

    Chapter 4 Circuit Cards Line/Trunk (LT) Cards Table 4-3 shows a summary of the Line/Trunk (LT) cards for NEAX 2000 IPS. The LT cards may be installed in Slot 00 to 11 of PIM 0-7, with the following conditions: •...

  • Page 56: Figure 6-6

    • For Caller ID (for SLT) • Maximum of four per system. 6-/10-Party Conference Trunk with Amp 150120 • 6-party (one CFTB card): 10 ports • 10-party (two CFTB cards): 20 ports Chapter 4 Circuit Cards REMARKS NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...
  • Page 57 SPN-2CSIA SP-3174 BSI PROG-A SPN-2CSIH SP-3174 BSI PROG-A Optical PN-M10 Modem DK00 PN-DK00 NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 Line/Trunk (LT) Cards (Continued) PART PORT NUMBER 4-circuit Digital Announcement Trunk 150015 • Maximum of 120 seconds each. 151210...
  • Page 58 • One V35 Interface per card NEAXMail AD-8 with Modem 151113 • Uses four LT Time Slots 4-port Expansion 151272 • For NEAXMail AD-8 • Uses an additional four LT Time Slots Chapter 4 Circuit Cards REMARKS NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...

  • Page 59: Application Processor (Ap) Cards

    Chapter 4 Circuit Cards Application Processor (AP) Cards The following table shows a summary of the Application Processor cards for NEAX 2000 IPS ABBR. NAME CODE SPN-24DTAC-B (AP) SC-3015 IXS PRT PROG-C1 SPN-30DTC-UA (AP) SC-2694 SHS DTC PROG-CB SP-3395 SHS PAD PROG-A...
  • Page 60 VCT per card, maximum 16 channels per card) system /NEAX 2400 IMX (without Peer-to-Peer connection) (In case of G.729a payload 40 milliseconds: three VCT per card, maximum 12 channels per card) system NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...
  • Page 61 The AP cards may be installed in Slot 00 to 11 of PIM 0-7, with the following conditions: Note: • Maximum 24 cards per system • Maximum 256 ports per system NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 Application Processor (AP) Cards (Continued) PART...
  • Page 62 This page is for your notes. NEAX 2000 IPS Configuration Guide Page 52 NDA-24347, Issue 1...

  • Page 63: Chapter 5 System Power Supply

    The DC/DC Power card is mounted under the AC/DC Power card and generates -48 V power, which is used to power ancillary devices such as Wireless and Analog Caller ID stations. ABBR. NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 Table 5-1 AC/DC Power Card...

  • Page 64: Battery Backup

    Figure 5-1 Table 5-3 NAME PART CODE NUMBER PZ-8PFTB 150119 Chapter 5 System Power Supply CHAMP CONNECTOR ATTACHED TO PZ-8PFTB 25-PAIR CABLE TO MDF PZ-8PFTB Installation PZ-8PFTB REMARKS 8-line PFT Card per PIM NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...

  • Page 65: Chapter 6 Cabling

    Chapter 6 Cabling The internal and external cabling of the NEAX 2000 IPS is as follows: • Internal Cabling • • • • • External Cabling • • • • • • • • • NEAX 2000 IPS Configuration Guide...

  • Page 66: Internal Cabling

    Figure 6-1 BUS Cable Connection Table 6-1 NAME CODE 48-TW-0.7 CONN CA Chapter 6 Cabling PIM 7 PIM 6 PIM 5 PIM 4 BUS Cable PART REMARKS NUMBER 151013 2.3 ft. (0.7 m) NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...

  • Page 67: Power Control Cable

    The DC power cable provides a connection between the AC/DC power supply for DC Power Cable extending the 27 VDC input in a multiple-PIM configuration, when battery backup option is required. An Internal Battery is installed in every PIM. NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 Table 6-2 PART NAME CODE...

  • Page 68: Figure 6-3 Power Cable Connection (External Battery Option)

    Chapter 6 Cabling REMARKS DC Power Cable (-27 V input) Internal Battery Cable PIM 7 PIM 6 PIM 5 PIM 4 To Battery REMARKS DC Power Cable (-27 V input) External Battery Cable NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...

  • Page 69: Ac Cord

    Chapter 6 Cabling The AC cord provides a connection between the AC/DC power card and base unit. AC Cord Base Unit SYMBOL NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 PIM 3 PIM 2 PIM 2 PIM 0 To Base Unit...

  • Page 70: External Cabling

    OAI Server (Maximum of four) CCIS over IP via IP Network (Linked with distant NEAX 2000 IPS) REMARKS IP TRK BUS Cable • 0.33 ft. (0.1 m) (Included in SPN-16VCTA IP PAD) NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...

  • Page 71: Table 6-7 Ip Bus Cable (Ipt)

    Chapter 6 Cabling IP Trunk (H.323, CCIS over IP with NEAX 2000 IVS NAME CODE IP TRK BUS CA NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 10 BASE-T/100 BASE-TX (Local Supply) 4VCT IP TRK BUS CA 4VCT Figure 6-6...

  • Page 72: Attendant Console

    LTC 0 LTC 3 Installation Cable with 8DLCP: Maximum 984 ft. (300 m) with 4DLCM/4DLCQ/2DLCN: Maximum 3937 ft. (1200 m) Figure 6-7 Attendant Console Cable Connection Chapter 6 Cabling SN716 DESKCON SN716 DESKCON NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...

  • Page 73: Maintenance Administration Terminal (Mat) (Rs-232C)

    Direct Connection Maintenance Administration Terminal (MAT) (RS-232C) MAT CA-T MAT CA-P NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 RS 1 RS 0 MAT CA-P 13.0 ft. (4 m) MAT CA-T 6.5 ft. (2 m) Figure 6-8 MAT Cable Connection (Direct)

  • Page 74: Figure 6-9 Mat Cable Connection (Remote Connection Via Internal Modem)

    MAT Cable (Remote Connection via External Modem) NAME CODE PART NUMBER 151004 Chapter 6 Cabling Installation Cable MODEM PSTN 25p DSUM (M) MODEM PSTN MODEM REMARKS RS-232C Cable, 13.1 ft. (4 m) NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...

  • Page 75: Built-In Smdr/Mci On Mp

    Number 0/1 Port: Asynchronous: 1200/2400/4800/9600/19200 bps Connection to SMDR is made on a port basis by a front cable. RS RVS-4S CA-C RS NORM-4S CA-A NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 RS 0 RS 1 RS RVS-4 CA-C...

  • Page 76: Smdr (With Ap00)/Pms/Hotel Printer/Mci/Ccis Centralized Smdr

    25p DSUB (M) REMARKS RS-232C Cable, 13.1 ft. (4 m) PN-AP00 - DTE RS-232C Cable, 13.1 ft. (4 m) PN-AP00 - DCE (MODEM) RS-232C Cable, 49.2 ft. (15 m) PN-AP00 - Printer NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...

  • Page 77: External Alarm Display

    Chapter 6 Cabling The NEAX 2000 IPS can provide an optional external alarm display unit (ALM External Alarm DSPP) to indicate Power-ON/OFF, Major Alarm, and Minor Alarm status. Display NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 Slot 13 LTC0...

  • Page 78: Digital Trunk Interface (Dti)/Primary Rate Interface (Pri)/Ccis Trunk Interface (Cct)

    Slot 00 to 11 LTC 1 LTC 3 LTC 0 LTC 2 Installation Cable Installation Cable (Twisted-pair Cable) (Twisted-pair cable) Figure 6-14 DTI Cable Connection (Twisted-pair Cable) Chapter 6 Cabling MUX . Digital Network NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...

  • Page 79: Data Port Controller (Dpc)

    Controller (DPC) V.11/X21 Interface (Asynchronous/Synchronous: 600 ~ 64 kbps) DPC V11 CA DPC RS CA NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 V.11/X21 Interface (Asynchronous/Synchronous: 600 - 64 kbps) Slot 00 to 11 DPC V11 CA 13.1 ft.

  • Page 80: Dpc And X.21/V.35 Converter

    17-TW-0.3 CONN CA-A 1 ft. (0.3 m) DPC V35 CA 13.1 ft. (4 m) REMARKS Data Port Controller V.11 (X.21) • For 56 kbps (Synchronous) • Distance (PN-2DPCB-DTE): 3,280.8 ft. (1,000 m) V35 Interface Card NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...

  • Page 81: Chapter 7 Dterm Ip

    When the data server (such as System-based DRS, Network-based DRS on the LAN, DHCP Server and FTP/TFTP Server) is used, the Dterm IP must be connected to the LAN that accommodates the servers. Connect the Dterm IP to the LAN before you follow the procedure below.

  • Page 82: Table 7-1 User Menu Items

    Enter the Subnet Mask. • When the DHCP server gives the Subnet Mask, or when no Subnet Mask is required, this setting is not required. NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...
  • Page 83 Priority Number 0-7 System Information For the IP Address of the DNS server, ask the network administrator. Only VLAN tag is available. Do not set the VLAN ID Number 0 and 1. Menu items. To display Administrator Menu, stay in the User Menu and press Hold, #, 0 keys in that order.
  • Page 84 DRS System-based. Note 1 Note 2 No setting is required. Enter the DRS Self-port number. Note 1 LM Self-port setting is not required. Enter the DRS Self-port number. Note 1 NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...
  • Page 85 To operate the Dterm IP normally, you must not change the port number, which has been set except when the port number needs to be changed. For the port number of the DRS System-based, ask the NEAX 2000 IPS maintenance person.

  • Page 86: Dterm Ip Login/Logout

    Dterm IP Display (ID Registration without Password) After the first registration, Login operation is not required. Figure 7-2 Dterm IP Display (ID Registration with Password) Chapter 7 Dterm IP S e t NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...

  • Page 87: Dterm Ip Logout

    STEP 1: Go off-hook or press Speaker key. Dterm IP Logout STEP 2: Enter the logout access code assigned by CM20 or press the logout key NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 Time and date appears on the LCD.
  • Page 88 This page is for your notes. NEAX 2000 IPS Configuration Guide Page 78 NDA-24347, Issue 1...

  • Page 89: Chapter 8 System Capacity

    Central Office Trunk (Lines) Tie Line Trunk (Lines) CCIS Trunk (Peer-to-Peer Connection) DTI/CCIS Digital Link Note 1 NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 Table 8-1 Main Processor (MP) System SYSTEM CAPACITY 1 PIM 2 PIM 3 PIM 4 PIM 5 PIM 6 PIM 7 PIM 8 PIM...
  • Page 90 Maximum one interface port per system Maximum one interface port per system Chapter 8 System Capacity Note Note 2 Maximum 32 circuits per system Maximum eight sets per system 1,000 3,000 1,024 10,000 1,280 NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...
  • Page 91 20 ms 30 ms 40 ms VoIP (H.323) PAYLOAD SIZE 20 ms 30 ms 40 ms ACD/MIS and OAI are mutually exclusive. Note 5: NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 G.729a G.711 8-Channel 8-Channel 16-Channel 16-Channel 16-Channel 16-Channel G.729a...

  • Page 92: Floor-Standing Installation Equipment

    Page 82 1 PIM 2 PIM 3 PIM 4 PIM 5 PIM 6 PIM 7 PIM 8 PIM INTERNAL BATT EXTERNAL BATT Chapter 8 System Capacity NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...

  • Page 93: Lt/Ap Card Slots

    When the system is comprised of more than two PIMs, vacant slots exist in Slot 12 (MP Slot) of PIM 1, 3, Note 3: 5, and 7. NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 Number of Slots for LT/AP Cards of each PIM...

  • Page 94: Line Conditions

    3,937 ft. (1,200 m) 3,937 ft. (1,200 m) Same as Dterm Series E 984 ft. (300 m) Note 3 1,148 ft. (350 m) 3,937 ft. (1,200 m) 1,148 ft. (350 m) 3,937 ft. (1,200 m) NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1...

  • Page 95: Zone Transceiver Line Conditions

    Zone Transceiver requires -48 V power under normal conditions. PBX power supply at -45 V and -43 V Note: shows ZT Line Conditions in the event of lower voltage status (refer to NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 Zone Transceiver Line Conditions...

  • Page 96: Traffic Capacity

    TCP PORT NUMBER Chapter 8 System Capacity 5 PIM 6 PIM 7 PIM Maximum Maximum 7,500 BHCA 8,000 BHCA Note Note REMARKS Use blank as a password 60000 (Fixed) 60030 (Fixed) NEAX 2000 IPS Configuration Guide NDA-24347, Issue 1 8 PIM...
