Clas Ohlson AX300 Instruction Manual

Timer Switch

Art.no 32-8618 Model AX300
Please read the entire instruction manual before use and save
it for future reference. We reserve the right for any errors in text
or images and for making any necessary technical changes to
this document. If you should have any questions concerning
technical problems please contact our Customer Services.

Description

• Ideal for extra security, energy saving and convenience.
• Programmable for 20 ON/OFF settings.
• Timer with countdown.
• 3 RANDOM functions.
• 12/24 hour clock.
• Max. load 16 A, 3680 W.
• The time switch is only intended for indoor use in dry areas.

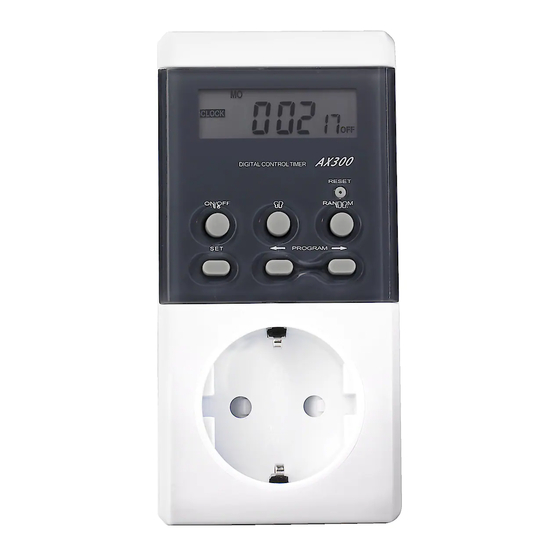

AX300 Timer Switch

Disposal

Follow local ordinances when disposing of this product.
If you are unsure about how to dispose of this product
contact your municipality.
GREAT BRITAIN • customer service tel: 08545 300 9799 e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.com/uk

Batteries

1 Remove the battery cover on
the back. (Pry open carefully at
the depressions).
Insert the two button cell batteries
2
LR44, supplied, between the contacts
according to the markings.
Replace the cover (make sure that the long battery
3
contacts are inside the battery compartment).
Setting the clock
1
Go to Clock, using the arrows [ ← → ].
2
Push [ SET ].
Set the day using the arrows [ ← → ]
3
(Mo,Tu, We, Th, Fr, Sa, Su) (Monday – Sunday).
4
Push [ SET ].
Set the hour using
5
the arrows [ ← → ].
6
Push [ SET ].
Sets the minutes
7
using the arrows[ ← → ].
2
4 6 8
8
Push [ SET ].
9
Set the seconds using the arrows [ ← → ].
10
Push [ SET ].
• Push [ RANDOM ] whilst in the time setup mode to change
between 12/24 hour display.
• Push both arrows at the same time for 3 seconds in
the CLOCK mode to change to summer time. The hour
setting will advance an hour and the sun symbol lights up on
the display. Push both arrows at the same time for 3 seconds
in the CLOCK mode to return to normal time.
Programming the timer
1
You can programme up to 20 on/off operations. The following
example shows how this is done:
Setting programme 1
2
It will switch on at 08:15 hrs Monday and switch off at 15:45 hrs
on Monday: MO 8:15 ON / MO 15:45 OFF.
1
Push the arrows [ ← → ] until the display shows "PROG 1 ON".
2
Push [ SET ]. The display will now show "SET" and the day
of the week will flash.
Push the arrows [ ← → ] to choose
3
the day/s to activate PROG 1.
The days will appear one at a time,
in order MO to SU (Monday to
Sunday), then all days MO – FR
(from Monday to Friday), then all
days MO - SA (Monday – Saturday),
then the weekend (Saturday –
Sunday) and finally all week, MO –
SU (Monday to Sunday). The day in
the example is Monday (MO).
4
Push SET when the display shows "MO".
The hours will now start to flash. Adjust the hour using
5
the arrows [ ← → ] until you get the hour 8.
6
Push [ SET ].
3 5 7 9
10
7 The minutes will now start to flash. Adjust them to 15
using the arrows [ ← → ].
Push SET to exit the setup of PROGRAM 1 ON. Push
8
the arrows [ ← → ] until the display shows "PROG 1 OFF".
Set the day and the time in the same way.
• If you want to programme several programmes, push
the arrows [ ← → ] until the display shows "PROG 2 ON".
You can set the desired number of programmes in
the same way.
• If no button is pushed for one minute, the timer switch will
return to clock display mode.
• The programmes are organised in a cycle with the clock
and countdown functions
count down funktion.
1
3 5 7
2 4 6 8
CLOCK → Program 1-20 →
CD
