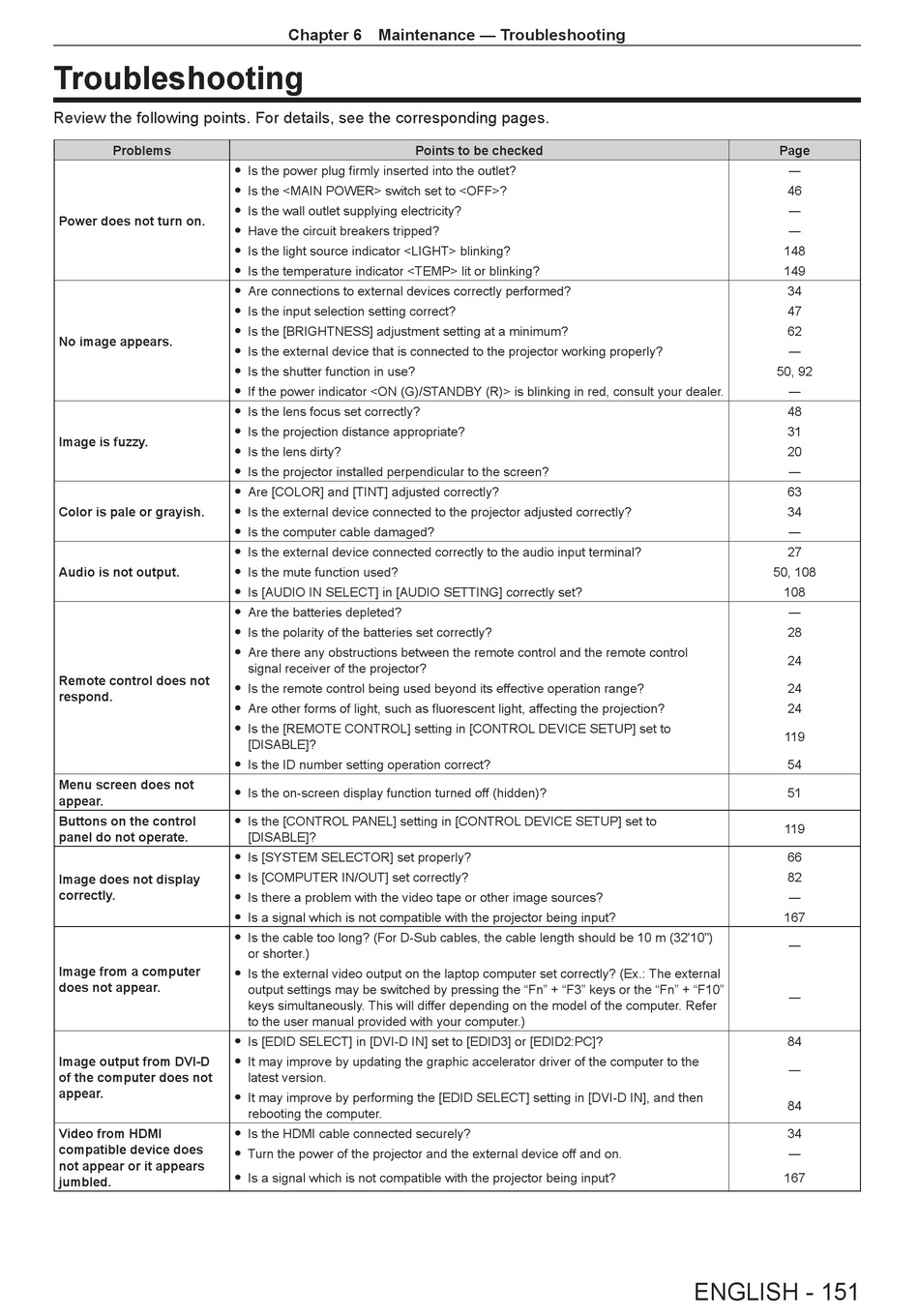

Troubleshooting

Review the following points. For details, see the corresponding pages.
Problems
Power does not turn on.
No image appears.
Image is fuzzy.
Color is pale or grayish.
Audio is not output.
Remote control does not
respond.
Menu screen does not
appear.
Buttons on the control
panel do not operate.
Image does not display
correctly.
Image from a computer
does not appear.
Image output from DVI-D
of the computer does not
appear.
Video from HDMI
compatible device does
not appear or it appears
jumbled.
Chapter 6 Maintenance — Troubleshooting
f Is the power plug firmly inserted into the outlet?
f Is the <MAIN POWER> switch set to <OFF>?
f Is the wall outlet supplying electricity?
f Have the circuit breakers tripped?
f Is the light source indicator <LIGHT> blinking?
f Is the temperature indicator <TEMP> lit or blinking?
f Are connections to external devices correctly performed?
f Is the input selection setting correct?
f Is the [BRIGHTNESS] adjustment setting at a minimum?
f Is the external device that is connected to the projector working properly?
f Is the shutter function in use?
f If the power indicator <ON (G)/STANDBY (R)> is blinking in red, consult your dealer.
f Is the lens focus set correctly?
f Is the projection distance appropriate?
f Is the lens dirty?
f Is the projector installed perpendicular to the screen?
f Are [COLOR] and [TINT] adjusted correctly?
f Is the external device connected to the projector adjusted correctly?
f Is the computer cable damaged?
f Is the external device connected correctly to the audio input terminal?
f Is the mute function used?
f Is [AUDIO IN SELECT] in [AUDIO SETTING] correctly set?
f Are the batteries depleted?
f Is the polarity of the batteries set correctly?
f Are there any obstructions between the remote control and the remote control
signal receiver of the projector?
f Is the remote control being used beyond its effective operation range?
f Are other forms of light, such as fluorescent light, affecting the projection?
f Is the [REMOTE CONTROL] setting in [CONTROL DEVICE SETUP] set to
[DISABLE]?
f Is the ID number setting operation correct?
f Is the on-screen display function turned off (hidden)?
f Is the [CONTROL PANEL] setting in [CONTROL DEVICE SETUP] set to
[DISABLE]?
f Is [SYSTEM SELECTOR] set properly?
f Is [COMPUTER IN/OUT] set correctly?
f Is there a problem with the video tape or other image sources?
f Is a signal which is not compatible with the projector being input?
f Is the cable too long? (For D-Sub cables, the cable length should be 10 m (32'10")
or shorter.)
f Is the external video output on the laptop computer set correctly? (Ex.: The external
output settings may be switched by pressing the "Fn" + "F3" keys or the "Fn" + "F10"
keys simultaneously. This will differ depending on the model of the computer. Refer
to the user manual provided with your computer.)
f Is [EDID SELECT] in [DVI-D IN] set to [EDID3] or [EDID2:PC]?
f It may improve by updating the graphic accelerator driver of the computer to the
latest version.
f It may improve by performing the [EDID SELECT] setting in [DVI-D IN], and then
rebooting the computer.
f Is the HDMI cable connected securely?
f Turn the power of the projector and the external device off and on.
f Is a signal which is not compatible with the projector being input?
Points to be checked Page
―
46
―
―
148
149
34
47
62
―
50, 92
―
48
31
20
―
63
34
―
27
50, 108
108
―
28
24
24
24
119
54
51
119
66
82
―
167
―
―
84
―
84
34
―
167
ENGLISH - 151
