Page 1: Instruction Manual

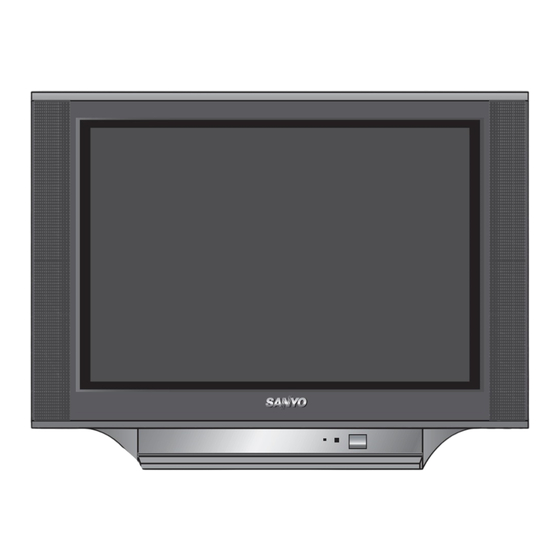

CM29FS2 INSTRUCTION MANUAL CM29FS2A CA29FS2 Colour Television CP29FS2 Slim Flat Screen A2 & Digital NICAM Stereo Surround Sound System Video Component Input Terminal... -
Page 2: Warnings And Cautions
Warnings and Cautions Caution Warning When the television receiver is not used for an High voltages are used in the operation of this extended period of time, it is advisable to discon- television receiver. Do not remove the cabinet nect the AC power cord from the AC outlet. back from your set. -
Page 3: Installation
Installation STEP 1 Connecting the aerial Use one of these methods to connect a signal to your TV. Following connection examples are our recommended standard connection. For further information please consult your local dealer. AV1 INPUT AV3 / DVD S-WOOFER MONITOR INPUT AUDIO... -
Page 4: Control Panel
Each button on the control panel has the same function Control Panel with its counterpart on the remote control Press to open Mains ON/OFF button Remote Control Detector Stand-by and Power Indicator VIDEO L-AUDIO-R TV/AV MENU Headphone Jack (Mini Stereo Jack) Programme UP/DOWN Video Input Jack (AV2) VOLUME... -
Page 5: Remote Control
Remote Control TV/AV Selector Button TV / AV POWER ON/OFF button TIMER Sound MUTE button RECALL/Colour System button TIMER button NUMERIC buttons DIGIT button ALTERNATE button -/- - -/- - SWAP button SOUND Mode button SWAP SOUND PROGRAMME UP button VOLUME (-) button VOLUME (+) button MENU... -
Page 6: General Operation
General Operation Power ON/OFF(Stand by) TV/AV Selector Press repeatedly to switch to TV, AV1, AV2 TV / AV Press the Power ON/OFF button to turn on or DVD/AV3(VIDEO) mode. or off (Stand-by) the TV set. Lighting of the Stand-by and Power Indicator shows Sound Mute that there is a power supply. - Page 7 General Operation Active 3D Surround Stereo, NICAM Stereo Bilingual Broadcast Receiving This provides incredible SURROUND 3 Dimensional Surround sound effect. A2 Stereo and NICAM Stereo sound reception Press the SURROUND button to select the fol- When receiving NICAM stereo broadcast, NICAM lowing modes.
-
Page 8: Menu Operation
Menu Operation The on-screen menu provides the viewer with easy Press to adjust. access to adjustments and settings. • BALANCE : Left and Right speaker volume balance MAIN MENU adjustment. SOUND PICTURE • SOUND PRESET (Sound Mode Selection): SETTING Enable to select the suitable sound adjustment PRESET (PERSONAL, MUSIC, TALK, NORMAL). -
Page 9: Setting Menu
Menu Operation Your picture adjustment will be memorized to Select an item with “PERSONAL” of the Picture preset automati- cally. Press to adjust. EQUALIZER Press the MENU button repeatedly to exit. 100 Hz 300 Hz Setting Menu 1 KHz 3 KHz Off Timer 8 KHz Press... - Page 10 Menu Operation Follow step 1~2 of the setting OFF-TIMER Press to display “SETTING” menu. above. Select “PROGRAM SWAP” with Press to select ON TIMER. Enter numbers of desired time period directly Press to display PROGRAM SWAP. by pressing NUMERIC button, with maximum For example, to swap the channel between pro- time period are 24:00 hours.
- Page 11 Menu Operation OSD (On Screen Display) Language SVM (Scan Velocity Modulation) There are 7 languages (ENGLISH, FRENCH, Use SVM mode to Provide a sharp and crisp pic- RUSSIAN, PORTUGUESE, INDONESIAN, PER- ture. SIAN, ARABIC) for TV’s OSD (On-Screen Display) Press button, then select...
- Page 12 Menu Operation Automatic Tuning You can either... Press button, then select MENU a) Enter the frequency using the 0-9 buttons referring channel table. “PRESET” menu with PRESET Press to display “PRESET” menu, AUTO TUNING and “AUTO TUNING” will be selected first. POSITION FREQUENCY 6 - - .
- Page 13 Private Position / Hotel Mode Setting of the Skip Channels Cancelling of the Private Position If there are positions you do not use, by setting To watch the programme of private position, skip channel function, it is possible to jump over cancel the setting of private position .
- Page 14 Teletext Cancel TV / AV To view the TV picture in the teletext mode. Reveal switch TIMER To reveal hidden items on the text page. Direct access to a page To select a page number directly using the (0-9) NUMERIC button. e.g. To select page Size switch 301, press 3 , then 0 and then 1.
- Page 15 Connection Other Equipment Rear Terminal Panel AUDIO input terminal (right) - AV3 External Sub Woofer output terminal AV1 INPUT AV3 / DVD S-WOOFER MONITOR INPUT AUDIO input terminal (left) - AV3 AUDIO input terminal (right) - AV1 COMPONENTVIDEO input terminal (C AUDIO S-WOOFER AUDIO...
- Page 16 Connection Other Equipment Connecting to a DVD Player with Connecting to a DVD Player (Both S-VIDEO Terminal Used DVD and AV3) Connecting to a DVD Player with Video To Audio Input-R (AV1) AV1 INPUT AV3 / DVD S-WOOFER MONITOR Component Video Output Terminal (Y, C or C INPUT AUDIO...
-
Page 17: Antenna Jack
Connection Other Equipment Press to display “SETTING” menu. AV1 INPUT AV3 / DVD S-WOOFER MONITOR INPUT Then Select “AV3” with AUDIO S-WOOFER AUDIO To Audio Output-R AUDIO SETTING To Audio Output-L (MONO) TIMER OSD LANGUAGE ENGLISH (MONO) VIDEO TEXT LANGUAGE ENGLISH S-VIDEO To Video Output... -
Page 18: Specifications
CATV: S1-S41, X, Y, Z, Z+1, Z+2 Aerial input impedance 75 Ω Audio output (RMS) : 7.5 W + 7.5 W (All Models) Speakers Model : CM29FS2/A : Main : 6 x 12 cm x 2 pcs Tweeter : ø 5 cm x 2 pcs. -
Page 19: Helpful Hints
Helpful hints NO PICTURE, NO SOUND Check if TV is plugged in. Try a different channel, if OK, probably station trouble. POOR PICTURE, SOUND OK Adjust BRIGHTNESS control. Adjust FINE TUNING control. Check aerial connections NO COLOUR, PICTURE OK Adjust COLOUR control. Adjust FINE TUNING control. - Page 20 Part No. 1AA6P1P5002-A C8ZRL-A (FB1-B) SANYO ELECTRIC Co., Ltd.
