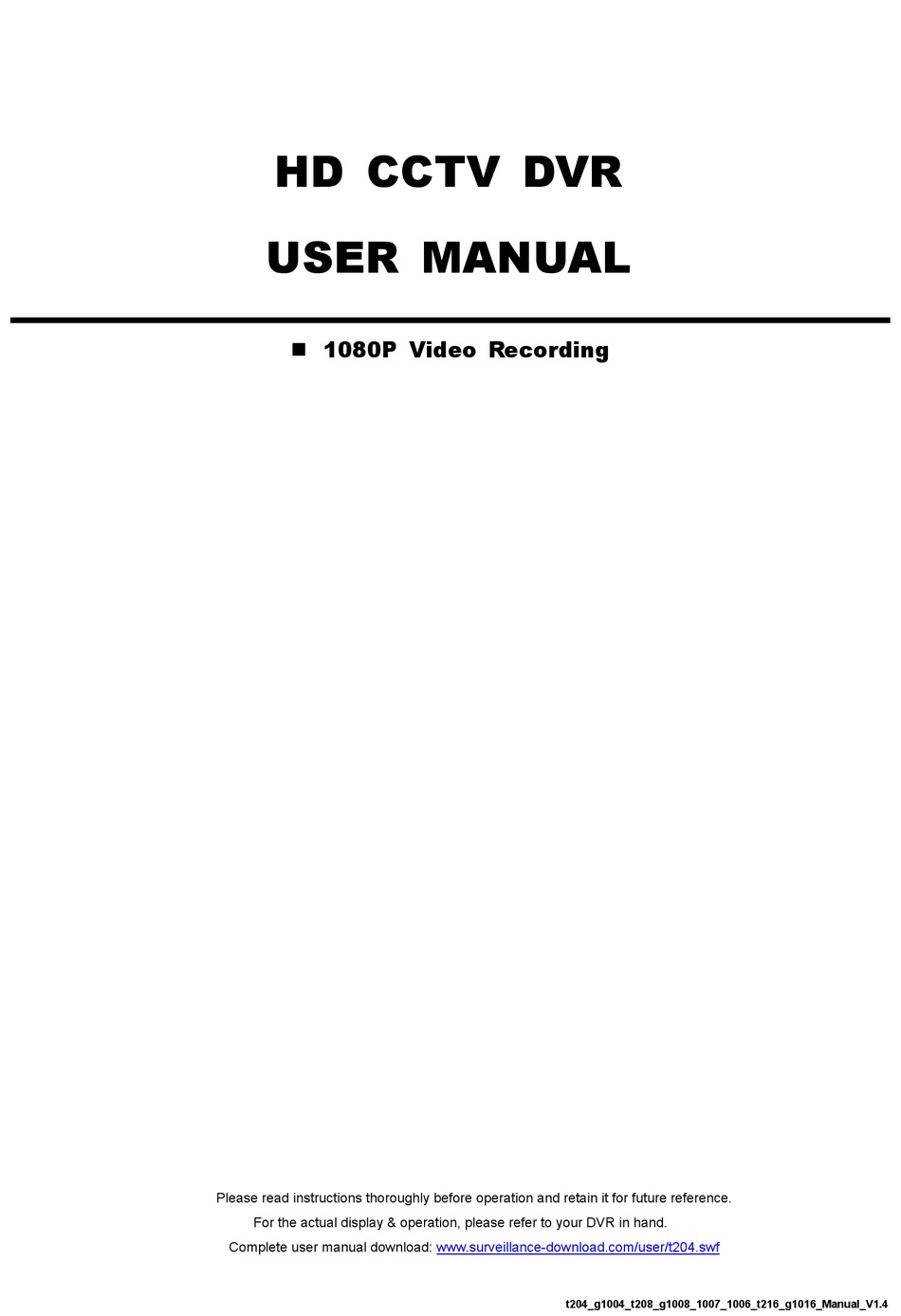

HD CCTV DVR
USER MANUAL
1080P Video Recording
Please read instructions thoroughly before operation and retain it for future reference.
For the actual display & operation, please refer to your DVR in hand.
Complete user manual download:
www.surveillance-download.com/user/t204.swf
t204_g1004_t208_g1008_1007_1006_t216_g1016_Manual_V1.4
Advertisement
Table of Contents
Related Manuals for Avtech DG1015
Summary of Contents for Avtech DG1015
-
Page 1: User Manual
HD CCTV DVR USER MANUAL 1080P Video Recording Please read instructions thoroughly before operation and retain it for future reference. For the actual display & operation, please refer to your DVR in hand. Complete user manual download: www.surveillance-download.com/user/t204.swf t204_g1004_t208_g1008_1007_1006_t216_g1016_Manual_V1.4... -
Page 2: Trademark Acknowledgements
IMPORTANT SAFEGUARD CAUTION RISK OF ELECTRIC SHOCK CAUTION: To reduce the risk of electric shock, do not expose this apparatus to rain or moisture. Only operate this apparatus from the type of power source indicated on the label. The company shall not be liable for any damages arising out of any improper use, even if we have been advised of the possibility of such damages. - Page 3 MPEG4 Licensing THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO.
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. HARDWARE OVERVIEW........................ 1 1.1 Package Content ..............................1 1.2 Front Panel ................................1 1.3 Rear Panel ................................2 2. CONNECTION AND SETUP ......................4 2.1 SATA Hard Disk Installation............................4 2.2 Camera Connection ...............................6 2.2.1 Normal / Motorized Lens Camera ........................6 2.2.2 Speed Dome Camera ............................6 2.3 External Device Connection...........................7 2.4 DVR Power On ..............................7... - Page 5 6.2.6 REGULAR REPORT ...........................29 6.3 EVENT INFORMATION ............................29 6.3.1 QUICK SEARCH ............................29 6.3.2 EVENT SEARCH............................30 6.3.3 HDD INFO ..............................31 6.3.4 EVENT LOG ..............................31 6.4 ADVANCED CONFIG............................31 6.4.1 CAMERA ..............................31 6.4.2 DETECTION ..............................32 6.4.3 ALERT .................................34 6.4.4 NETWORK ..............................35 6.4.5 DISPLAY..............................36 6.4.6 RECORD ..............................37 6.4.7 DEVICES..............................38 6.4.8 DCCS ................................39...
-
Page 6: Hardware Overview
HARDWARE OVERVIEW 1. HARDWARE OVERVIEW Note: The functions on the front panel and rear panel may vary, depending on the model you have. 1.1 Package Content Standard Package DVR HDD screws Adapter & power cord Quick Start ... -
Page 7: Rear Panel
HARDWARE OVERVIEW 11) ▲ ( / PAUSE) / ▼ ( / STOP) / ◄ ( / REW) / ► ( / FF) Press ▲ / ▼ / ◄ / ► to move up / down / left / right. In the playback mode: Press “▲”... - Page 8 HARDWARE OVERVIEW Note: Please purchase a disk array supporting Linux system to ensure your DVR to work properly. Note: If the disk array is not connected or detected well, check the mode of your disk array, or do a reset default on your disk array and try again.
-
Page 9: Connection And Setup
CONNECTION AND SETUP 2. CONNECTION AND SETUP Before the DVR is powered on, make sure you have installed a hard disk, connected at least one camera and a HDMI monitor. For details, please refer to the following sections. Note: The DVR is designed to automatically detect the video system of the connected cameras (NTSC or PAL). - Page 10 CONNECTION AND SETUP Step3: Fasten the hard disk to the bracket by securing the screw on the bracket. CR2032 Hard Disk Step4: Replace the top cover and fasten the screws you loosened in Step1. Type 2 Note: Here takes an 8CH model as an example of how to connect a hard disk to your device. To know how many hard disks could be installed, please refer to the specifications of your device.
-
Page 11: Camera Connection
CONNECTION AND SETUP Step3: Align the screw holes on the DVR base and the hard disk. Then, fasten the hard disk o the DVR base with the supplied screws from the bottom side of the DVR. Step4: Connect the data bus and power cable for the hard disk. CR2032 Step5: Replace the top cover and fasten the screws you loosened in Step1. -
Page 12: External Device Connection
CONNECTION AND SETUP STEP 3: Twist the RS485-A and RS485-B wires of the RJ11 cable and the speed dome camera together. Twist the RS485-A (red) and RS485-B (green) wires of the RJ11 cable to the RS485-A (brown) and RS485-B (orange) wires of the speed dome camera. To protect the naked wires, use the insulation tape to cover on the twisted wires. -
Page 13: For Initial Use
FOR INITIAL USE 3. FOR INITIAL USE For the first time to power on this device, you might be prompted to: Go through the setup wizard Clear hard disk Change default user name and password 3.1 Setup Wizard The setup wizard is prompted to guide you finishing the most common settings you might need to do. - Page 14 FOR INITIAL USE SETUP WIZARD DATE 2015/MAR/05 TIME 14:33:46 FORMAT Y/M/D GMT+08:00 SKIP PREV NEXT Set the date and time. If you don’t want to set the date and time now, just skip to the next step. However, it’s necessary to keep the date and time right to ensure the accuracy of the recorded data.
-
Page 15: Clear Hard Disk
FOR INITIAL USE SETUP WIZARD DDNS SYSTEM NAME Eagleeyes HOST NAME MAC000E533A3D E-MAIL CURRENT HOST ADDRESS MAC000E533A3D4A.ddns.eagleeyes.tw SKIP PREV NEXT Enable DDNS if needed. Note: To enable the DDNS later, please go to “ADVANCED CONFIG” “NETWORK” “DDNS” (“NETWORK”... -
Page 16: Change User Name And Password
FOR INITIAL USE 3.3 Change User Name and Password It’s highly recommended to change the user name and password of this device to keep your account safe. Otherwise, any person could access this device if he knows the default user name and password. If you didn’t go through the setting wizard at the first place, you’ll be prompted to change the user name and password: WARNING... -
Page 17: User Interface
USER INTERFACE 4. USER INTERFACE 4.1 DVR Access Connect your USB mouse to one of the USB ports on the DVR front panel, and check if there’s a mouse icon ( on the screen, indicating the USB mouse is detected properly. Move your mouse to enter the DVR password with the password keypad. -
Page 18: Channel Status
USER INTERFACE 4.2.2 Channel Status Note: Certain icons are for selected models only. Live audio on Audio off Audio playback on Audio playback off Recording PTZ control Motion event Alarm event PIR event Virtual fence event One way pass event Scene Change event 4.2.3 Record-related Icons 1) Manual Recording... -
Page 19: Main Menu
USER INTERFACE 4.4 Main Menu Right-click anywhere on the screen to show the main menu as follows, and right-click again to exit. Main Menu Click to set the status display, image settings, QUICK START and date & time. SYSTEM Click to set the system configurations. EVENT INFORMATION Click to enter the event search menu. -
Page 20: Frequently-Used Functions
FREQUENTLY-USED FUNCTIONS 5. FREQUENTLY-USED FUNCTIONS 5.1 Key Lock / Unlock To lock or unlock local operation, click (unlock) or (lock) on the DVR status bar to change the status to (lock) or (unlock). To unlock local operation, you’ll be prompted to enter the user name and password to access. Note: The default user name and password are both “admin”, which is the highest user level. -
Page 21: Ptz Control
FREQUENTLY-USED FUNCTIONS Function User Level SUPERVISOR POWER NORMAL GUEST Main menu Quick Start System Event Information Advanced Config. Schedule Setting Playback control Fast Forward Fast Rewind Play / Pause ... - Page 22 FREQUENTLY-USED FUNCTIONS Click to zoom in on the image to the largest / zoom out on the image Zoom in / out max to its original size. Zoom in / out Click to zoom in / out the image. Focus near / far Click to adjust the focus of the image.
-
Page 23: Playback
FREQUENTLY-USED FUNCTIONS How to go to a preset point: Step1: Step2: Select the numbering within which saves the camera view you want to see, and wait till you see (command sending) appearing and disappearing on the DVR status bar. 5.4 Playback Note: This function is NOT available for “GUEST”. -
Page 24: Audio Playback
FREQUENTLY-USED FUNCTIONS 5.4.3 Audio Playback In the playback mode, click on the channel status bar to play or mute audio recording. Note: To make a video backup with audio, or play a recording with audio, make sure the camera which supports the audio function is connected to the video-in channel and audio-in channel. -
Page 25: Video Playback On Pc (.Dv5)
FREQUENTLY-USED FUNCTIONS Step5: In “REQUIRE SIZE”, select “SUBMIT” to know the file size of the selected footage. Step6: In “BACKUP”, select “SUBMIT” to start copying footage to your USB flash drive, and wait till the backup successful message appears. 5.6 Video Playback on PC (.dv5) For video backup with the format “.dv5”, you can only use our own player to play. -
Page 26: Main Menu
MAIN MENU 6. MAIN MENU 6.1 QUICK START 6.1.1 GENERAL QUICK START GENERAL CHANNEL TITLE TIME SETUP EVENT STATUS DAYLIGHT DATE DISPLAY EaZy DCCS DISPLAY MOUSE SENSITIVITY AUDIO GAIN RECORD CONFIG SETUP EXIT CHANNEL TITLE Select to display the channel title or not (ON / OFF). EVENT STATUS Select to display the event icons or not (ON / OFF). - Page 27 MAIN MENU RECORD CONFIG Click “SETUP” to enter the setting page individually for manual record, event record and timer record. a) Select the record type you want to set. b) In “CHANNEL”, select “ALL” to apply the changes here to all channels. Note: The I.P.S.
-
Page 28: Time Setup
MAIN MENU 6.1.2 TIME SETUP QUICK START GENERAL DATE 2009 / NOV / 17 TIME SETUP TIME 15 : 35 : 53 DAYLIGHT NTP SERVER tock.stdtime.gov.tw EaZy FORMAT Y/M/D SYNC PERIOD DAILY (GMT+08:00)TAIPEI EXIT DATE Set the current date. The default display format is YEAR – MONTH – DATE (Y-M-D). TIME Set the current time in HOUR : MIN : SEC. -
Page 29: Eazy (For Selected Models Only)
MAIN MENU 6.1.4 EaZy (For selected models only) EaZy Networking is a cloud service to connect your devices to the Internet automatically through our free mobile app, EagleEyes, in a few steps without going through the complicated network setup including port forwarding. For details, please refer to “APPENDIX 8 EAZY NETWORKING”... -
Page 30: System Info
MAIN MENU Note: After upgrading firmware, it’s recommended to clear all HDD data for the system to work more stably. Before clearing all HDD data, please remember to make video backup. NETWORK UPGRADE Click “SUBMIT” for perform system upgrade via Internet. Note: This function requires Internet access. -
Page 31: Backup Data
MAIN MENU CLEAR HDD Select the HDD you want to clear, and click “YES” to confirm or “NO” to cancel. It’s recommended to clear all data in the hard disk when: It’s the first time to use this DVR to ensure the recorded data are not mixed with other data previously saved in the same hard disk. - Page 32 MAIN MENU START DATE / START TIME Select the start date & time. END DATE / TIME Select the end date & time. CHANNEL Click to select the channel(s). HARD DISK Select the hard disk containing the video data you need or “ALL HDD”. OUTPUT FILE FORMAT Select the file format for backup video: “DEFAULT”...
-
Page 33: Backup Log
MAIN MENU Convert the file format to AVI: To convert the video file format to AVI, click “AVI” from the playback panel to start file conversion. Note: The recorded audio (if any) will be removed when the file format is converted to AVI. Note: If the footage includes data for multiple channels, click to a specific channel for this function to work properly. -
Page 34: Regular Report
MAIN MENU BACKUP Click “SUBMIT” to start backup. You’ll see a log file (.csv) in the flash drive. You may open it with any txt editor, such as NotePad. 6.2.6 REGULAR REPORT This function is used to send event reports to the specified E-mail address. Users could configure up to 5 profiles to receive different reports about specific channels at different time. -
Page 35: Event Search
MAIN MENU Step2: Select the year and month including the video data you want to search from the calendar, and the date with recorded data will be highlighted. Note: To select the year and month, move your mouse to the display bar. Then, click and hold to drag up or down. -
Page 36: Hdd Info
MAIN MENU 6.3.3 HDD INFO You can check the remaining capacity of the connected HDD in this device. EVENT INFORMATION QUICK SEARCH NUMBER MODEL TEMP. SIZE FREE FORMAT TIME SERIAL NUMBER F.W. EVENT SEARCH HDD-0 ST31000526SV 890.562GB 864.832GB 2011/DEC/13 18:18:53 9V0DN5WS ST31000526SV HDD INFO... -
Page 37: Detection
MAIN MENU Select if you want to enable recording for the selected channel (ON / OFF). Note: When this function is disabled, no manual, event or timer recording will be activated even if any of these three record functions is set to “ON”. TIME STAMP DISPLAY Enable this function and the recording time will be shown on the video during video playback. - Page 38 MAIN MENU AREA Click “EDIT” to set the motion detection area. There are 16 × 12 grids per camera for all channels. Pink blocks represent the area that is not being detected while the transparent blocks are the area under detection. PRIVACY MASK You can cover certain areas on the camera image with privacy masks.
-
Page 39: Alert
MAIN MENU 6.4.3 ALERT ADVANCED CONFIG CAMERA EXT. ALERT DETECTION INT. BUZZER ALERT KEY BUZZER NETWORK VLOSS BUZZER DISPLAY MOTION BUZZER RECORD ALARM BUZZER DEVICES HDD BUZZER DCCS ALARM DURATION (SEC) HDD NEARLY FULL (GB) NOTIFY HDD OVERHEAT ALERT (°C) EXIT EXT. -
Page 40: Network
MAIN MENU 6.4.4 NETWORK NETWORK WAN is used to connect this recorder to Internet for remote access from anywhere as long as Internet access is available. DDNS is used when the Internet access is available. Note: For more details about these two functions and network configurations, please get the setup manual from www.surveillance-download.com/user/network_setup/network_setup_recorder.pdf. -
Page 41: Display
MAIN MENU USER NAME / PASSWORD Enter the “user name” and “password” to access the email address entered in “MAIL FROM” when “VERIFY PASSWORD” is set to “ON”. PROTOCOL ADVANCED CONFIG CAMERA E-MAIL DDNS PROTOCOL EaZy DETECTION TCP PAYLOAD LENGTH 8192 ALERT UDP PAYLOAD LENGTH... -
Page 42: Record
MAIN MENU QUAD SCREEN DURATION (For selected models only) Select the quad screen dwell duration time in second (03 / 05 / 10 / 15). DISPLAY COVERT Select “ON” or “OFF” to display or hide the wording “COV.” When covert recording is activated in “CAMERA”. -
Page 43: Devices
MAIN MENU EVENT RECORD Set the event recording function on / off. TIMER RECORD Set the timer recording function on / off. PRE-ALARM RECORD Select to enable or disable the pre-alarm function (ON / OFF). When pre-alarm and event recording functions are both activated, the DVR will record 8MB data before an alarm / motion event is triggered. -
Page 44: Dccs
MAIN MENU RATE Select the baud rate for the connected PTZ camera (2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200). Make sure the baud rate setting of the camera is the same as the setting here, or the DVR will not be able to control the device. - Page 45 MAIN MENU IVS MODE Select one of the following three modes depending on your environment: MODE DESCRIPTION FLOW COUNTING A virtual detection line is set to detect the moving direction of pedestrians for flow counting. VIRTUAL FENCE A virtual detection line is set to detect intruders crossing the detection line, and an alarm will be triggered.
- Page 46 MAIN MENU Step2: Click “APPLY” to finish the IVS setting and return to the live view. The IVS icon “ ” will be shown on the status bar. Click it to show the flow counting on the top left side. When anyone walks across the detection line, the system will determine his movement is in or out, and add one count to the corresponding channel on the flow counting panel.
-
Page 47: Ivs Statistics
MAIN MENU Step2: Click “APPLY” to finish the IVS setting and return to the live view. When anyone walks across the detection line, the system will determine his movement is in or out, and: VIRTUAL FENCE An event happens for anyone walking across the detection line, and “ ”... -
Page 48: Notify
MAIN MENU List View IVS STATISTIC LIST CHART HOUR COUNT 00:00 – 00:59 01:00 – 01:59 02:00 – 02:59 03:00 – 03:59 04:00 – 04:59 05:00 – 05:59 06:00 – 06:59 07:00 – 07:59 08:00 – 08:59 09:00 – 09:59 ... - Page 49 MAIN MENU You’ll get an active event notification with video telling you the occurrence of alarm event(s). ADVANCED CONFIG CANERA PUSH VIDEO PUSH STATUS MESSAGE MAIL VIDEO MAIL VIDEO FTP DETECTION RESET ALL GUARD CONNECTION SUBMIT ALERT GUARD TRIGGER BY ALARM IN 1 NETWORK ...
- Page 50 MAIN MENU Step3: Enable “GUARD” in EagleEyes on your mobile device, and try to trigger a system event to see if you’ll get Push Status. MESSAGE MAIL Note: For E-mail notifications, make sure you have configured an E-mail account in “NETWORK” “E-MAIL”...
- Page 51 MAIN MENU CONTENT TYPE Select which type of notifications you want to receive: LINK or AVI. For LINK, you’ll receive an html file. For details, please refer to the next section “How to check video footage by LINK”. For AVI, you’ll receive a file of video footage in the “AVI” format. How to check video footage by “LINK”...
- Page 52 MAIN MENU VIDEO FTP ADVANCED CONFIG CANERA PUSH VIDEO PUSH STATUS MESSAGE MAIL VIDEO MAIL VIDEO FTP DETECTION UPLOAD BY EVENT ALERT UPLOAD BY GUARD NETWORK USER NAME office DISPLAY PASSWORD RECORD SERVER 211.75.33.2144 DEVICES PORT DCCS DIRECTORY video ...
-
Page 53: Schedule Setting
MAIN MENU 6.5 SCHEDULE SETTING 6.5.1 RECORD / DETECTION / ALARM IN / ALARM OUT / PUSH VIDEO / BUZZER Select the timer type you want to configure (RECORD / DETECTION / ALARM IN / ALARM OUT / PUSH VIDEO / BUZZER), choose “ON”... -
Page 54: Remote Operation
REMOTE OPERATION 7. REMOTE OPERATION 7.1 Web Browser You can view the images or operate your DVR with a web browser, for example, Microsoft Internet Explorer. Note: The supported PC operation systems are Windows 8, Windows 7, Windows Vista & Windows XP. Note: To use Mozilla Firefox or Google Chrome for remote access, please go to Apple’s official website (http://www.apple.com) to download and install QuickTime first. - Page 55 REMOTE OPERATION Icon Description 4 CIF / CIF Sub Stream Select the sub stream resolution (4CIF: 704*480 / CIF: 352*240) for live display. Resolution Audio Select the audio channel you want for listening to the live audio. Note: Your camera must support audio recording, and connect to the video channel which supports audio recording and the audio input of the DVR.
-
Page 56: Ivs Statistics
REMOTE OPERATION 7.1.1 IVS Statistics Note: This function is for selected models only. -
Page 57: Ptz Panel
REMOTE OPERATION 7.1.2 PTZ Panel Note: This function is for selected models only. Function Description Click to enter the camera main menu. For details about each camera menu, please refer to its own user manual. / / / Click the arrow keys (... -
Page 58: Mobile Devices
REMOTE OPERATION 7.2 Mobile Devices Note: For more details about mobile surveillance via your mobile device, download the instructions of EagleEyes installation and configuration from www.surveillance-download.com/user/eagleeyes_quick.pdf. EagleEyes is a mobile phone program used with our surveillance system for remote surveillance. It has several advantages: ... - Page 59 REMOTE OPERATION Step3: In the setting page, enter all the information needed to access this device in the “REQUIRED” column, and click “Get Type” to examine if the information you entered is correct. The device type will be detected properly. Step4: (Optional) Configure the settings in the “OPTIONAL”...
-
Page 60: Appendix 1 Specifications
APPENDIX 1 SPECIFICATIONS APPENDIX 1 SPECIFICATIONS 4CH Models Model 1 Model 2 Video Video System NTSC / PAL (auto detection) Video Compression Format H.264 Video Input 4 channels Composite video signal 1 Vp-p 75Ω BNC) Video Output HDMI ... - Page 61 APPENDIX 1 SPECIFICATIONS Model 1 Model 2 General Daylight Saving Power Source (±10%) DC12V / 3A Operating Temperature 10℃ ~ 40℃ (50℉~104℉) Dimensions (mm)*** 375(W) × 61(H) × 281(D) Network Ethernet 10/100 Base-T. Supports remote control and live view via Ethernet Network Protocol TCP/IP, PPPOE, DHCP and DDNS ...
- Page 62 APPENDIX 1 SPECIFICATIONS 8CH Model Model 3 Model 4 Model 5 Model 6 Video Video System NTSC / PAL (auto detection) Video Compression Format H.264 Video Input 8 channels Composite video signal 1 Vp-p 75Ω BNC) Video Output HDMI ...
- Page 63 APPENDIX 1 SPECIFICATIONS Model 3 Model 4 Model 5 Model 6 General Video Adjustable Hue / Saturation / Contrast / Brightness Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY Daylight Saving Power Source (±10%) DC19V / 3.42A DC12V / 3A DC12V / 2A Operating Temperature 10℃...
- Page 64 APPENDIX 1 SPECIFICATIONS 16CH Model Model 7 Model 8 Video Video System NTSC / PAL (auto detection) Video Compression Format H.264 Video Input 16 channels Composite video signal 1 Vp-p 75Ω BNC) Video Output HDMI Record & Backup Maximum Recording Rate 1080P 1920 x 1080 pixels with 480 IPS...
- Page 65 APPENDIX 1 SPECIFICATIONS Model 5 Model 6 General Daylight Saving Power Source (±10%) DC 19V / 3.42A Operating Temperature 10℃ ~ 40℃ (50℉~104℉) Dimensions (mm)*** 432(W) × 90(H) × 326(D) Network Ethernet Gigabit Base-T. Supports remote control and live view via Ethernet Network Protocol TCP/IP, PPPOE, DHCP and DDNS ...
-
Page 66: Appendix 2 Push Video Configuration
APPENDIX 2 PUSH VIDEO CONFIGURATION APPENDIX 2 PUSH VIDEO CONFIGURATION Note: This function is for selected models only. A2.1 Alarm Sensor Connection Connect the alarm sensor, such as magnetic contacts, to the alarm-in port on the DVR rear panel. Alarm-in 1 corresponds to video channel 1, alarm-in 2 corresponds to video channel 2, and so on. -
Page 67: A2.2 Configuration
APPENDIX 2 PUSH VIDEO CONFIGURATION A2.2 Configuration Before configuring Push Video, make sure: 1. The DVR system is set up as described in “2. CONNECTION AND SETUP” at page 4. 2. The DVR is connected to Internet. 3. You’ve installed the app, EagleEyes, on your iOS or Android mobile devices. 7.2 Mobile Devices For details, please refer to “... -
Page 68: Appendix 3 Set Push Video
APPENDIX 3 SET PUSH VIDEO APPENDIX 3 SET PUSH VIDEO This DVR series supports instant event notifications to your iOS / Android mobile device with our self-developed program, “EagleEyes”, installed. When a man is detected by an external alarm device, the DVR will immediately receive alarm signals and send to your iOS / Android mobile device. -
Page 69: A3.2 Enable Push Video
APPENDIX 3 SET PUSH VIDEO A3.2 Enable Push Video A3.2.1 From iOS Mobile Device (iPhone / iPad) Step1: In the iPhone / iPad main menu, select “Settings” “Notifications”. Select “EagleEyes”, and make sure the notification is set to on. Step2: Open “EagleEyes”, and switch “Guard”... -
Page 70: A3.2.2 From Android Mobile Device
APPENDIX 3 SET PUSH VIDEO A3.2.2 From Android Mobile Device In the address book, switch “Guard” from “OFF” to “ON”. -
Page 71: Appendix 4 Compatible Usb Flash Drive List
APPENDIX 4 COMPATIBLE USB FLASH DRIVE LIST APPENDIX 4 COMPATIBLE USB FLASH DRIVE LIST Please upgrade the firmware of the DVR to the latest version to ensure the accuracy of the following table. If the USB flash drive is not supported by the DVR, you will see on the screen. -
Page 72: Appendix 5 Compatible Sata Hdd List
APPENDIX 5 COMPATIBLE SATA HDD LIST APPENDIX 5 COMPATIBLE SATA HDD LIST Please upgrade the firmware of the device to the latest version to ensure the accuracy of the following table. Note: It’s necessary to install a hard disk first before firmware upgrade to ensure the upgrade process works properly. -
Page 73: Appendix 6 Main Menu Structure
APPENDIX 6 MAIN MENU STRUCTURE APPENDIX 6 MAIN MENU STRUCTURE QUICK START GENERAL CHANNEL TITLE EVENT STATUS DATE DISPLAY DCCS DISPLAY MOUSE SENSITIVITY AUDIO GAIN RECORD CONFIG TIME SETUP DATE TIME NTP SERVER FORMAT SYNC PERIOD DAYLIGHT EaZy SYSTEM ACCOUNT TOOLS LANGUAGE UPGRADE... - Page 74 APPENDIX 6 MAIN MENU STRUCTURE ALERT HDD NEARLY FULL (GB) HDD OVERHEAT ALERT (°C) NETWORK E-MAIL DDNS PROTOCOL EaZy DISPLAY FULL SCREEN DURATION QUAD SCREEN DURATION* DISPLAY COVERT HDD DISPLAY MODE DISPLAY OUTPUT COVERT UNLOCK IN SUPERVISOR MODE 3D DENOISE 2D DENOISE RECORD MANUAL RECORD...
-
Page 75: Appendix 7 Dvr Battery Replacement
APPENDIX 7 DVR BATTERY REPLACEMENT APPENDIX 7 DVR BATTERY REPLACEMENT DVR time reset after power failure, for example, caused by a power outage, will cause the disorder of the recorded data, and users may have problems in searching the event clip they want. To keep the DVR time from resetting, a non-chargeable lithium battery, CR2032, is installed in the DVR. -
Page 76: Appendix 8 Eazy Networking
APPENDIX 8 EAZY NETWORKING APPENDIX 8 EAZY NETWORKING EaZy Networking is a cloud service to connect your devices to the Internet automatically through our free mobile app, EagleEyes, in a few steps without going through the complicated network setup including port forwarding. Note: EaZy Networking is not a free service. - Page 77 APPENDIX 8 EAZY NETWORKING Step3: Open EagleEyes on your mobile device, and select “…” on the top left corner in the address book. Then, click “ ”. Step4: Click “Login” in the section of “Cloud” and register an account for “Cloud Service”. If you’ve got an account, please just log in.
- Page 78 APPENDIX 8 EAZY NETWORKING Step6: Click “ ” in the section of “MAC address” to open the QR code scan page, and scan the QR code on the DVR screen mentioned in Step2. The MAC address will be filled automatically. Fill in the Captcha code manually, and click “Apply”.
- Page 79 APPENDIX 8 EAZY NETWORKING A8.1.2 Checking Remaining Data Allowance Step1: Log into the cloud service. Step2: Select “Details” to go to account information, and select “Available Data Allowance”. A8.1.3 Sharing Cloud Device Access to Other Account(s) Note: One cloud device could be shared up to 30 cloud accounts, but the access to the device might be failed because it is still restricted to the maximum online user setup of the device.
- Page 80 APPENDIX 8 EAZY NETWORKING Step3: Enter the cloud account or the E-mail registered by the account, and select “Add”. Step4: Check again the account to which you want to share your cloud device, and select “Next” to confirm and continue. Step5: Specify the access permission of the specified account, which account’s data allowance should be consumed after access successfully, and how long the account is allowed to stay after access successfully.
-
Page 81: A8.2 Via Internet Explorer On Pc / Laptop
APPENDIX 8 EAZY NETWORKING Step6: Check again the configurations you made for the account to which you want to share your cloud device, and select “Share!” to confirm. Step7: (Optional) Configure the data allowance shared to other accounts to use. Step8: Return to the address book of EagleEyes. - Page 82 APPENDIX 8 EAZY NETWORKING Step2: In the same menu, select “EaZy”. Enable EaZy Networking, and write down the MAC address starting with “000E53" under the QR code. You’ll need it later. QUICK START GENERAL ENABLE EAZY NETWORKING TIME SETUP DAYLIGHT EaZy EXIT Step3: Open Internet Explorer on a PC / laptop, and enter https://ez.eagleeyes.tw.
- Page 83 APPENDIX 8 EAZY NETWORKING Step6: Enable EaZy Wizard, and click “Start” to go to the login page. Log into the cloud service. Step7: Select the recorder picture, or choose “DVR / NVR” on the bottom right corner. Then, enter the MAC address you wrote down in Step2, and the security code.
- Page 84 APPENDIX 8 EAZY NETWORKING Step9: You’ll see the newly-added device with a cloud icon on the main page. Click the device and see if you can access the device successfully. A8.2.2 Checking Remaining Data Allowance Step1: Log into the cloud service. Step2: Select “Account Information”...
- Page 85 APPENDIX 8 EAZY NETWORKING Step3: Choose the cloud device you want to share, and click “Next” to enter the cloud account or the E-mail registered by the account you want to share with. Then, select “Add”. Step4: Check again the account to which you want to share your cloud device. To add more accounts, select “Add”;...
-
Page 86: A8.3 Cloud Icons
APPENDIX 8 EAZY NETWORKING Step8: Return to the main page. You’ll see the device being shared is marked with an icon of two people. A8.3 Cloud Icons Device being shared to you Device shared to other Device connection ok and connection ok account and connection ok Device shared to other Device being shared to you...
