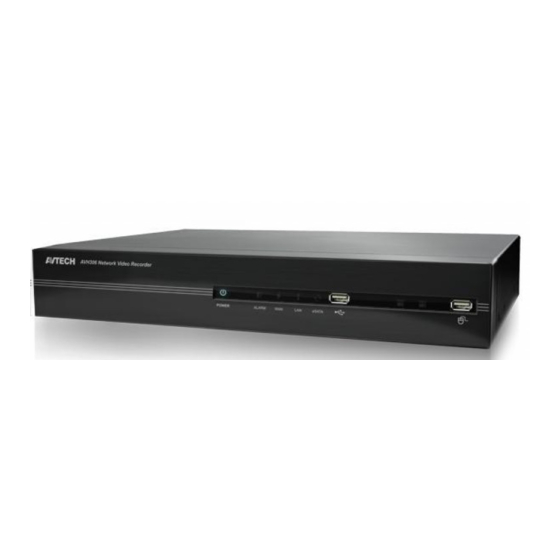

AVTECH AVH306
NETWORK VIDEO RECORDER
User Manual
www.one-touch.net.ua

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVH306 and is the answer not in the manual?

Questions and answers

Summary of Contents for Avtech AVH306

  • Page 1 AVTECH AVH306 NETWORK VIDEO RECORDER User Manual www.one-touch.net.ua...
  • Page 2: Trademark Acknowledgements

    IMPORTANT SAFEGUARD All lead-free products offered by the company comply with the requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly “lead-free” and without the hazardous substances cited in the directive. The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product end-of-life.
  • Page 3 MPEG4 Licensing THIS PRODUCT IS LICENSED UNDER THE MPEG4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING MPEG4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG4 VIDEO.
  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1. HARDWARE OVERVIEW ........................1 1.1 Front Panel..............................1 1.2 Rear Panel ..............................1 2. CONNECTION............................ 2 2.1 Hard disk installation ..........................2 2.2 Camera IP Configurations by LAN ......................2 2.2.1 AUTO Mode..............................2 2.2.2 Static / DHCP Mode ............................5 2.3 Manual Connection Setup .........................
  • Page 5 6.4.5 NETWORK ..............................31 6.4.6 DISPLAY ................................32 6.4.7 RECORD................................32 6.4.8 NOTIFY ................................34 6.5 SCHEDULE SETTING ..........................37 6.5.1 RECORD................................37 6.5.2 EVENT ................................37 APPENDIX 1 MOBILE SURVEILLANCE VIA EAGLEEYES ..............38 A1.1 Prerequisites ............................38 A1.2 Where to download ..........................38 A1.3 Enable Push Video ..........................39 A1.3.1 From iPhone / iPad ............................39 APPENDIX 2 COMPATIBLE USB FLASH DRIVE LIST ................
  • Page 6: Hardware Overview

    HARDWARE OVERVIEW 1. HARDWARE OVERVIEW Note: The functions on the front panel and rear panel may vary, depending on the model you have. 1.1 Front Panel 1) LED indicators The NVR is power-supplied. An alarm event occurs. The NVR is connected to Internet. The NVR is connected to LAN.
  • Page 7: Connection

    CONNECTION 2. CONNECTION 2.1 Hard disk installation Note: Product appearance may vary from the picture shown below, depending on the model you have. Step1: Remove the top cover. Step2: Find the hard disk bracket in the NVR, and place the compatible hark disk in the bracket. Step3: With the PCB side facing up, connect the hard disk to the power connector and data connector.
  • Page 8 CONNECTION...
  • Page 9 CONNECTION The NVR will automatically configure the IP address of a camera connected by LAN if:  The connected IP camera is our brand’s IP camera.  Reset the IP camera to default value (the default IP configuration method of the camera is “DHCP”). ...
  • Page 10: Static / Dhcp Mode

    CONNECTION 2.2.2 Static / DHCP Mode Note: SETTING Path: ADVANCED CONFIG)  NETWORK  LAN  MODE. When the LAN port of the NVR is connected to a router (not a hub), you can:  Choose “Static” when you know the network segment of your router. For example, the IP address of your router of 192.168.0.1, and the network segment of your router will be 192.168.0.xx (xx is ranged from 2 ~ 254).
  • Page 11: Manual Connection Setup

    “URI” to enter the address of the camera, and enter its port number. There are four protocol types available in the drop down list as follows: “AVTECH”, “ONVIF”, “RTSP OVER HTTP”, and “RTSP OVER UDP”. If you are using AVTECH IP cameras, please select “AVTECH”; otherwise, choose the protocols your cameras support.
  • Page 12: User Interface

    USER INTERFACE 3. USER INTERFACE 3.1 Local 3.1.1 NVR Status Key lock Key unlock Channel lock Channel unlock USB flash drive / device connected No USB device connected Timer record on Timer record off Overwrite on Overwrite off Sequence mode on Sequence mode off PTZ mode on PTZ mode off...
  • Page 13: Quick Operation

    USER INTERFACE 3.1.3 Quick Operation For details, please refer to “5. QUICK OPERATION” at page 17. Click to show the power off panel to either halt or reboot the system. Click to show the channel switch panel and select the channel you want. Switch to the channel you want first, and click to enter the zoom-in mode.
  • Page 14: Remote

    USER INTERFACE 3.2 Remote...
  • Page 15: Frequently-Used Functions

    FREQUENTLY-USED FUNCTIONS 4. FREQUENTLY-USED FUNCTIONS 4.1 Key Lock / Unlock To lock or unlock NVR local operation, click (unlock) or (lock) on the NVR status bar to change the status to (lock) or (unlock). To unlock NVR local operation, you’ll be prompted to enter the user level and password to access. Note: The default user level and password are both “admin”.
  • Page 16: Ip Device Search

    10.1.1.xx by default). You’ll see the list of every connected IP camera with its connection status to this NVR and MAC address. IP SEARCH PORT PROTOCOL STATUS 10.1.1.12 00:0e:53:e5:9a:f1 AVTECH CONNECTED TO CH1 10.1.1.13 00:0e:53:a6:91:18 AVTECH CONNECTED TO CH2 10.1.1.14 00:0e:53:a5:9f:a2...
  • Page 17: User Level Creation

    FREQUENTLY-USED FUNCTIONS 4.4 User Level Creation Note: This function is available only for “SUPERVISOR”. To create different user account for different access privilege, click (SYSTEM), and select “ACCOUNT” to enter “USER LIST”. ADVANCED CONFIG ACCOUNT USER LIST TOOLS USER NAME LEVEL SYSTEM INFO admin...
  • Page 18: Ptz Control (1Ch Mode)

    FREQUENTLY-USED FUNCTIONS Function User Level SUPERVISOR POWER NORMAL GUEST  Playback control   Fast Forward   Fast Rewind   Play / Pause   Stop   Slow Playback   Previous / Next Hour   Quick Search 4.5 PTZ Control (1CH mode) Note: This function is available only for “SUPERVISOR”...
  • Page 19: Event Search

    FREQUENTLY-USED FUNCTIONS 4.6 Event Search Note: This function is not available for “NORMAL” and “GUEST”. For details, please refer to “4.4 User Level Creation” at page 12. In the playback control bar, click to enter the search list. EVENT INFORMATION QUICK SEARCH HARD DISK ALL HDD...
  • Page 20: Video Backup

    FREQUENTLY-USED FUNCTIONS 4.7 Video Backup Note: This function is available for “SUPERVISOR”. For details, please refer to “4.4 User Level Creation” at page 12. Note: Before using the USB flash drive, please use your PC to format the USB flash drive to FAT32 format first.
  • Page 21: Convert The File Format To Avi

    FREQUENTLY-USED FUNCTIONS 4.8.1 Convert the file format to AVI To convert the video file format to AVI, click “AVI” from the playback panel to start file conversion. Note: The recorded audio (if any) will be removed when the file format is converted to AVI. Note: If the backup video includes data for multiple channels, click to a specific channel for this function to work properly.
  • Page 22: Quick Operation

    QUICK OPERATION 5. QUICK OPERATION 5.1 Power Switch Note: This function is available only for “SUPERVISOR”. To know more details, please refer to “4.4 User Level Creation” at page 12. To power off or reboot the NVR, you may go to , and select (power off) or (reboot).
  • Page 23: Ptz Control (All Ch Mode)

    QUICK OPERATION 5.4 PTZ Control (All CH mode) Note: This function is available only for “SUPERVISOR” and “POWER USER”. To know more details, please refer to “4.4 User Level Creation” at page 12. Click on the quick menu bar to display the panel as follows: Up / Down / Left / Right Click to move your selection up / down / left / right, or change settings.
  • Page 24 QUICK OPERATION To fix the camera IP address, or allow the NVR to assign an IP address to your IP camera, select “SETUP”, and select “STATIC IP “ or DHCP” for “NETWORK TYPE”. Click “APPLY” and “EXIT” to save your changes. SETUP NETWORK TYPE DHCP...
  • Page 25: Main Menu

    MAIN MENU 6. MAIN MENU Note: This menu is available only for “SUPERVISOR”. To know more details, please refer to “4.4 User Level Creation” at page 12. 6.1 QUICK START 6.1.1 GENERAL QUICK START GENERAL CHANNEL TITLE TIME SETUP EVENT STATUS SIMULATION DATE DISPLAY MOUSE SENSITIVITY...
  • Page 26: Time Setup

    MAIN MENU  EVENT QUICK START MANUAL EVENT TIMER CHANNEL IMAGE SIZE QUALITY I.P.S. EVENT 720 X 480 MOTION 1280 x 1024 MOTION / ALARM 1280 x 1024 MOTION / ALARM 1280 x 1024 MOTION 720 X 480 MOTION / ALARM 720 X 480 MOTION EXIT...
  • Page 27: Simulation

    MAIN MENU 6.1.3 SIMULATION “SIMULATION” is where you can see CPU loading and performance when certain functions are enabled and how the number of online users affects the performance of the device. QUICK START GENERAL LIVE PARAMETER SETUP SETUP TIME SETUP MANUAL RECORD SETUP SETUP SIMULATION...
  • Page 28: Tools

    MAIN MENU 6.2.2 TOOLS SYSTEM ACCOUNT LANGUAGE ENGLISH TOOLS UPGRADE SUBMIT SYSTEM INFO BACKUP CONFIG SUBMIT BACKUP DATA (USB) RESTORE CONFIG SUBMIT BACKUP LOG (USB) EXIT 1) LANGUAGE Select the language of the OSD. 2) UPGRADE Save the upgrade files obtained from your installer or distributor in a compatible USB flash drive, and insert it into the USB port at the front panel.
  • Page 29: Backup Data (Usb)

    MAIN MENU remember to make video backup.  NVR date and time are changed accidentally when the recording function is activated. Otherwise, the recorded data will be disordered and you will not be able to find the recorded file to backup by time search. 3) RESET DEFAULT Click “SUBMIT”...
  • Page 30: Backup Log (Usb)

    MAIN MENU 6.2.5 BACKUP LOG (USB) This function is used to copy the event log list from the NVR to a USB flash drive. Insert a compatible USB flash drive to the USB port at the front panel. Note: Before using the USB flash drive, please use your PC to format the USB flash drive to FAT32 format first.
  • Page 31: Event Information

    MAIN MENU 6.3 EVENT INFORMATION 6.3.1 QUICK SEARCH EVENT INFORMATION QUICK SEARCH HARD DISK ALL HDD EVENT SEARCH CHANNEL  01  02  03  04 HDD INFO  05  06 EVENT LOG 2009   EXIT 15 : 20 SUBMIT Step1: Select the hard disk and channel including the video data you want to search.
  • Page 32: Hdd Info

    “URI” to enter the address of the camera, and enter its port number. There are four protocol types available in the drop down list as follows: “AVTECH”, “ONVIF”, “RTSP OVER HTTP”, and “RTSP OVER UDP”. If you are using AVTECH IP cameras, please select “AVTECH”; otherwise, choose the protocols your cameras support.
  • Page 33: Camera

    MAIN MENU Then, click “SETUP” to enter the access information of the camera: CONFIG-CH1 admin USER NAME PASSWORD ********** CACHE TIME (MSEC) MODEL AVTECH GET TYPE IP CAMERA PROFILE PROFILE-3 TYPE H264 IMAGE SIZE 720 X 480 QUALITY I.P.S. AUDIO EXIT Step1: Enter the user name and password to access the IP camera.
  • Page 34: Detection

    MAIN MENU 4) REC AUDIO Select if you want to enable audio recording for the selected channel (ON / OFF). Note: This function is available only when your connected device supports audio recording. 5) CHANNEL TITLE Click “EDIT” to input the channel title (up to six characters). The default title is the channel number. 6) PORT FORWARD / PORT FORWARD ENABLE These two functions are used when you only want to see a single channel of this NVR remotely.
  • Page 35: Alert

    MAIN MENU 6.4.4 ALERT ADVANCED CONFIG CONNECTION EXT. ALERT CAMERA INT. BUZZER DETECTION KEY BUZZER ALERT VLOSS BUZZER NETWORK MOTION BUZZER DISPLAY ALARM BUZZER RECORD HDD BUZZER NOTIFY ALARM DURATION (SEC) HDD NEARLY FULL (GB) EXIT 1) EXT. ALERT Select to enable or disable the sound when any external alarm is triggered (ON / OFF). 2) INT.
  • Page 36: Network

    MAIN MENU 6.4.5 NETWORK There are two RJ45 ports on the NVR rear panel: WAN and LAN.  WAN is used to connect this NVR to Internet for remote access from anywhere as long as Internet access is available.  LAN is used to connect to IP cameras locally. ...
  • Page 37: Display

    MAIN MENU 6.4.6 DISPLAY ADVANCED CONFIG CONNECTION FULL SCREEN DURATION CAMERA DISPLAY COVERT DETECTION HDD DISPLAY MODE SIZE ALERT BRIGHTNESS NETWORK CONTRAST DISPLAY SATURATION RECORD NOTIFY EXIT 1) FULL SCREEN DURATION Select the full screen dwell duration time in second (03 / 05 / 10 / 15). 2) DISPLAY COVERT Select “ON”...
  • Page 38 MAIN MENU 4) PRE-ALARM RECORD Select to enable or disable the pre-alarm function (ON / OFF). When pre-alarm and event recording functions are both activated, the NVR will record 8MB data before an alarm / motion event is triggered. 5) OVERWRITE Select “ON”...
  • Page 39: Notify

    MAIN MENU 6.4.8 NOTIFY You can configure this NVR to send notifications for certain events to mobile devices with our mobile app, EagleEyes, installed, or to the specified E-mail address(es). PUSH VIDEO (for selected models only) Before using this function, make sure: ...
  • Page 40 MAIN MENU ADVANCED CONFIG CONNECTION PUSH VIDEO PUSH MESSAGE MESSAGE MAIL VIDEO MAIL CAMERA ACTION DETECTION EVENT  ALL ALERT  VIDEO LOSS NETWORK  HDD FULL DISPLAY  POWER ON RECORD  CLEAR HDD NOTIFY  NET LOGIN  KEY UNLOCK ...
  • Page 41 MAIN MENU ADVANCED CONFIG CONNECTION PUSH VIDEO PUSH MESSAGE MESSAGE MAIL VIDEO MAIL CAMERA E-MAIL ALERT DETECTION RECEIVER SETUP ALERT NETWORK DISPLAY RECORD NOTIFY EXIT How to check video recording Step1: Open the html file attached. Note: Please accept to install ActiveX control on your computer. Step2: Enter the user name and password to log into this NVR, and select the channel you want.
  • Page 42: Schedule Setting

    MAIN MENU 6.5 SCHEDULE SETTING 6.5.1 RECORD Select “ON” to enable record timer, and select the day and time for this function. SCHEDULE SETTING RECORD RECORD TIMER EVENT EXIT X axis: 0 ~ 24 hours. Each time bar is 30 minutes. Y axis: Monday ~ Sunday.
  • Page 43: Appendix 1 Mobile Surveillance Via Eagleeyes

     You have noted down the IP address, port number, user name and password used to access your network camera from Internet. A1.2 Where to download Connect to www.avtech.com.tw from your mobile device. Note: Please DO NOT download EagleEyes from your computer. Select “Products”  “EagleEyes” to enter EagleEyes introduction page.
  • Page 44: A1.3 Enable Push Video

    APPENDIX 1 MOBILE SURVEILLANCE VIA EAGLEEYES  For Android & iPad, select the download link from the website to start downloading.  For iPhone, two versions of EagleEyes are available: -- EagleEyes Plus (US$4.99), and -- EagleEyes Lite (Free). Select the version you want, and you’ll be directed to “App Store” to download the application. Note: You can also find EagleEyes on “App Store”...
  • Page 45 APPENDIX 1 MOBILE SURVEILLANCE VIA EAGLEEYES A1.3.2 From Android Mobile Device In the address book, switch “Guard” from “OFF” to “ON”.
  • Page 46: Appendix 2 Compatible Usb Flash Drive List

    APPENDIX 2 COMPATIBLE USB FLASH DRIVE LIST APPENDIX 2 COMPATIBLE USB FLASH DRIVE LIST Please upgrade the firmware of the NVR to the latest version to ensure the accuracy of the following table. If the USB flash drive is not supported by the NVR, you will see on the screen.
  • Page 47: Appendix 3 Compatible Hard Disk List

    APPENDIX 3 COMPATIBLE HARD DISK LIST APPENDIX 3 COMPATIBLE HARD DISK LIST Please upgrade the firmware of the device to the latest version to ensure the accuracy of the following table. MANUFACTURER MODEL CAPACITY ROTATION Seagate ST250DN000 250GB 7200 rpm ST3320613AS 320GB 7200 rpm...
  • Page 48: Appendix 4 Battery Replacement

    APPENDIX 4 BATTERY REPLACEMENT APPENDIX 4 BATTERY REPLACEMENT The time reset after power failure, for example, caused by a power outage, will cause the disorder of the recorded data, and users may have problems in searching the event clip they want. To keep the device time from resetting, a non-chargeable lithium battery, CR2032, is installed in the device.
  • Page 49: Appendix 5 Specifications

    APPENDIX 6 RECORDING TIME TABLE APPENDIX 5 SPECIFICATIONS For Model 1 Hardware One LAN port Video Input Up to 6 Channels with a hub Video Output Full HD Output Video Output Resolution 1920 x 1080 Audio Output HDD Storage** Up to two 3TB HDDs Two on the front panel: USB Ports one for video backup to USB flash drive, and...
  • Page 50: Appendix 5 Specifications

    APPENDIX 6 RECORDING TIME TABLE APPENDIX 5 SPECIFICATIONS For Model 2 Hardware One LAN port Video Input Up to 12 Channels with a hub Video Output HDMI Video Output Resolution 1920 x 1080 Audio Output HDD Storage** Up to two 3TB HDDs eSATA Port Two on the front panel: USB Ports...
  • Page 51: Appendix 5 Specifications

    APPENDIX 6 RECORDING TIME TABLE APPENDIX 5 SPECIFICATIONS For Model 3 Hardware Video Input One LAN port (Up to 12 Channels with a 12-port hub) Video Output HDMI Video Output Resolution 1920 x 1080 Audio Output HDD Storage** Up to two 3TB HDDs eSATA Port RS485 Port Two on the front panel:...
  • Page 52: Appendix 6 Recording Time Table

    APPENDIX 6 RECORDING TIME TABLE APPENDIX 6 RECORDING TIME TABLE Below shows the estimated total recording time of NVR with different recording resolutions. The recording time per resolution is the average value collected from the both recording conditions indicated in “Testing Environment”, and is for reference only.
