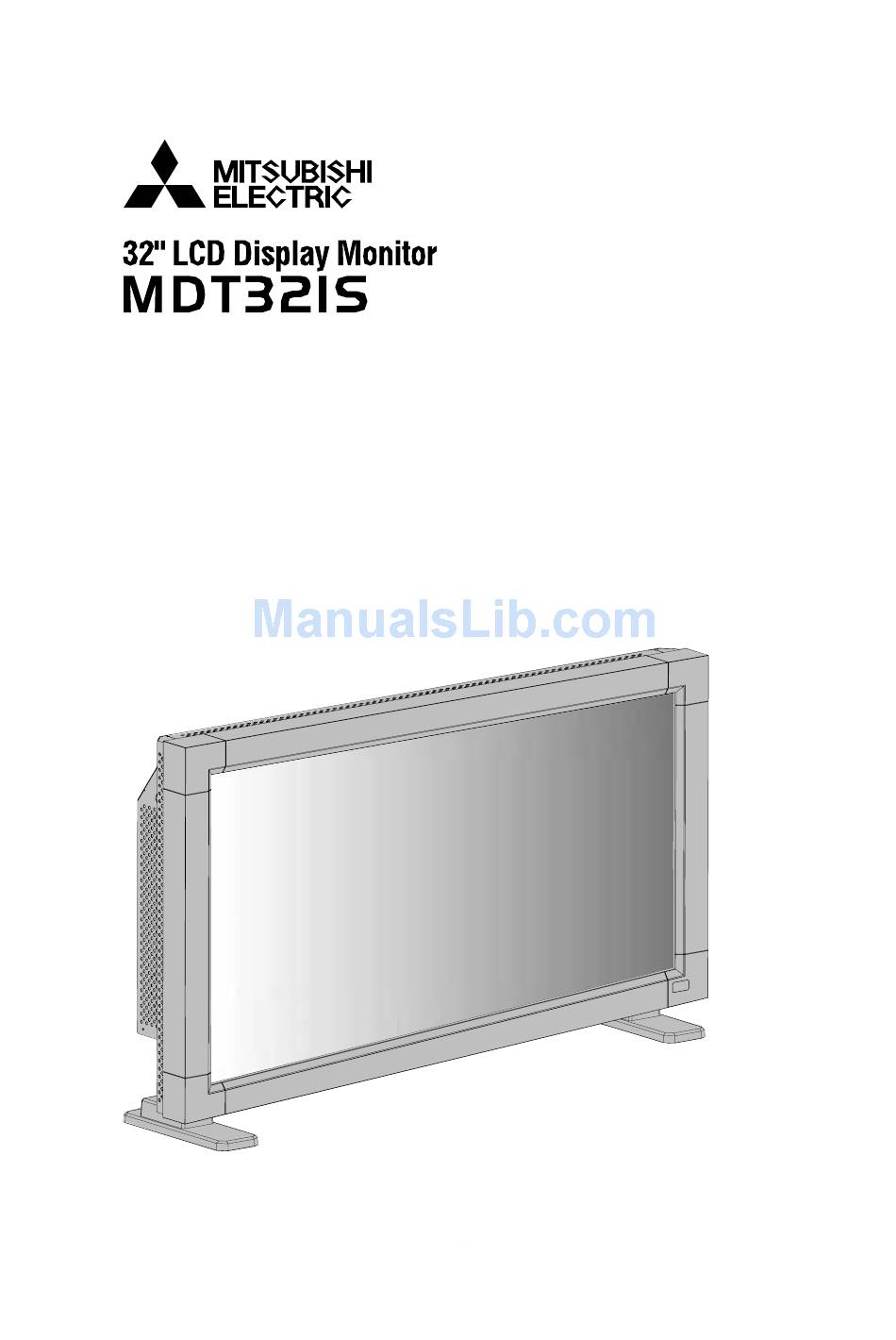

- Page 1 User's Manual USER’S MANUAL MANUEL UTILISATEUR MANUAL DEL USUARIO...
-
Page 2: Table Of Contents
Index Important Information ... English-1 Safety Precautions, Maintenance & Recommended Use ... English-3 Contents ... English-4 Parts Name and Functions ... English-5 Control Panel ... English-5 Terminal Panel ... English-6 Wireless Remote Control ... English-7 Operating Range for the Remote Control ... English-8 Handling the remote control ... -
Page 3: Important Information
C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1. FCC Information 1. Use the attached specified cables with the MDT321S (L325RM) color monitor so as not to interfere with radio and television reception. -
Page 4: Declaration Of The Manufacturer
For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org. (For US only). Declaration We hereby certify that the color monitor MDT321S (L325RM) is in compliance with Council Directive 73/23/EEC: –... -
Page 5: Safety Precautions, Maintenance & Recommended Use
• When operating the MDT321S LCD monitor with its AC 220- 240V power supply in Europe, use a power supply cord provided with the monitor. •... -
Page 6: Contents
Contents Your new MDT321S monitor box* should contain the following: • LCD monitor • Power Cord (3m) for North America • Power Cord (3m) for EU • Video Signal Cable (4m) • User’s Manual • Wireless Remote Control and AA Batteries •... -
Page 7: Parts Name And Functions
Parts Name and Functions Control Panel POWER button ( ) Switches the power on/off. See also page 17. MUTE button Switches the audio mute ON/OFF. INPUT button Acts as SET button within OSD menu. (Toggle switches between [RGB1], [RGB2], [RGB3], [DVD/HD], [VIDEO] or [VIDEO<S>]). -
Page 8: Terminal Panel
Terminal Panel AC IN connector Connects with the supplied power cord. RGB 1 IN (DVI-D) To input digital RGB signals from a computer. * This connector does not support analog input. RGB 2 IN (mini D-Sub 15 pin) To input analog RGB signals from a personal computer or other RGB equipment. -
Page 9: Wireless Remote Control
Wireless Remote Control POWER button Switches the power on/off. * If Power Indicator is not glowing, then no controls will work. INPUT button Selects from input signal, [RGB1], [RGB2], [RGB3], [DVD/HD], [VIDEO] and [VIDEO<S>]. [VIDEO<S>] is enabled by selecting the “SEPARATE” mode in the OSD or by having the “S-VIDEO”... -
Page 10: Operating Range For The Remote Control
Operating Range for the Remote Control Point the top of the remote control toward the LCD monitor’s remote sensor during button operation. Use the remote control within a distance of about 7 m/23 ft. from the front of the LCD monitor’s remote control sensor and at a horizontal and vertical angle of within 30°... -
Page 11: Setup Procedure
Setup Procedure 1. Determine the installation location CAUTION: DO NOT ATTEMPT TO INSTALL THE LCD MONITOR BY YOURSELF. Installing your LCD display must be done by a qualified technician. Contact your dealer for more information. CAUTION: MOVING OR INSTALLING THE LCD MONITOR MUST BE DONE BY TWO OR MORE PEOPLE. -
Page 12: Portrait Position
13. When using external speakers We recommend to using the option speakers designed for the MDT321S. The external speaker terminals of the MDT321S may be connectable with the speaker plug of a mainframe sound speaker. It this case, please exchange the lead connector of a mainframe sound speaker for an attached speaker plug. -
Page 13: How To Mount And Attach Options To The Lcd Monitor
How to Mount and Attach Options to the LCD Monitor You can attach mounting accessories to the LCD monitor in one of the following two ways: 1. In the upright position 2. Lay the screen face down Table Lay the protective sheet on a table, which was wrapped around the monitor when it was packaged, beneath the screen surface so as not to scratch the screen face. -
Page 14: Connections
Connections Before making connections: First turn off the power of all the attached equipment and make connections. Refer to the user manual included with each separate piece of equipment. Wiring Diagram LCD monitor Attaching the Ferrite Core Attach the Ferrite Core to PC Audio Cable. Use of the cable without mounting the ferrite core will result in the occurrence of noise. -
Page 15: Connecting A Personal Computer
Connecting a Personal Computer Connecting your computer to your LCD monitor will enable you to display your computer’s screen image. Some video cards may not display an image correctly. Scanning frequency Resolution Horizontal Vertical 640 x 480 31.5kHz 60Hz 800 x 600 37.9kHz 60Hz 1024 x 768... -
Page 16: Connecting With Digital Interface Equipment
Connecting with Digital Interface Equipment Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital Visual Interface) standard. Connect the LCD Monitor to a Computer with a Digital Output • The RGB 1 IN connector also accepts a DVI-D cable. •... -
Page 17: Connecting A Dvd Player With Component Out
Connecting a DVD Player with component out Connecting your DVD player to your LCD monitor will enable you to display DVD video. Refer to your DVD player user’s manual for more information. Connect the LCD Monitor to a DVD Player •... -
Page 18: Connecting To A Stereo Amplifier
Connecting to a Stereo Amplifier You can connect your stereo amplifier to your LCD monitor. Refer to your amplifier owner’s manual for more information. Connect the LCD Monitor to a Stereo Amplifier • Turn on the LCD monitor and the amplifier only after all connections have been made. •... -
Page 19: Basic Operation
Basic Operation Power ON and OFF Modes The LCD monitor power indicator will turn green while powered on, or red when in off mode. The monitor can be powered on or off using the following three options: Power Button Main Power Switch 1. -
Page 20: Power Indicator
Power Indicator Status Power ON Green Power OFF Power Standby when Red On “SCHEDULE” is enable Green Blinking Power Standby Red, Green Diagnosis (Detecting failure) Red Blinking * See troubleshooting on page 31 Using Power Management The LCD monitor follows the VESA approved DPM Power Management function. -
Page 21: Osd (On-Screen-Display) Controls
OSD (On-Screen-Display) Controls Press MENU button to open Main menu. Press UP or DOWN button to select sub-menu. Remote Control Press UP or DOWN button to select. Control Panel UP or DOWN button MAIN MENU PICTURE SCREEN OSD screen AUDIO CONFIGURATION 1 CONFIGURATION 2 ADVANCED OPTION... -
Page 22: Screen
PICTURE BRIGHTNESS CONTRAST SHARPNESS TINT TINT COLOR BLACK LEVEL NOISE REDUCTION :SEL :NEXT EXIT :RETURN *:INPUT DVD/HD, VIDEO only PICTURE BRIGHTNESS CONTRAST SHARPNESS TINT COLOR COLOR BLACK LEVEL NOISE REDUCTION :SEL :NEXT EXIT :RETURN *:INPUT DVD/HD, VIDEO only PICTURE BRIGHTNESS CONTRAST SHARPNESS BLACK LEVEL... -
Page 23: Audio
SCREEN H POSITION V POSITION CLOCK V RESOLUTION CLOCK PHASE H RESOLUTION V RESOLUTION ZOOM MODE SCREEN RESET :SEL :NEXT EXIT :RETURN MENU *:INPUT RGB1/2/3 only SCREEN H POSITION V POSITION CLOCK CLOCK PHASE H RESOLUTION V RESOLUTION ZOOM MODE SCREEN RESET :SEL :NEXT... -
Page 24: Picture In Picture
Main-Menu PICTURE IN PICTURE Sub-Menu PIP SIZE PIP AUDIO PIP RESET PIP SIZE :SEL :NEXT EXIT :RETURN PIP SIZE PIP AUDIO PIP RESET PIP AUDIO :SEL :NEXT EXIT :RETURN PIP SIZE PIP AUDIO PIP RESET PIP RESET :SEL :NEXT EXIT :RETURN Main-Menu CONFIGURATION 1... - Page 25 CONFIGURATION 1 AUTO SETUP AUTO ADJUST AUTO BRIGHTNESS SCREEN SAVER POWER SAVE LANGUAGE SCREEN SAVER SIDE BORDER COLOR :SEL :NEXT EXIT :RETURN MENU CONFIGURATION 1 POWER SAVE LANGUAGE SCREEN SAVER COLOR SYSTEM COLOR SYSTEM SIDE BORDER COLOR CONFIGURATION RESET FACTORY RESET :SEL :NEXT EXIT...
- Page 26 DVD/HD or VIDEO input. NONE: The Monitor will not search the other video input port. MONITOR INFORMATION MODEL NAME: MDT321S Indicates the model and serial number of your monitor. SERIAL: 12315XXX EXIT :RETURN...
-
Page 27: Advanced Option
Main-Menu ADVANCED OPTION Sub-Menu ADVANCED OPTION S-VIDEO MODE BLACK LEVEL EXPANSION GAMMA SELECTION S-VIDEO MODE SCAN MODE SCAN CONVERSION FILM MODE TILING :SEL :NEXT EXIT :RETURN ADVANCED OPTION S-VIDEO MODE INPUT RESOLUTION GAMMA SELECTION INPUT RESOLUTION SCAN CONVERSION TILING HEAT STATAS IR CONTROL :SEL :NEXT... - Page 28 ADVANCED OPTION IR CONTROL TILING HEAT STATUS TILING POWER ON DELAY DATE & TIME SCHEDULE ADVANCED OPTION RESET :SEL :NEXT EXIT :RETURN MENU ADVANCED OPTION IR CONTROL TILING HEAT STATUS HEAT STATUS POWER ON DELAY DATE & TIME SCHEDULE ADVANCED OPTION RESET :SEL :NEXT EXIT...
-
Page 29: For Long Life Use Of Public Display
NOTE 1: IMAGE PERSISTENCE Please be aware that LCD Technology may experience a phenomena known as Image Persistence. Image Persistence occurs when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. -
Page 30: Controlling The Lcd Monitor Via Rs-232C Remote Control
NOTE: If your PC (IBM or IBM compatible) is equipped only with a 25-pin serial port connector, a 25-pin serial port adapter is required. Contact your dealer for details. * RS-232 OUT terminal can connect to MDT321S only. Do not connect to other equipment. 1) Interface... - Page 31 3) Control sequence (1) The command from a computer to the LCD monitor will be sent in 600ms. (2) The LCD monitor will send a return command 600ms* after it has received and encoded. If the command isn’t received correctly, the LCD monitor will not send the return command. (3) The personal computer checks the command and confirms if the command, which has been sent, has been executed or not.
-
Page 32: Features
Features Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The monitor’s small footprint and low weight allow it to be moved or transported easily from one location to another. Color Control Systems: Allows you to adjust the colors on your screen and customize the color accuracy of your monitor to a variety of standards. -
Page 33: Troubleshooting
Troubleshooting No picture • The signal cable should be completely connected to the display card/computer. • The display card should be completely seated in its slot. • Front Power Switch and computer power switch should be in the ON position. •... -
Page 34: Specifications
