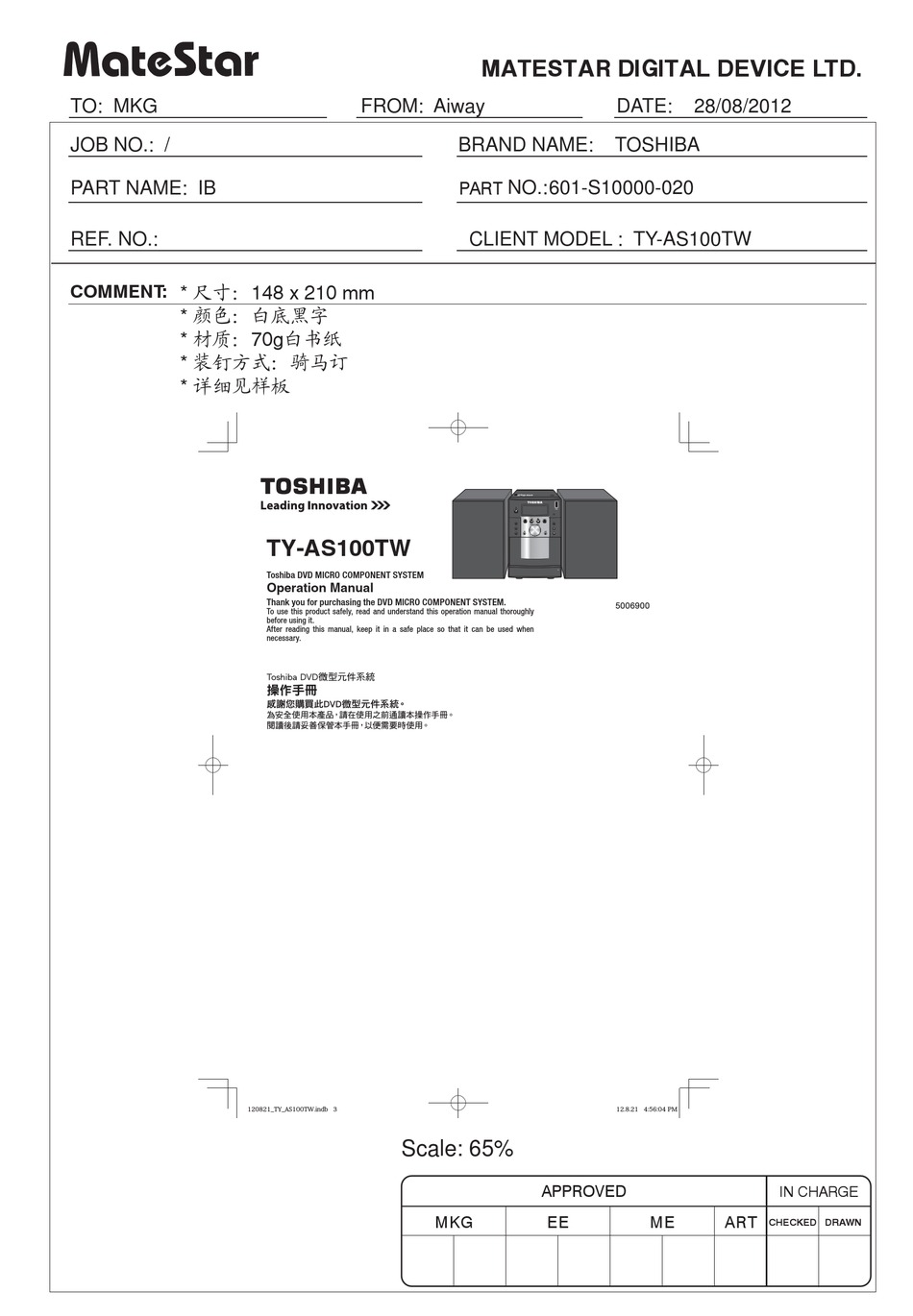

28/08/2012 JOB NO.: / BRAND NAME: TOSHIBA PART PART NAME: NO.: 601-S10000-020 REF. NO.: CLIENT MODEL : TY-AS100TW COMMENT: * 尺寸:148 x 210 mm * 颜色:白底黑字 * 材质:70g白书纸 * 装钉方式:骑马订 * 详细见样板 TY-AS100TW Toshiba DVD MICRO COMPONENT SYSTEM Operation Manual Thank you for purchasing the DVD MICRO COMPONENT SYSTEM.
TY-AS100TW Toshiba DVD MICRO COMPONENT SYSTEM Operation Manual Thank you for purchasing the DVD MICRO COMPONENT SYSTEM. 5006900 To use this product safely, read and understand this operation manual thoroughly before using it. After reading this manual, keep it in a safe place so that it can be used when necessary.
Page 3
Operation Manual ........3 操作手册 ........... 17 Dolby and the double-D symbol are trademarks of Dolby Laboratories. Dolby 和雙 D 記號是杜比實驗室的註冊商標。 Manufactured under license from Dolby Laboratories. 本產品經過杜比實驗室的授權而製造。 ® ® DivX , DivX Certified and associated logos are trademarks of DivX, LLC and are used under license.
Safety precautions The information you need to prevent danger to the user and other people as well as property damage is described below. “Description of signs” shows different categories of the degree of danger or damage that may occur due to wrong handling. “Description of symbols”...
Toshiba shall not be responsible for any damage caused by an earthquake, thunderstorm, flood damage, fire for which Toshiba is not responsible, acts of a third party, other accidents, or damages caused by the user’s willful acts or negligence, misuse, or use in abnormal conditions.
Part names [Front] DISC cover DISC/USB STOP button Display Unit Push to open or close the DISC cover DISC/USB PLAY/PAUSE button USB terminal FM/LINE IN button STANDBY-ON button REMOTE SENSOR TAPE button TIMER button PROGRAM button CLOCK/SLEEP button TUNING button LINE IN terminal PRESET/SKIP/SEARCH REW button PRESET/SKIP/SEACH FW button...
Page 7
[Remote Control] POWER FM/LINE IN TAPE LINE IN DISC/USB TIMER CLOCK/SLEEP REPEAT/RANDOM SET UP MENU DISPLAY CURSOR B OK (ENTER) CURSOR C CURSOR c CURSOR b PLAY/PAUSE c/W VOLUME + – STOP v MUTE AUDIO ZOOM TITLE PROGRAM/ANGLE GO TO [Display Unit] Group playing Random playing...
ABOUT DISC/FILE/CASSETTE TAPE Playable discs/files Discs with one of the marks below on the surface. For Disc playback: Files in Audio CD format, MP3, WMA and JPEG files on a finalized CD-R or CD-RW. MP3, WMA and JPEG files on a finalized DVD-R/-RW, +R or +RW can also be played.
When playing a file of a large transfer rate, sounds may be dropped during playback. Some USB mass storage class devices may not be recognized or may not work properly. TOSHIBA bears no responsibility for any loss of data in the USB mass storage class device while using this unit. On cassette tapes Type-I tape is recommended for playback on this unit.
CONNECTION Do not connect the AC cord until all other connections have been made. NOTE: Make sure the antenna conductors do not touch any other terminals, connecting cords or the power cord. Also, keep the antennas away from metallic parts of the System, connecting cords, and the AC power cord. Otherwise, it could cause poor reception.
Connecting a TV Do not connect the power cord until a TV connections have been made. Connect your TV with the video cord to the Video output terminal. Audio cords (Not supplied) the speakers of the device connected via the audio cord. Input terminal of Yellow another audio device...
3. Press TIMER button. INITIAL SETTING The "Hour" in flashing Setting the clock 1. You can set the clock only when the System is turned off (on standby.) Press and hold CLOCK/SLEEP button. 4. Press the PRESET Z or z button to adjust the hour and press the TIMER button.
11. Press POWER 1 button to turn off the unit into VOLUME ADJUSTMENT standby. You can adjust the Volume level from level 0 (“VOL MIN.”) to level 31 (“VOL MAX.) 12. When the unit has turned on, press the TIMER button, Remote Control Main Unit the timer indicator on the display is off, and the daily...
4. To program another track number, repeat steps 2 and 3 Remote Control Main unit steps. You can program up to maximum 16 tracks you like. To fast-reverse a track Press and hold Press and hold 5. Press PLAY/PAUSE button to finish the program setting and start playback.
FM radio TAPE You can play back type I tapes. This System cannot receive AM broadcast. Playback operations (on the main unit) 1. Select “TAPE” as the source. Searching for stations 1. Press FM/LINE IN button to select RADIO. button or cursor C c button on 2.
Recording an FM broadcast Recording from an external device You can use type I tapes for recording. To connect an external device, see “LINE IN”. Before recording Before recording Insert a recordable cassette. 1. Tune into the FM station you want to record. Connect a device and insert a recordable cassette.
To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. TOSHIBA LIFESTYLE ELECTRONICS TRADING CO.,LTD. 1-1-8, Sotokanda, Chiyoda-ku Tokyo 101-0021, Japan 120820c1_TY-AS100TW_En.indd 16...
