Summary of Contents for Erbauer ERB382SDR

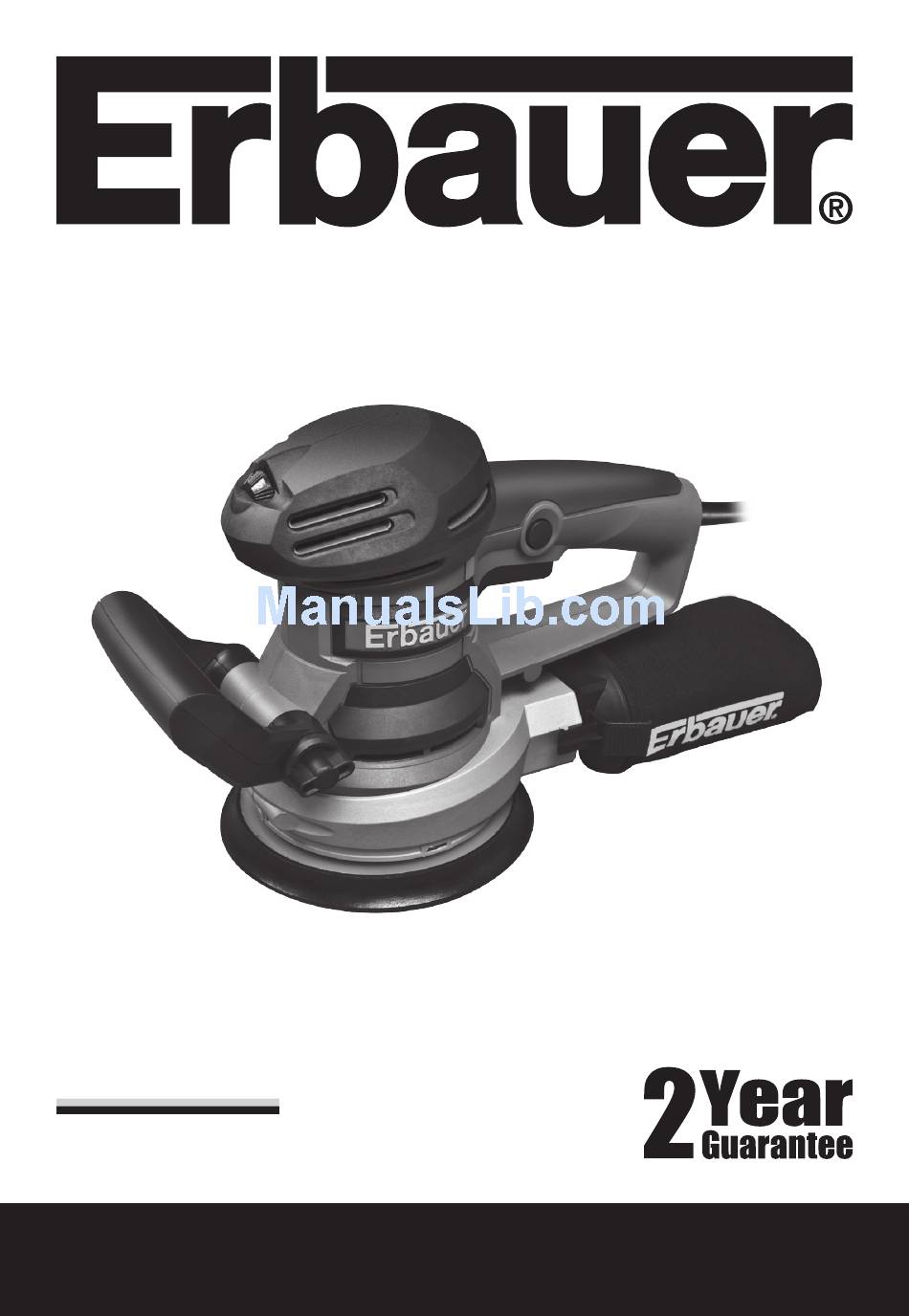

- Page 1 ERB382SDR 450W 150MM ROTARY SANDER...
- Page 2 Original Instructions (Version 2.0)
- Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 3. Personal safety a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 6 c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 7 ADDITIONAL SAFETY POINTS FOR YOUR ROTARY SANDER 1. Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. 2. Fully unwind cable drum extensions to avoid potential overheating. 3. When an extension cable is required you must ensure it has the correct ampere rating for your power tool and is in a safe electrical condition.
- Page 8 lenses; they are not safety glasses. Following this rule will reduce the risk of serious personal injury. 22. Hearing protection should be worn when using the sander. 23. Harmful/toxic dusts will arise from sanding e.g. lead painted surfaces, woods and metals. Contact with or inhalation of these dusts can endanger the health of operator and bystanders.
- Page 9 Warning: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:- How the tool is used and the materials being cut or drilled.
- Page 10 SYMBOLS To reduce the risk of injury, user must read instruction manual Double insulation Warning Wear ear protection Wear eye protection Wear dust mask Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
- Page 11 1. LOCK-ON BUTTON 2. ON-OFF SWITCH 3. DUST BAG WITH ADAPTOR 4. LATCHING LEVER 5. SANDING PLATE 6. WINGED SCREW FOR AUXILIARY HANDLE ADJUSTMENT 7. AUXILIARY HANDLE 8. VARIABLE SPEED CONTROL 9. SANDING PAPER (See Fig.1) 450W 150MM ROTARY SANDER...
-
Page 12: Technical Data
TECHNICAL DATA Rated voltage 230-240V~50Hz Rated input power 450W Rated no-load speed 5000-12000/min Base size Ø150mm Orbital diameter Protection class Machine weight 2.3kg NOISE INFORMATION A weighted sound pressure :89.4dB(A) =3.0dB(A) A weighted sound power :100.4dB(A) =3.0dB(A) Wear ear protection when sound pressure is over 80dB (A) ACCESSORIES Dust bag with adaptor... - Page 13 OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. Intended Use The machine is intended for dry sanding of wood,plastic, metal and filler material as well as painted surfaces. Machines with electronic control are also suitable for polishing. 1.
- Page 14 2. DUST COLLECTION/EXTRACTION – Dust produced while working can be detrimental to health, inflammable or explosive. Suitable protection measures are required. Examples: Some dusts are considered to be carcinogenic. Use suitable dust/chip extraction and wear a dust protection mask. – Light metal dust can burn or explode. Always keep the work place clean since material mixtures are especially dangerous.
-
Page 15: Speed Pre-Selection
3. SWITCHING ON/OFF (See Fig.4 ) On /Off Switch Depress to start and release to stop your tool. Lock-On Switch Depress on/off switch (2) then lock-on button (1), release on/off switch first and lock-on button second. Your switch is now locked on for Fig. - Page 16 avoid sanding through the work piece (e.g. when sanding veneer). After finishing the work, switch off the machine and lift it from the work piece. Application table The following table should be used only as a recommendation. The most suitable combination for the work to be performed is best determined by practical trial.
-
Page 17: Maintenance
Start your sander before sanding and turn it off only after you stop sanding. For the best results, sand wood in the direction of the grain. Do not start sanding without having the sandpaper fitted. Do not allow the sand paper to wear away it will damage the base-plate. -
Page 18: Plug Replacement
PLUG REPLACEMENT (UK & IRELAND ONLY) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: BLUE = NEUTRAL BROWN = LIVE As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug,... - Page 19 Standards conform to: EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3 EN 60745-1 EN 60745-2-4 Authorised Signatory and technical file holder Date: 06/03/15 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT...
