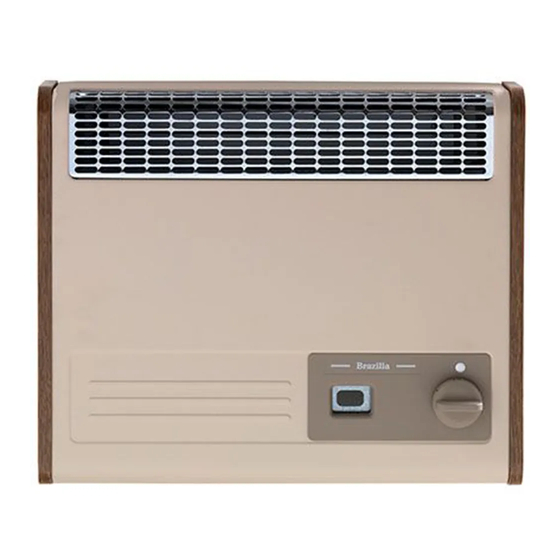

Baxi Brazilia F 5 Installation And Servicing Instructions

Balanced flue gas wall heaters

Hide thumbs Also See for Brazilia F 5:

Installation and servicing instructions (16 pages)

User operating instructions manual (8 pages)

Installation and owner's manual (28 pages)

Table Of Contents

Need help?

Do you have a question about the Brazilia F 5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Baxi Brazilia F 5

Page 1 Please leave these instructions with the user © Baxi Heating U.K. Limited 2007. Baxi Brazilia F 5, F 5S, F 8S & Comfort Stat F 8ST Oak Balanced Flue Gas Wall Heaters Installation and Servicing Instructions Baxi Brazilia F 5...
Page 2 We hope you get a satisfactory service from Baxi. If not, please let us know. For GB/IE only. Baxi is a BS-EN ISO 9001...
Page 3: Table Of Contents
© Baxi Heating U.K. Limited 2007. Contents Section Page Introduction Technical Data Site Requirements Installation Commissioning the Appliance Annual Servicing Changing Components Fault Finding Short Parts List Installer Before continuing any further with the installation of this appliance please read the following guide to manual handling: ·The lifting weight of this appliance is as below:...
Page 4: Introduction
1.0 Introduction indicated on the data label. Description 1. The Baxi Brazilia F is a range of room sealed gas convector appliances designed to be used with gas type G20 (Natural Gas) at supply pressure 20 mbar. When converted using the...
Page 5: Technical Data
© Baxi Heating U.K. Limited 2007. 2.0 Technical Data F 8S & F 8ST Natural Gas F 5 & F 5S Natural Gas Category of Appliance F 8S II 2H3P Category of Appliance F 8ST I Category of Appliance 2H3P The appliance is set for Gas Type G20 at 20mbar.
Page 6 © Baxi Heating U.K. Limited 2007. 2.0 Technical Data F 5 & F 5S Propane F 8S Propane (When converted using kit No. 5110284) (When converted using kit No. 5110285) Category of Appliance Category of Appliance 2H3P 2H3P The appliance is set for Gas Type G31 at 37mbar.
Page 7: Site Requirements
© Baxi Heating U.K. Limited 2007. 3.0 Site Requirements Location 1. The appliance must be fitted on a suitable outside wall to meet the requirements of the balanced flue arrangement. 2. For applications involving walls constructed from or comprising of combustible material, reference should be made to the requirements of B.S.
Page 8 (mm) clear of any part of the terminal. A suitable guard A* Directly below an openable window or other opening, e.g. an air brick. is available direct from Baxi Heating, Part No. B* Below gutters. 080266 (Fig. 5). C* Below eaves, soil pipes or drain pipes.
Page 9 © Baxi Heating U.K. Limited 2007. 3.0 Site Requirements WARNING: 520-610mm Flues are not suitable for Cat I (Butane/Propane) appliances Flue Dimensions Flue Option Brazilia F Gas Categories 1. The standard appliance is supplied with flue ducting which is adjustable to accommodate wall...
Page 10: Installation
© Baxi Heating U.K. Limited 2007. 4.0 Installation Preparation 1. Ensure that the length of the flue ducting is suitable for the wall thickness. 2. Select a position for the appliance. Using the template supplied, mark the position of the flue ducting and the four fixing holes.
Page 11: Commissioning The Appliance
4. Hand over the User’s and Installation and Mounting Lugs Servicing Instructions and recommend that for reasons of safety and economy the appliance should be serviced annually by a competent Fig. 13 person. Viewing Window © Baxi Heating U.K. Limited 2007.
Page 12: Annual Servicing
© Baxi Heating U.K. Limited 2007. 6.0 Annual Servicing Servicing the Appliance 1. For reasons of safety and economy the appliance should be serviced annually 2. Before servicing please read Section 1.3 Important Information. Outer Case 3. Turn off the gas supply and ensure that the appliance is cold.
Page 13: Changing Components
© Baxi Heating U.K. Limited 2007. 7.0 Changing Components Fig. 20 Changing Components 1. Before changing any components please read Section 1.3 Important Information. 2. Turn off the gas supply and ensure that the appliance is cold. 3.Remove the control knob by pulling forward,...
Page 14 © Baxi Heating U.K. Limited 2007. 7.0 Changing Components Fig. 25 Burner 1. Undo the heat exchanger retaining nuts and washers and draw the casting forwards off the locating studs (Fig. 25). 2. Remove the three screws holding the burner...
Page 15: Fault Finding
© Baxi Heating U.K. Limited 2007. Ensure all installation criteria 8.0 Fault Finding have been satisfied before performing Fault Finding (e.g. flue terminal position). 7±1.5mm Fig. 29 3.5±0.5mm...
Page 16: Short Parts List
© Baxi Heating U.K. Limited 2007. 9.0 Short parts list Key G.C. Description Manufacturers No. No. Part No. Knob Control (F 5 / F 5S) E26513 Grey 243262 205887 Beige 234637 G / R / S Knob Control (F 8S)
Page 19 © Baxi Heating U.K. Limited 2007. Baxi Heating Ltd manufacture a comprehensive range of products for the domestic heating market. Gas Central Heating Boilers (Wall, Floor and Fireside models). Independent Gas Fires. Renewal Firefronts. Gas Wall Heaters. Solid Fuel Fires.
Page 20 © Baxi Heating U.K. Limited 2007. The Baxi Helplines For General Enquiries +44 (0) 8706 061 064 For After Sales Service +44 (0) 8706 090 081 For Technical Enquiries +44 (0) 8706 061 065 Baxi Fires Division Wood Lane Erdington...
