Page 1: Operating Instructions

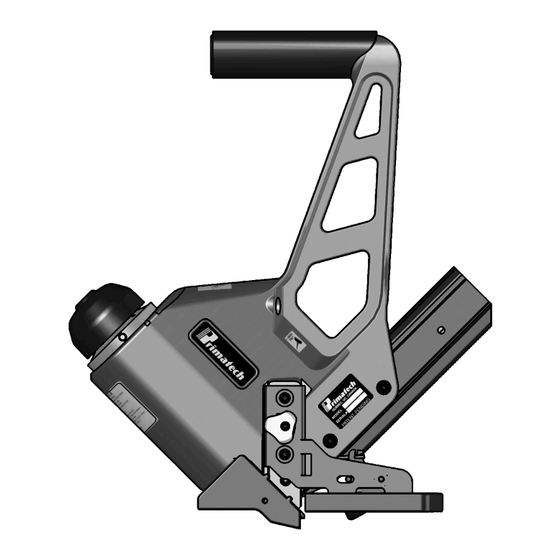

P250A PNEUMATIC FLOORING TOOL OPERATING INSTRUCTIONS WARNING Read these instructions thoroughly before using this tool and keep it handy for reference. Printed in Canada v143, 08/15... -
Page 2: Safety Measures
P250A PRIMATECH PNEUMATIC TOOL SAFETY MEASURES These important guidelines should always be followed to work The pneumatic flooring tool P250A is a professional precision safely with the P pneumatic tool model P250A: RIMATECH tool specially developed for the installation of 5/8" to 7/8" solid hardwood flooring in standard version, or from 3/4"... -
Page 3: Loading The Tool
CONNECTION & AIR SUPPLY SYSTEM LOADING THE TOOL To ensure maximum performance and efficiency, and also a This tool comes in one of 3 different configurations: minimum of care, this tool requires clean & dry air. The use of a filter and a pressure regulator is recommended. •... - Page 4 ADJUSTING FOR HARDWOOD THICKNESS ADJUSTING ROLLER BASE The P250A pneumatic tool is fitted with a fully adjustable The P250A can be mounted on a roller base (standard on plastic base designed to prevent contact with the top edge of P250AR & P250AG).
-
Page 5: Operation
OPERATION MAINTENANCE & REPAIR Unload tool and rest it onto the subflooring, Connect the hose Most adjustments to the tool can be made with the 3/16" Allen and cycle tool once or twice without fastener. After loading the wrench supplied with the tool. tool, the tool is ready for use. -
Page 6: Preventive Maintenance
PREVENTIVE MAINTENANCE This tool requires minimal lubrication. Use only detergent-free oil such as Primatech P-090. Few drops of oil weekly in the air inlet is sufficient. Other types of lubricant may degrade the seals. Check periodically to make sure that the head assembly is fully screwed onto the main body. -
Page 7: Assembling The Tool
ASSEMBLING THE TOOL This section describes how to re-assemble the tool after maintenance. The following procedure assumes that the gate/foot assembly along with the resting block are already installed. [1] Insert the seal bushing in the lower section of main body and engage it onto the upper portion of the gate/foot assembly. - Page 8 REPLACING THE DRIVING BLADE The driving blade is sold separately or supplied as a complete subassembly with the piston. • Follow steps [1] & [2] of the section 'Disassembling the tool' to remove the head assembly. Pull the cylinder out of the main body if necessary.
- Page 9 This technical note will help to diagnose common problems OOL DOES NOT ACTIVATE and will give suggestions to solve them. Consult our on-line Technical Support site at support.primatech.ca for updated • Check air supply. documents and more tips. • Inspect the head assembly and check all seals;...
- Page 10 SEVEN-YEAR EXTENDED LIMITED WARRANTY covers tool casing. WARRANTY STATEMENT Primatech ‘s sole liability hereunder will be to replace any part or accessory which proves to be defective within the specific time period. Any replacement part or accessories provided in accordance with this warranty will carry a warranty for the remainder of the period of warranty applicable to the part it replaces.
