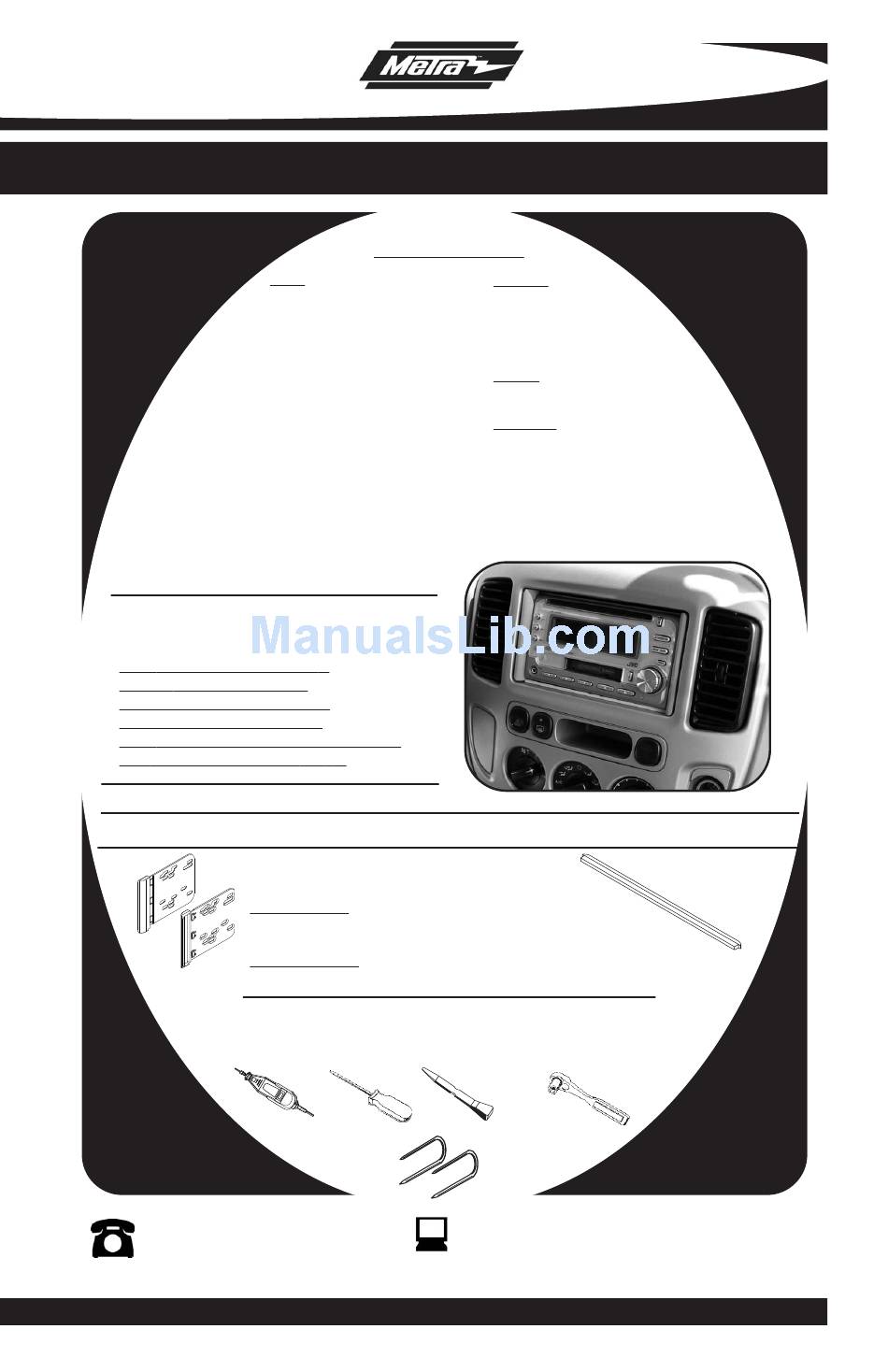

INSTALLATION INSTRUCTIONS FOR PART 95-5817
FORD
Explorer 1995-2001
Explorer Sport Trac 2001-2005
Ranger 1995-2009
Crown Victoria 1995-2009
Econoline 1997-2008
Escape 2001-2007
Windstar 1999-2003
Excursion 2000-2005
Super Duty 1999-2004
95-5817
KIT FEATURES
• Double DIN Unit Provision
• Stacked ISO Mounts Units Provision
NOTE: Sub dash modifications are
necessary to use this dash kit.
You will need to trim the sub dash
to gain suitable depth and height.
NOTE: Once the kit is snapped in, it cannot be
removed without dash panel removal.
KIT COMPONENTS
Double Din Trim Brackets • B) Filler Bar
• A)
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:
• See www.metraonline.com for specific interface
applications
A
Antenna Adapter: Not required.
Dremel or Suitable Cutting Tool
• Panel Removal Tool • Socket Wrench
1-800-221-0932
© COPYRIGHT 2009-10 METRA ELECTRONICS CORPORATION
APPLICATIONS
LINCOLN
Continental 1995-1997
Mark VIII 1996-1998
Town Car 1995-2002
MAZDA
B-Series Pickup 1995-2009
MERCURY
Grand Marquis 1995-2009
Marauder 2003-2004
Mountaineer 1997-2001
Mariner 2005-2007
TOOLS REQUIRED:
•
Small Flat Blade Screwdriver
•
Metra 86-5618 Removal Keys
www.metraonline.com
B
Advertisement
Related Manuals for Metra Electronics 95-5817
Summary of Contents for Metra Electronics 95-5817
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-5817 FORD Explorer 1995-2001 Explorer Sport Trac 2001-2005 Ranger 1995-2009 Crown Victoria 1995-2009 Econoline 1997-2008 Escape 2001-2007 Windstar 1999-2003 Excursion 2000-2005 Super Duty 1999-2004 95-5817 KIT FEATURES • Double DIN Unit Provision • Stacked ISO Mounts Units Provision NOTE: Sub dash modifications are necessary to use this dash kit.
- Page 2 Final Assembly ......... . .3 *Note: Refer also to the instructions included with the aftermarket radio. 95-5817 NOWLEDGE IS Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.
-
Page 3: Dash Disassembly
Using the Metra 86-5618 removal keys, slide the radio out of the radio cavity. Unplug and remove the radio. (Figure A) Cut and remove obstructions in dash cavity. (Be careful not to cut into harnesses or electronic components) Continue to kit assembly. 95-5817 DASH DISASSEMBLY ALL VEHICLES... -
Page 4: Double Din/Stacked Iso Mount Unit(S) Provision
(Figure B) Re-connect the negative battery terminal and test the unit for proper operation. Continued on page 3. 95-5817 KIT/FINAL ASSEMBLY UNIT(S) PROVISION (A) Strip wire ends back 1/2" B) Twist ends together C) Solder... -
Page 5: Final Assembly
*NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. Enjoy your newly installed radio! 95-5817 KIT/FINAL ASSEMBLY FINAL ASSEMBLY Right Front (+) ... . Gray Right Front (-). - Page 6 95-5817 NOTES...
- Page 7 95-5817 NOTES...
- Page 8 95-5817 INSTRUCTIONS www.metraonline.com 1-800-221-0932 REV. 06/08/10 © COPYRIGHT 2009-10 METRA ELECTRONICS CORPORATION INST95-5817...
