1500W Jointer Planer
TTB579PLN
Barcode: 5052931253685
WARNING! Read the instructions before using the product!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTB579PLN and is the answer not in the manual?

Questions and answers

William
March 3, 2025

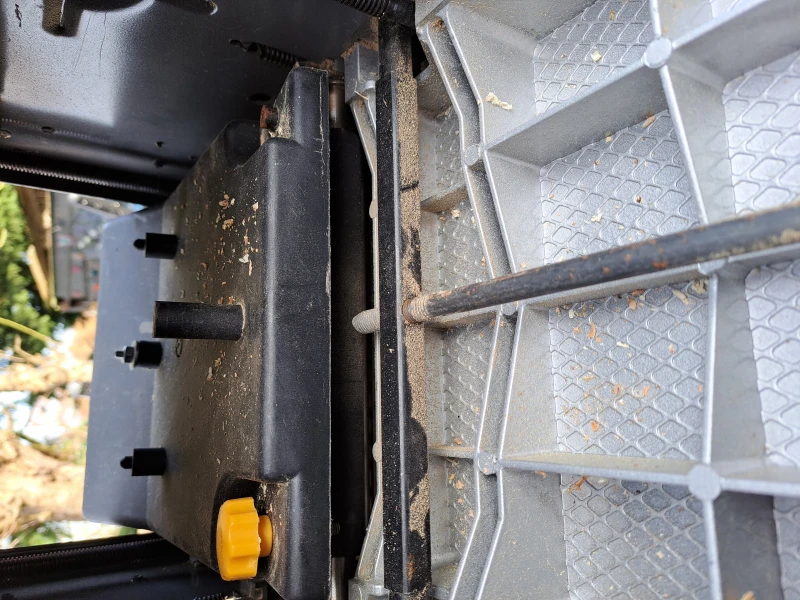

How do you fit the blade guard to the underneath thanks

User image 67c5caffb8091
0
1 comments:
Mr. Anderson
March 3, 2025

To fit the blade guard to the underneath of the Titan TTB579PLN:

1. Locate the blade guard limiting knob pole (c) on the side of the planer out-feed table (13).
2. Slide the guard arm and cutter guard assembly (27) over the locating pivot pin.
3. Tighten the locking knob (28) by turning it clockwise.
4. Align the opening of the retaining collar (29) with the groove (b) on the blade guard locating pivot pin (a).
5. Use sharp-nose pliers (not supplied) to push down the retaining collar (29) and secure it to the groove (b).

This answer is automatically generated

0

Related Manuals for Titan TTB579PLN

Summary of Contents for Titan TTB579PLN

  • Page 1 1500W Jointer Planer TTB579PLN Barcode: 5052931253685 WARNING! Read the instructions before using the product!
  • Page 2 GUARANTEE This TITAN product carries a 2 year guarantee. If your product develops a fault within this period, you should, in the first instance contact the retailer where the item was purchased.

  • Page 3: Table Of Contents

    TTB579PLN by TITAN Let’s get started… These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Your product Technical and legal information Before you start detail... more Product functions...

  • Page 4: Your Product

    Your product TTB579PLN by TITAN Your product 1. ON/Off switch 12. Blade guard angle locking screw 2. Motor overload switch 13. Fixed (out-feed) table (planer mode) 3. Rubber (anti vibration) foot 14. Blade guard arm assembly 4. Thickneser extension rail 15.

  • Page 5: Technical And Legal Information

    Technical and legal TTB579PLN by TITAN information Technical specifications General > Input Voltage 230-240V~50Hz > Power Input 1500W > No Load Speed 9000min > Max. Planing Width 204mm > Max. Depth of Cut (Planer) > Max. Depth to Cut (Thicknesser) >...
  • Page 6 Technical and legal TTB579PLN by TITAN information The declared vibration emission value may also be used in a preliminary assessment of exposure. Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which...
  • Page 7 Technical and legal TTB579PLN by TITAN information Additional safety warning for construction dust The updated Control of Substances Hazardous to Health Regulations 1st October 2012 now also targets to reduce the risks associated with silica, wood and gypsum dusts. Construction workers are one of the at-risk groups within this because of the dust that they breathe: silica dust is not just a nuisance;...

  • Page 8: Safety Warnings

    Technical and legal TTB579PLN by TITAN information Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property.
  • Page 9 Technical and legal TTB579PLN by TITAN information SAVE THESE INSTRUCTIONS 1. Keep work area clear. > Cluttered areas and benches invite injuries. 2. Consider work area environment > Do not expose tools to rain. > Do not use tools in damp or wet locations.
  • Page 10 Technical and legal TTB579PLN by TITAN information > Keep proper footing and balance at all times. 14. Maintain tools with care > Keep cutting tools sharp and clean for better and safer performance. > Follow instruction for lubricating and changing accessories.
  • Page 11 Technical and legal TTB579PLN by TITAN information by the manufacturer or his agent in order to avoid a safety hazard. 24. For tools intended to be connected to a water supply > For tools provided with a PRCD: Never use the tool without the PRCD delivered with the tool, >...
  • Page 12 Technical and legal TTB579PLN by TITAN information > When planing, make sure that the portion of the cutter head not being used is covered by the cutter guard. > When planing thin pieces of timber, suitable devices must be used to ensure that these small pieces are properly positioned and guided.
  • Page 13 Technical and legal TTB579PLN by TITAN information maintenance, including changing the blades. > When an extension cable is required, you must ensure that it has the right ampere rating and a large enough cross section for the planer thicknesser, it should also be checked to make sure that no damage is present and it is in safe electrical condition.
  • Page 14 Technical and legal TTB579PLN by TITAN information > Never leave the machine set to a heavy cut, always reduce it to a minimum cut. > Use cutting blades designed for this machine only. > Rectify the faults including guards and cutter block immediately as they are discovered.

  • Page 15: Before You Start

    Before you start TTB579PLN by TITAN Unpack > Unpack all parts and lay them on a flat, stable surface. > Remove all packing materials and shipping devices if applicable. > Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
  • Page 16 Before you start TTB579PLN by TITAN Fig. 1 Fig. 2 Fitting the guide fence > Locate the 2 x guide fence mounting holes situated on the side of the planning out-feed table (13). (Fig. 3) > Then place the safety guard plate (24). (Fig. 4) Fig.
  • Page 17 Before you start TTB579PLN by TITAN Fig. 5 Fig. 6 Fitting the blade (cutter) guard > Familiarise yourself with the blade guard locating pivot pin (a), the groove (b) and the blade guard limiting knob pole (c) situated on the side of the planer out-feed table (13).
  • Page 18 Before you start TTB579PLN by TITAN Fig. 9 Fig. 10 Fitting the height adjusting handle > Fit the height adjusting handle (11) over its shaft. (Fig. 11) Fig. 11...
  • Page 19 TTB579PLN by TITAN more detail… Product functions Care and maintenance Trouble shooting Recycling and disposal EC declaration of conformity...

  • Page 20: Product Functions

    Product functions TTB579PLN by TITAN Important: This 1500W jointer planer is intended specifically for planning and thicknessing operations on solid timber. When being thickened, the contact surface of the work piece must be flat. If working with bigger or heavier work-pieces it is necessary to clamp the machine firmly to its supporting bench or table.
  • Page 21 Product functions TTB579PLN by TITAN • Take precautions against kickback, do not permit anyone to stand or cross in the line of cutterhead’s rotation. Kickback or thrown debris will travel in this direction. • Replace or sharpen blades as they become damaged or dull.
  • Page 22 Product functions TTB579PLN by TITAN > Continue turning the handle until the thicknesser table reaches its lowest point. > On the bottom of the thicknesser table there are 3 holes, these are the locating holes for the corresponding locating points on the extraction port assembly.
  • Page 23 Product functions TTB579PLN by TITAN > Once fitted correctly, the extraction port should look as in Fig 19. > Finally, fit the extraction port adapter (7) by simply sliding it over the extraction port as in Fig 20. Fig. 19 Fig.
  • Page 24 Product functions TTB579PLN by TITAN 4) Setting the depth of cut The depth of cut is the amount of material removed from the workpiece with a single pass over the cutter-block. It is set by the in-feed table moving up / down in relation to the out-feed table (this is fixed).
  • Page 25 Product functions TTB579PLN by TITAN parallel with the in-feed table for the whole pass. > Slowly push the workpiece forward (over the cutter-block). Caution: It is much safer (particularly when using a thin / small workpiece) to use the supplied push blocks (34).
  • Page 26 Product functions TTB579PLN by TITAN 2) Fitting the extraction port There are 2 holes on the out-feed table of the planer, 1 x un-threaded hole (e) for locating the extraction port, and 1 x threaded hole (f) for securing the extraction port as shown in Fig.
  • Page 27 Product functions TTB579PLN by TITAN 3) Setting the depth of cut The depth of cut is set by how high / low the thicknessing bed is in relation to the cutter-block. > Measure the workpiece. > Set the bed to just over this measurement, using the scale to the left of the in-feed table.

  • Page 28: Care And Maintenance

    Care and maintenance TTB579PLN by TITAN The golden rules for care Caution: Always ensure that the machine is turned off and that the plug is removed from the mains supply before carrying out any repairs or maintenance. > Keep the product clean. Remove debris from it after each use and before storage.

  • Page 29: After Each Use

    Care and maintenance TTB579PLN by TITAN After each use > Remove the extraction port and clean out all chippings etc. Dry air would be good for this operation but a soft brush would also work. Caution: Always wear a dust mask and eye protection when using dry air.
  • Page 30 Care and maintenance TTB579PLN by TITAN Fig. 33 Setting the positive stops on the guide fence The positive stops at 90° and 45° are set at the factory to ensure accuracy, however over time they may need to be reset.
  • Page 31 Care and maintenance TTB579PLN by TITAN Replacing the cutter blades: 1) Removing the blade Caution: Not to touch the tips of the blades as it would cause hurts to you. > Remove the guide fence. > Loosen the blade guard locking knob anticlockwise, then slide the blade guard away from the cutterblock as far as it will go.
  • Page 32 Care and maintenance TTB579PLN by TITAN 2) Fitting the blades > Fit the blade correctly into the clamping device. > Slide both components into the cutter-block, taking care that they are fitted in the correct direction etc. > Centre the blade assembly laterally.
  • Page 33 Care and maintenance TTB579PLN by TITAN > Turn the screwdriver anti-clockwise until the cap can be removed and take care when removing the cap as there is a spring under compression holding the brush in place. > Remove the brush and check the length; If the brush needs changing fit the new brush and tighten the cap to retain it.
  • Page 34 Care and maintenance TTB579PLN by TITAN Plug replacement If you need to replace the fitted plug then follow the instructions below. Important The wires in the mains lead are coloured in accordance with the following code: Green & yellow - Earth...
  • Page 35 Care and maintenance TTB579PLN by TITAN Repair > This product does not contain any parts that can be repaired by the consumer. Contact a qualified specialist to have it checked and repaired. Storage > Clean the product as described above.

  • Page 36: Trouble Shooting

    Trouble shooting TTB579PLN by TITAN Trouble shooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these...
  • Page 37 Trouble shooting TTB579PLN by TITAN Problem Possible cause Solution 3. The motor cuts 3.1 Mains failure 3.1 Check the supply out whilst under 3.2 Motor has exceeded 3.2 Allow the motor to no load its duty cycle cool and reset the overload 3.3 Faulty motor...
  • Page 38 Trouble shooting TTB579PLN by TITAN Problem Possible cause Solution 7. Extraction port 7.1 Cutting depth too 7.1 Reduce the cutting becomes blocked great depth whilst planing 7.2 Feed rate too fast 7.2 Reduce the feed rate (without external 7.3 Wood is too damp 7.3 Allow the wood to dry...

  • Page 39: Recycling And Disposal

    Recycling and disposal TTB579PLN by TITAN Recycling and disposal > Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice.

  • Page 40: Declaration Of Conformity

    EN 55014-1/A1:2009 EN 55014-2/A2:2008 EN 61000-3-2/A2:2009 EN 61000-3-11:2000 Authorised Signatory and technical file holder Date : 25/09/2013 Signature:_________________ Name / title: Peter Harries / Quality Manager Titan Power Tools (UK) Ltd. Trade House, Mead Avenue, BA22 8RT 1500W JOINTER PLANER TTB342BTE...
  • Page 41 Titan Power Tools (UK) Ltd Trade House, Mead Avenue, BA22 8RT...
