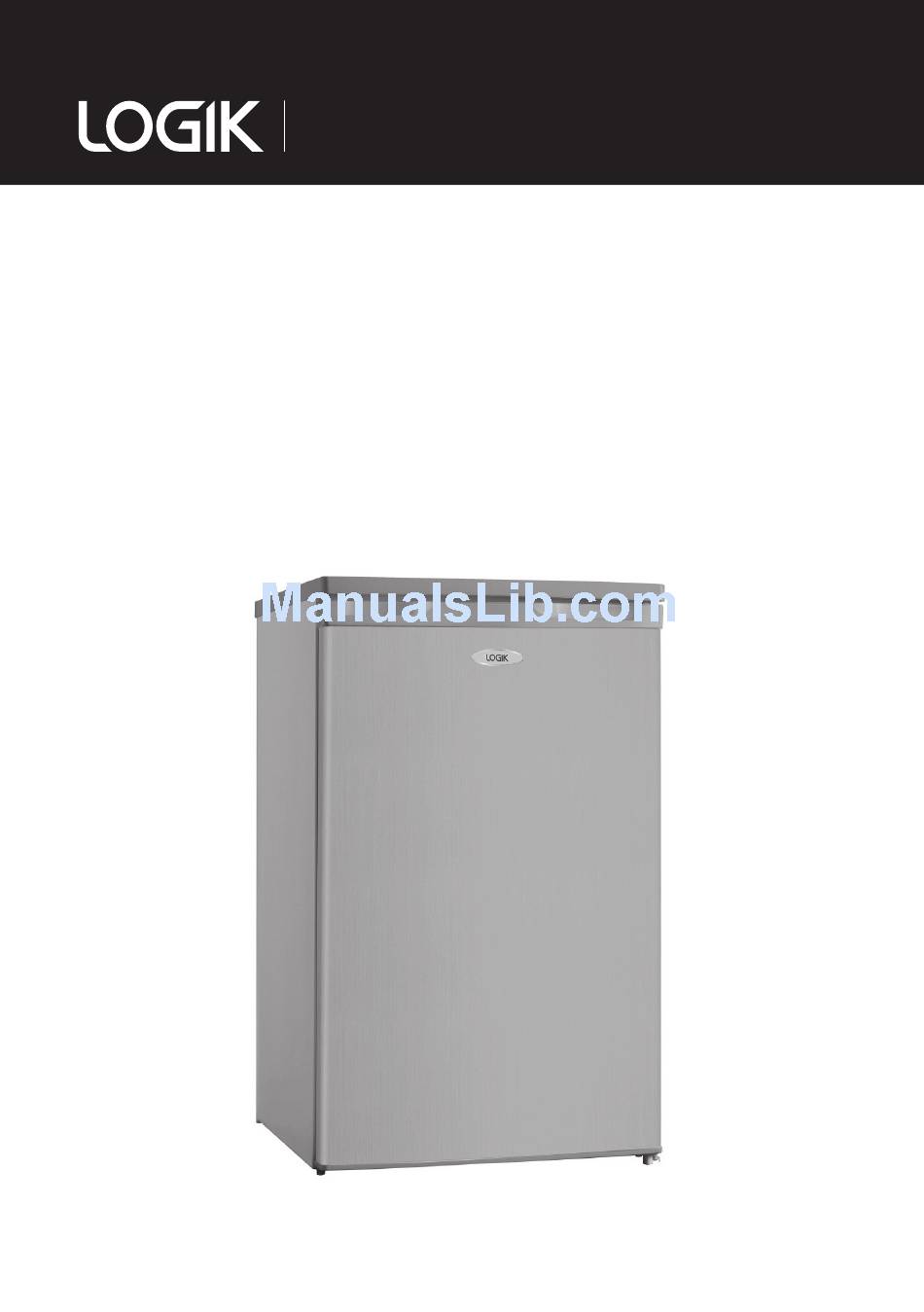

- Page 1 Instruction / Installation Manual Undercounter Fridge LUL50S13...
-
Page 2: Table Of Contents
Contents Safety Warnings ..........................3 Unpacking ............................. 5 Installation ............................ 6 Location ..................................6 Free Space Requirements ............................6 Reversing the Door Swing .............................7 Cleaning Before Use ............................. 10 Before Using Your Unit ............................10 Product Overview ........................11 Operation ............................ 12 Switching On Your Unit ............................ -
Page 3: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. - Page 4 • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 5: Unpacking
Thank you for purchasing your new Logik Undercounter Fridge. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 6: Installation
Installation INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 38°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. -
Page 7: Reversing The Door Swing
INSTALLATION 160°. If the appliance is placed under a continuous worktop, the appliance lid (if applicable) may be removed and a ventilation grille of at least 200 cm (available from DIY shops or specialist retailers) should be installed to the worktop above the rear of the appliance to increase min. - Page 8 INSTALLATION 2. Lift the top cover away from the fridge. 3. Remove the three screws, then remove the upper hinge that hold the door in place. Lift the door and place it on a padded surface to prevent it from scratching.
- Page 9 INSTALLATION 6. Remove the screw-type adjustable feet from another side of the unit bottom and transfer it to the corresponding position on the opposite side of the unit bottom. 7. Reattach the two lower screws, hinge bracket and adjustable feet to the opposite side of the unit bottom.
-
Page 10: Cleaning Before Use
INSTALLATION Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a ‘wrung-out’ sponge or cloth. Wash the drawers in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth. If you require more information refer to the Cleaning section. -
Page 11: Product Overview
Product Overview Internal Light and Thermostat Control Dial Upper Adjustable Door Glass Shelves Shelves Salad Bin Cover Salad Bin Lower Door Shelf Levelling Feet Egg Tray... -
Page 12: Operation
Operation Switching On Your Unit 1. Before connecting the unit to the mains supply make sure that the thermostat control dial is set at position OFF. This is located on the right side of the cabinet. Connect the mains cable to the mains socket. -
Page 13: Tips For Keeping Food In The Unit
Tips for Keeping Food in the Unit • Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf. •... -
Page 14: Maintenance
Maintenance Changing the Internal Light 1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position 0, then disconnect the mains supply. 2. While holding the lamp cover place coin between lamp cover lip and internal wall of the refrigerator and twist the coin. -
Page 15: Specifications
Specifications Model LUL50S13 Fresh Food Storage Compartment 112L Volume Storage Temperature 0 - 8°C, average ≤ 4°C Energy Consumption 0.31 kWh/24hr Energy consumption 113 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. - Page 16 EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd. (co. no. 504877) Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK. IB-LUL50S13-140423V2...
