Installation Guide

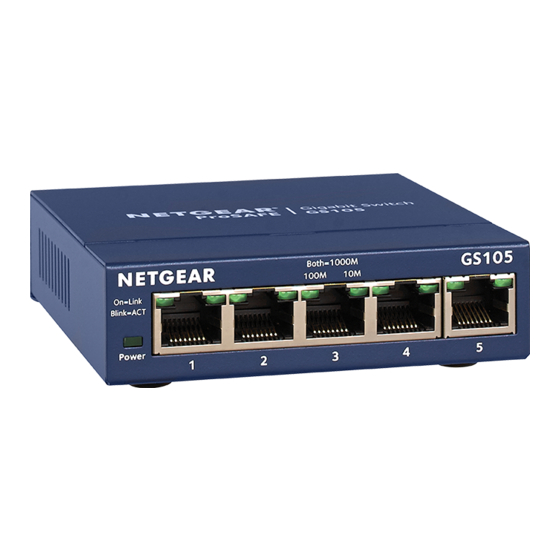

ProSAFE 5-Port Gigabit Switch GS105v5
Step 1. Connect equipment.
Computer
Server
GS105
Optional router
Step 2. Connect power and power on.
Internet
OFF/ON switch
Note:
Move the OFF/ON switch to
the ON position to provide power to
the device.
Optional
modem
Step 3. Check status.
Power LED
Port LEDs
1000 Mbps link
On
(both LEDs)
Off
100 Mbps link
(left LED
10 Mbps link
(right LED
Activity (blinking)
No link (off)
