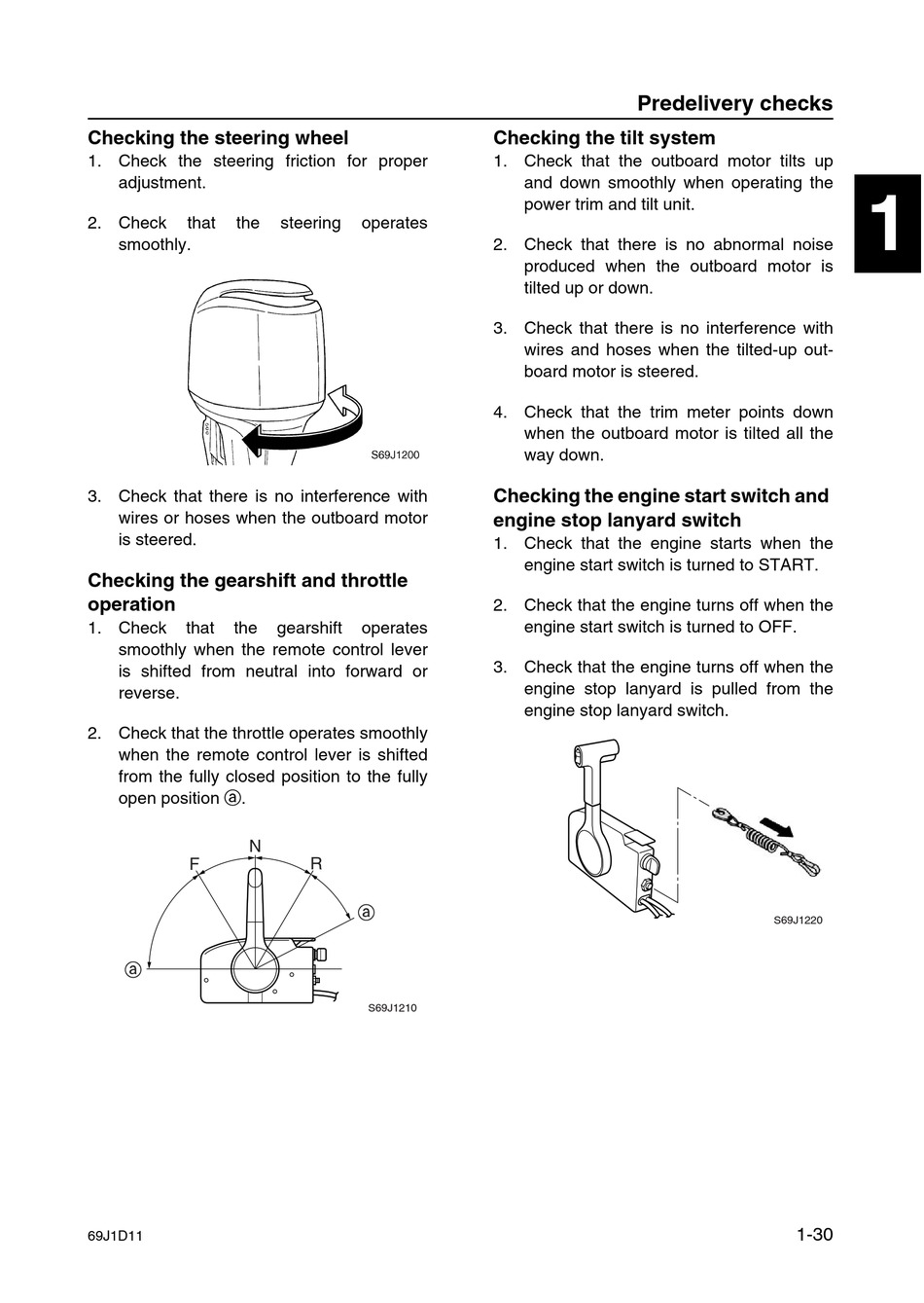

Checking the steering wheel

1. Check the steering friction for proper
adjustment.
2. Check that the
smoothly.
3. Check that there is no interference with
wires or hoses when the outboard motor
is steered.
Checking the gearshift and throttle
operation
1. Check that the
smoothly when the remote control lever
is shifted from neutral into forward or
reverse.
2. Check that the throttle operates smoothly
when the remote control lever is shifted
from the fully closed position to the fully
open position a.
N
F
69J1D11
steering operates
gearshift operates
R
S69J1210
Predelivery checks

Checking the tilt system

1. Check that the outboard motor tilts up
and down smoothly when operating the
power trim and tilt unit.
2. Check that there is no abnormal noise
produced when the outboard motor is
tilted up or down.
3. Check that there is no interference with
wires and hoses when the tilted-up out-
board motor is steered.
4. Check that the trim meter points down
when the outboard motor is tilted all the
way down.
Checking the engine start switch and
engine stop lanyard switch
1. Check that the engine starts when the
engine start switch is turned to START.
2. Check that the engine turns off when the
engine start switch is turned to OFF.
3. Check that the engine turns off when the
engine stop lanyard is pulled from the
engine stop lanyard switch.
1
2
3
4
5
6
7
S69J1220
8
9
1-30
