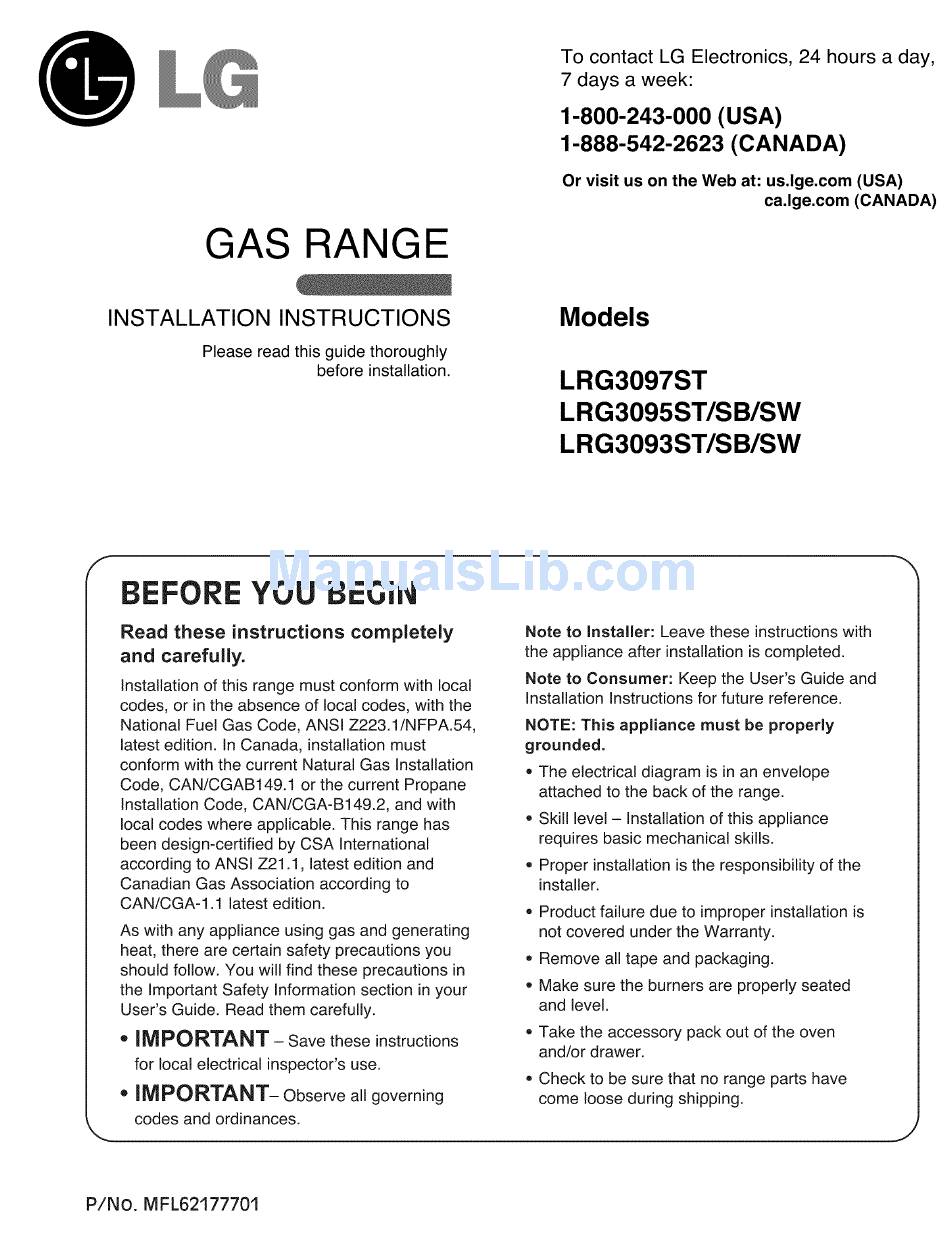

GAS RANGE
INSTALLATION
INSTRUCTIONS
Please read this guide thoroughly
before installation.
To contact
LG Electronics,
24 hours a day,
7 days a week:
1-800-243-000
(USA)
1-888-542-2623
(CANADA)
Or visit us on the Web at: us.lge,com (USA)
ca.lge.com (CANADA)
Models
LRG3097ST
LRG3095ST/SB/SW
LRG3093ST/SB/SW
BEFORE YOU BEGIN
Read these
instructions
completely
and carefully.
Installation of this range must conform with local
codes, or in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1/NFPA.54,
latest edition. In Canada, installation must
conform with the current Natural Gas Installation
Code, CAN/CGAB149.1
or the current Propane
Installation Code, CAN/CGA-B149.2,
and with
Ioca! codes where applicable. This range has
been design-certified
by CSA international
according to ANSI Z21.1, latest edition and
Canadian Gas Association according to
CAN/CGA-I.1
latest edition.
As with any appliance using gas and generating
heat, there are certain safety precautions you
should fol!ow. You wil! find these precautions in
the important Safety information section in your
User's Guide. Read them carefully.
" iMPORTANT
- save these instructions
for local electrical inspector's use.
•
iMPORTANT-Observe
all governing
codes and ordinances.
Note to Installer: Leave these instructions with
the appliance after installation is completed.
Note to Consumer:
Keep the User's Guide and
Installation instructions for future reference.
NOTE: This appliance
must be properly
grounded.
• The electrical diagram is in an envelope
attached to the back of the range.
= Skill level - installation of this appliance
requires basic mechanical skills.
• Proper installation is the responsibility of the
installer.
• Product failure due to improper installation is
not covered under the Warranty.
• Remove all tape and packaging.
• Make sure the burners are properly seated
and level.
Take the accessory pack out of the oven
and/or drawer.
• Check to be sure that no range parts have
come loose during shipping.
P/NO.
MFL62177701

Advertisement

Table of Contents
loading

Related Manuals for LG LRG3097ST

Summary of Contents for LG LRG3097ST

  • Page 1 To contact LG Electronics, 24 hours a day, 7 days a week: 1-800-243-000 (USA) 1-888-542-2623 (CANADA) Or visit us on the Web at: us.lge,com (USA) ca.lge.com (CANADA) GAS RANGE Models INSTALLATION INSTRUCTIONS Please read this guide thoroughly before installation. LRG3097ST...

  • Page 2: Before You Begin

    INSIA/LAIIONINSTRUCTIONS READ ALL iNSTRUCTiONS BEFORE iNSTALLATiON INSTALLATION SAFETY INSTRUCTIONS BEFORE YoU BEGIN Remove all tape and packing materials before using the range. Dispose all plastic bags after unpacking the range. Never allow children to play with packing materials. IMPORTANT SAFETY INSTRUCTIONS Read these instructions completely and carefully.
  • Page 3 INSTALLATION INSIRUCIIONS READ ALL INSTRUCTIONS BEFORE INSTALLATION iNSTALLATiONSAFETY iNSTRUCTiONS - If the range is pulled away from the wall for WARNING! cleaning, service, or any other reason, ensure that the Anti-Tip Device is properly reengaged when the range is pushed back against the wall. o iNJURY TO PERSONS •...
  • Page 4 INSIA//AIION INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE INSTALLATION INSTALLATION SAFETY INSTRUCTIONS (continued) _, WARNING • The vertical distance from the plane of the • If a 30" clearance between cooking surface and overhead combustible material or metal cabinets cooking surface to the bottom of adjacent overhead cabinets extending closer than 1"...

  • Page 5: Dimensions And Clearances

    INSTAllAIIONINSIRUCTIONS DIMENSIONS AND CLEARANCES Provide proper clearances between the range and The range may be placed with 0" clearance (flush) at the back wall. adjacent combustible surfaces. These dimensions must be met for safe use of your range. The location of the electrical outlet and pipe opening (see "GAS PIPE AND ELECTRICAL OUTLET LOCATIONS") may be adjusted to meet specific requirements.
  • Page 6 INSTA//AilON iNSTRUCTiONS LOCATION Do not locate your range where it may be subject When the floor covering ends at the front of the range the area that the range will be installed on should be to strong drafts. Any openings in the floor or wall built up with plywood to the same level or higher than behind the range should be sealed.

  • Page 7: Provide Adequate Gas Supply

    INSTAllAIIONINSIRUCTIONS GAS PIPE AND ELECTRICAL OUTLET LOCATIONS Recommended area for 120V outlet on rear wall and area for through-the wall connection of pipe stub and shut-off valve. 181/3 " 161/2" Recommended area for through-the floor connection of pipe stub and shut-off valve. 1.
  • Page 8 iNSla[[aliON iNSIRUcliONS 2. CONNECT THE RANGE TO Shut off the range gas supply valve before Install male 1/2" flare union adapter to the 1/2" removing the old range and leave it off until the NPT internal thread at inlet of presure regulator. new hook=up has been completed.

  • Page 9: Electrical Connections

    INSTAllAIIONINSIRUCTIONS 3. ELECTRICAL CONNECTIONS ELECTRICAL REOUIREMENTS 120 Volt, 60 Hertz, properly grounded dedicated circuit protected by a 15 or 20 Amps circuit breaker or slow blow fuse. GROUNDING IMPORTANT: FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED. The power cord of this appliance is equipped with a CAUTION: 3-prong (grounding) plug which mates with a standard 3-prong grounding wall receptacle to minimize the...
  • Page 10 INSIAllAIION INSIRUCIIONS 5. ASSEMBLE THE SURFACE BURNERS CAUTION DO NOT operate the burners without all parts in place. Place the burner caps and heads on the cooktop. Make sure that the caps and heads are placed in the correct locations. There is one small, one medium, one large and one extra large burner head and cap.
  • Page 11 INSTAllAIIONINSIRUCTIONS 7. ADJUST THE SURFACE BURNER LOW FLAME(SIMMER) SETTING. 1) Light all surface burners. 2) Turn the knob on the burner being adjusted to "LO". Remove knob. Insert a small, flat bladed screwdriver into the valve shaft as shown in Fig. 1. Center adjustment screw Adjustment screw next to the valve shaft...
  • Page 12 INSIAllAIION INSTRUCIIONS 8. CHECK OPERATION OF BAKE/BROIL BURNERS To check ignition of the Broil burner follow the steps To check ignition of the Bake burner follow the below: steps below: 1) Press "Broil" ("Hi" will be shown in the display). 1) Remove all packing from inside the oven cavity.

  • Page 13: Installing The Anti-Tip Device

    INSIAllMION INSTRUCTIONS 10. INSTALLING THE ANTI-TIP DEVICE LOCATING THE BRACKET USING THE WARNING TEMPLATE. , Range must be secured with an approved Anti- Tip device. Anti-tip _late - Unless properly installed, the range could be tipped by you or a child standing, sitting or leaning on an open door, * After installing the Anti-Tip device, verify that it is in place by carefully attempting...

  • Page 14: When All Hookups Are Complete

    INSIAllAIION INSTRUCIIONS WHEN ALL HOOKUPS ARE COMPLETE Make sure all controls are left in the off position. Make sure the flow of combustion and ventilation air to the range is unblocked. CONVERTING TO LP GAS (OR CONVERTING BACK TO NATURAL GAS FROM LP) The conversion instructions and LP orifices can be This range leaves the factory set for use with natural gas.
