Table 2-1. Control Panel Switch and Indicator Definitions
Control / Indicator
Power On/Off
Switch
Power On/Off LED
Reset Switch
Drive Active LED
12
Controls, Indicators, and Ports

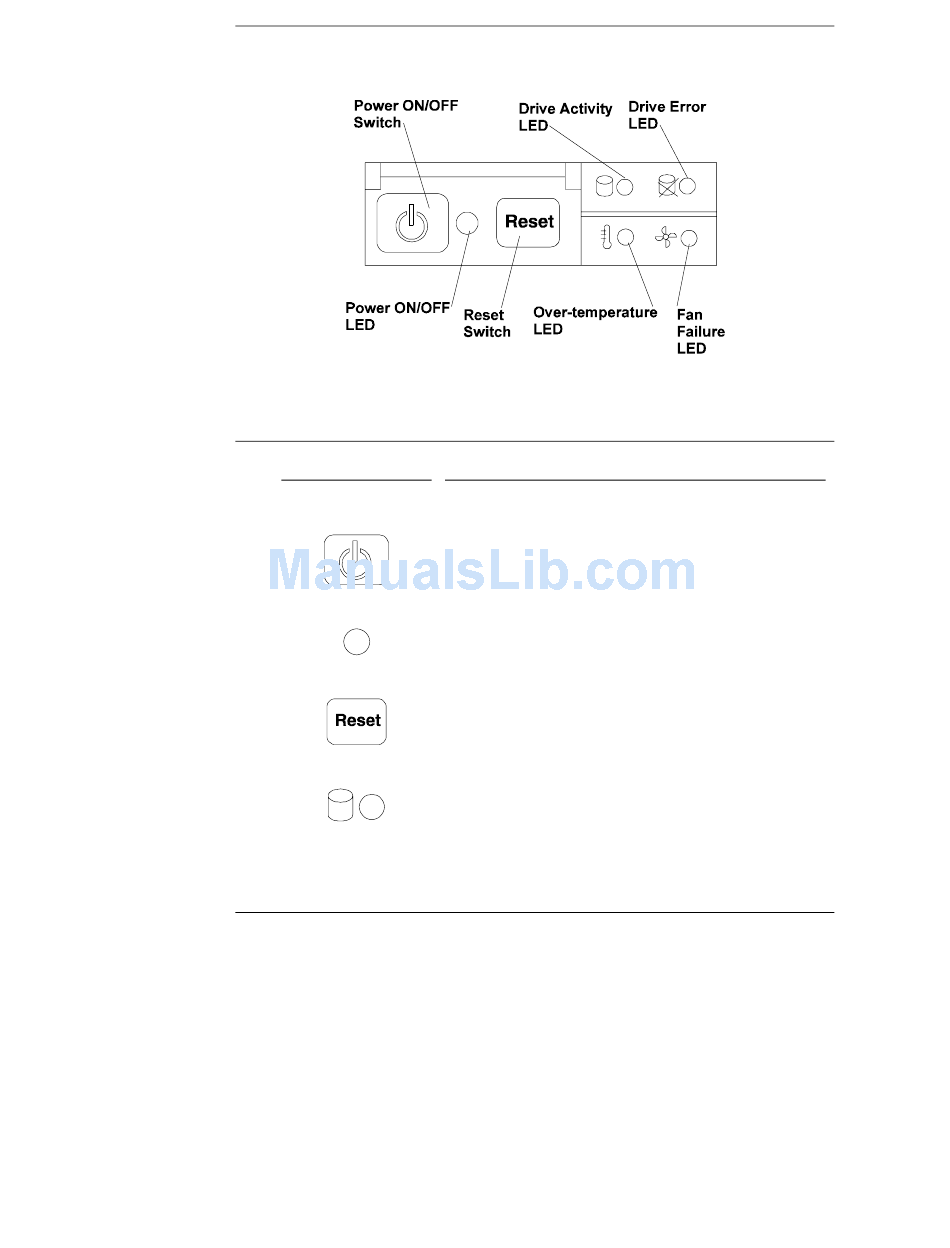

Figure 2-2. Control Panel
Description / Definition
Momentary switch. When pressed, moves power
status back and forth between System Power and
Standby Power. System Power allows full system
operation; Standby Power enables remote system
monitoring only.
Green when System Power on. If this LED does
not come on, the system is not getting adequate
power or the power supply is malfunctioning.
Momentary switch. When pressed, creates hard
system reset. This is equivalent to a power-on
reset.
LED goes on (green) to indicate access over the
LPr's embedded SCSI bus. This includes access to
both internal and external drives.
