Chapter 2

PCI LEDs

All ten PCI slots can be individually powered down through the respective NOS
supported Hot Plug utility, without powering down the entire HP NetServer, if the
board has a Hot Plug compliant driver. All ten PCI slots have two LEDs for each
slot; one amber and one green. Table 2-4 interprets the LEDs. The LEDs are
visible from the rear (also inside) of the HP NetServer, as shown in Figure 2-8.
PCI LED Indicators
Table 2-4. PCI LED Status (viewed from rear)
Amber Green
LED LED
Off On
On On
On Off
Off Off
For more information on PCI Hot Plug boards, see the topic "PCI Hot Plug
Boards" in Chapter 6, "Installing Additional Boards."
Attention
(Amber)

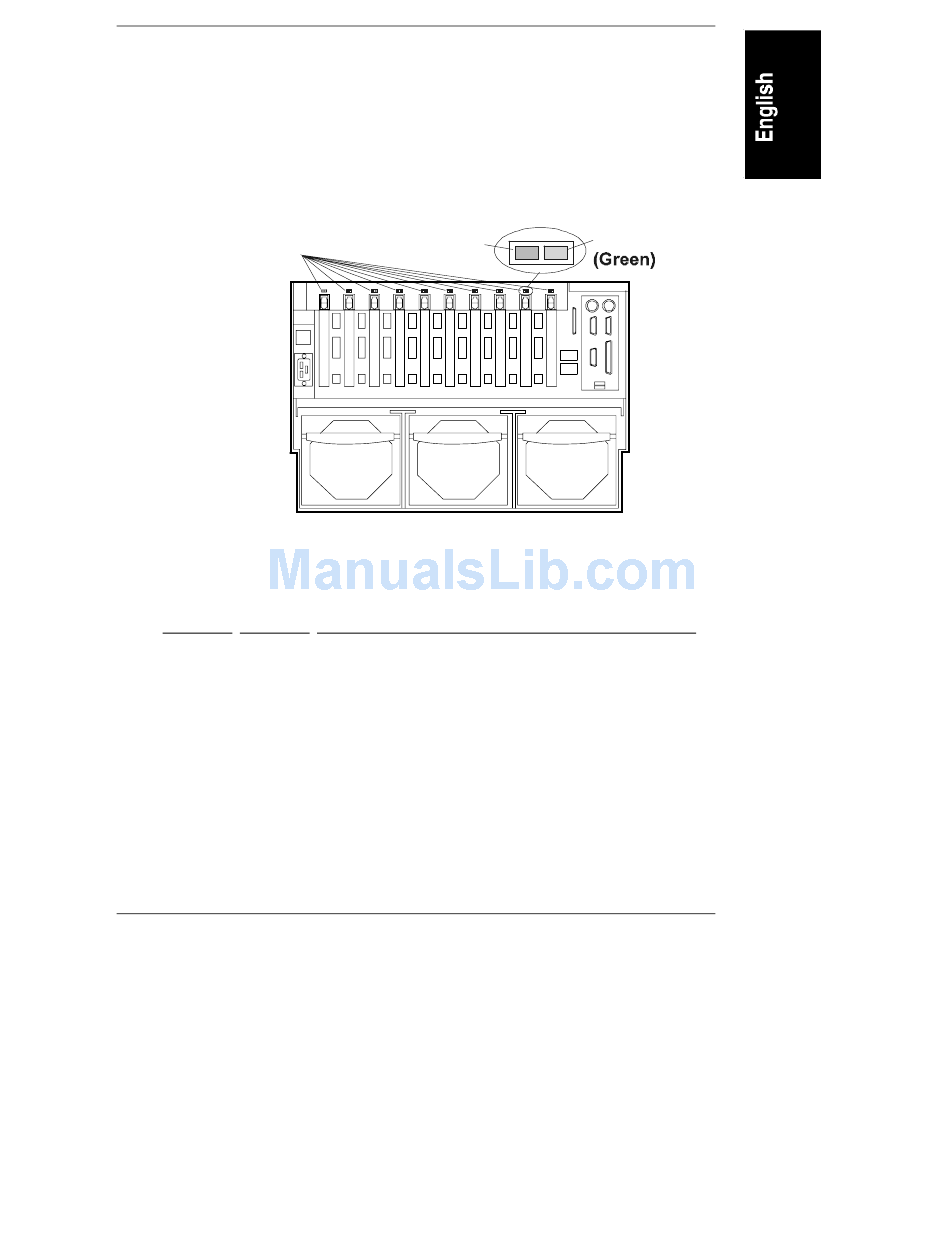

Figure 2-8. PCI LEDs on the Rear Panel
Status Indicated
Power to the slot is on, and the slot is operating
normally. Do not remove the board from the slot.
Power to the slot is on, but the slot needs attention. Do
not remove the board from the slot.
Power to the slot is off, and the slot needs attention.
You can safely remove the board from this slot.
Power to the slot is off. You can safely remove the
board from this slot.
Controls, Indicators, and Ports
Power
13
