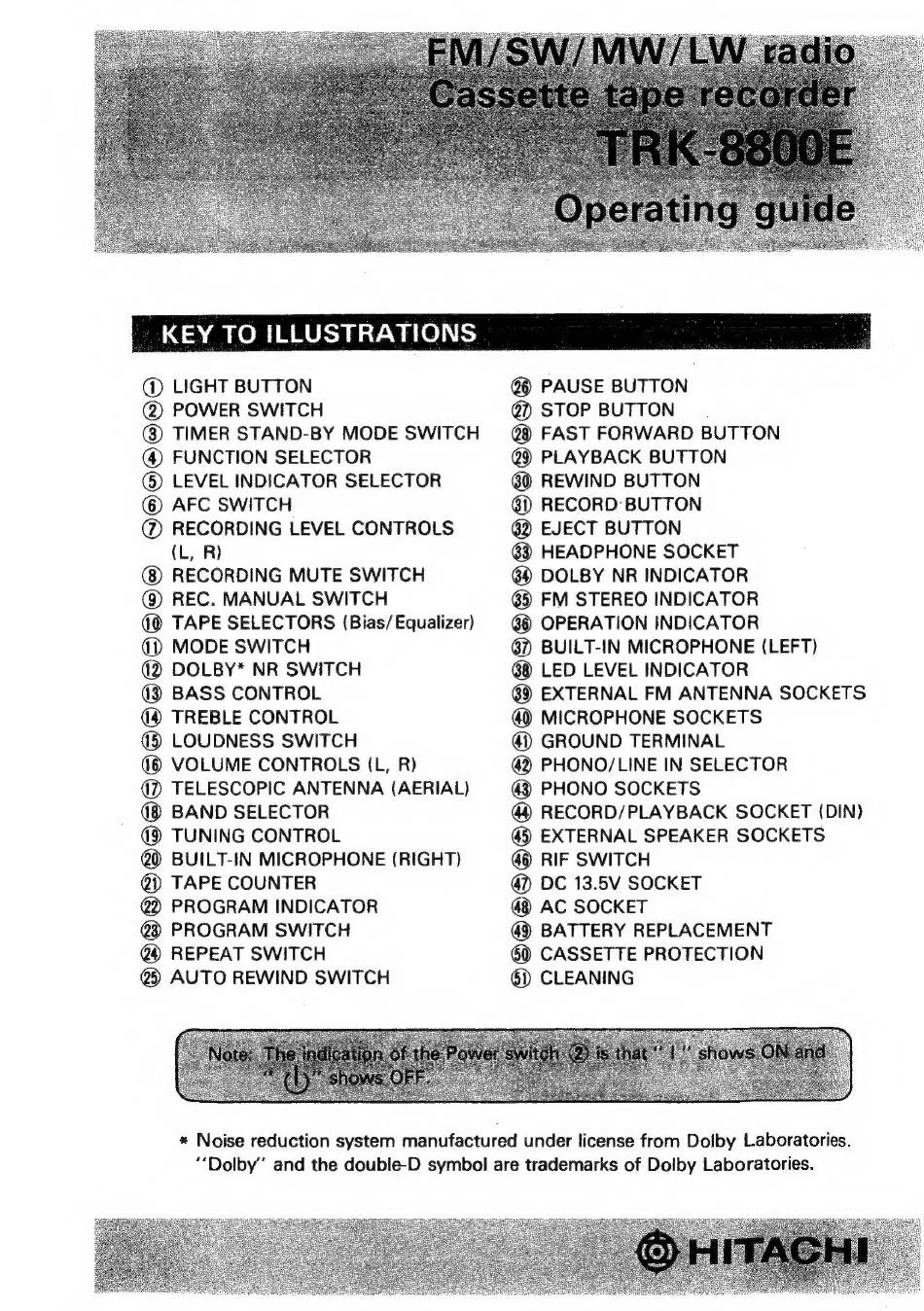

Hitachi TRK-8800E Operating Manual

STRATIONS
@ LIGHT BUTTON
@) POWER SWITCH
@) TIMER STAND-BY MODE SWITCH
@ FUNCTION SELECTOR
() LEVEL INDICATOR SELECTOR
© AFC SWITCH
@ RECORDING LEVEL CONTROLS
(L, R)
RECORDING MUTE SWITCH
@® REC. MANUAL SWITCH
@® TAPE SELECTORS (Bias/ Equalizer)
(@ MODE SWITCH
(2 DOLBY* NR SWITCH
@3 BASS CONTROL
TREBLE CONTROL
43) LOUDNESS SWITCH
(® VOLUME CONTROLS (L, R)
@ TELESCOPIC ANTENNA (AERIAL)
(3 BAND SELECTOR
TUNING CONTROL
@ BUILT-IN MICROPHONE (RIGHT)
@) TAPE COUNTER
@ PROGRAM INDICATOR
@ PROGRAM SWITCH
@ REPEAT SWITCH
@) AUTO REWIND SWITCH
@§ PAUSE BUTTON
@) STOP BUTTON"
@8) FAST FORWARD BUTTON
@) PLAYBACK BUTTON
@) REWIND BUTTON
@i) RECORD: BUTTON
@) EJECT BUTTON
63) HEADPHONE SOCKET
@) DOLBY NR INDICATOR
@5) FM STEREO INDICATOR
@§ OPERATION INDICATOR
6?) BUILT-IN MICROPHONE (LEFT)
@8 LED LEVEL INDICATOR
@) EXTERNAL FM ANTENNA SOCKETS
@ MICROPHONE SOCKETS
@ GROUND TERMINAL
@ PHONO/LINE IN SELECTOR
@ PHONO SOCKETS
@ RECORD/PLAYBACK SOCKET (DIN)
@ EXTERNAL SPEAKER SOCKETS
@ RIF SWITCH
@ DC 13.5V SOCKET
@ AC SOCKET
@ BATTERY REPLACEMENT
6) CASSETTE PROTECTION
6) CLEANING
* Noise reduction system manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
