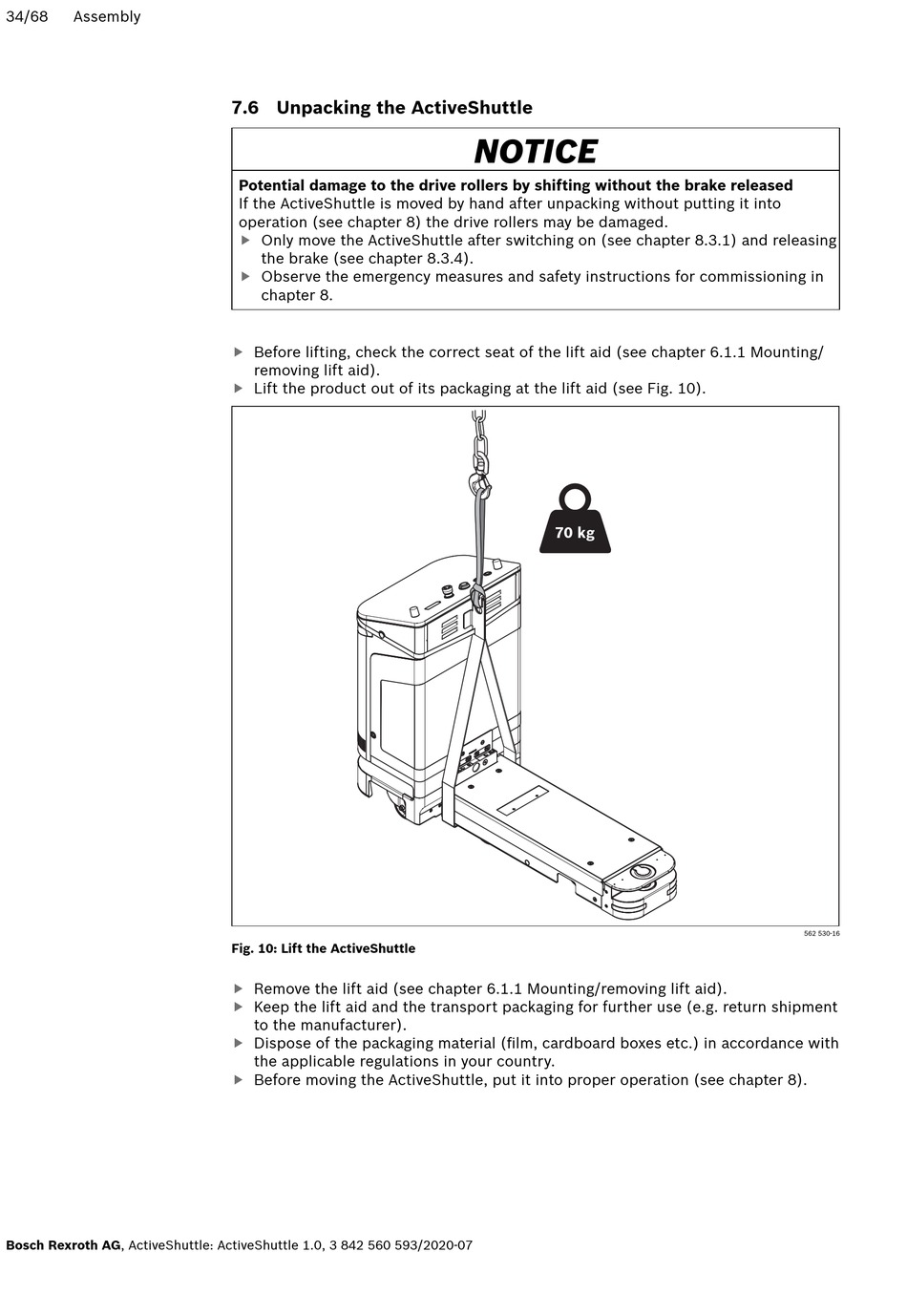

7.6 Unpacking the ActiveShuttle

Potential damage to the drive rollers by shifting without the brake released
If the ActiveShuttle is moved by hand after unpacking without putting it into
operation (see chapter 8) the drive rollers may be damaged.

Only move the ActiveShuttle after switching on (see chapter 8.3.1) and releasing
the brake (see chapter 8.3.4).

Observe the emergency measures and safety instructions for commissioning in
chapter 8.

Before lifting, check the correct seat of the lift aid (see chapter 6.1.1 Mounting/
removing lift aid).

Lift the product out of its packaging at the lift aid (see Fig. 10).
Fig. 10: Lift the ActiveShuttle

Remove the lift aid (see chapter 6.1.1 Mounting/removing lift aid).

Keep the lift aid and the transport packaging for further use (e.g. return shipment
to the manufacturer).

Dispose of the packaging material (fi lm, cardboard boxes etc.) in accordance with
the applicable regulations in your country.

Before moving the ActiveShuttle, put it into proper operation (see chapter 8).
NOTICE
70 kg
562 530-16
