Access Easy Controller
18.2

15VDC Power Supply Card for Access Easy Extension Unit

This is a simplify version of the 15V DC Input Power Supply Card for the Main Controller Unit
that was mention in the above. It utilized the same card but does not provide any 5VDC and
12VDC.
This module is not to be use for UL Listed system.

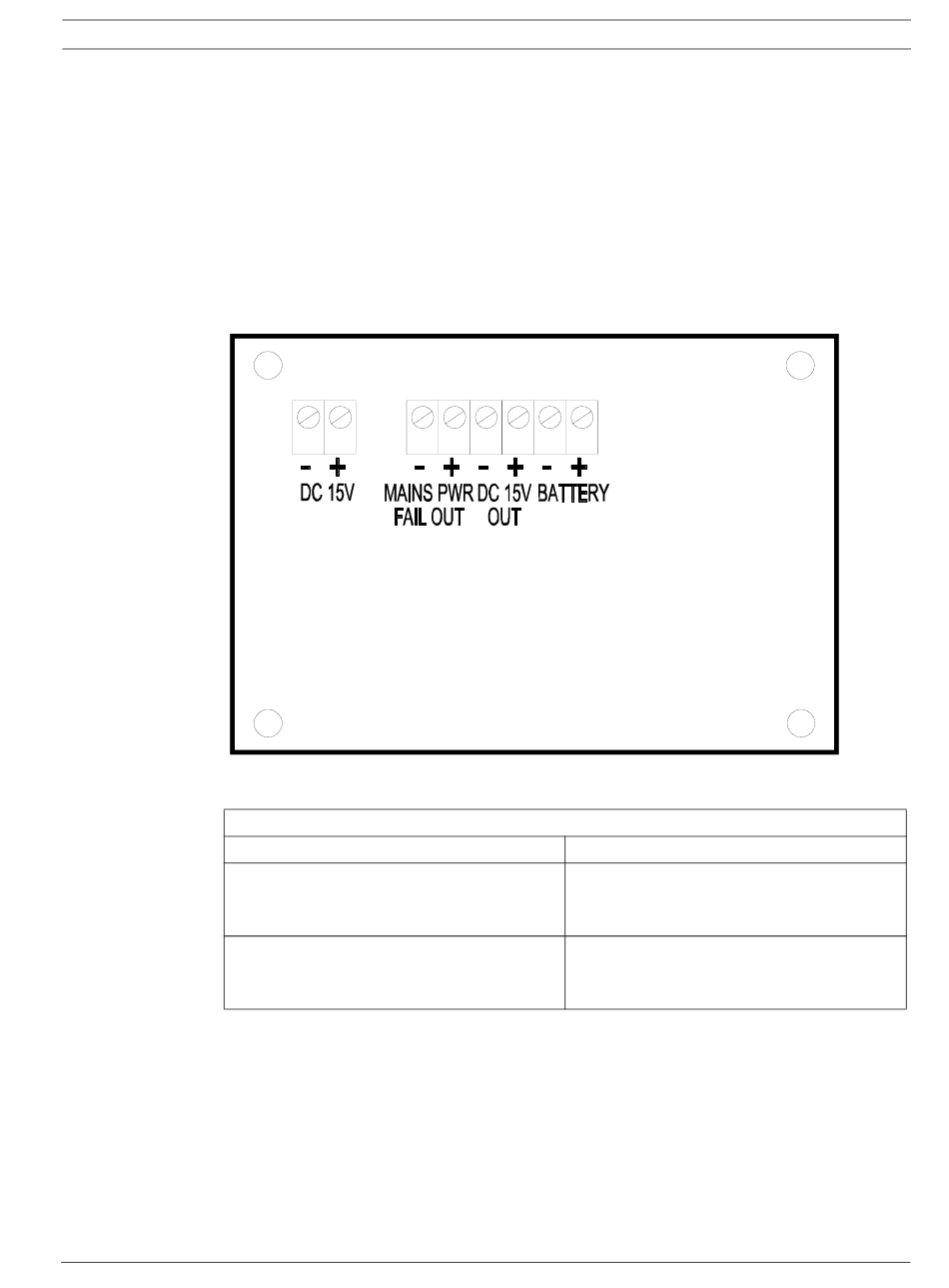

The following shows the layout of the 15V DC Input Power Supply Card used for Access Easy
Extension unit.
Specification for 15V DC Input Power Supply Card for Access Easy Extension Unit
Input Voltage
Output Voltage
Max. Output Current
Bosch Security Systems
T1 T2
2 1 6
IN
15VDC INPUT POWER SUPPLY BOARD
Hardware Manual
5 4 3 2 1
+15V DC
+15V DC
+12V DC
+5V DC
1A @ +15V DC
1A @ +12V DC
3A @ +5V DC
15V DC Input Power Supply Card | en 137
Ver 2.0.0 | 2006.07
