Profinet Io - Bosch Rexroth IndraDrive CsDrive System with HCS01 Project Planning Manual

DOK-INDRV*-HCS01******-PR05-EN-P
Rexroth IndraDrive CsDrive Systems with HCS01

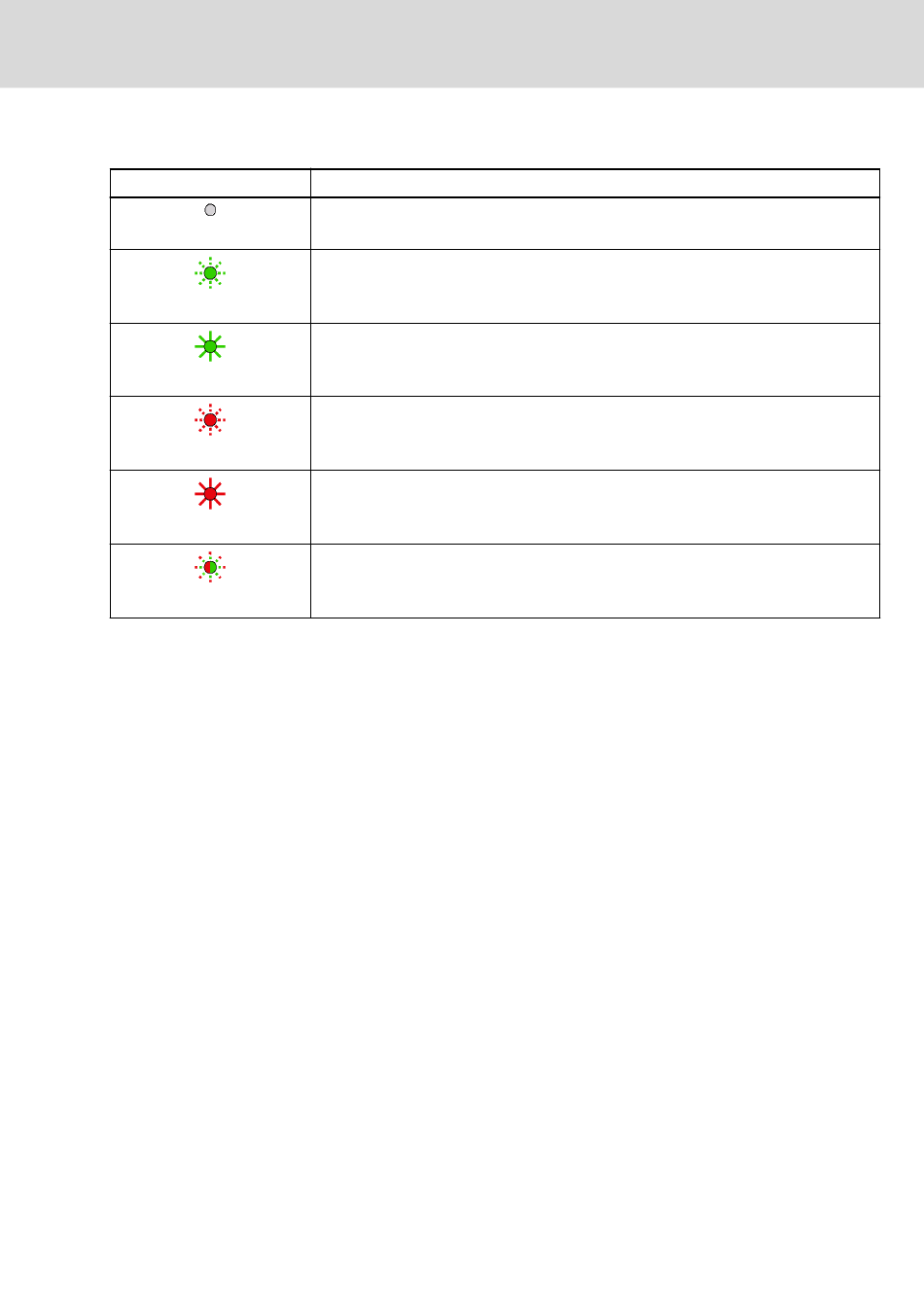

LED: Color / flashing pattern
Off
Flashing green
Permanently lit green
Flashing red
Permanently lit red
Flashing red-green

PROFINET IO

Significance
The device does not have a valid IP address or has been switched off.
The device has run up with a valid IP address, but does not have a cyclic connection.
The I/O connection has been established without error.
The existing I/O connection was unexpectedly aborted (e.g., watchdog).
The "Duplicate-IP-Adress-Check" showed that the IP address which was set already exists
in the network.
The device is running up and carries out a self test.
Tab. 7-21: Diagnostic LED
