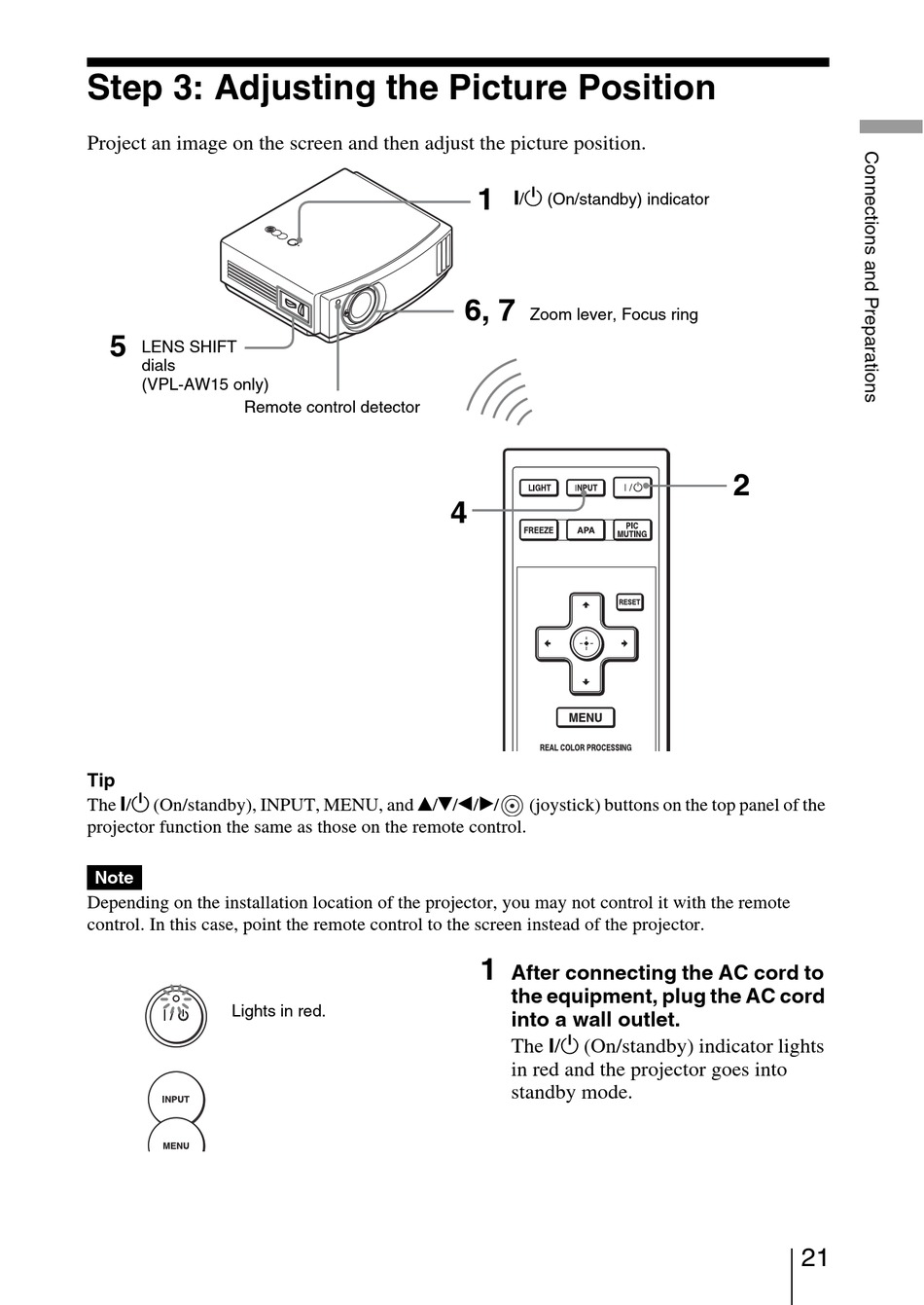

Step 3: Adjusting the Picture Position

Project an image on the screen and then adjust the picture position.
5
LENS SHIFT
dials
(VPL-AW15 only)
Remote control detector
Tip
? 1
The / (On/standby), INPUT, MENU, and
projector function the same as those on the remote control.
Note
Depending on the installation location of the projector, you may not control it with the remote
control. In this case, point the remote control to the screen instead of the projector.
Lights in red.
1
? 1
/ (On/standby) indicator
6, 7
Zoom lever, Focus ring
4
v V b B
/ / / / (joystick) buttons on the top panel of the
1
After connecting the AC cord to
the equipment, plug the AC cord
into a wall outlet.
The ? / 1 (On/standby) indicator lights
in red and the projector goes into
standby mode.
2
21
