DRAWOUT CASE
3.1.2

Panel Cutout

3.1.3 Case Mounting
3–2
A 745 can be mounted alone or adjacent to another 469/489/745/750/760 unit on a
standard 19" rack panel. Panel cutout dimensions for both conditions are as shown. When
planning the location of your panel cutout, ensure provision is made for the front door to
swing open without interference to or from adjacent equipment.

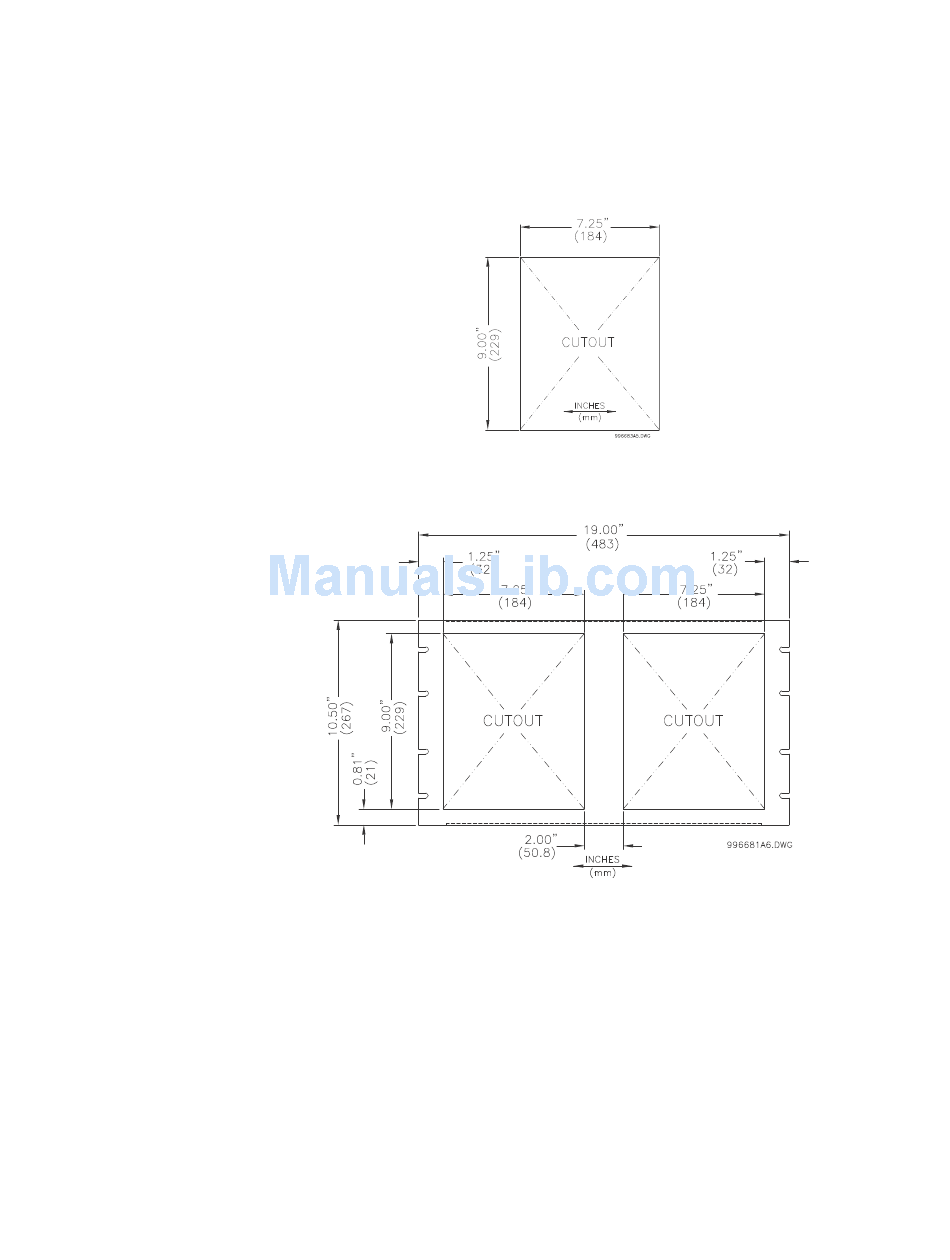

FIGURE 3–2: Single 745 relay panel cutout
FIGURE 3–3: Double 745 relay panel cutout
Before mounting the 745 unit in the supporting panel, remove the relay portion from its
case, as described in the next section. From the front of the panel, slide the empty case
into the cutout. To ensure the front bezel sits flush with the panel, apply pressure to the
bezel's front while bending the retaining tabs 90°. These tabs are located on the sides and
745 TRANSFORMER PROTECTION SYSTEM – INSTRUCTION MANUAL
CHAPTER 3: INSTALLATION
