Dominion KX II

Quick Setup Guide

Thank you for your purchase of the KX II
Mouse) switch.
This Quick Setup Guide explains how to install and configure the KX II. For additional information on any aspect of the KX II, see the
accompanying online help accessed from the KX II or the KX II help in PDF format, which can be downloaded from the Firmware and
Documentation section of Raritan's website (http://www.raritan.com/support/firmware-and-documentation/).
To ensure you have the most current documentation for KX II, Raritan recommends using online help or the PDF versions of the
guides that are available on our website as your primary resources

Package Contents

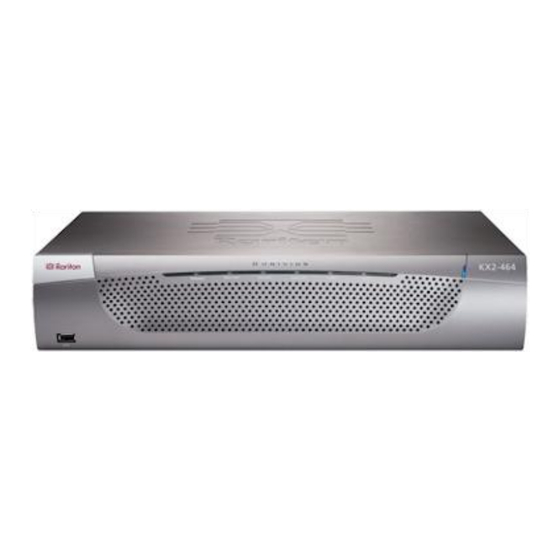

Each KX II ships as a fully-configured stand-alone product in a
standard 1U (2U for DKX2-864) 19" rackmount chassis. Each
KX II device ships with the following contents:
Amount Item
included
1 KX II device
1 KX II Quick Setup Guide
1 Rackmount kit
2 AC power cords
2 Cat5 network cable
1 Cat5 network crossover cable
1 Set of 4 rubber feet (for desktop use)
1 Application note
1 Warranty card
QS R ule
In Raritan products which require Rack Mounting, please
follow these precautions:

Operation temperature in a closed rack environment may
be greater than room temperature. Do not exceed the
rated maximum ambient temperature of the appliances.
See Specifications.

Ensure sufficient airflow through the rack environment.
Dominion KX II Quick Setup Guide
QSG-DKX2-v2.5.0-0M-E  255-62-4022-00-RoHS
™
, the industry's most full-featured, enterprise-class, secure, digital KVM (Keyboard, Video,
.

Mount equipment in the rack carefully to avoid uneven
mechanical loading.

Connect equipment to the supply circuit carefully to avoid
overloading circuits.

Ground all equipment properly, especially supply
connections, such as power strips (other than direct
connections), to the branch circuit.
QS R ule

Rack Mounting

The KX II can be mounted in 1U (1.75", 4.4 cm) of vertical
space in a standard 19" equipment rack.

Forward Mount

Note: The Raritan device used in the diagrams shown here
are for example purposes only, and may not be a picture of
the KX II device. However, the mounting instructions are
consistent.
The steps correspond to the numbers shown in the front
rackmount diagrams.
1. Secure the cable-support bar to the back end of the side
brackets using two of the included screws.
2. Slide the user station or KVM switch between the side
brackets, with its rear panel facing the cable-support bar,
until its front panel is flush with the "ears" of the side
brackets.
3. Secure the user station or switch to the side brackets
using the remaining included screws (three on each side).
4. Mount the entire assembly in your rack and secure the
side brackets' ears to the rack's front rails with your own
screws, bolts, cage nuts, and so on.
1
