Makita HR2410 Parts Breakdown
1” rotary hammer v.s. sds - plus
Hide thumbs
Also See for HR2410:
- Instruction manual (20 pages) ,
- Instruction manual (49 pages) ,
- Instruction manual (44 pages)
Related Manuals for Makita HR2410
Summary of Contents for Makita HR2410

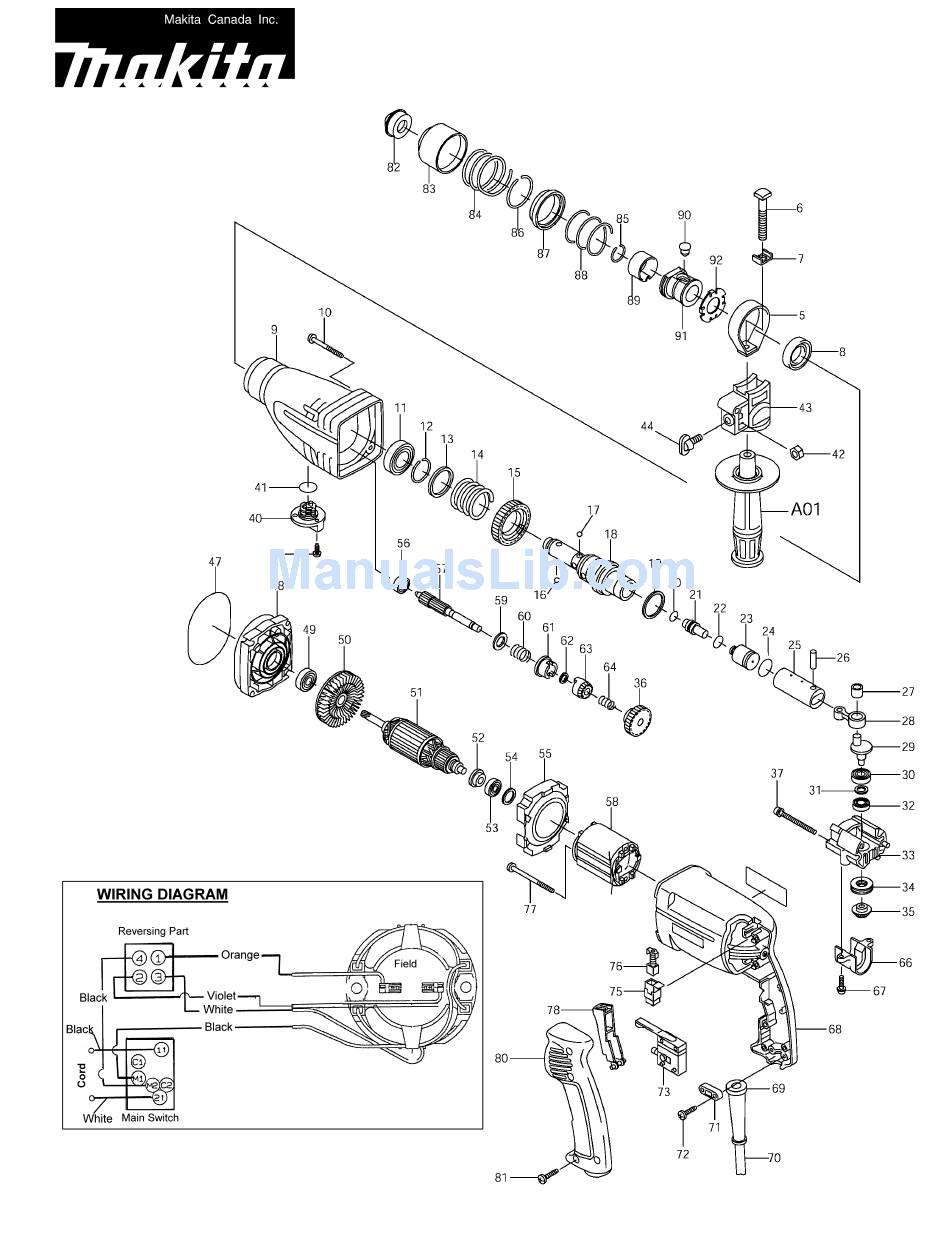

- Page 1 1” ROTARY HAMMER V.S. Model HR2410(MJ) SDS - Plus 05-2003...
- Page 2 251392-2 (+) P.H. Screw M4 152471-8 Change Lever Com. 213261-5 O Ring 17 931202-6 Hex Nut M5 415658-6 Grip Base 2 Model HR2410 Item Part Used Description 265720-5 Thumb Screw M5x14 Thin Washer 10 (Type 1) 213720-9 O Ring 67 159760-2 Inner Hsg Com.
-
Page 3: Service Note
(For Slide Chuck System] Dustless System HR2410 + A11 + A15 + A12—-> Connect to 420S SERVICE NOTE: If Chuck is assembled in the wrong way in repairing - with the hole side of Leaf Spring 26 (89) facing the Motor Housing side, the function of “Easy bit change by merely turning chuck”... - Page 4 Item No Description Dust Cup 5 Dust Cup 9 2. Change on Gear Hsg Com, Tool Holder and Slide Chuck System and Swivel-Chuck System 4 Model HR2410 Part No. 421342-3 For Bits 7/32” ~ 9/16” 421664-1 For Bits 15/32” ~ 5/8”...
- Page 5 - - - - - - - - - - - - - - - 150965-7 323822-4 323818-5 - - - - - - - - - - 286265-0 ( 286248-0) 416410-5 233203-3 231979-6 231936-4 323819-3 233234-2 232190-3 256447-8 323820-8 344690-2 5 Model HR2410...
