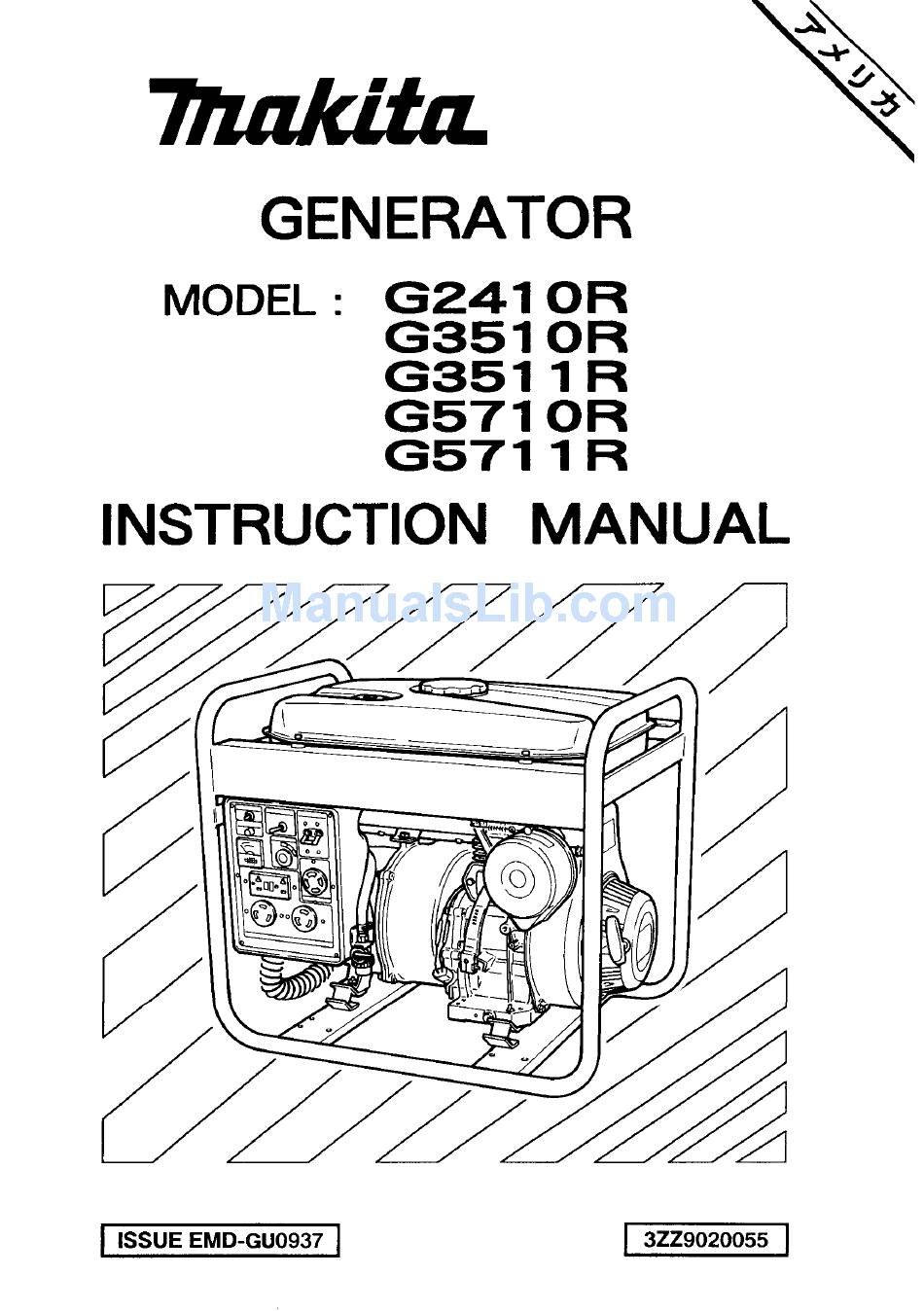

- Page 1 GENERATOR G341 O R MODEL G351 O R G3511 R G571 O R G5711 R INSTRUCTION MANUAL 3229020055 ISSUE EMD-GU0937...
- Page 2 The engine exhaust from this product contains chemicals known to the State California to cause cancer, birth defects or other reproductive harm.
- Page 3 You are responsible for presenting your utility and/or lawn and garden equipment engine to a Makita U.S.A., inc. service center as a problem exists. The warranty repairs should be completed in a reasonable time, not to exceed If you have any questions regarding your warranty rights and responsibilities, you should contact a Makita Factory Service Center Manager nearest you.
- Page 4 Makita U.S.A., Inc., a distributor of utility and lawn and garden equipment in the U.S., warrants to the owner of 1995 and later utility andlor lawn and garden equipment engines that the engine( 1) has been designed, built, and equipped at the time of manufacture so as...
- Page 5 When an engine is being serviced under warranty, Makita U.S.A., Inc. and any of its authorized dealers, distributors, or warranty stations shall not be liable for any loss of use of the engine, for any damage to goods, or loss of time or inconvenience.
- Page 6 REPAIR AND REPLACEMENT OF EMISSION-RELATED PARTS It is recommended that only engine replacement parts which have been authorized and approved by Makita U.S.A., Inc. should be used in the performance of any warranty maintenance or repairs of emission- related parts. These replacement parts will be provided at no charge if the part is still under warranty.
- Page 7 Thank you for purchasing a Robin generator. This manual covers operation and maintenance of the Robin generators. All information in this publication is based on the latest production information available at the time of approval for printing. Pay special attention to statements preceded by the following words: Indicates a strong possibility of severe personal injury, damage if instructions are not followed.
-
Page 8: Table Of Contents
1. SAFETY PRECAUTlONS 2. SPECIFICATIONS ..........3. -
Page 9: Safety Precautlons
1 SAFETY PRECAUTIONS A D O not operate the generator near gasoline or gaseous fuel because of the potential danger of explosion or fire. Do not fill the fuel tank with fuel while the engine is running. Do not smoke or use open flame near the fuel tank. - Page 10 If wet, wipe and dry it well before starting. Do not pour water directly over the generator, nor wash it with water. Be extremely careful that all necessary electrical grounding procedures are followed during each and every use. Failure to do so can be fatal. A D O not contact the generator to a commercial power line.
-
Page 11: Specifications
SPECIFICATIONS MODEL AC Voltage Maximum AC Output Condenser Voltage AC Breakers Full Roll Frame Displacement Maximum Electric Start Auto Idle Muffler 3imensions - x W x H I r y Weight Manufacturer reserves the right to change specifications of parts and accessories without notice. -
Page 12: Components
COMPONENTS A C Y E A K E R KE KNOB ECOIL STARTER OILSENSOR FUEL COCK AIR CLEANER FUEL GAUGE MUFFLER SPARK PLUG STOP BUTTON ELECTRIC STARTER OIL FILLER CAP OIL DRAINPULG - 4 -... -
Page 13: Pr E - 0 Perat10 N Checks
PRE-OPERATION CHECKS CHECK ENGINE OIL. Before checking or refilling oil, be sure generator is located on stable and level surface with engine stopped. Remove oil filler cap and check the engine oil level. If oil level is below the lower level line, refill with suitable oil (see table) to upper level line. - Page 14 CHECK ENGINE FUEL. Do not refuel while smoking or near open flame or other such potential fire hazards. Otherwise fire accident may occur. Check fuel level at fuel level gauge. If fuel level is low, refill with unleaded automotive gasoline. Fuel tank capacity: .
- Page 15 CHECKING COMPONENT PARTS Check following items before starting engine : Fuel leakage from fuel hose, etc. Bolts and nuts for looseness. Components for damage or breakage. Generator not resting on or against any adjacent wiring. CHECK GENERATOR SURROUNDINGS. Make sure you review each warning in order to prevent fire hazaed. Keep area clear of inflammables or other hazardous materials.
- Page 16 NOTE : The National Electrical Code (NEC) requires that all separately derived AC systems be grounded per Article 250-26. Manufacturer has added a grounding lug type terminal per Article 250-26 (a) from the noncurrent-carrying metal parts to the conductor to be grounded. Manufacturer does not supply the required grounding conductor or grounding electrode because it would be impossible to cover every exception and all local code requirements.
-
Page 17: Operating Procedures
OPERATING PROCEDURES 1. STARTING THE ENGINE ations as outlined on page 5. (a) Open the fuel cock. (b) Pull choke knob start) position. (c) Make sure that the “Auto Idle” switch is in the “OFF” position. (d) Pull the starter handle slowly until re- sistance is felt. - Page 18 Type Single Voltage Style Ampere up to up to up to up to G2410R Receptacle AC plug NEMA NEMA 5-20R 5-20P NEMA NEMA L14-20R L14-20P NEMA NEMA L5-30R L5-30P NEMA NEMA L5-20R L5-20P Description GFCl (Ground Fault Circuit Interrupter) Receptacle, duplex Locking Receptacle Locking Receptacle Locking Receptacle...
- Page 19 When the AC breaker turns off during operation, the generator has been over- loaded or the appliance is defective. Stop the generator immediately, check the appliance and/or generator for overloading or detect and have repaired as necessary by Makita factory or authorized service center. {CAUTION] The duplex 120V receptacle is protected by a GFCI (Ground Fault Circuit Interrupter).
- Page 20 If the RESET button pops out during operation, stop the generator imme- diately and call a qualified electrician to check generator and the appliances. Failure to do so may result in electric shock hazard or loss of life. Checkthe AC breaker is “ON”. If the breaker is “OFF, set the breaker “ON”.
- Page 21 Stop the generator immediately, check the appliance and/or generator for overloading detect and have necessary repairs made by Makita factory or authorized service center. (2) CONNECTING TO DOMESTIC CIRCUITS (HOUSE WIRING) All Makita generators are a neutral ungrounded type.
- Page 22 (a) When contnecting a Makita generator to a house wiring, generator output power must be taken from the 24OV-4P receptacle. (b) Install a transfer switch. A transfer switch must be installed to transfer the load from the commercial power source to the generator. This switch is necessary to prevent accidents caused by the recovery from power outage.
- Page 23 switch -_ - - - - - - - - - - - - - - - - - - - - - - - Generator 4P-Receptacle (c ) Operating the Generator. Set the full power switch to 120V/240V side. Turn the house AC breaker Start the generator and warm it up.
- Page 24 DC APPLICATION DC output capacity of generator is 12V-8.3A (1OOW). Connect positive (red) terminal on gen- erator to position (+) terminal on battery. Connect negative (black) terminal on generator to negative (-) terminal on battery. Both AC and DC output can be used at the same time if the total output is within rated output the generator.
- Page 25 3. STOPPING THE GENERATOR (a) Switch off generator’s AC breaker. (b) Turn off the power switch of the electric equipment and unplug the cord from receptacle of the generator. (c) Allow the engine about 3 minutes to cool down at no-load before stopping. (d) Push the stop button until the engine stops.
- Page 26 5. AUTO IDLE (GSlOR, G3511 R, G571OR, 6571 1 R) AUTO IDLE automatically reduces engine speed when load is OFF, and automat- ically increases engine speed to rated r.p.m. when load is ON. AUTO IDLE provides fuel economy and low noise operation at no-load running. HOW TO USE AUTO IDLE Start the engine with AUTO IDLE off.
-
Page 27: Informatl On
6. WAlTAGE INFORMATION Some appliances need a "surge" of energy when starting. This means that the amount of electrical power needed to start the appliance may exceed the amount needed maintain its use. with this generator. Electrical appliances and tools normally come with a label indicating voltage, cycles/Hz, amperage (amps) and electrical power needed to run the appliance or tool. - Page 28 VOLTAGE DROP IN ELECTRIC EXTENSION CORDS When a long electric extension cord is used to connect an appliance or tool to the generator, a certain amount of voltage drop or loss occurs in the extension cord which recuces the effective voltage available for the appliance or tool. The use of improper size or gauge of extension cords may cause unsafe or inefficient operation of your tool or appliance.
-
Page 29: Maintenance Schedule
7. MAINTENANCE SCHEDULE DAILY INSPECTION Before running the generator, check the following service items: PERIODIC MAINTENANCE Periodic maintenance is vital to safe and efficient operation of your generator. Check the table below for periodic maintenance intervals. It is also necessary for the user of this generator to conduct the maintenance and adjustments on the emission-related parts listed below to keep the emission control system effective. - Page 30 2. Change more often if used in dusty or dirty environments. 3. As to the procedures for these items, please consult your nearest Makita factory or authorized service center. 8 hours 120...
-
Page 31: How-To" Maintenance
8. "HOW-TO" MAINTENANCE 1. ENGINE OIL CHANGE Change engine oil every 50 hours. (for new engine, change oil after 20 hours.) (a) Drain oil by removing the drain plug and the oil filler cap while the engine is warm. (b) Reinstall the drain plug and fill the en- gine with oil until it reaches the upper level on the oil filler cap. - Page 32 CLEANING AND ADJUSTING SPARK PLUG the plug is contaminated with carbon, remove it using a plug cleaner or wire brush. (b) Adjust the electrode gap to 0.6 to 0.7mm (0.024”- 0.028”) G241 OR G351 NGK BR6HS G571 G5711 R 4. CLEANING FUEL STRAINER (NO SMOKING Dirt and water in the fuel are removed by the fuel strainer.
-
Page 33: 9, Preparation For Storage
9. PREPARATION FOR STORAGE The following procedures should be followed prior to storage of your generator for periods months or longer. Drain fuel from fuel tank carefully by disconnecting the fuel line. Gasoline left in the fuel tank will eventually deteriorate making engine-starting difficult. Remove the carburetor float chamber and also drain the carburetor. -
Page 34: Troubleshootlng
When generator engine fails to start after several attempts, or if no electricity is available at the output socket, check the following chart. If your generator still fails to start or generate electricity, contact your nearest Makita factory or authorized service center for further information or corrective procedures. When Engine Fails to Start Check if choke lever is in its proper position. -
Page 35: Wiring Diagram
11. WIRING DIAGRAM G2410R... - Page 36 2. G3510R - - - - N O _ - 7 - - < >...
- Page 37 3. G3511 R...
- Page 39 5. G5711...
- Page 40 Symbols AC Windina Auxiliary Winding DC Winding Field Winding Condenser Idle Control Unit Diode Stack Assv Pilot Lamp DC Output Terminal Fuse C.B. AC Breaker AC Breaker rim- AC Breaker FPSW Full Power Switch Engine Stop Switch Auto Idle Switch Oil Sensor Sensor Controller Solid State Ignition...
-
Page 41: Electric Starter (G3511Ri G5711R)
12. ELECTRIC STARTER 1. ELECTRIC STARTER (G3511 R, G5711 R) BATTERY Capacity Dimensions (Maximum) L x W x H CAUTION] Do not use a smaller battery which would be overcharged in usual operation. STARTING PROCEDURES OFF. Switch AC breaker Turn the “Auto Idle Switch” off. Open t h e fuel cock. - Page 42 TO” INSTALL BATTERY 2. “HOW - 3 4 -...
- Page 44 The tool has been abused, misused or improperly maintained; alterations have been made to the tool. Defects are due to the use of parts, accessories or attachments which are not Makita genuine products, specifically recommended for use with this tool.
